Old July 6th, 2007, 11:34 PM   #16
Major Player

Join Date: Apr 2007
Location: Louisville, KY
Posts: 691
Sean - I was lucky enough to find a bearing big enough to support my crane and worked around it.

Like the Kessler crane, there are two flat bars that support both the crane on the tripod and the camera on the arm. I simply attached the bearing to the bottom of the flat bar facing the tripod and it works great.

Try to find a scrap metal junk yard. Normally industral junk yards will have all sorts of stuff like that. But good luck finding one that will come off easy :) Bring a hammer...
Terry Lee is offline   Reply With Quote
Old July 6th, 2007, 11:36 PM   #17
Major Player

Join Date: Apr 2007
Location: Louisville, KY
Posts: 691
Andrew - That crane is pretty crazy. I would have never thought to hoist the camera operator into the air.. But I imagine that gives you several advantages in omnidirectional rotation.

Do you normally have a tripod on that platform or do they just hold the cameras?
Terry Lee is offline   Reply With Quote
Old July 8th, 2007, 04:48 AM   #18
Major Player

Join Date: Aug 2004
Location: Mystic Ct.
Posts: 477
Quote:
Originally Posted by Terry Lee View Post
Bill - i'm probably going to need something with battery power. I will be working on an archaeological site in an area where an outlet will be to far away. Any recomendations on a battery powered monitor would be great. I am totaly unaware of my options at the moment as I am just getting into the whole filming thing... One wouldn't suspect so given that i've already built my own crane without first owning a camera.. My camera choice has been the XH A1 (like so many others..) simply because of the nature of my filming needs. I plan to film a documentary that includes both actor recreations and documentary style filming of archaeologists working in their respective field. I built the crane so that I could get an arial view of both temporal time frames (prehisoric life and contemporary historians).

If you or someone could give me an idea of what I will need in terms of battery powered monitor, what cables I will need to run from the camera to the monitor, sun shade...etc. I would be very appreciative.


thank you for your time.
Great posts everyone...especially the white crane :)

-Terry.
Terry,

This is the one I use it is low res I use it just for framing.
http://varizoom.com/products/monitors/vztft7.html

Another that I considered.
http://www.bhphotovideo.com/c/produc...Mountable.html

Bill
__________________
Cinematographers Bring Shadow To Light
Bill Hamell is offline   Reply With Quote
Old July 8th, 2007, 12:55 PM   #19
Major Player

Join Date: Dec 2005
Location: Motukarara, New Zealand
Posts: 475
crazy crane

Heya Terry,

Its funny that a ride-on crane would be so unthinkable. I mean, I know where you are coming from, but from a historical perspective, NOT putting the cameraman on the end of the crane is a relatively recent thing.

Te old hollywood crane had two, sometimes 3 seats on it. One for the cameraman, one for the focus puller and sometimes even one for the director. If you've seen a movie made before 1990, you've seen the results of a ride-on crane. And even since then, they still have a place. I bought my crane off a professional grip who last used it for a couple second unit shots on King Kong... go figure.

There is a center column, like a fixed "bazooka" mount that has a euroboss connector on the top. Originally that would have been connected to a 150mm bowl adapter (film rigs can be CRAZY heavy), but I had a 75mm bowl adapter machined so i could use my lowly miller ds10 head on it. Basically your seats pivot around a center column where the camera is mounted. There is something really tactile and nice about being with the camera as it moves around. You certainly have more freedom to improvise and to see shots out of the corner of your eye that you cant with a robot crane. The downside is that it takes at least 2 people to operate, ideally 3+. We've been playing around with the camerman holding a steadicam merlin. That adds even more organic control, but of course a whole nother level of complexity.

In the end, having a giant crazy crane isnt the most practical for industrial videos. (although i still use it for that.) My main goal in purchasing the crane... well, my main goal was to get the matthews dolly. The crane was almost a freebie on top of the price of the dolly, but anyways, my main goal was to do wannabe indy films. And frankly, I think wannabe indy films are more fun with a bunch of people hands on and some danger involved. hehe.

The nicest thing about a ride-on crane... inertia. once you get it going, its a big heavy balanced thing that wants to be very smooth. Its almost impossible to make a shot jerky or bouncy when you have that much weight involved. Yay physics!

cheers,
-a


Quote:
Originally Posted by Terry Lee View Post
Andrew - That crane is pretty crazy. I would have never thought to hoist the camera operator into the air.. But I imagine that gives you several advantages in omnidirectional rotation.

Do you normally have a tripod on that platform or do they just hold the cameras?
Andrew Dean is offline   Reply With Quote
Old July 8th, 2007, 04:12 PM   #20
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838

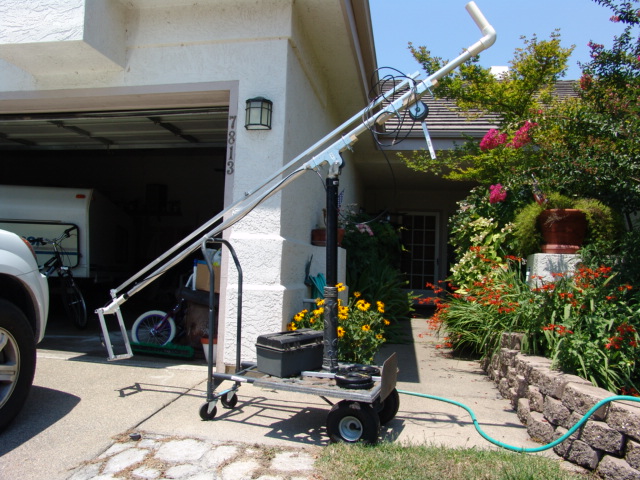

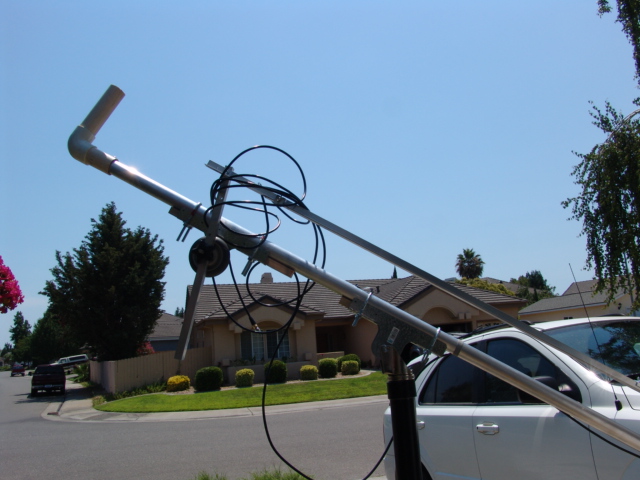

Made this Lightweight crane for my HV20

I just fashioned this light weight crane/jib that will extent about 12 to 13 feet last weekend, for use with a light camera and perhaps Letusadapter.
Uses a heavy umbrella stand as base, upright is piece of sewer pipe over an umbrella poll. On the cap at end of sewer pipe, I mount a caster swivvel from about a 5 inch caster wheel. Took the wheel out, but actually used it as a friction device for the camera up and down direction adjustment. Bought u- brackets and some hardware from Home Depot to mount the swivvel and the camera up/down adjuster.

Made boom from aluminum tubing. Everything is sitting in picture, on a standard cheap handtruck/dolly truck..
Attached Thumbnails
Post a photo of your crane!-dsc06803.jpg   Post a photo of your crane!-dsc06804.jpg

__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old July 9th, 2007, 07:01 AM   #21
Trustee

Join Date: Sep 2005
Location: Singapore
Posts: 1,498
Quote:
Originally Posted by Terry Lee View Post
Sean - I was lucky enough to find a bearing big enough to support my crane and worked around it.

Like the Kessler crane, there are two flat bars that support both the crane on the tripod and the camera on the arm. I simply attached the bearing to the bottom of the flat bar facing the tripod and it works great.

Try to find a scrap metal junk yard. Normally industral junk yards will have all sorts of stuff like that. But good luck finding one that will come off easy :) Bring a hammer...

ooh could I bother u to include a closeup photo?? I cant figure it out very well.. thanks for the help!
Sean Seah is offline   Reply With Quote
Old July 10th, 2007, 10:53 AM   #22
Major Player

Join Date: Apr 2007
Location: Louisville, KY
Posts: 691
Quote:
Originally Posted by Chris Barcellos View Post
I just fashioned this light weight crane/jib that will extent about 12 to 13 feet last weekend, for use with a light camera and perhaps Letusadapter.
Uses a heavy umbrella stand as base, upright is piece of sewer pipe over an umbrella poll. On the cap at end of sewer pipe, I mount a caster swivvel from about a 5 inch caster wheel. Took the wheel out, but actually used it as a friction device for the camera up and down direction adjustment. Bought u- brackets and some hardware from Home Depot to mount the swivvel and the camera up/down adjuster.

Made boom from aluminum tubing. Everything is sitting in picture, on a standard cheap handtruck/dolly truck..
I imagine it will be difficult to use a Letus adapter on a crane. You will have to build a support platform long enough to accomodate for the support rods holding the Letus.

I've noticed everyone has tires instead of a track. I would assume that this would make the entire crane wobbly. What are your comments?
Terry Lee is offline   Reply With Quote
Old July 10th, 2007, 10:54 AM   #23
Major Player

Join Date: Apr 2007
Location: Louisville, KY
Posts: 691
Quote:
Originally Posted by Sean Seah View Post
ooh could I bother u to include a closeup photo?? I cant figure it out very well.. thanks for the help!
As soon as I visit the people building the crane, I will take a pic of the entire crane and a close up of the bearings to post.
Terry Lee is offline   Reply With Quote
Old July 10th, 2007, 10:59 AM   #24
Major Player

Join Date: Apr 2007
Location: Louisville, KY
Posts: 691
Andrew - you are ofcorse right. Thank you for the information. I actually do not know much about film. I am just starting and have little knowledge of its history. I have been an anthropology student for 5 years with no experience with a camera other than a little home movie camera..

You said something about the crane's weight. Would it be ideal to have a heavy crane? Talking in terms of the actual crane arm itself or the track in which it is mounted to?
Terry Lee is offline   Reply With Quote
Old July 10th, 2007, 11:07 AM   #25
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Quote:
Originally Posted by Terry Lee View Post
I imagine it will be difficult to use a Letus adapter on a crane. You will have to build a support platform long enough to accomodate for the support rods holding the Letus.

I've noticed everyone has tires instead of a track. I would assume that this would make the entire crane wobbly. What are your comments?
First, I did not envision shooting while moving the crane. But I will try some tests this weekend to see what it does. My intentions was that this be for a stationary shots, and mount on dolly was only for easy of moving. That umbrella stand is very heavy.

As to Letus, I use the 35a. It can be shot without rods, though I will have no problem adding a lightweight support for it from scrap aluminum....
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old August 28th, 2007, 07:59 AM   #26
Major Player

Join Date: Dec 2005
Location: Motukarara, New Zealand
Posts: 475
heavy crane

heh. Well. Thats a bit subjective.

I think during a shot, it is ideal to have a really heavy crane and arm and track. However, all the time leading up to the start of the shot and immediately after you stop recording, you want the crane and track to be as light and small as possible. hehe.

Its all relative, really. If you have a lightweight pocket crane then you wont mind carrying up to a shoot on a 3rd floor. With my 300lb crane, you are either gonna have to come up with a ton of money or a freight elevator for me to drag it up to the top. There is probably some sweet spot between my heavyass crane and some flimsy jiggle crane where its transportable yet stable.

But again, my crane is more of a fun/hobby thing than anything else.


Quote:
Originally Posted by Terry Lee View Post
You said something about the crane's weight. Would it be ideal to have a heavy crane? Talking in terms of the actual crane arm itself or the track in which it is mounted to?
Andrew Dean is offline   Reply With Quote
Old August 28th, 2007, 01:37 PM   #27
Trustee

Join Date: Nov 2005
Location: Sauk Rapids, MN, USA
Posts: 1,675
Here's my DIY 2x2 pine crane on a skater dolly we built from the DJTV plans ( http://www.digitaljuice.com/djtv/seg...searchid=30594 ). As you can see, it's being steered with a pinky :) I stabilized the footage as it was taken with a Point and Shoot digital still cam...didn't bother zooming in to hide the black edges though:

http://www.yafiunderground.com/Video/dollycrane-sm.mov
__________________
Web Youtube Facebook
Cole McDonald is offline   Reply With Quote
Old August 28th, 2007, 01:47 PM   #28
Trustee

Join Date: Nov 2005
Location: Sauk Rapids, MN, USA
Posts: 1,675
Here's a video of how the crane was put together...I've since replaced the tripod with an old samson tripod and a lazy susan bearing:

http://www.yafiunderground.com/Video/BTS_Crane.mp4
__________________
Web Youtube Facebook
Cole McDonald is offline   Reply With Quote
Old September 16th, 2007, 07:16 PM   #30
Regular Crew

Join Date: Jun 2007
Location: Claremore, Oklahoma
Posts: 131
How much was everything including taxes?

nearsightedproductions.com
Joseph Hutson is offline   Reply
