Old September 2nd, 2007, 02:27 PM   #16
Major Player

Join Date: Dec 2005
Location: Los Angeles
Posts: 663

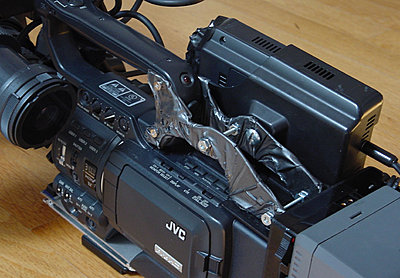

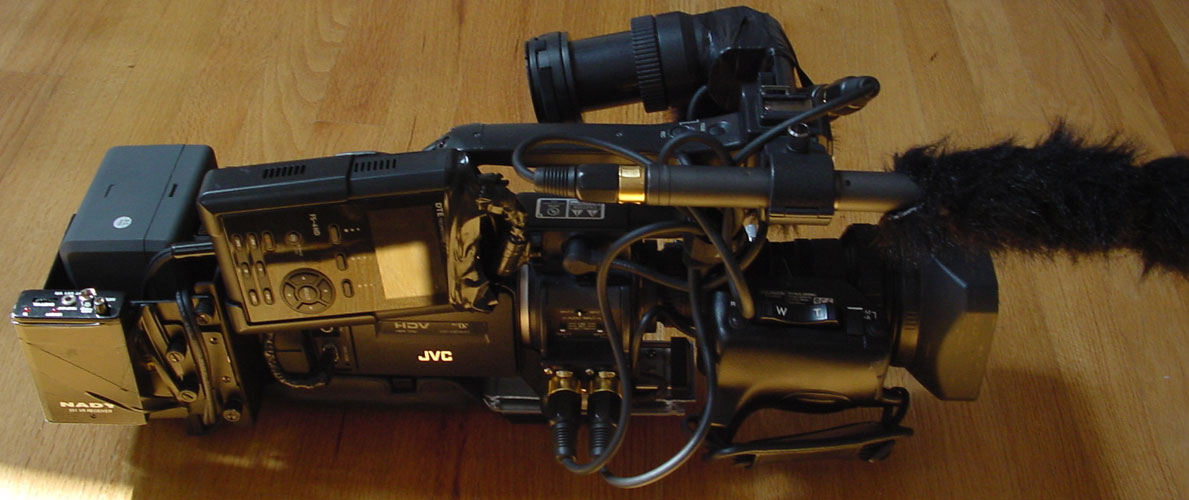

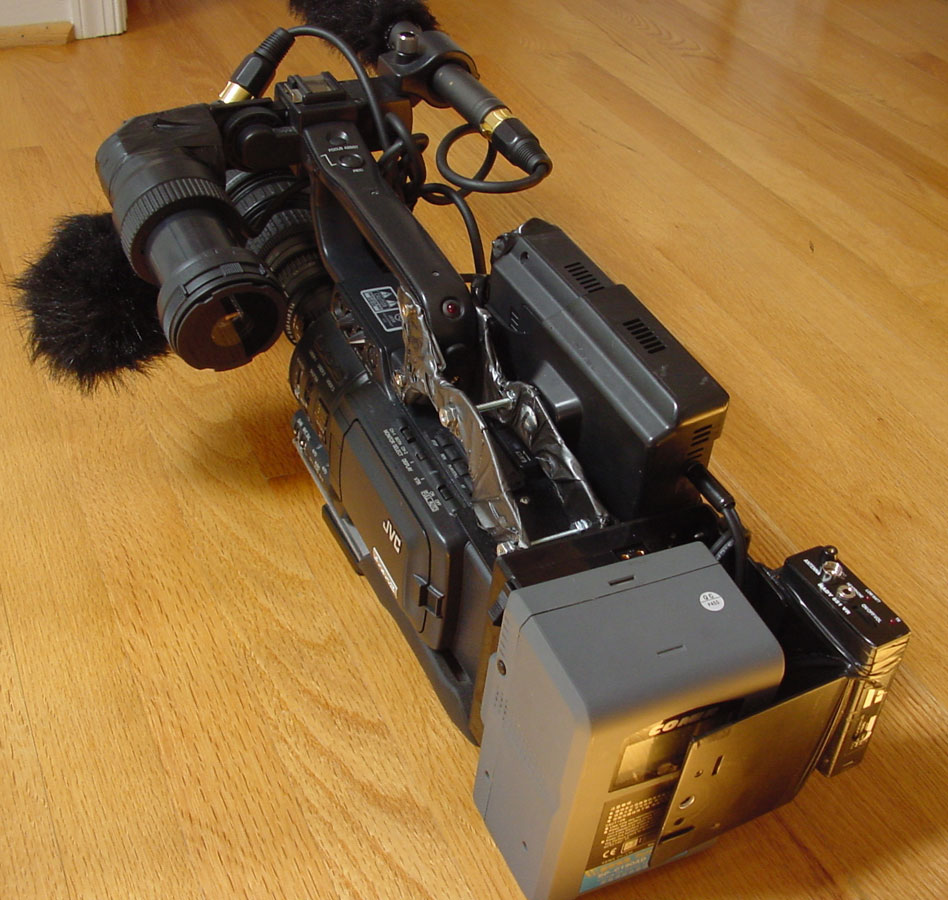

I have the AB mount as well, but I found it threw off the balance of the camera more than I wanted, so I got out the power tools and made a new one. Also, I needed something a little more rigid for flying on a sled. This one is made out of aluminum, bolts in three places, and works very well, though it's not as pretty.
Attached Thumbnails
How are you mounting your FS-4 HD?-jvcmount0.jpg   How are you mounting your FS-4 HD?-jvcmount1.jpg

How are you mounting your FS-4 HD?-jvcmount2.jpg
__________________
software engineer
Jad Meouchy is offline   Reply With Quote
Old September 2nd, 2007, 03:24 PM   #17
Major Player

Join Date: May 2006
Location: Washington, D.C.
Posts: 392
awesome! battle damage!
Alan Ortiz is offline   Reply With Quote
Old September 2nd, 2007, 07:05 PM   #18
Major Player

Join Date: May 2005
Location: Creswell Oregon
Posts: 380
I just got a couple drywall brakets from my local hardware store, used the screw holes on the side of the IDX battery plate to mount them to my camera, then mounted the firestore to that.... total cost less than $10.
__________________
My Website - www.nweventvideo.com
Adam Grunseth is offline   Reply With Quote
Old September 2nd, 2007, 08:12 PM   #19
Regular Crew

Join Date: Jul 2007
Location: Mount Pearl, NL, Canada
Posts: 69
Velcro on the back of my AB Dionic 90 :P

Works a treat and is cheap!

Julian
Julian Maytum is offline   Reply With Quote
Old September 3rd, 2007, 10:05 PM   #20
Regular Crew

Join Date: Feb 2006
Location: St. Paul, MN
Posts: 31
I use this:

http://www.bhphotovideo.com/c/produc...nting_Arm.html

It's a fully articulate arm that allows you to place it on the top (and favor the front or back) or side of the camera. Since I use different batteries, lights, lenses, etc. I can reposition the DR-HD100 to get the proper balance. It mounts in the screw hole on the top handle of the 250's. Not sure if the other cameras have this mount.
Nick Kesler is offline   Reply With Quote
Old September 4th, 2007, 03:28 PM   #21
Anton/Bauer

Join Date: May 2006
Location: Shelton, CT
Posts: 35
Pictures of the new A/B Hard Drive Mount

Hope this worked

Scott Keyworth
Scott Keyworth is offline   Reply With Quote
Old September 4th, 2007, 03:29 PM   #22
Major Player

Join Date: Aug 2003
Location: Conway, NH
Posts: 574
Quote:
Originally Posted by Adam Grunseth View Post
I just got a couple drywall brakets from my local hardware store, used the screw holes on the side of the IDX battery plate to mount them to my camera, then mounted the firestore to that.... total cost less than $10.
Any chance you could post some images of this?
Bill Edmunds is offline   Reply With Quote
Old September 4th, 2007, 03:41 PM   #23
Anton/Bauer

Join Date: May 2006
Location: Shelton, CT
Posts: 35
Sorry could only get the Press release to up load.

Scott Keyworth
Attached Files
File Type: pdf PR_4HDMPA.pdf (331.8 KB, 523 views)
Scott Keyworth is offline   Reply With Quote
Old September 7th, 2007, 02:54 AM   #24
Regular Crew

Join Date: Jul 2007
Location: Mount Pearl, NL, Canada
Posts: 69
Quote:
Originally Posted by Scott Keyworth View Post
Sorry could only get the Press release to up load.

Scott Keyworth
I don`t see this on the AB web site Scott.. is it available yet as I would like to get it!

Julian
Julian Maytum is offline   Reply With Quote
Old September 7th, 2007, 08:02 AM   #25
Anton/Bauer

Join Date: May 2006
Location: Shelton, CT
Posts: 35
Julian, Yes it is available. Call me at the office. 203.929.1100

Scott Keyworth
Scott Keyworth is offline   Reply With Quote
Old September 16th, 2007, 11:33 PM   #26
Major Player

Join Date: Feb 2006
Location: Orange County
Posts: 296
I built my own that mounts right behind the IDX battery. I didn't like the side mount and wanted something that sat behind the battery, so I just made my own.
__________________
Heath Vinyard
www.ghostlandmedia.com
Heath Vinyard is offline   Reply With Quote
Old September 17th, 2007, 12:22 AM   #27
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Idx

Hi HEATH
Can you post a picture of mount you built.
I 'm using a IDX side mount
thanks
Joe
Joseph A. Benoit is offline   Reply With Quote
Old September 20th, 2007, 01:14 PM   #28
Major Player

Join Date: Feb 2006
Location: Orange County
Posts: 296
Quote:
Originally Posted by Joseph A. Benoit View Post
Hi HEATH
Can you post a picture of mount you built.
I 'm using a IDX side mount
thanks
Joe

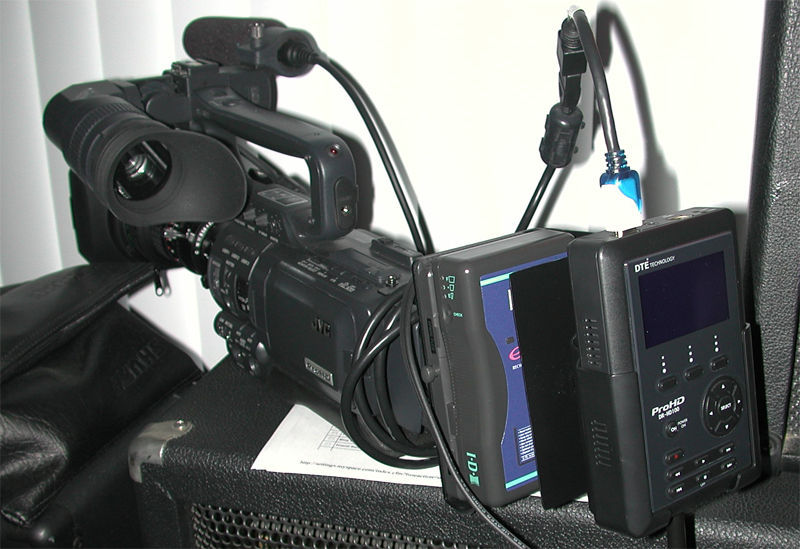

Sorry this took so long.
Attached Thumbnails
How are you mounting your FS-4 HD?-bracket-1.jpg
__________________
Heath Vinyard
www.ghostlandmedia.com
Heath Vinyard is offline   Reply With Quote
Old November 12th, 2007, 04:16 PM   #29
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
with the idx mount is it a d-tap connector and if so how long is the lead?
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old November 12th, 2007, 04:52 PM   #30
Inner Circle

Join Date: Dec 2005
Location: New York City
Posts: 2,615
Realizing that this is a discussion of how to mount the FS4 to the camera, however it might be informative to add my simple tripod mounting technique.

I take a large locking cable tie, loosely wrap it around the base of the tripod head and lock it loose. Now I have a convenient place to hang the FS4 with it's belt clip. The firewire is dangling but it's workable for most situations.
__________________
William Hohauser - New York City
Edit/Camera/DCP production/Animation
William Hohauser is offline   Reply
