Old November 13th, 2007, 11:46 PM   #1
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Ntg-1

I got my NTG-1 mic today
hook it up to my 110
I'm getting alot of hum noise. Do you use flat response or High pass filter
or is hum camera noise
i got the volume wheels set at 5
Thanks
Joe
Joseph A. Benoit is offline   Reply With Quote
Old November 14th, 2007, 04:57 AM   #2
Major Player

Join Date: Nov 2005
Location: Belgium
Posts: 695
Is your Phantom Suppy turned on. You Mic may need the 48V to operate properly.
Marc Colemont is offline   Reply With Quote
Old November 14th, 2007, 11:33 AM   #3
Trustee

Join Date: Apr 2005
Location: Santa Cruz, CA
Posts: 1,116
Also check the monitor level, too high can generate quite a bit of noise
__________________
Paolo http://www.paolociccone.com
Demo Reel
Paolo Ciccone is offline   Reply With Quote
Old November 14th, 2007, 12:44 PM   #4
Major Player

Join Date: Sep 2006
Location: London, England
Posts: 969
Also, check your record levels and make sure the air con is off!
__________________
Writer-Director-DOP
www.liamhall.net
Liam Hall is offline   Reply With Quote
Old November 14th, 2007, 10:49 PM   #5
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello
I found out what is causing the hum, its not a hum
the mic picks a vibration from the Dr 100 or could be the drive running in the dr100
the mic is great the sound is rich and full
I guess i'll have buy a Rodes SM5 mic holder
because as soon as you unscrew the 110 mic holder the noise goes away
If you have any better ideas please me know

thanks
Joe
Joseph A. Benoit is offline   Reply With Quote
Old November 15th, 2007, 02:41 PM   #6
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello
i called Rodes today
the Sm5 is for a boompole only
the shaft on the SM5 is not long enough to mount to the camera mic mount
if i was shooting just tape it would be fine
so be it. have to find another way

thanks
Joe
Joseph A. Benoit is offline   Reply With Quote
Old November 16th, 2007, 08:45 AM   #7
Major Player

Join Date: Dec 2006
Location: New York, NY
Posts: 460
there are quite a few effective isolating microphone holders that could screw into the 1/4" thread hole on top of the handle. With some intermediate hardware, the front light shoe could also be an option. It will be bulkier and more delicate that the standard rig - which I'm surprised isn't more readily removable/replaceable.

You might try sandwiching in extra insulation there, and also looking at the mount rig for the DR-HD100 - what type of bracket are you using?

On camera mics are a compromise, but sometimes a necessary one.
__________________
Sean Adair - NYC - www.adairproductions.com
JVC GY-HM-700 with 17x5 lens, MacPro 3.2ghz 8-core, 18gb. (JVC HD200 4 sale soon)
Sean Adair is offline   Reply With Quote
Old November 16th, 2007, 09:15 AM   #8
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello Sean
i tried sandwiching foam didn't work

Sean is there a website were i could see the diff/mic holders that i could use
on my 110

i use the IDX bracket for the Dr 100 holder

thanks
Joe
Joseph A. Benoit is offline   Reply With Quote
Old November 16th, 2007, 02:02 PM   #9
Major Player

Join Date: Mar 2007
Location: california North and South
Posts: 635
I've got the Rode fishing pose/camera mount from BH ($49) works great. I don't have a hard drive.. but zero (BIG ZERO) noise (finger, tripod, control mevoment) is transfered to the mic. the mount fits in the hot shoe... I tried the mic without the mount and yes, lots of control noises and whirling etc. so I think it will work fine. I got mine as part of a kit i think.. but I think it was about $49 just by it's self. well worth it.
Alex Humphrey is offline   Reply With Quote
Old November 18th, 2007, 12:56 PM   #10
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello
I called B&H and ordered the RODES SM5 SHOCK MOUNT

The guys from pro video dept saids it will work.
I'm hoping that it will stop the drive noise/vibration from the DR 100
I'll let you know how it works out

Changing the subject:

Have any of you that own the 110/200/250
had the little mic wire clamp in back and below the mic holder
BREAK.
I've gone though 2 of them. I BABY this Camera
its seem to me if they were made with a thicker plastic they would not break so easy
i checked the price on them from JVC $16.98 (WOW)

Just wondering
jOE
Joseph A. Benoit is offline   Reply With Quote
Old November 26th, 2007, 07:49 PM   #11
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello
got the Rodes SM5 mic holder for my ntg-1

no more hum no more noise

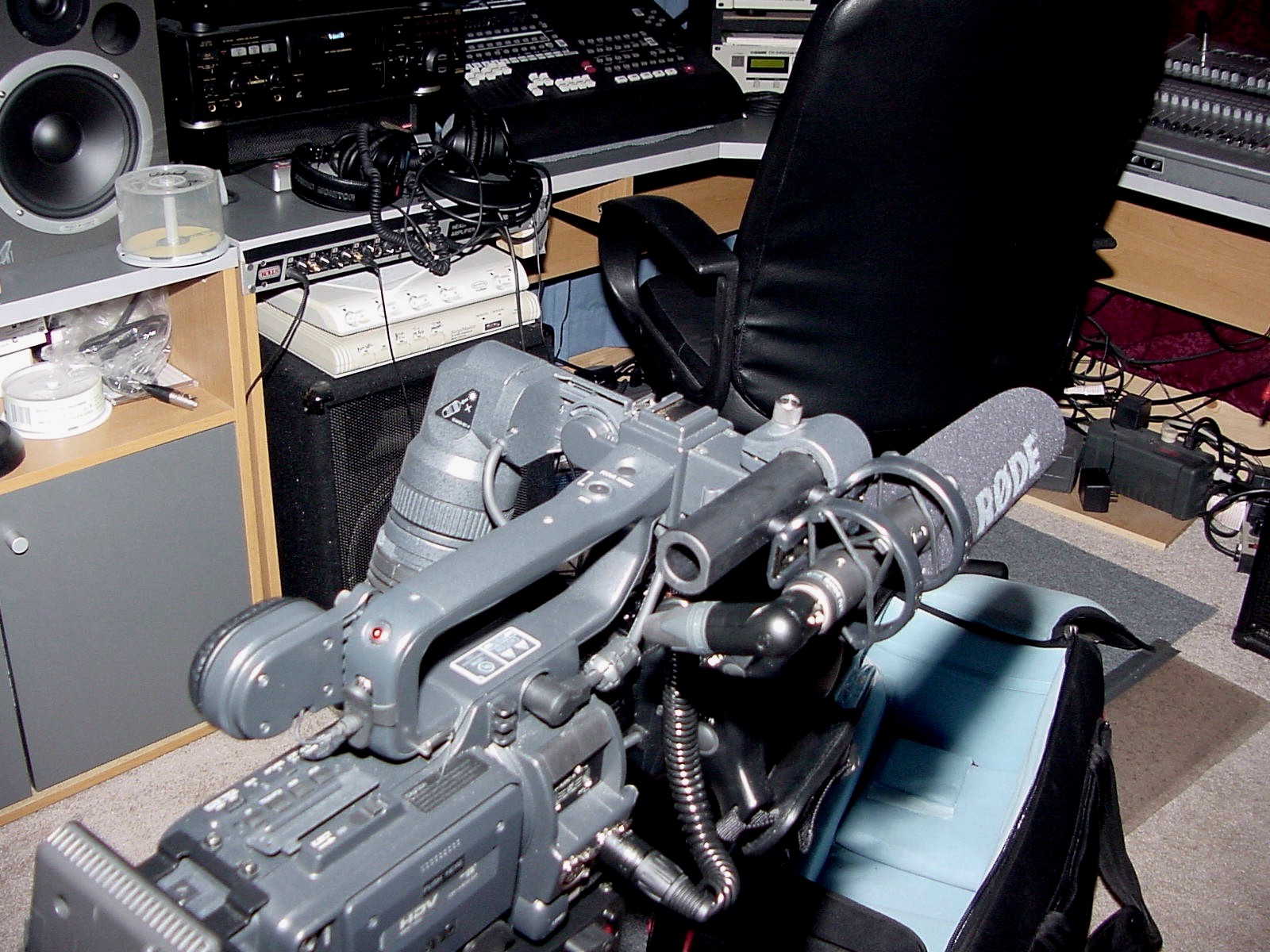

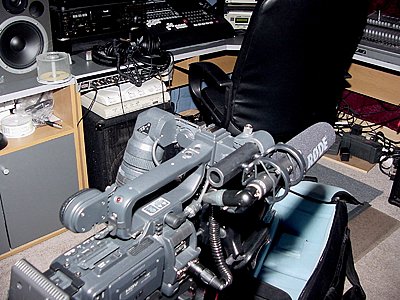

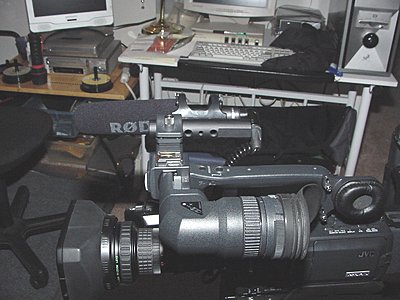

check out the pictures

Its a tight fit on the mic clamp/ holder if i could get a bigger JVC clamp i would

but it works great
THANK YOU

Joe
Attached Thumbnails
Ntg-1-mvc-003f.jpg   Ntg-1-mvc-004f.jpg


Last edited by Joseph A. Benoit; November 26th, 2007 at 09:08 PM.
Joseph A. Benoit is offline   Reply With Quote
Old November 26th, 2007, 09:10 PM   #12
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Got the rode SM5
Joseph A. Benoit is offline   Reply With Quote
Old November 26th, 2007, 09:17 PM   #13
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Ntg-1

Hello is there some reason that my NTG-1 thread is not showing up on the
JVC PRO HD ACQUISITION SYSTEM POST
Joseph A. Benoit is offline   Reply With Quote
Old November 28th, 2007, 04:32 AM   #14
Regular Crew

Join Date: Oct 2006
Location: The Hague, The Netherlands
Posts: 112
I see this post
Marc Jayson is offline   Reply With Quote
Old November 29th, 2007, 01:51 PM   #15
Major Player

Join Date: Feb 2007
Location: Coconut Creek FL
Posts: 291
Hello

iv'e change the cylindrical mount adapter on the SMD 5 suspension
its made of steel and very heavy and being that its 1.06 inchs in diameter
its was alot of strand on the mic holder/clamp
I went to home depot and got dowel 7/8 diameter same as my Rodes NTG-1
fits perfect in the mic holder line up the holes on the SMD5 suspension
mark em on the dowel and

drill the holes
I just uses the screws that came with the unit
i painted the dowel so it matches the rodes supension mic holder
what a difference , no more pressure on the jcv mic holder.

if i was just using tape no problem but with the Dr hd100
all kinds of noise

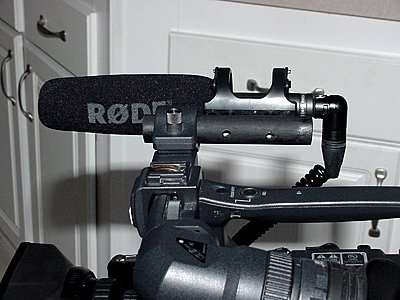

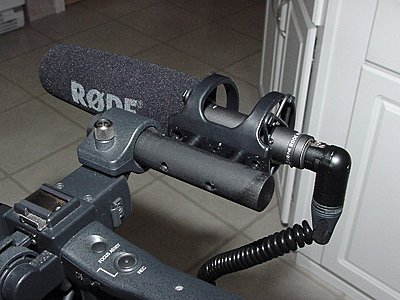

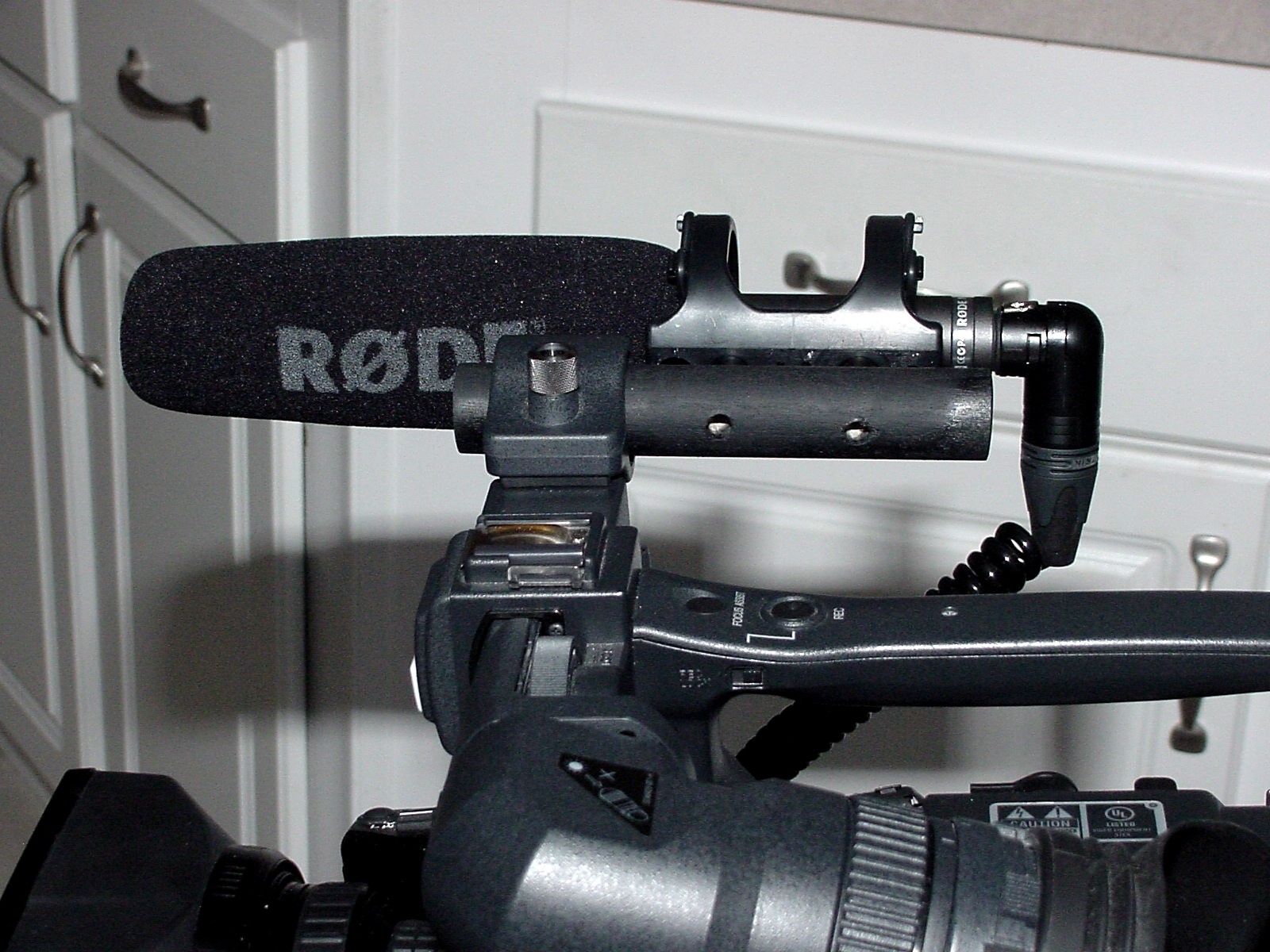

heres some pics
Joe
Attached Thumbnails
Ntg-1-mvc-001f.jpg   Ntg-1-mvc-004f.jpg

Joseph A. Benoit is offline   Reply
