Old April 1st, 2008, 08:21 PM   #1
New Boot

Join Date: Feb 2008
Location: Shaler PA
Posts: 20
HD200 has Green stripe when gain at 12db?

Last night we videotaped a court hearing and it was a bit dark. We wern't allowed to use lights so we bumped the gain up to 12db. The viewfinder looked fine, but when we looked at the tapes at the studio, there is a faint green horizontal stripe on the left side about 1/3 of the way down and half way across the screen. This only happened on the tapes that had the gain up to 12db. The one tape at 6db looks fine.

It's very faint and I'm sure the client won't notice, but it screams out at me.

Has anyone else had this happen?

Miles.
Miles Martin is offline   Reply With Quote
Old April 1st, 2008, 10:19 PM   #2
Regular Crew

Join Date: Aug 2007
Location: NSW, Australia
Posts: 64
Hmmm... is the horizontal line fixed regardless of camera movement, do you have a screen grab?

JT
James Thirston is offline   Reply With Quote
Old April 2nd, 2008, 03:51 AM   #3
Regular Crew

Join Date: Mar 2008
Location: Portland, Oregon
Posts: 89
Images: 2
It could be that you need to make a white shading adjustment for your lens. The high gain may have amplified the apperance of the color cast as well. If you see a green horizontal color cast about a 1/3rd of the way down you might want to try doing a lens shading adjustment and try your gain settings again.
__________________
HR|cinematographer
HunterHRichards.com
Hunter Richards is offline   Reply With Quote
Old April 2nd, 2008, 10:19 AM   #4
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637
Can you post a frame grab Miles?

It is either a CCD/DSP problem that may require service or as Hunter suggested white shading adjustment and it just happens to be noticeable on a line shaped object in the frame.
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old April 2nd, 2008, 11:03 AM   #5
New Boot

Join Date: Feb 2008
Location: Shaler PA
Posts: 20
Thanks for the replies.

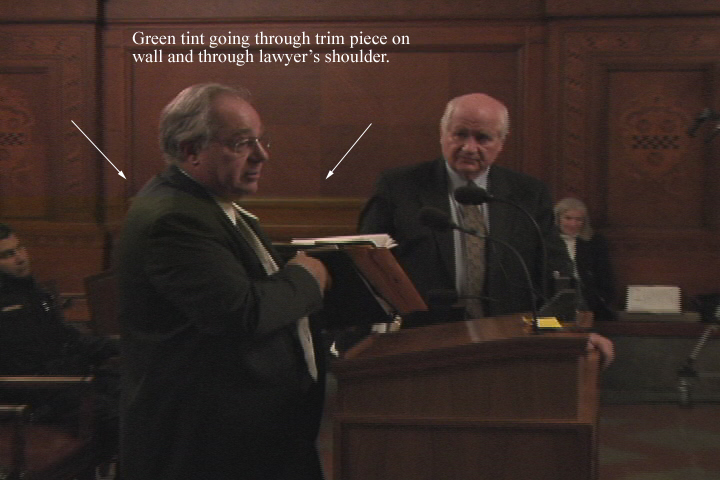

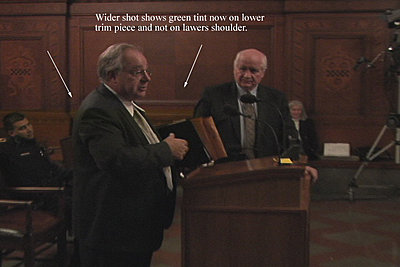

The slight green tint is fixed as seen in the two shots below.

I'm currently bogged down with a touch of the flu so I can't do any specific testing in our studio right now. I was going to simply point the camera at a white wall with the gain up to 12db and see if there's a green tint. Are there any other testings I should do?

Thanks again.
Attached Thumbnails
HD200 has Green stripe when gain at 12db?-green-stripe-1.jpg   HD200 has Green stripe when gain at 12db?-green-stripe-2.jpg

Miles Martin is offline   Reply With Quote
Old April 2nd, 2008, 01:09 PM   #6
Regular Crew

Join Date: Mar 2008
Location: Portland, Oregon
Posts: 89
Images: 2
That is very odd... ?
