GY-HD250CHU image problems

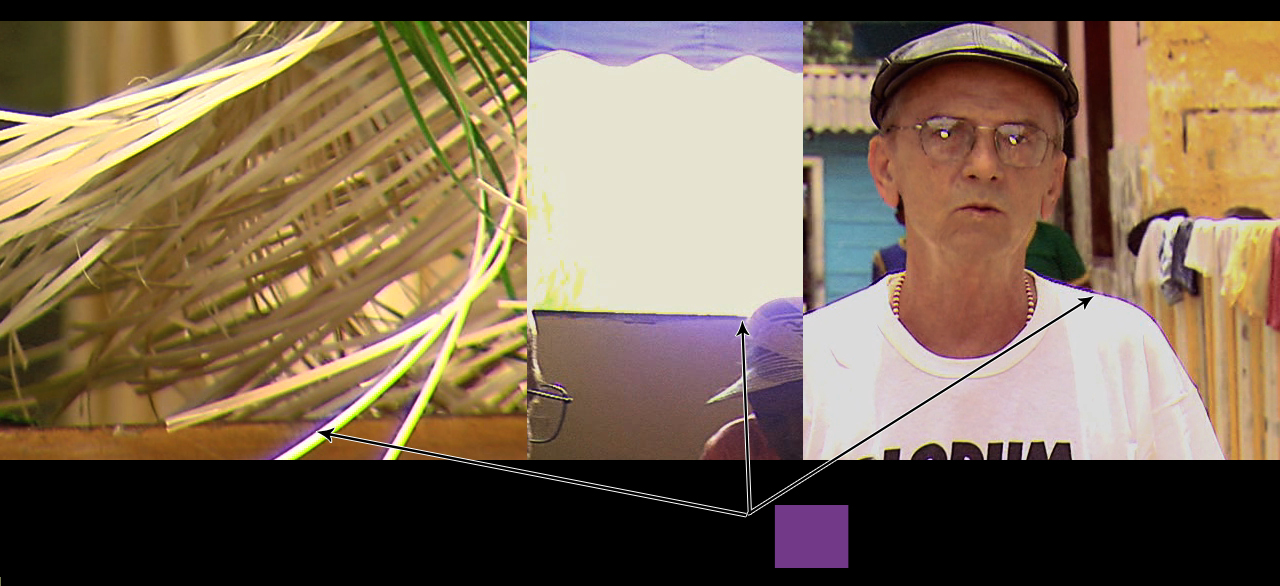

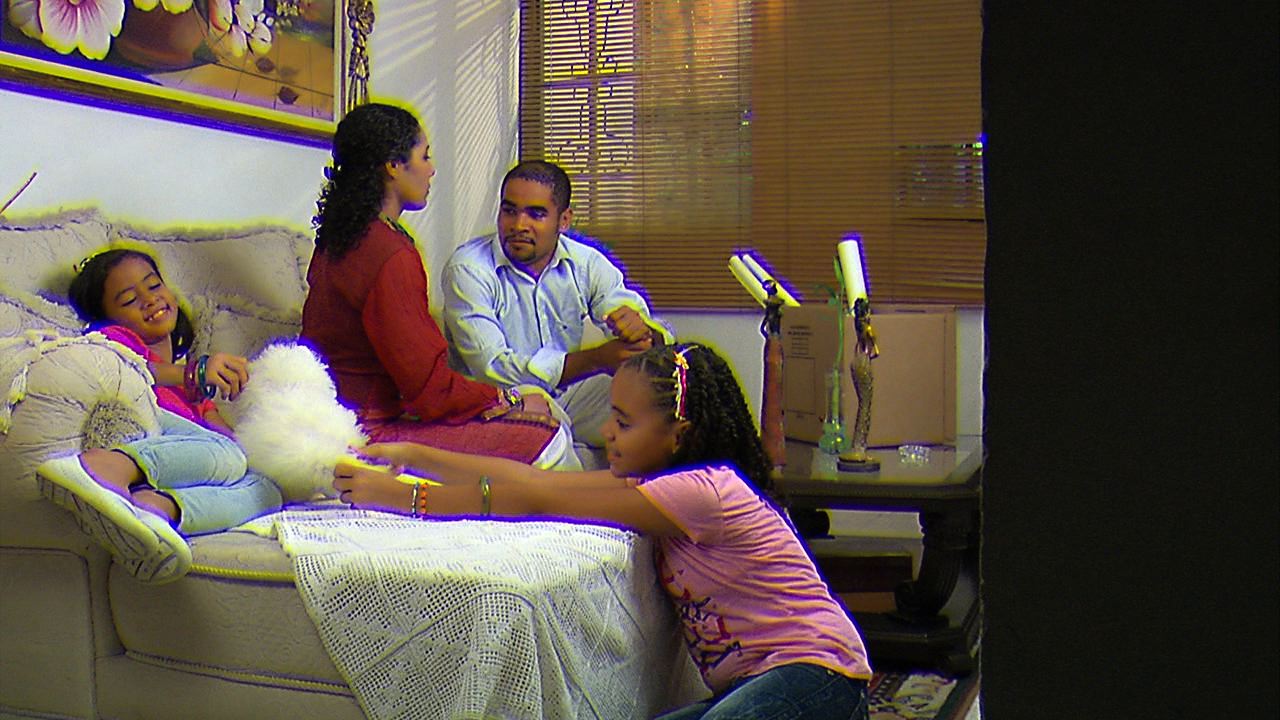

Hello, I'm working with a GY-HD250CHU and the footage shows a color disalignment, the blue and yellow move a little and the picture looks like ghosts or something, I've attached a picture with the problem
Attached Thumbnails
GY-HD250CHU image problems-spot-desempleado.jpg   GY-HD250CHU image problems-morado-22.jpg

Fernando Orozco is offline   Reply With Quote
Old June 19th, 2011, 10:58 PM   #2
Trustee

Join Date: Jan 2008
Location: Mumbai, India
Posts: 1,385
Re: GY-HD250CHU image problems

Have you tried a different lens? Does it happen no matter what you shoot, or only when you are shooting high-contrast situations?
__________________
Get the Free Comprehensive Guide to Rigging ANY Camera - one guide to rig them all - DSLRs to the Arri Alexa.
Sareesh Sudhakaran is offline   Reply With Quote
Old June 19th, 2011, 10:59 PM   #3
Regular Crew

Join Date: Nov 2006
Location: Colombia
Posts: 26
Re: GY-HD250CHU image problems

It happens with other lenses too, the problem now is constant no matter how open or close is the iris
Fernando Orozco is offline   Reply With Quote
Old June 20th, 2011, 01:41 AM   #4
Major Player

Join Date: Feb 2006
Location: Perth, Western Australia
Posts: 414
Re: GY-HD250CHU image problems

well looking at one image with the arrows, that simply looks like CA, but the inside image seems something is definitely amiss there. Has somebody possible mucked around with your white shading or something??
Otherwise if it happens on multi lenses it has to be a ccd prob or something
Adam Letch is offline   Reply With Quote
Old June 20th, 2011, 01:45 AM   #5
Trustee

Join Date: Jan 2008
Location: Mumbai, India
Posts: 1,385
Re: GY-HD250CHU image problems

Here are some steps I can think of:

First - restore everything to default/factory settings.

1. Is the color issue on the LCD or also on the footage when viewed on a computer? If also on the computer -
2. Is it present in both firewire and tape recordings? If yes, then -
3. Is it present under all recording formats and frame rates?
If no, then - which formats/fps rates are causing the issue?
If yes, then -
4. Connect the camera to a component output. This is the output that also has the best color information (4:2:2). Does the problem persist? If yes, then you will have to take it a qualified repair center and brace yourself for bad news. All the best.
__________________
Get the Free Comprehensive Guide to Rigging ANY Camera - one guide to rig them all - DSLRs to the Arri Alexa.
Sareesh Sudhakaran is offline   Reply With Quote
Old September 14th, 2011, 10:12 PM   #6
Regular Crew

Join Date: Apr 2003
Location: BARBADOS
Posts: 118
Images: 4
Re: GY-HD250CHU image problems

One of the ccd has detached it self from the optical block, you will have to send it to jvc to be replaced
__________________
There Can Be Only One
James Clarke is offline   Reply
