Old July 5th, 2006, 04:48 PM   #1
Regular Crew

Join Date: Feb 2005
Posts: 74
Connecting Marshall monitor to camera

Does anyone have an idea what is the best solution of mounting one of those 7" Marshall monitors to the JVC camera?

I've looked at other threads and am kinda confused how these Noga arms work (where exactly do they connect to the camera?).

A number of people have said the little shoe mounts are fragile and some have broken, so am looking at other options.

I guess it can be quite heavy once you attach an IDX battery, or even two Sony batteries using the adaptor.

And if anyone has pictures they can show me, or links to sites with pictures of the setup they use/suggest, then that would be great.

Ordering the whole thing by the end of the week and just want to make 100% sure I am getting the right things.

Cheers,

Chris
Chris Jothi is offline   Reply With Quote
Old July 6th, 2006, 04:11 AM   #2
Regular Crew

Join Date: May 2006
Location: harlem ,nyc
Posts: 77
jvc hd100 , marshall monitor

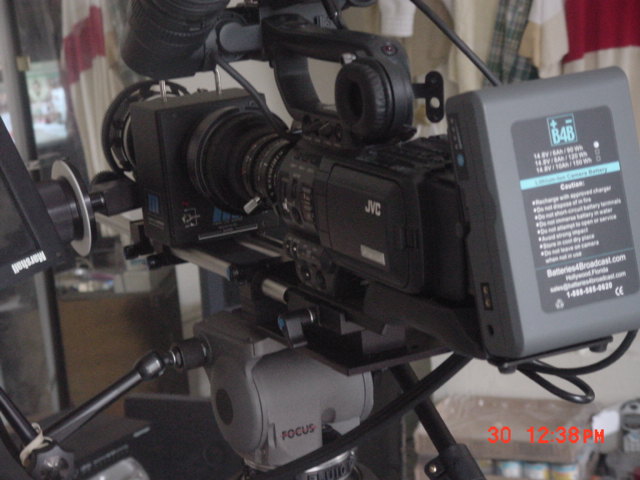

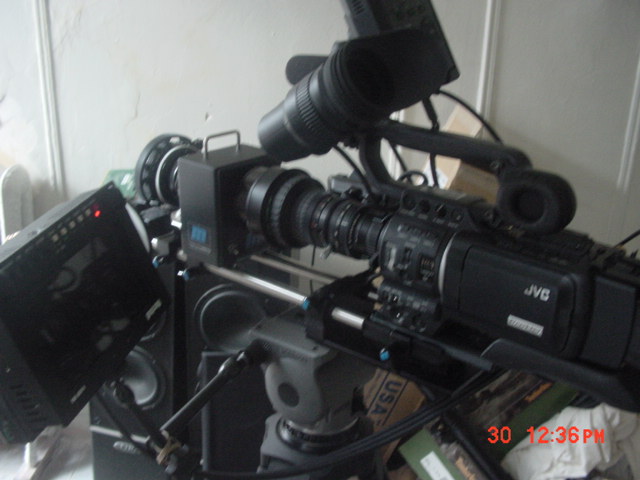

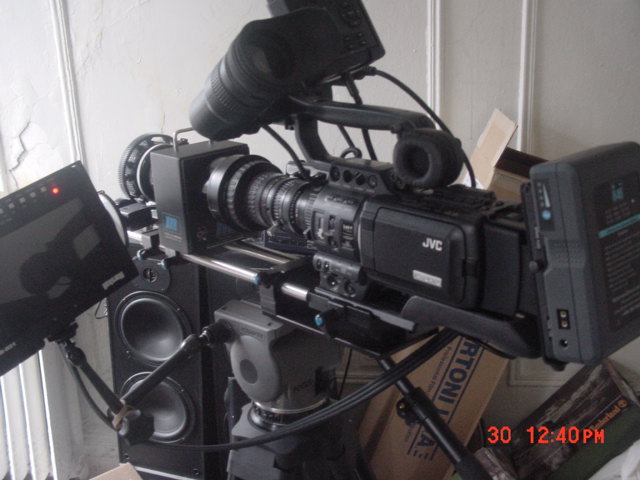

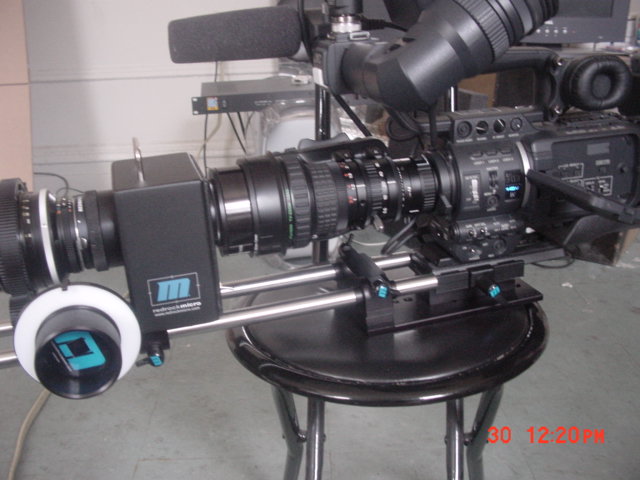

here's a setup with the monitor .
Attached Thumbnails
Connecting Marshall monitor to camera-jvc-hd100-redrock-7.jpg   Connecting Marshall monitor to camera-jvc-hd100-redrock-5.jpg

Connecting Marshall monitor to camera-dsc01023.jpg   Connecting Marshall monitor to camera-jvc-hd100-redrock-2.jpg

S. Abdul Jamal is offline   Reply With Quote
Old July 6th, 2006, 05:16 AM   #3
Regular Crew

Join Date: Feb 2005
Posts: 74
Suddenly it all makes a whole lot of sense.

Thanks for those pictures. How are you powering the monitor?

Chris
Chris Jothi is offline   Reply With Quote
Old July 6th, 2006, 05:29 AM   #4
Regular Crew

Join Date: May 2006
Location: harlem ,nyc
Posts: 77
Quote:
Originally Posted by Chris Jothi
Suddenly it all makes a whole lot of sense.

Thanks for those pictures. How are you powering the monitor?

Chris

everything (hd100+hdd+monitor) from the single battery (Model Number SM-4060) from http://www.batteries4broadcast.com/battery2_sm_pop.htm and i get little over 3 hours running time .thanks
S. Abdul Jamal is offline   Reply With Quote
Old July 6th, 2006, 03:58 PM   #5
Regular Crew

Join Date: May 2006
Location: Los Angeles
Posts: 52
mounting monitor

I would agree that mounting the heavier marshall on the handle part of camera puts undue stress on the camera and it is possible to crack the handle as I have done it. While the option pictured above is nice for studio, it doesn't work handheld. I have a different solution; bogen manfrotto sells an adapter plate that is basically a quick release with a balance plate attached. This balance plate has 3/8" and 1/4" threaded holes built right into the side of it. You can thread in an articulated arm straight in and then if you want to go handheld or run and gun, just leave the whole thing on and detach below the balance plate. Here is a link and picture from a site that sells the plate I speak of: http://www.evsonline.com/merchant2/m...egory_Code=4B2
Keith Gruchala is offline   Reply
