a quick question at DVinfo.net

Andy Graham · October 5th, 2006, 05:05 PM

Im shooting with an HD100 and i'm I'm new to editing HDV , in FCP do you always have to render HDV clips as soon as they are in the timeline? or have i over looked a setting?.

If you have to render all clips imediately it could get time consuming.

Any ideas?

Andy

Tim Dashwood · October 5th, 2006, 05:14 PM

You must have a mismatch in codec, frame size, or frame rate if you are seeing the red render bar.

When the source footage settings match the timeline settings, you will have real-time playback.

Just check your sequence settings.

The most likely scenario is that you created a 720P30 sequence but captured 720P24 footage (or vise-versa.)

Andy Graham · October 5th, 2006, 05:27 PM

Tim just the man, I've been through all the settings and set them to HDV25p, i set my capture to HDV as aposed to HDV AIC and all other settings i could find to HDV25p being in pal land. everything was filmed HDV25p and captured in HDV25p and the timeline is HDV25p. I'm stumped. I picked all the apropriate settings available for my region.

I guess im overlooking something

I appreciate the help.

Andy

Tim Dashwood · October 5th, 2006, 05:52 PM

Andy,

Try this.

Select your sequence and then select "settings" from the sequence menu (or hit COMMAND + 0)

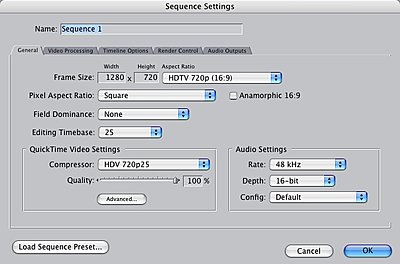

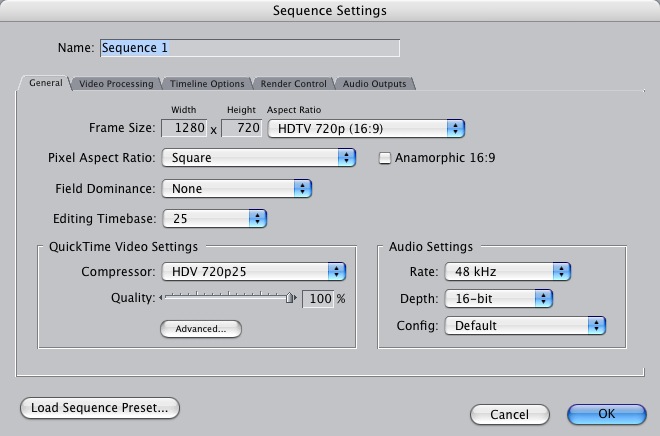

Confirm that your settings are the same as the screen grab below.

Andy Graham · October 5th, 2006, 06:06 PM

here are my settings;

system settings . pulldown 2:3:2:3
sequence pre- HDV720p25
capture pre- HDV
device con- HDV firewire 25fps
video playback- none
audio- default
----------------------
summery:
sequence preset- HDV720p25
----------------------
capture preset -HDV
----------------------
sequence settings:
frame size - 960 x 720 (i tried various settings here, maybe the problem...what should it be?)
pixel aspect ratio- HD 960x720
quicktime video settings- compression- HDVp25

I basically set every setting i could find to 25p HDV, the only thing im not sure about is what pixel aspect ratio i should be using.

Andy Graham · October 5th, 2006, 06:08 PM

hold on ill try that

Andy Graham · October 5th, 2006, 06:17 PM

Tim, you know your stuff.....that did the trick , it was the aspect ratio

a big thank you from Scotland.

you can stick a fork in this thread and call it done!

Cheers Andy.

October 5th, 2006, 05:05 PM	#1
Andy Graham Major Player Join Date: Dec 2005 Location: Lanark,Scotland Posts: 736	a quick question Im shooting with an HD100 and i'm I'm new to editing HDV , in FCP do you always have to render HDV clips as soon as they are in the timeline? or have i over looked a setting?. If you have to render all clips imediately it could get time consuming. Any ideas? Andy __________________ Actor: "where would that light be coming from?" DP: "same place as the music" -Andrew Lesnie-

October 5th, 2006, 05:14 PM	#2
Tim Dashwood Wrangler Join Date: Aug 2005 Location: Toronto, ON, Canada Posts: 3,637	You must have a mismatch in codec, frame size, or frame rate if you are seeing the red render bar. When the source footage settings match the timeline settings, you will have real-time playback. Just check your sequence settings. The most likely scenario is that you created a 720P30 sequence but captured 720P24 footage (or vise-versa.) __________________ Tim Dashwood

October 5th, 2006, 05:27 PM	#3
Andy Graham Major Player Join Date: Dec 2005 Location: Lanark,Scotland Posts: 736	Tim just the man, I've been through all the settings and set them to HDV25p, i set my capture to HDV as aposed to HDV AIC and all other settings i could find to HDV25p being in pal land. everything was filmed HDV25p and captured in HDV25p and the timeline is HDV25p. I'm stumped. I picked all the apropriate settings available for my region. I guess im overlooking something I appreciate the help. Andy __________________ Actor: "where would that light be coming from?" DP: "same place as the music" -Andrew Lesnie-

October 5th, 2006, 05:52 PM	#4
Tim Dashwood Wrangler Join Date: Aug 2005 Location: Toronto, ON, Canada Posts: 3,637	Andy, Try this. Select your sequence and then select "settings" from the sequence menu (or hit COMMAND + 0) Confirm that your settings are the same as the screen grab below. Attached Thumbnails __________________ Tim Dashwood

October 5th, 2006, 06:06 PM	#5
Andy Graham Major Player Join Date: Dec 2005 Location: Lanark,Scotland Posts: 736	here are my settings; system settings . pulldown 2:3:2:3 sequence pre- HDV720p25 capture pre- HDV device con- HDV firewire 25fps video playback- none audio- default ---------------------- summery: sequence preset- HDV720p25 ---------------------- capture preset -HDV ---------------------- sequence settings: frame size - 960 x 720 (i tried various settings here, maybe the problem...what should it be?) pixel aspect ratio- HD 960x720 quicktime video settings- compression- HDVp25 I basically set every setting i could find to 25p HDV, the only thing im not sure about is what pixel aspect ratio i should be using. __________________ Actor: "where would that light be coming from?" DP: "same place as the music" -Andrew Lesnie-

October 5th, 2006, 06:08 PM	#6
Andy Graham Major Player Join Date: Dec 2005 Location: Lanark,Scotland Posts: 736	hold on ill try that __________________ Actor: "where would that light be coming from?" DP: "same place as the music" -Andrew Lesnie-

October 5th, 2006, 06:17 PM	#7
Andy Graham Major Player Join Date: Dec 2005 Location: Lanark,Scotland Posts: 736	Tim, you know your stuff.....that did the trick , it was the aspect ratio a big thank you from Scotland. you can stick a fork in this thread and call it done! Cheers Andy. __________________ Actor: "where would that light be coming from?" DP: "same place as the music" -Andrew Lesnie-
