Old March 15th, 2007, 06:17 PM   #16
Major Player

Join Date: May 2006
Location: San Francisco, CA
Posts: 335
I'm still confused about where to part it from. Can someone provide a pic? This would be the most convenient solution!
Amos Kim is offline   Reply With Quote
Old March 15th, 2007, 06:29 PM   #17
Major Player

Join Date: May 2006
Location: San Francisco, CA
Posts: 335
nevermind... figured it out. thanks for the easy solution guys!
Amos Kim is offline   Reply With Quote
Old March 18th, 2007, 02:40 PM   #18
New Boot

Join Date: May 2006
Location: Austria
Posts: 10
Florentin!

Another way to solve the problem is this (but not cheap.....):

http://www.rowe.at/de/images/stories/PDF/35mm_VF_V2.pdf

robert
Robert Leitner is offline   Reply With Quote
Old March 18th, 2007, 03:36 PM   #19
Regular Crew

Join Date: May 2006
Location: harlem ,nyc
Posts: 77
focus assist

Quote:
Originally Posted by Robert Leitner View Post
Florentin!

Another way to solve the problem is this (but not cheap.....):

http://www.rowe.at/de/images/stories/PDF/35mm_VF_V2.pdf

robert

will the focus assist work with that option ?
S. Abdul Jamal is offline   Reply With Quote
Old March 18th, 2007, 05:40 PM   #20
Trustee

Join Date: Apr 2006
Location: United States
Posts: 1,158
you guys do know that in the menu that shows you the firmware version, there is a LCD flip option - certainly in my 100 its there... no hardware hacks required
Steve Oakley is offline   Reply With Quote
Old March 18th, 2007, 06:56 PM   #21
Regular Crew

Join Date: May 2006
Location: harlem ,nyc
Posts: 77
Quote:
Originally Posted by Steve Oakley View Post
you guys do know that in the menu that shows you the firmware version, there is a LCD flip option - certainly in my 100 its there... no hardware hacks required
i didn't see anything in my hd110 .
S. Abdul Jamal is offline   Reply With Quote
Old March 18th, 2007, 09:09 PM   #22
Trustee

Join Date: Apr 2006
Location: United States
Posts: 1,158
were you in the special menu that shows you the firmware rev and pixel remap ? its in the LCD menu
Steve Oakley is offline   Reply With Quote
Old March 19th, 2007, 05:30 AM   #23
New Boot

Join Date: Mar 2007
Location: Bucharest, Romania
Posts: 9
Quote:
Originally Posted by Steve Oakley View Post
you guys do know that in the menu that shows you the firmware version, there is a LCD flip option - certainly in my 100 its there... no hardware hacks required
To enter in the hidden menu is something related to push together menu and focus assist when you are in 24p mode? Or this is just for mapping pixels?

Anyone knows better?

Florentin
Florentin Cimpeanu is offline   Reply With Quote
Old March 19th, 2007, 08:57 AM   #24
New Boot

Join Date: May 2006
Location: Austria
Posts: 10
will the focus assist work with that option ?

Florentin!

The focus assist only works in the LCD VF/Display.
Unfortunately you also donīt get Zebra out of the Composite Output.

But due to the high resolution of the b/w vf you donīt need focus assist.

robert
Robert Leitner is offline   Reply With Quote
Old March 19th, 2007, 12:40 PM   #25
Major Player

Join Date: May 2006
Location: Washington, D.C.
Posts: 392
Quote:
Originally Posted by Steve Oakley View Post
were you in the special menu that shows you the firmware rev and pixel remap ? its in the LCD menu

We're just talking about flipping left to right, right? I just checked this out and there is no image inversion.
Alan Ortiz is offline   Reply With Quote
Old March 20th, 2007, 02:01 PM   #26
Trustee

Join Date: Apr 2006
Location: United States
Posts: 1,158

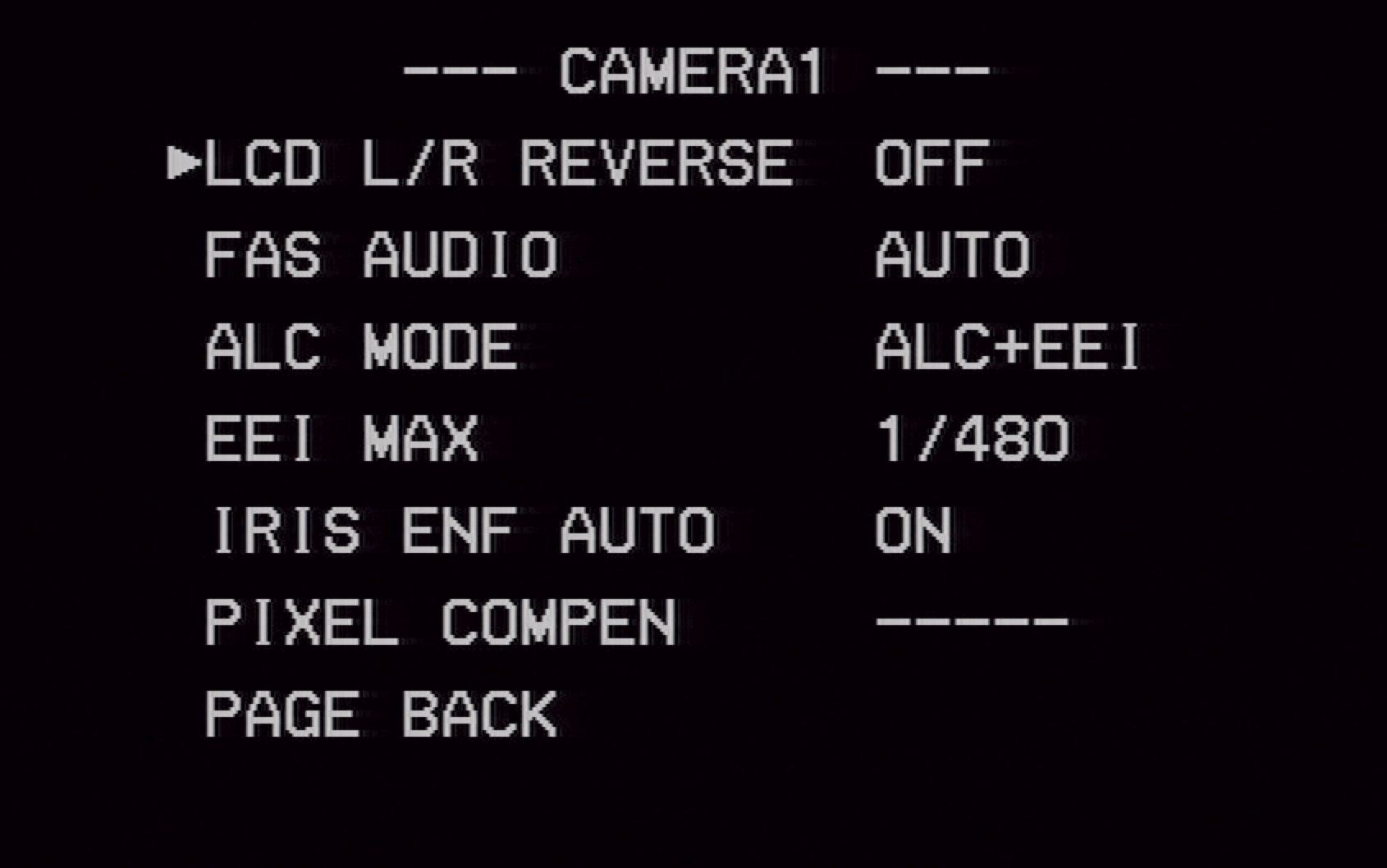

here is a a screen shot of image flip on the LCD L/R on my HD100... your 110 maybe well be different
Attached Thumbnails
LCD/VF Image flip on HD110/111?-hd100flip.jpg
Steve Oakley is offline   Reply With Quote
Old March 21st, 2007, 07:08 AM   #27
New Boot

Join Date: Mar 2007
Location: Bucharest, Romania
Posts: 9
Steve,
How did you entered in that menu?

Florentin
Florentin Cimpeanu is offline   Reply With Quote
Old March 21st, 2007, 10:13 AM   #28
Major Player

Join Date: Sep 2006
Location: London, England
Posts: 969
Quote:
Originally Posted by Florentin Cimpeanu View Post
Steve,
How did you entered in that menu?

Florentin
Press focus assist and menu at the same time.Hold down for 2 seconds.
__________________
Writer-Director-DOP
www.liamhall.net
Liam Hall is offline   Reply With Quote
Old March 21st, 2007, 02:38 PM   #29
Regular Crew

Join Date: May 2006
Location: harlem ,nyc
Posts: 77
lcd l/r reverse is not available in my hd110.
S. Abdul Jamal is offline   Reply With Quote
Old March 26th, 2007, 05:10 AM   #30
New Boot

Join Date: Mar 2007
Location: Bucharest, Romania
Posts: 9
I just checked my GY-HD110 and this option LCD L/R reverse is not available in my camera too.

Is anybody who checked this option on GY-HD100 and can tell us if there is an upside-down inversion, or is just a left/right inversion (mirroring), like that in the GY-HD110, because this is one of the new changes in GY-HD110 vs. GY-HD100?

I have this feeling, that in GY-HD100 and GY-HD110 is not posible to see in VF or LCD the right image with HZ-CAU13. The only solution is to rotate manually the LCD of the viewfinder.

It is just my opinion.

Florentin
Florentin Cimpeanu is offline   Reply
