Slates - Clapboards

Where do most people go to purchase a clapboard? As with everything else in DV, the prices seem to vary quite a bit depending on where you go. I've checked ebay, and everyone selling clapboards on there seems to be from China, so the shipping's like 15 bucks, and locally I can't find anything under $70-$100. Thanks all.
Matt McLain is offline   Reply With Quote
Old March 12th, 2008, 12:23 AM   #2
Major Player

Join Date: Jun 2007
Location: Bozeman, MT
Posts: 215
I bought mine from Media Monkey (http://www.gomediamonkey.com/proddet...d=MEDSlateENG).

I'm very happy with its quality, and the service I received from them was excellent. I needed it shipped express and they were very helpful and followed up to amke sure that all was OK.
Frank Simpson is offline   Reply With Quote
Old March 12th, 2008, 07:04 AM   #3
Major Player

Join Date: Mar 2007
Location: North Hollywood, CA, United States
Posts: 790
I actually made mine out of a flat piece of PVC and some wood. I got the PVC at a junkyard, but you might be able to find something at a hardware store. I got some black tape and lettering for the words scene and take. I also took a piece of wood, fabricated a hinge, sprayed it black and white, and attached it to the top. I'll try to get some pictures up later.
Edward Carlson is offline   Reply With Quote
Old March 12th, 2008, 07:09 PM   #4
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
I bought a cheap dry-erase whiteboard for $5, and made the clapsticks out of some pine. Printed some diagonal-stripe strips on photo paper and glued them to the clapsticks for focusing. A regular Sanford Sharpie marker was used to make the permanent, non-erasable graphics on the whiteboard. With the exception of the whiteboard, it was all materials on hand, and a pleasant afternoon's work.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old March 12th, 2008, 11:50 PM   #5
Regular Crew

Join Date: Mar 2008
Location: Boise, ID
Posts: 66
ClapBoard

Some great Ideas. I'm sure if I understood what the purpose of these things are, I would feel like I need to get/make one.
For spotting shoot breaks while fast scanning footage?
Simply date and scene information? Synching sound and video "clap" if capturing audio via another source is one part of it right?
__________________
"...movies are never 'finished', only abandoned..."
-Stephen Spielberg
Ken Bates is offline   Reply With Quote
Old March 13th, 2008, 12:02 AM   #6
Major Player

Join Date: Dec 2007
Location: Sacramento, CA
Posts: 904
Unbelieveably, and delightfully, slates still are a very useful tool. Not all cameras can use time code.

Single cam: Let's say you import to a NLE program and the audio is on one track and video on another. You move things around and uh oh.... synch is off. Your slated start is a fast and easy way to get back into synch. Slate every scene start!

Multi cam: In a multi cam setting that often can be the ONLY way to synch them, depending on the camera(s).
Chris Swanberg is offline   Reply With Quote
Old March 13th, 2008, 07:01 AM   #7
Major Player

Join Date: Mar 2007
Location: North Hollywood, CA, United States
Posts: 790
Quote:
Originally Posted by Ken Bates View Post
Some great Ideas. I'm sure if I understood what the purpose of these things are, I would feel like I need to get/make one.
The original usage was for film cameras. Hollywood movie productions capture their audio and video to different machines. Each day of shooting, the film and audio is sent to be made into a daily, a tape of the day's work. The daily guy can then match up the audio with the video, because he can hear the scene and take spoken on the audio, and read it from the film. The sharp clap serves as a specific sync point.
For digital video, the same principle applies. The slate marks the scene visually so you can identify it and allows audio to be synced (either multicam, external recorder, or if you move the audio in editing, as Chris said.)
Edward Carlson is offline   Reply With Quote
Old March 13th, 2008, 05:57 PM   #8
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Slates are so wonderfully simple and reliable. They ALWAYS work, the batteries never go dead, and it's a wonderful way to focus the entire attention of the crew to the scene being shot. It's a tradition, like the youngest member of the cannon crew being the one who lights the fuse.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old March 13th, 2008, 06:12 PM   #9
Regular Crew

Join Date: Feb 2004
Location: bloomington, il
Posts: 40
I love these forums because it seems like no matter what you're looking for someone's built their own version of it. I'd love to see some pictures of your guys' homemade slates if you've got any. Thanks.
Matt McLain is offline   Reply With Quote
Old March 13th, 2008, 06:41 PM   #10
DVi Contributor

Join Date: Mar 2006
Location: Austin Texas
Posts: 374
we stock the standard slate or the engraved slate, 45 or 75 plus shipping call and talk to Laura
Craig Chartier is offline   Reply With Quote
Old March 13th, 2008, 07:07 PM   #11
Major Player

Join Date: Mar 2007
Location: North Hollywood, CA, United States
Posts: 790

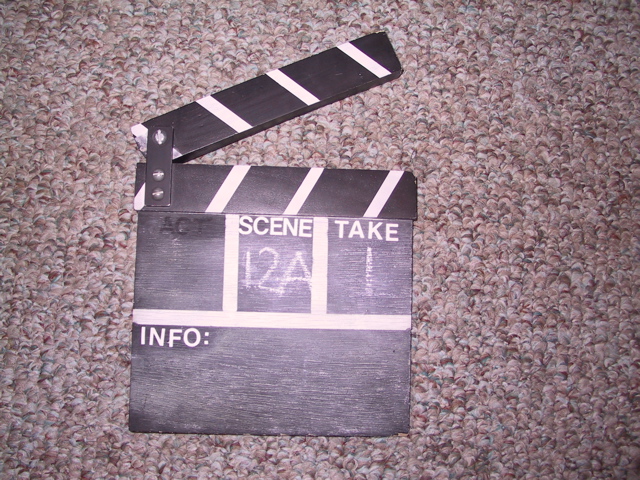

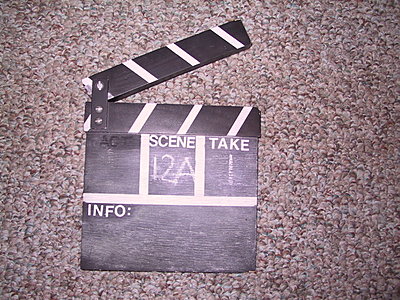

The first picture is my first attempt: a piece of cheap plywood sprayed with chalkboard paint.

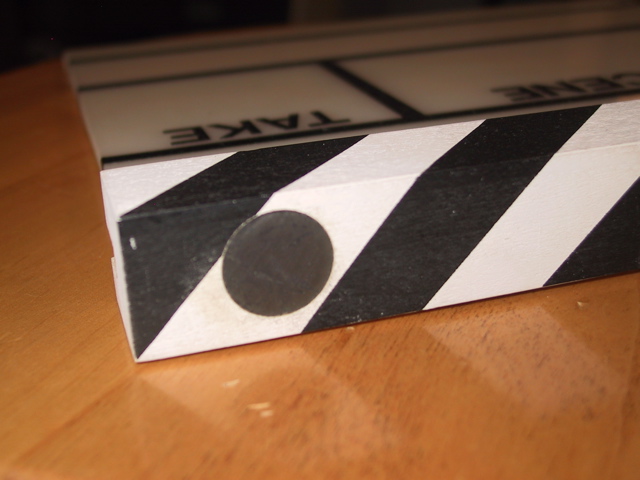

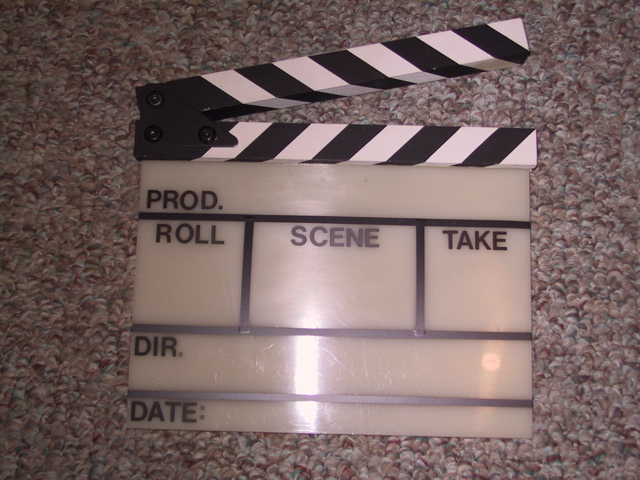

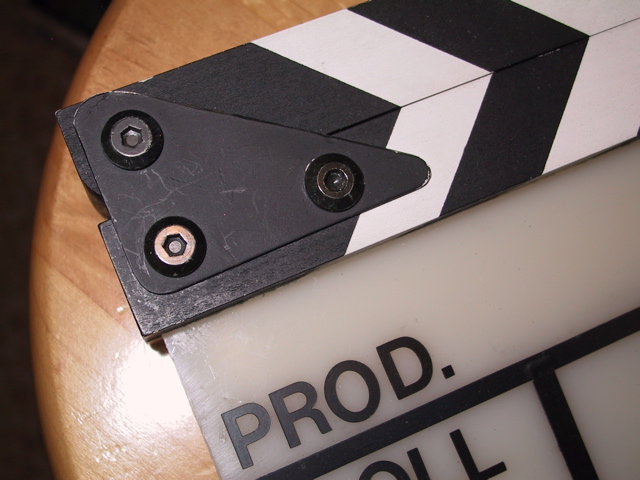

The other one is a piece of translucent PVC sheet and two pine sticks. I used two shower curtain magnets originally to close the sticks, but those were too weak. I replaced one with a neodymium magnet, now it closes with a nice *snap*. The hinge is made from stainless steel and a few bolts from an inline skate. The bolts have one male part, and an equally long female part. This way, they can be tightened without squeezing the hinge together (or else, it wouldn't be a hinge.)
Attached Thumbnails
Slates - Clapboards-img_2126.jpg   Slates - Clapboards-img_2131.jpg

Slates - Clapboards-img_2133.jpg   Slates - Clapboards-img_2134.jpg

Edward Carlson is offline   Reply With Quote
Old March 14th, 2008, 02:57 PM   #12
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
FYI, here in "Hollywood" (it always makes me feel a bit silly for using the term as such, accurate though it may be) we are still using slates on nearly all productions, film or digital. The reason being that we although the camera manufacturers continue to include audio recording on their high-end HD cameras, we have managed to maintain the dual-system for sound recording rather than encumber the camera with another set of cables for the most part, and even then it is likely that the recordist will be making a safety version at their cart which still needs syncing if used. They will instead mount a Comtex (wireless headset receiver, same as those used by the director, script supervisor etc at the monitors) on the camera to feed a reference audio track while the primary audio is being captured on their cart.

Generally we also use timecode slates to further streamline the process. A "clockit" box is added to the camera which maintains sync. At the moment the clapper closes, the timecode display will switch to 00:00:00:00, which gives an additional visual determination of sync. And most have a backlight which can rear-glow the info written on it for low-light situations, although many AC's use a flashlight to illuminate the board.

As far as it being a cherished tradition, I think that most of us would be happy to see it go. It's a sometimes uneasy crossover between camera and sound departments (they own it, we operate it); as an operator, you generally have to set your frame then help the assistant maneuver the slate into the right spot (and the 1st has to pull to it as it is often closer than the actors); having to tail-slate a shot because the opening frame is inaccessible, such as when on a crane, requires everyone having to remember throughout the take not to cut at the end; several times a day the first clap will be screwed up for one reason or another and we have to call for "second sticks", etc etc. In the digital acquisition world, the DP may be making final adjustments to the iris or lighting or something in the background when the damn slate comes in.

Finally, the reason that Martin mentions, about the whole crew "focusing in" when the slate arrives, is actually the thing that directors and actors tend to dislike most about it. They may be ready to cook, do their thing, and everything has to stopfor the camera and sound roll, the announcement of speed, the callout of the scene numbers and the clap, then the announcment that the operator has refound his frame and is "set". This is why many directors and influential actors are embracing digital because they choose instead to just keep the camera rolling between takes. This way as soon as the director has run in and given his notes, he can simply call "action" and off we go. Actors (especially in comedies) are now free to try multiple variations ("alts") of their lines without it requiring a new take. Many times this will mean a massive reset of extras and prop people running in, but it keeps the energy going somehow. Those it hurts the most are the camera and boom ops, if it is a handheld or Steadicam shot, as we have to muster through endlessly long shooting periods without rest.

So this then is the brave new world of digital acquisition--operators and boom guys turning purple on set, assistant editors wading through hours of footage trying to find the actual shots and creating subclips, shooting ratios going through the roof...but who cares, it's just digital!
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 14th, 2008, 06:46 PM   #13
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
The advantage of working with "pros". Most shoots around here involve pick-up crews. Having somebody get in front with a slate and calling the shot reminds them to SHUT UP AND PAY ATTENTION. Besides, awarding the clapper job to a newbie is a cheap form of bribery.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old March 14th, 2008, 07:44 PM   #14
Regular Crew

Join Date: Feb 2008
Location: Portland, Ohio
Posts: 32
Quote:
Originally Posted by Edward Carlson View Post
The first picture is my first attempt: a piece of cheap plywood sprayed with chalkboard paint.
The other one is a piece of translucent PVC sheet and two pine sticks. I used two shower curtain magnets originally to close the sticks, but those were too weak. I replaced one with a neodymium magnet, now it closes with a nice *snap*. The hinge is made from stainless steel and a few bolts from an inline skate. The bolts have one male part, and an equally long female part. This way, they can be tightened without squeezing the hinge together (or else, it wouldn't be a hinge.)
Looks nice. Is the PVC sheet fastened to the back of the bottom pine stick, or did you route a groove for the sheet to fit in?
__________________
"Democracy is two wolves and a lamb deciding what to have for dinner. Liberty is a well-armed lamb" B. Franklin
Ben Dailey is offline   Reply With Quote
Old March 14th, 2008, 07:46 PM   #15
Major Player

Join Date: Mar 2007
Location: North Hollywood, CA, United States
Posts: 790
Cut a grove and attached it with some polyurethane glue. That way the bottom stick makes a lip on the back to hold on to.
