Small battery powered HDMI to SDI adapter

What would you guys suggest for HDMI to SDI adapters that would be portable, possibly even on camera, definitely battery powered.
__________________
Need to rent camera gear in Vancouver BC?
Check me out at camerarentalsvancouver.com
Dylan Couper is offline   Reply With Quote
Old February 9th, 2017, 03:00 PM   #2
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
Re: Small battery powered HDMI to SDI adapter

i use these cheap ebay SDI/HDMI converter with a plate adapter for a sony NP-Fxx battery.
works fine for hours.
Take care to choose the right converter since they look the same (hdmi-->sdi or sdi-->hdmi)

Battery Adapter Mounting Plate fr NP-F970 F750 F550 Sony Battery 970 DSLR Rig | eBay
Giroud Francois is offline   Reply With Quote
Old February 9th, 2017, 07:54 PM   #3
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,197
Re: Small battery powered HDMI to SDI adapter

I've been using a Blackmagic SDI - HDMI mini converter on camera, but they also have an HDMI - SDI version.
Jim Andrada is offline   Reply With Quote
Old February 9th, 2017, 11:23 PM   #4
Inner Circle

Join Date: Sep 2003
Location: Portland, Oregon
Posts: 3,229
Re: Small battery powered HDMI to SDI adapter

Atomos makes a little one that's powered by Sony NP series batts. Actually they make 2 for the 2 directions HDMI/SDI. About $100 IIRC.
__________________
30 years of pro media production. Vegas user since 1.0. Webcaster since 1997. Freelancer since 2000. College instructor since 2001.
Seth Bloombaum is offline   Reply With Quote
Old February 10th, 2017, 08:41 AM   #5
Major Player

Join Date: Jun 2008
Location: Milwaukee WI
Posts: 613
Re: Small battery powered HDMI to SDI adapter

The Atomos Connect converters run $195 and use Sony-type camcorder batteries.

Black Magic now offers "Micro" converters for HDMI > SDI and vice-versa, $85 each. They have a micro USB port for power, so one can use any of those inexpensive battery packs meant for recharging cell phones. AC adapter included.

Thanks

Jeff
Jeff Pulera is offline   Reply With Quote
Old February 10th, 2017, 09:40 AM   #6
Wrangler

Join Date: Jun 2002
Location: Vancouver, British Columbia
Posts: 8,288
Re: Small battery powered HDMI to SDI adapter

Ah lots of great solutions! Thanks guys, I'm going to give a couple of them a try.
Cheers!
__________________
Need to rent camera gear in Vancouver BC?
Check me out at camerarentalsvancouver.com
Dylan Couper is offline   Reply With Quote
Old June 1st, 2017, 11:18 AM   #7
Inner Circle

Join Date: Jun 2004
Location: Richmond, VA
Posts: 2,932
Re: Small battery powered HDMI to SDI adapter

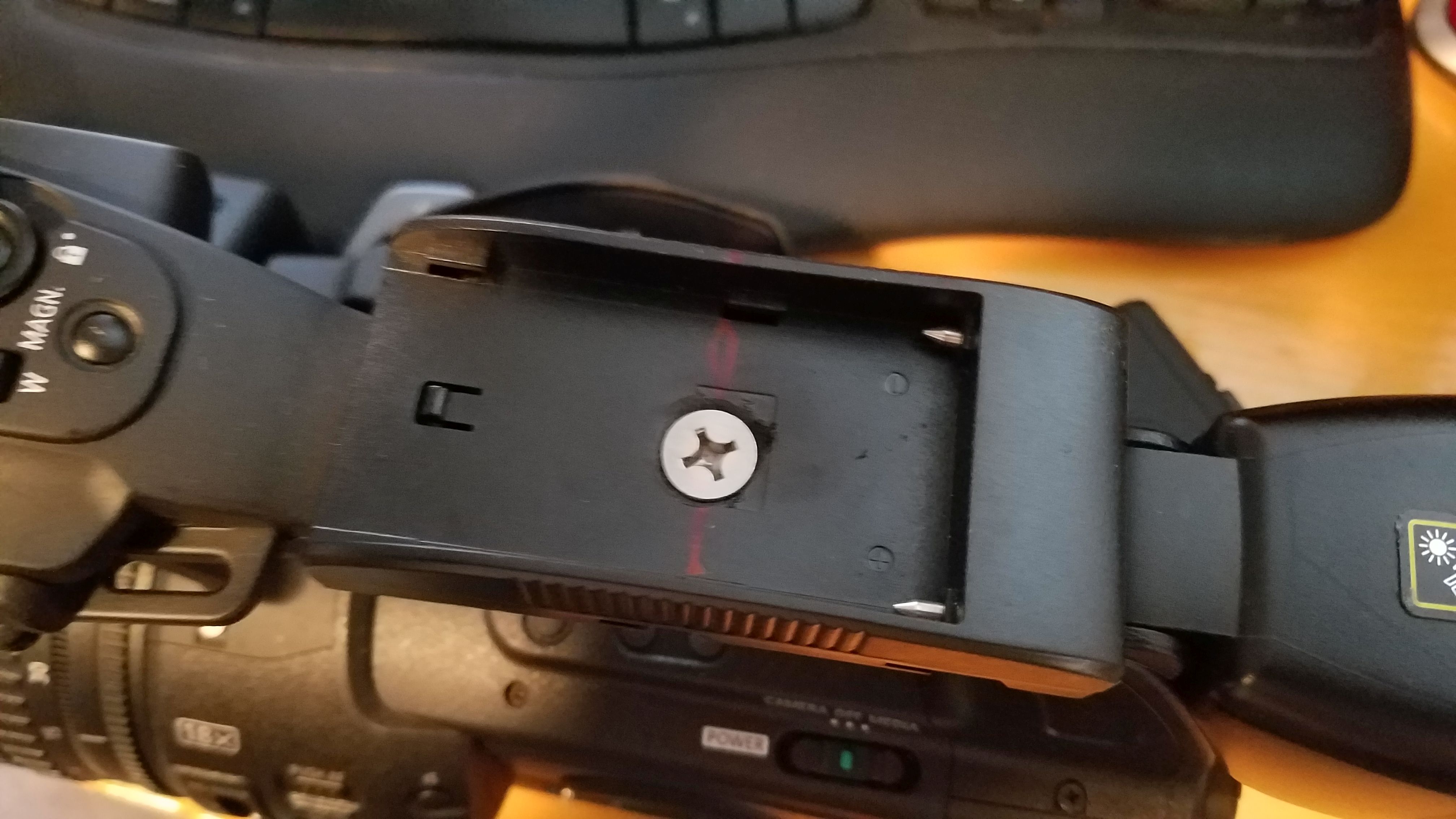

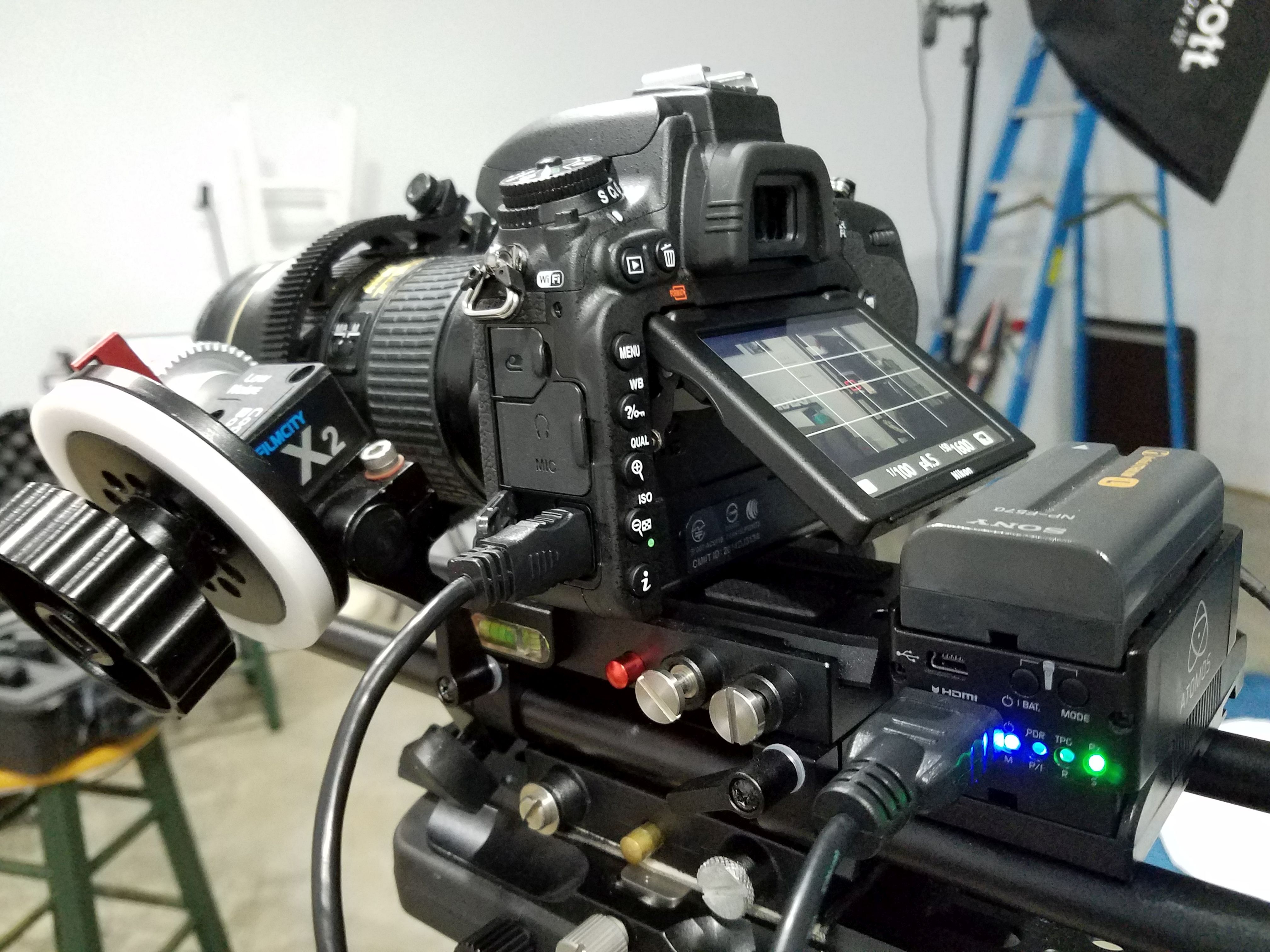

I figured out this was a way to mount my Atomos Connect to my Canon XF 300. The good news that I discovered yesterday, is that same flat screw you see (that I cut short with a saw) screws into my DSLR setup

Albiet my Atomos/setup is not working at the moment, at least it's pretty on the setup. :}
Attached Thumbnails
Small battery powered HDMI to SDI adapter-mount2.jpg   Small battery powered HDMI to SDI adapter-atamos-nikon.jpg

__________________
What happens if I push the 'Red' button?
Steven Davis is offline   Reply With Quote
Old August 6th, 2017, 09:46 AM   #8
Sponsor: Camera Motion Research

Join Date: Jan 2005
Location: Raleigh, NC
Posts: 52
Re: Small battery powered HDMI to SDI adapter

The Feelworld (Seetec) converters also have a Sony NP battery plate built in.

Nice construction includes 1/4-20 mounting holes.

Camera Motion Research Amimon Connex Wireless Antenna and Transmitter

Rich Greb
CMR
