Old October 24th, 2009, 08:52 AM   #1
Regular Crew

Join Date: Dec 2007
Location: Pennsylvania USA
Posts: 25
Firewire cable that screws/locks down for Firestore use

I have an HVX200 and need a Firewire cable (4 to 6 pin) that screws or locks down on the ends. I need this as I use a cable with the Firestore, but sometimes it comes out, even if I use a right angle cable. I have seen one on the web somewhere, but can't remember where.

Does anyone know where I can get one of these?

Jon
Jon Iannacone is offline   Reply With Quote
Old October 24th, 2009, 05:19 PM   #2
Major Player

Join Date: Jan 2004
Location: Singapore, Rep of SINGAPORE
Posts: 749
I never heard of it ... Firewire cables don't have any threads on the socket, so, how does one screw lock the cable down?
TingSern Wong is offline   Reply With Quote
Old October 26th, 2009, 10:57 PM   #3
Regular Crew

Join Date: Dec 2007
Location: Pennsylvania USA
Posts: 25
Yes, I know Firewire and HVX have no place for screw holes, but I know a cable exists that essentially somehow locks the Firewire cable in place.
Jon Iannacone is offline   Reply With Quote
Old October 27th, 2009, 12:26 AM   #4
Major Player

Join Date: Jan 2004
Location: Singapore, Rep of SINGAPORE
Posts: 749
I have never seen such a cable before. If you managed to find it, post the picture / URL here. Thank you.
TingSern Wong is offline   Reply With Quote
Old October 27th, 2009, 05:56 AM   #5
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
Hi Guys,
I asked this question some years ago when I had my Sony DSR570 attached to a Nnovia HDD at the rear 6pin FW port--
I investigated these, had thoughts of clamping the 90degree plug down to the cam body, Instead I bought a Pana SPX800 and some 32gig cards and retired the Sony and HDD...now they are for sale if anyones interested.

some links for you to peruse---
NTC Distributing - Angled FireWire Cables
USB | FireWire - Angled - Short - Custom - Cables - 877-522-3779
FireWire Right Angle Cables
AngledCables.com Web Store - Buy Right Angled USB Short FireWire Cables, and Angled Mini B Extension Cables!

these above would have to be better than the cable being dislodged during use...

Cheers
Tom K
__________________
Tom K
www.olinevideo.com.au
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 06:07 AM   #6
Major Player

Join Date: Jan 2004
Location: Singapore, Rep of SINGAPORE
Posts: 749
I took a look at all those links Tom posted. None of them has a screw down lock that Jon asked for. In fact - for Tom's links - I have already seen them. Nothing fancy. Thats' why I am puzzled that Jon is so sure that such a cable exists.
TingSern Wong is offline   Reply With Quote
Old October 27th, 2009, 06:08 AM   #7
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
http://www.dvinfo.net/forum/attachme...1&d=1256641676
http://www.dvinfo.net/forum/images/attach/jpg.gif

If you need a specific connection use the funky "Build your cable diag at"
http://www.angledcables.com/
http://www.dvinfo.net/forum/attachme...1&d=1256642027

maybe of help ?.
Tom K
Attached Thumbnails

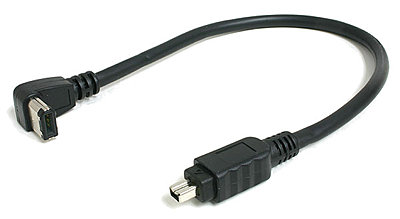

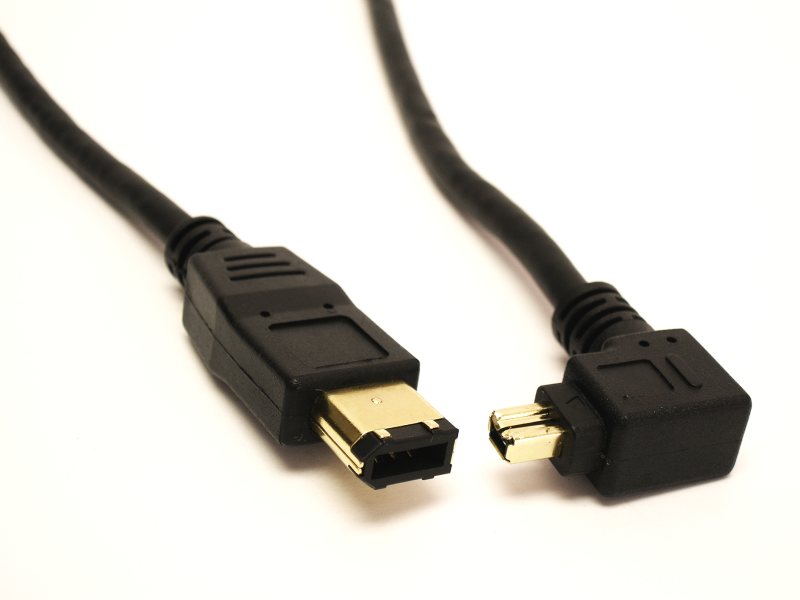

Firewire cable that screws/locks down for Firestore use-cable.jpg   Firewire cable that screws/locks down for Firestore use-cableb.jpg

__________________
Tom K
www.olinevideo.com.au

Last edited by Tom Klein; October 27th, 2009 at 06:14 AM. Reason: more info
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 06:17 AM   #8
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160

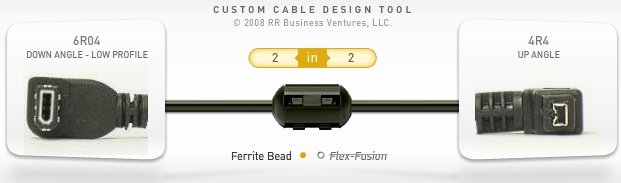

OR--- I just knocked this 4pin to 6pin up from the diag...
http://www.dvinfo.net/forum/attachme...1&d=1256642027

cheers
Tom K
__________________
Tom K
www.olinevideo.com.au
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 06:21 AM   #9
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
Pic
Tom K
olinevideo.com.au

http://www.dvinfo.net/forum/attachme...1&d=1256642364
Attached Thumbnails
Firewire cable that screws/locks down for Firestore use-cablec.jpg
__________________
Tom K
www.olinevideo.com.au
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 06:24 AM   #10
Major Player

Join Date: Jan 2004
Location: Singapore, Rep of SINGAPORE
Posts: 749
Tom,

The male end of the cable has NO way to lock/screw down to the female side on the camera. It will still come loose if you use it in the field. I still cannot see how a Firewire cable can be made to lock down to the camera.
TingSern Wong is offline   Reply With Quote
Old October 27th, 2009, 06:24 AM   #11
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
Quote:
Originally Posted by TingSern Wong View Post
I took a look at all those links Tom posted. None of them has a screw down lock that Jon asked for. In fact - for Tom's links - I have already seen them. Nothing fancy. Thats' why I am puzzled that Jon is so sure that such a cable exists.
Hi TingSern Wong,

You expect too much grasshopper... you have to be creative and clamp the connector with a simple saddle, make it out of an aluminium strip was my idea.

drastic times require drastic measures..

really now days I'd suggest dump the firestore and just buy some 64 gig E series P2 cards, you only have to buy them once lets face it, and alot less issues than the firestore gives...

Cheers
Tom k
olinevideo.com.au
__________________
Tom K
www.olinevideo.com.au
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 12:47 PM   #12
Barry Wan Kenobi

Join Date: Jul 2003
Location: North Carolina
Posts: 3,863
Quote:
Originally Posted by TingSern Wong View Post
Tom,

The male end of the cable has NO way to lock/screw down to the female side on the camera. It will still come loose if you use it in the field. I still cannot see how a Firewire cable can be made to lock down to the camera.
Look at the HPX170, it has a firewire port that supports the locking cable. There are locking 6-pin cables out there. The firewire port has a mounting flange, and the cable has some spring-loaded ... um, grabbers? And when you snap the cable in, the "grabbers" latch around the flange on the camera's port.
Barry Green is offline   Reply With Quote
Old October 27th, 2009, 05:12 PM   #13
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
Hi Barry,

can you give a link to the locking cable for the hpx ?.

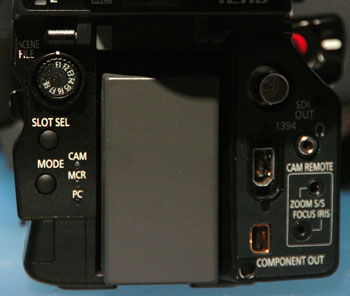

If I were looking at running a FW cable for the HPX I'd use the 90degree down angle plug, pigtail the cable,
and clamp the cable using a longer screw located just to the left of the "component out" text.

You have to find your own solutions when using third party products, that's just the way it is..

cheers
Tom K
Attached Images

__________________
Tom K
www.olinevideo.com.au

Last edited by Tom Klein; October 27th, 2009 at 05:17 PM. Reason: more info
Tom Klein is offline   Reply With Quote
Old October 27th, 2009, 06:43 PM   #14
Barry Wan Kenobi

Join Date: Jul 2003
Location: North Carolina
Posts: 3,863
This PDF shows pictures of lots of types.
http://www.alliedvisiontec.com/filea..._V2_1_2_en.pdf
Barry Green is offline   Reply With Quote
Old October 27th, 2009, 11:06 PM   #15
Regular Crew

Join Date: Jul 2007
Location: Australia Vic
Posts: 160
Hi Barry,

your a "Legend".

Cheers from Downunder
Tom K
__________________
Tom K
www.olinevideo.com.au
Tom Klein is offline   Reply
