Old September 10th, 2007, 06:53 PM   #16
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Richard:
Terminology difference, I think. Round here, when people say "plaster," they mean plaster of paris. I suspect the "plaster" in the article is actually an investment compound, which is intended for use as casting. My background is in watchmaking and jewelry, and one of the things we were told was to NEVER use plaster of paris for casting molds because it wouldn't stand the heat and often would pop or "explode" when filled with molten metal. Of course, jewelry alloys melt at around 1800 degrees F. Lower temp alloys might work in regular plaster. My information is slightly dated.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old September 10th, 2007, 07:10 PM   #17
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781
Yeah, no way would plaster of paris work. I think they mean products like Ultracal 30 from US Gypsum:

http://www.plaster.com/Ultracal.html

Or the dental grade molding stones which are all super hard and dense.
__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz
Richard Andrewski is offline   Reply With Quote
Old September 10th, 2007, 08:10 PM   #18
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
Quote:
Originally Posted by Martin Catt View Post
Now, if I was REALLY dedicated, I'd go out and get them black anodized.
There are kits you can buy online for small volume anodizing. Not too expensive. I was looking into it awhile back for something unrelated to video.

As to painting, I was talking more about the baking pan exterior than the barn doors. Sounds like you did okay with the cooling requirements by creating that airspace.

-gb-
Greg Boston is offline   Reply With Quote
Old September 11th, 2007, 08:38 AM   #19
Regular Crew

Join Date: Jul 2005
Posts: 110
Sure Martin, building is much more fun, that's why I built my own LED lights that are extremely powerful. When it comes to putting 9 or 16 bulbs (they make a 16 also) in a small case, it was much easier to buy. By the way, I don't use barn doors I made a shield around the entire box, mostly for protection of the bulbs.
Gary
Gary Moses is offline   Reply With Quote
Old September 11th, 2007, 12:28 PM   #20
Inner Circle

Join Date: Jan 2006
Posts: 2,290
Quote:
Originally Posted by Gary Moses View Post
Wouldn't it have been a lot easier and less expensive just ot buy one of these?
http://cgi.ebay.com/Continuous-Light...QQcmdZViewItem

I bought 2 and have been using them for almost a year. It has 2 circuits, one I use for 5500 degree CFL's and the other circuit for 3500 CFL's.
Just a thought.
Gary
I emailed the seller about this and they said the fixture is 8"x8". Isn't that a bit small for 9 bulbs?
Brian Luce is offline   Reply With Quote
Old September 11th, 2007, 02:01 PM   #21
Regular Crew

Join Date: Jul 2005
Posts: 110
Yeah Brian, it sure seems that it is, but 9 bulbs fit perfectly. What's nice is that 2 of these fit in an old gym bag and weigh only a few pounds.
Gary
Gary Moses is offline   Reply With Quote
Old September 12th, 2007, 05:09 PM   #22
Major Player

Join Date: Oct 2004
Location: NYC
Posts: 649
A Matthews TVMP adapter might be helpful.
http://www.bhphotovideo.com/c/produc...P_Adapter.html

http://www.msegrip.com/mse.php?show=...ducts_ID=24180

Get a small Matth T handle to replace the thumbscrew. The TVMP adapter has a 5/8 female receiver and the outer diameter is 1 1/8" so and it will fit in a Jr receiver, when you remove the T handle. You may also want a slightly beefier yoke.

Increase the size of the "pan" and the addition of Miro covered reflectors will also increase the size of your light. I believe that would also increase the output. You would have to fiddle with the angle of reflection and maybe also figure out an optimal placement distance. You could probably find a metal fabricator to help you make your parts.

Does the light cause multiple shadows? That would be one concern. a little bit of light diffusion should cure that, if there are.

Nice rig.
__________________
Mark Sasahara
Director of Photography
Mark Sasahara is offline   Reply With Quote
Old September 12th, 2007, 08:31 PM   #23
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Quote:
Originally Posted by Mark Sasahara View Post
You may also want a slightly beefier yoke.
The current 1"x.125" aluminum yoke seems to be sized just right for the weight of the head. My only concern was the mount hole at the bottom of the yoke would weaken it, so I went with the wide bar stock reinforcement. Plus. it made it simple to do the mount for the stand. There is no wobble, rock, or droop. It locks up nice and solid.

Quote:
Originally Posted by Mark Sasahara View Post
Increase the size of the "pan" and the addition of Miro covered reflectors will also increase the size of your light. I believe that would also increase the output. You would have to fiddle with the angle of reflection and maybe also figure out an optimal placement distance. You could probably find a metal fabricator to help you make your parts.
No plans to go into production any time soon. At the most, I thought I might do up a PDF file with plans and instructions and make them available for download.

Quote:
Originally Posted by Mark Sasahara View Post
Does the light cause multiple shadows? That would be one concern. a little bit of light diffusion should cure that, if there are.
Because of the compact size of the heads, the close lamp spacing, and the diffuse nature of CF's, you only get single shadows at normal working distances. As a wild-hair experiment, this worked out pretty well.

Quote:
Originally Posted by Mark Sasahara View Post
Nice rig.
Thanks.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old September 13th, 2007, 01:27 PM   #24
Regular Crew

Join Date: Sep 2007
Location: Monterey Bay area, CA
Posts: 82
Martin

If you were to do it again, would you use double pans, or would a single do?
Tsu Terao is offline   Reply With Quote
Old September 13th, 2007, 05:58 PM   #25
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Quote:
Originally Posted by Tsu Terao View Post
Martin

If you were to do it again, would you use double pans, or would a single do?
You really want to use two pans. The two pans nested together form the housing and reflector assembly, giving a bright aluminum reflector behind the lamps and completely covering the sockets and wiring.

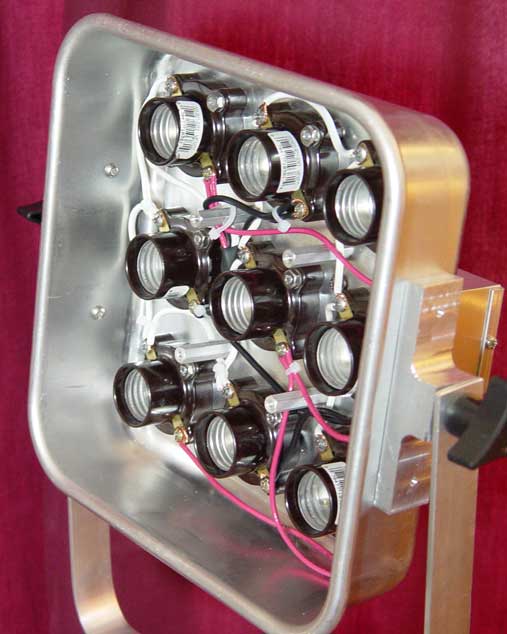

The pictures below show how it's built. The first picture shows the back pan, where all the sockets and the yoke mounts are attached. Everything major attaches to the back pan. In the center are four 1.25" aluminum hex spacers used to mount the second pan in front of the first.

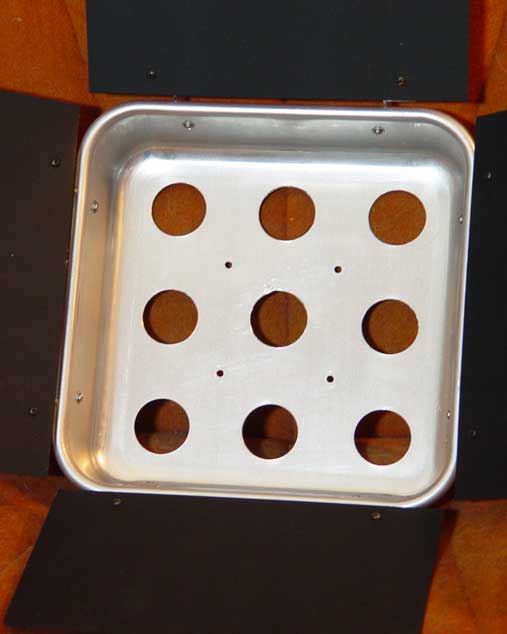

The next picture shows the second pan, removed from the lighting fixture. It serves as a reflector and a place to mount the barn doors. Nine large holes are drilled in it for the lamps to screw through. It mounts to the back pan with four screws into the four hex spacers.

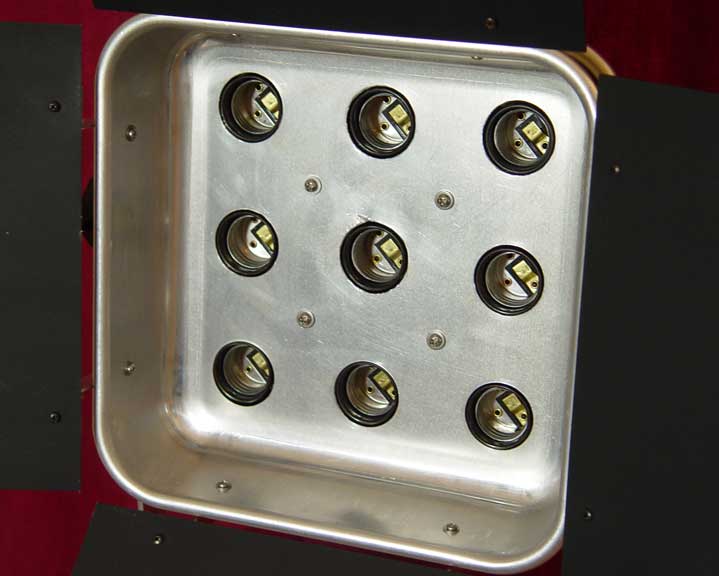

The last picture shows the two pans assembled , without the CF lamps.

You could replace the back pan with a box or plate of some kind, but using two identical pans is the easiest way to make the fixture.

Hope that helps.

Martin
Attached Thumbnails
D.I.Y. 900-watt CF Lighting Units-pan-1.jpg   D.I.Y. 900-watt CF Lighting Units-ref-1.jpg

D.I.Y. 900-watt CF Lighting Units-assy.jpg
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old September 13th, 2007, 06:26 PM   #26
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781
No question that is the easiest way. The harder route would have been to make a Alanod MIRO reflector box that went on top of the sockets. The reason I say hard is because its not such an easy trick to cut the reflector out of the aluminum and do it right the first time--making it look good and professional too.
__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz
Richard Andrewski is offline   Reply With Quote
Old September 13th, 2007, 06:42 PM   #27
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Richard:
I agree completely. This was an exercise in producing a solid, reliable light unit on the cheap, using locally available items. I'm really happy with how things turned out. The lights look good and perform better than I expected. Unless you get right up on the back of the unit and see the Nordic Ware stamp, you can't really tell it's made from two brownie pans. I suppose I should make a custom nameplate to cover the stamp.

BTW, I enjoy reading your site and how you develop your product line. I think you understand what's needed to come up with a profitable design and bring it to the market better than most, especially when it's a product that may sell only in the hundreds or thousands of units. I thought about making and selling lights like these, but there's really no way I could compete with the imports selling for less than $90 on eBay.

Regards;
Martin.
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old September 13th, 2007, 07:09 PM   #28
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781
I know what things cost and I thought it was ridiculous what an aluminum fixture was costing--especially long after all the tooling costs have been paid for. I also know what ballasts are and what components are in them. It's hard to imagine the collection of components that warrants a price tag of $4000 to $8000 for an HMI for instance. Actually, I think its not that I know more than most because I don't. Many people understand manufacturing processes. Frankly, I think its a question of business plans, honesty, size of companies, overhead, momentum in the market, and what they can get away with based on what they have done in the past. It's mainly the lengths I've been willing to go to that many others might not be willing to do to make all this happen.

On the subject of what you choose to be your "project box" as I call it --borrowing a term from the electronic hobbyist world and applying it to the lighting experimenter: that's easily the hardest part IMHO. You can search for weeks for a suitable enclosure and baking pans are about as good as it gets for many of these kinds of things. When I wanted to move up to the 55w tubes, there really wasn't anything of the size necessary so it was time for more serious measures--like going to a sheet metal fab shop....
__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz

Last edited by Richard Andrewski; September 13th, 2007 at 07:53 PM.
Richard Andrewski is offline   Reply With Quote
Old July 27th, 2008, 08:26 PM   #29
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Got a question via PM about the lights, and thought I'd attach the PDF showing how the hinges are made and the wiring diagram.

Regards;
Martin
Attached Files
File Type: pdf LiteDia1.pdf (17.8 KB, 375 views)
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old July 27th, 2008, 11:32 PM   #30
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838

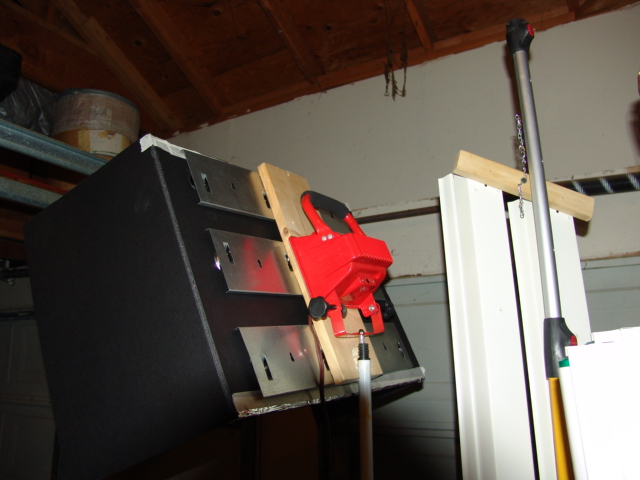

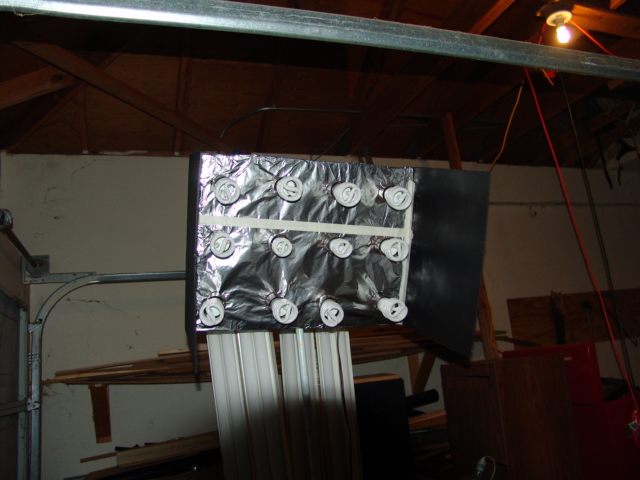

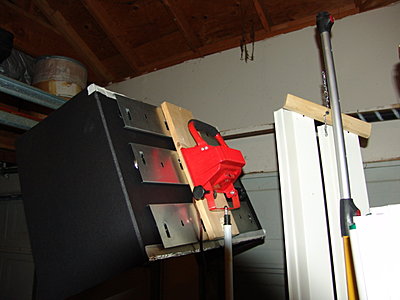

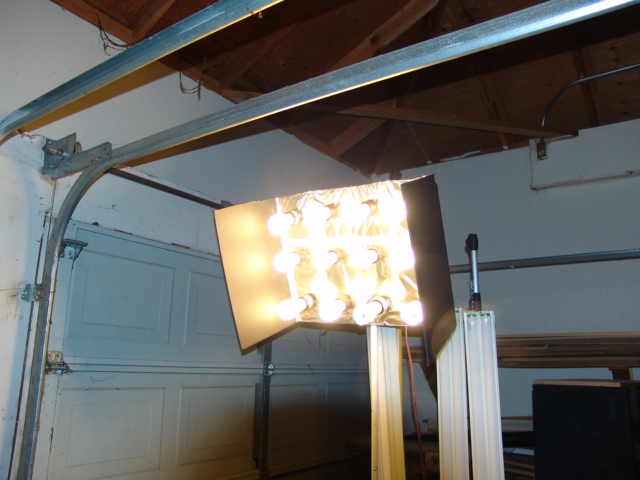

I made this unit as a prototype using 3 4-bulp bathroom fixtures bought at Home Depot for 9 bucks each. Backing is a cutdown foamcore poster board I got at Staples. Kids use them for the science presentations, etc. With this set up, the you just have to wire tie three units together, and tie them together with wood slats, and design a mount for whatever you are goint to hand them from. In this case I had a shop light go back so I used the encloser for the the wiring. No switch right now but the concept will work...

By the way, those shop lights in background are used to sit on either side of my green screen....
Attached Thumbnails
D.I.Y. 900-watt CF Lighting Units-dsc07797.jpg   D.I.Y. 900-watt CF Lighting Units-dsc07798.jpg

D.I.Y. 900-watt CF Lighting Units-dsc07799.jpg
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply
