Old April 1st, 2009, 01:39 PM   #1
New Boot

Join Date: Apr 2006
Location: New York, New York
Posts: 23
upgrading to 600 leds a question

I have two lowel lights in 24x36 photoflex softboxes.One has a tota 500 watt and a 750 dp light in the other. Would two of the 600 led be able to replace them? I mostly shoot in regular sized rooms.
Anthony Auci is offline   Reply With Quote
Old April 1st, 2009, 04:02 PM   #2
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,449
I have three Flolight 500LEDs, and they put out about the same amount of light as a 500 watt tungsten light in a softbox. However, the softbox is broader and softer. The LED is a little more harsh and needs to be gelled if you're in close. The type of LED you get might be different. The Litepanels equivalent, for example, uses broader and softer LEDs in their fixture. I think you get a bit longer throw with the LED than the softbox. I'd guess that in terms of amount of light at the same distance, you'd be pretty close, but it'll have a different look.
Bill Pryor is offline   Reply With Quote
Old April 1st, 2009, 05:32 PM   #3
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781
There are several of our customers on here so I'm sure one of them with softbox experience will chime in. I would say that all other factors being equal, it should be very close to your current fixtures in output. We benchmark them as being similar to a 650w tungsten fresnel in output and that's before diffusion, so adding diffusion to either light may have about the same effects in cutting light.

Your 750 dp may be just a bit more strong and the 600 may be just a bit more strong than the 500 tota. You can see the lux output on our product page and compare that to what Lowel lists for those fixtures on their product pages for another sanity check as well.
__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz
Richard Andrewski is offline   Reply With Quote
Old April 1st, 2009, 05:58 PM   #4
New Boot

Join Date: Apr 2006
Location: New York, New York
Posts: 23
Thank you , Im confused and it sucks there is nowhere locally I can play with them before buying.
Anthony Auci is offline   Reply With Quote
Old April 1st, 2009, 07:16 PM   #5
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781
I would say when someone is confused, its best to do nothing and wait for more information. Perhaps spends some more time in research. We already have a lot of customers out there with this fixture and they are all very happy. One thing I think they all share though is that they were ready to try LEDs, had appropriate expectations, needed something super portable and/or that can run off portable power and were willing to experiment with how this light source could be adapted to the kinds of filmmaking they are doing. They were willing to relearn what they do to make LEDs work well in their environments. Sure key, fill and backlighting concepts don't change but how they are done with new fixtures may change a bit. Hope this helps.
__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz
Richard Andrewski is offline   Reply With Quote
Old April 2nd, 2009, 07:41 PM   #6
Inner Circle

Join Date: Oct 2001
Location: Honolulu, HI
Posts: 2,053
I'm using the Cool Lights 600. Was doing an interview yesterday and softened the light with what I had on-hand: a white garbage bag. Attached it with C-47s.

Because they don't get very hot the plastic bag material doesn't melt. And it provided a decently diffused light. I'll get diffuser material later on.

The existing lighting in the room was fluorescent. To get a better match I took off the 1/2 minus green in the Cool Light. Overall results were good. My lighting was far from artistic but it's one of those interviews you can't spend much time doing lighting and production design.
__________________
Dean Sensui
Exec Producer, Hawaii Goes Fishing
Dean Sensui is offline   Reply With Quote
Old April 2nd, 2009, 08:18 PM   #7
Major Player

Join Date: Jun 2006
Location: Shenzhen, China
Posts: 781

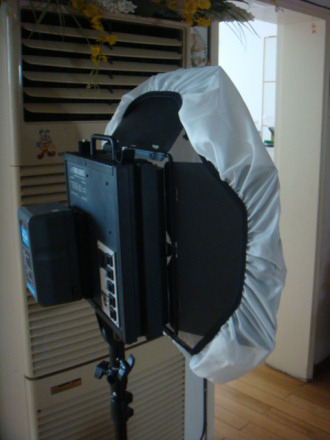

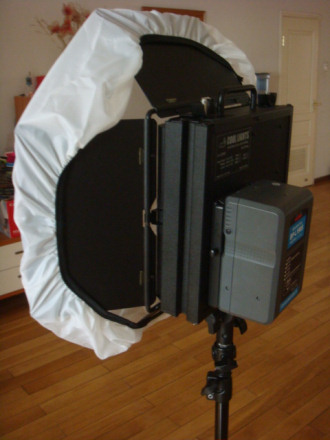

Thats a good one--never thought of it. Here's some pictures of a simple solution too. A flozier type arrangement. Suggested by customer Keith Moreau and a couple of others. We had one made and it looks like an oversized shower head cap. Polysilk material with an elastic band around the edges. Only problem is it certainly won't give you the big source you might want. The LEDs are too close to the diffusion so the spot is small and the barndoors can only open so wide and this solution depends upon the barndoors to give the large area. Softbox is still the best idea I think. You get that large surface area, the LEDs are farther back and therefore can make a bigger spot on the surface, etc.
Attached Thumbnails
upgrading to 600 leds a question-ledflozier1.jpg   upgrading to 600 leds a question-ledflozier2.jpg

__________________
Richard Andrewski - Cool Lights USA - RED #114
http://www.coollights.biz
Richard Andrewski is offline   Reply
