The homemade 'Shoulderlander'

I have an XH-A1. I hate these toy cameras with no shoulder support. I tried finding one to purchase, but none allowed me to still connect to a tripod.

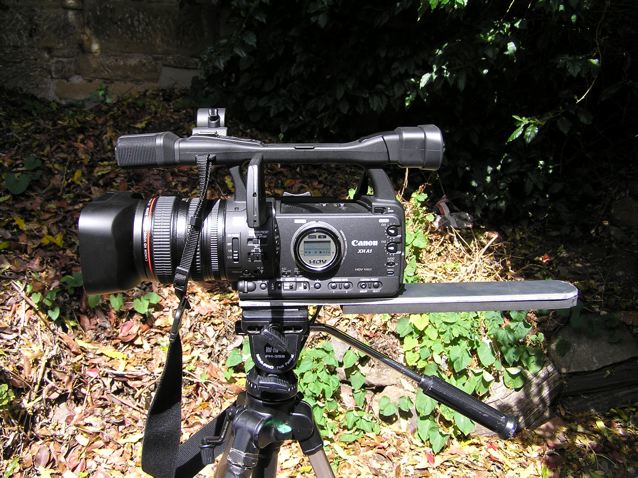

So I made my own, see attached photo.

The Shoulderlander prototype is made up of an aluminium bar about 35cm x 5cm, a bit of foam on the bottom, a hand made (longer) tripod bolt
Attached Thumbnails
The homemade 'Shoulderlander'-pb220343.jpg
Mark Shea is offline   Reply With Quote
Old November 21st, 2007, 07:48 PM   #2
Regular Crew

Join Date: Nov 2006
Location: Chandler, AZ
Posts: 86
Way to take the initiative to solve a problem tones of people are having! It's people like you who starting things like the Redrock M2, and RED!

One thing though:

Do you have anything to counter weight it in the back? If not it seems that you're still holding the all the wait in your arms.
__________________
Timothy D. Allen
http://www.tribaliris.com
Timothy D. Allen is offline   Reply With Quote
Old November 21st, 2007, 08:48 PM   #3
Regular Crew

Join Date: Oct 2004
Location: no fixed address
Posts: 119
Hi Tim

My paglight C6 battery for my on camera light kit sits nicely above the shoulderlander. I just use two big elastic rubber bands to hold it on. Works a treat, but cant access battery apartment when in place

If I was to do another, I would probably use a 4cm wide piece of aluminium and have it maybe 3mm thick instead of 6mm. Then I could bend the end to fit around my shoulder if needed.

The hardest part of building this was making the tripod bolt. (1.4-20) Can't buy them from hardware stores.

I really can't believe not one camera manufacturer (apart from Sony, who make the ridiculously priced VCTFXA http://www.videoguys.com.au/scripts/...idproduct=1451) makes a shoulder support THAT also allows connection to a tripod.

I'm new to these 'handheld' cams, and really believe if you are using them with manual settings, you need a 3rd arm (ie shoulder pad) so you are not getting 'wobblyshot' when you make adjustments
Mark Shea is offline   Reply With Quote
Old November 22nd, 2007, 12:10 AM   #4
Regular Crew

Join Date: Nov 2006
Location: Chandler, AZ
Posts: 86
Cavision makes a really nice one at a reasonable price: http://www.bhphotovideo.com/c/produc...ulder_Pad.html

But it does however require that it be mounted to rails, so that might not fit your needs. Works great for me!
__________________
Timothy D. Allen
http://www.tribaliris.com
Timothy D. Allen is offline   Reply With Quote
Old November 27th, 2007, 05:47 AM   #5
Regular Crew

Join Date: Oct 2004
Location: no fixed address
Posts: 119
Would you buy this prototype??

I developed these for my own use...do you think people would buy such
a simple effective shoulder support if I started mass producing them??

The Shoulderlander:
Solid, dependable, strong. For those who don't want to muck around with wobblyshot. Made from lightweight aluminium and anatomically correct cushion foam, the Shoulderlander gives you the support you need when the going gets tough - an extra long wedding service, a long winded speech. And as illustrated, can still be connected to your favourite tripod, once the dust has settled


The Travelander (in development)
The travelander is a lightweight version of the Shoulderlander, for those who crave the open road. Just chuck it in your backpack, and hit the road, jack!
You CAN have it all, a free and easy lifestyle AND steady shots!
Mark Shea is offline   Reply With Quote
Old November 28th, 2007, 08:15 PM   #6
Regular Crew

Join Date: Oct 2004
Location: no fixed address
Posts: 119

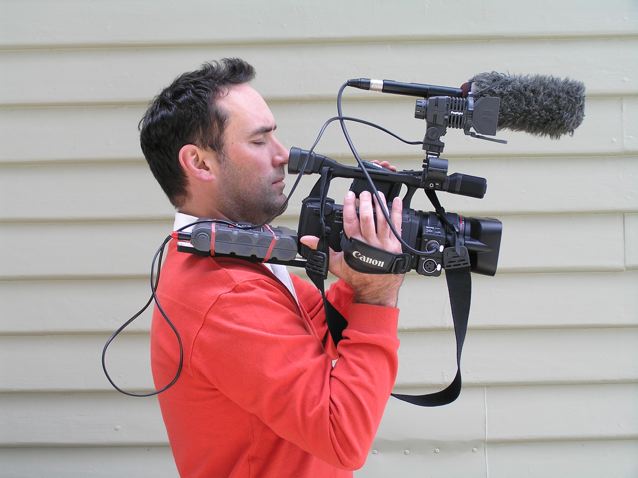

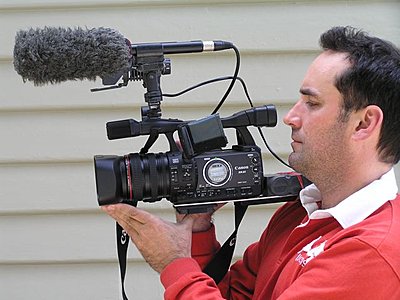

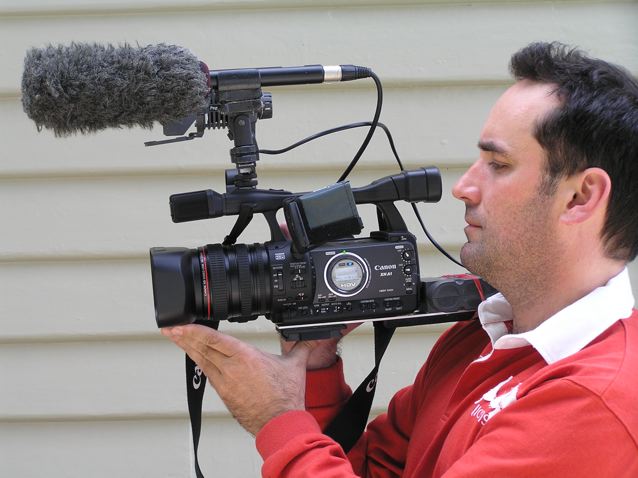

The lighter 'Travelander' prototype is complete.

Here you can see it fully loaded with light battery attached ( with rubber bands)

For use with handheld camera with LCD screens, and versatile enough to connect to a tripod.
Attached Thumbnails
The homemade 'Shoulderlander'-pb290348.jpg   The homemade 'Shoulderlander'-pb290350.jpg

Mark Shea is offline   Reply With Quote
Old November 29th, 2007, 12:48 AM   #7
Regular Crew

Join Date: Nov 2006
Location: Chandler, AZ
Posts: 86
The only issue I see is that you are still supporting most of the weight with your hands/arms. You should ad a pad that sets over the shoulder, and then battery could hang off the back allowing for a better balance of the weight.
__________________
Timothy D. Allen
http://www.tribaliris.com
Timothy D. Allen is offline   Reply With Quote
Old November 29th, 2007, 05:58 PM   #8
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Looking at the picture, all I can say is that it looks extremely uncomfortable. I'd either bend a curve in the metal or fit a curved pad to the underside to fit the shoulder better. The balance looks front heavy. It would work in the short run, but having lugged an XL2 on my shoulder for eight-hour stretches, I'd say your design needs refining. I'd try boosting up the camera's position relative to your head so you're not looking down into the viewfinder. The head-back angle in the pictures can't be too comfortable for long periods. Plus maybe a pistol-grip in the front, underneath the lens.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old November 29th, 2007, 06:22 PM   #9
Major Player

Join Date: Nov 2005
Location: New Jersey
Posts: 475
+1 on a curve for the shoulder, have it drop down over the shoulder, and add a metal sleeve to encase the battery(and add counterweight).
