Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar

A request for tech advice.

This is another of the uneconomic-to-repair fungussed and tropically humidified lenses I referred to in a post some time back. Those were two old Cooke Ser 2 lenses and a 90mm Zoomitar Macro Kilar. For lens techs, it is probably not something you would want spreading spores and infection around in your workshop.

Given their condition, cost of shipping, low market value and having a bit of facility in cleaning lenses myself, I decided to tackle these, so far with good outcomes given their damage. They cannot be perfect as the coatings were too far gone.

I have been putting this one off. Like the 90mm, there are signs this one had a previous tourist inside in its past as there are two missing screws.

So far so good except that I have run into a snag with the rear optical elements. They have to be dismantled because there is oxide contamination within. Luckily the iris blades are clean this time round.

This group appears to be a doublet, retained from the rear by a metal cylinder and single element in a rear shoulder in this cylinder. The cylinder is retained by an internally shouldered threaded ring which bears on the rear element itself. This is where it gets tricky. There is a buildup of metal bloom. With patience I have been able to get the threaded ring off. However the rearmost element is wedged into the cylinder which itself is stuck. It does not appear to be a swaged cell as there is about 0.5mm of the optical element protruding and the sides are square, not chamfered for swaged retention. The 90mm of similar design had no swaged cells.

I am also unable to find any screws which release the two extending focus barrel segments. With the 90mm it was not necessary to dismantle this section. However with the 40mm, to entirely remove the rear optical/iris assembly, either the focus barrels must be screwed out or there are two sections to a rear fixed body which screw together. There is a machined seam in the rear body but no sign that this is a joint. There are neither locking screws nor any holes/slots for lens tools. If this section has been pressed/bonded together, then that's my lot.

If any lens-smiths out there have it within their generous souls to advise, this would be muchly appreciated.

Thus far I have managed to polish out the fungus pits on both faces of the plano-convex front element without ruining the figure of the element. The worst were on the plano face. If ever there were a mindless numbing task, hand polishing has to rank right up there.
Bob Hart is offline   Reply With Quote
Old January 4th, 2013, 02:14 PM   #2
Inner Circle

Join Date: Dec 2003
Location: PERTH. W.A. AUSTRALIA.
Posts: 4,356
re: Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar

As macro lenses go, this lens is not really a candidate for a S16 sized sensor as from new, the sharpness was apparently not all that outstanding. It is more of a restoration project.
Bob Hart is offline   Reply With Quote
Old January 7th, 2013, 12:32 PM   #3
Inner Circle

Join Date: Dec 2003
Location: PERTH. W.A. AUSTRALIA.
Posts: 4,356
re: Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar

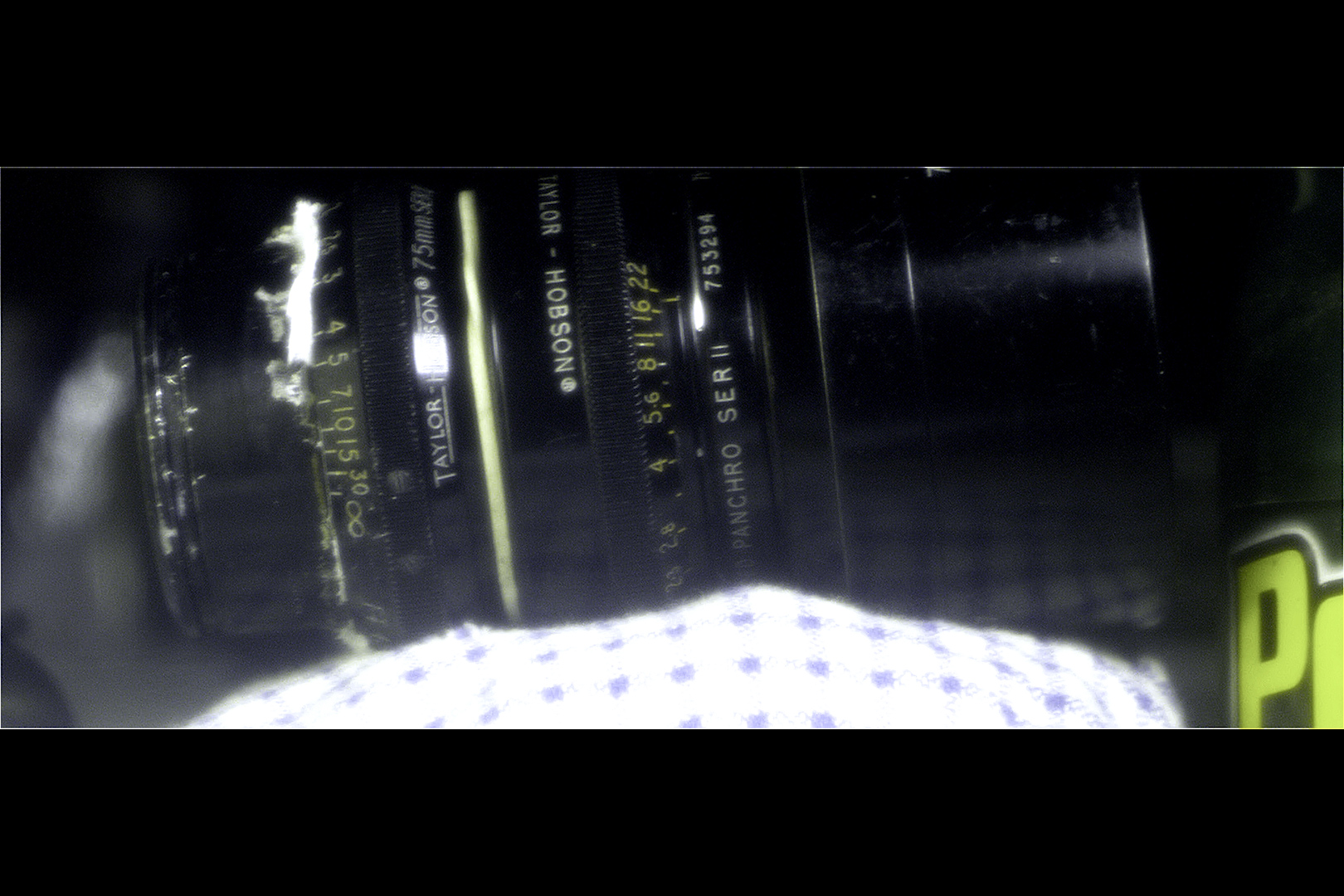

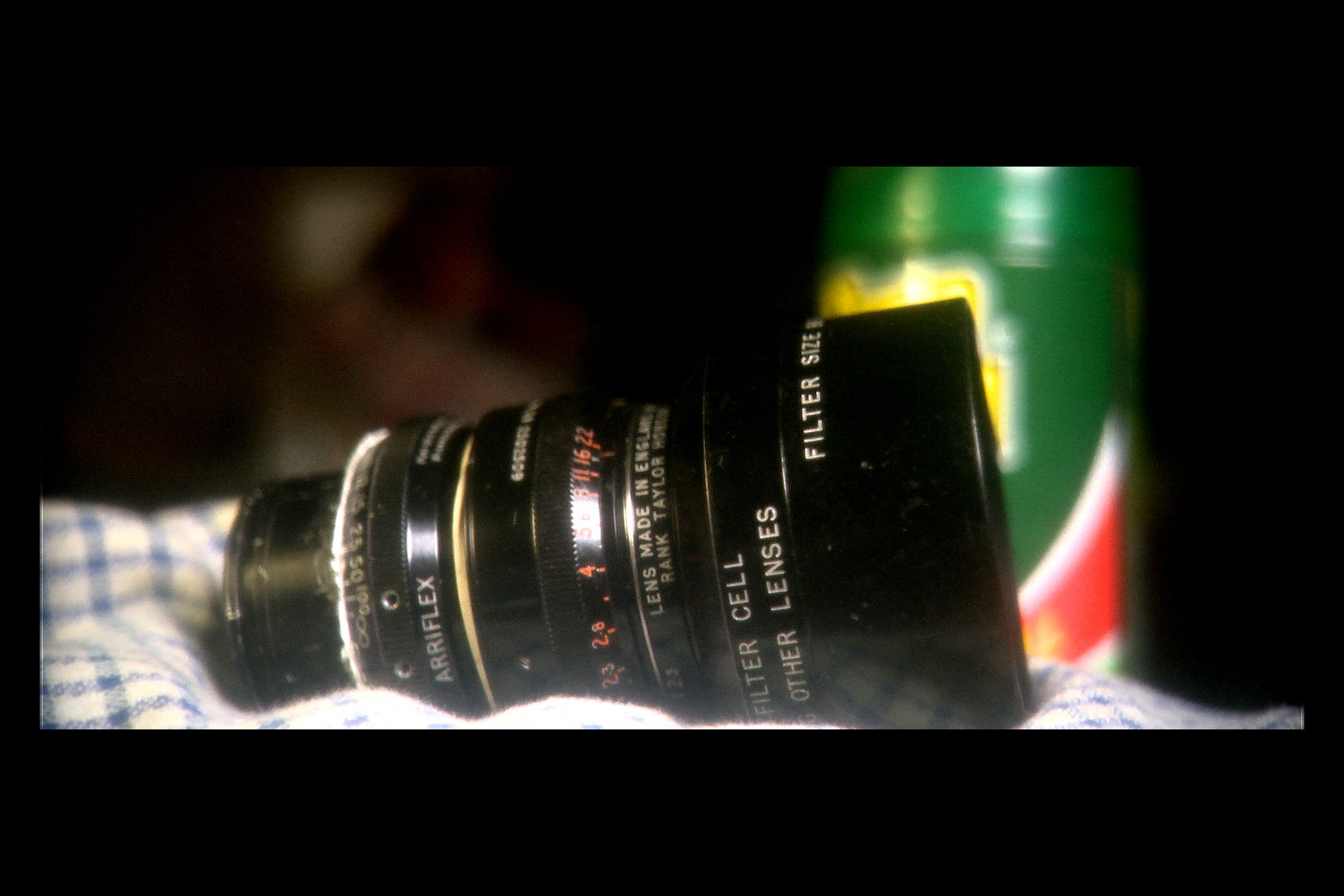

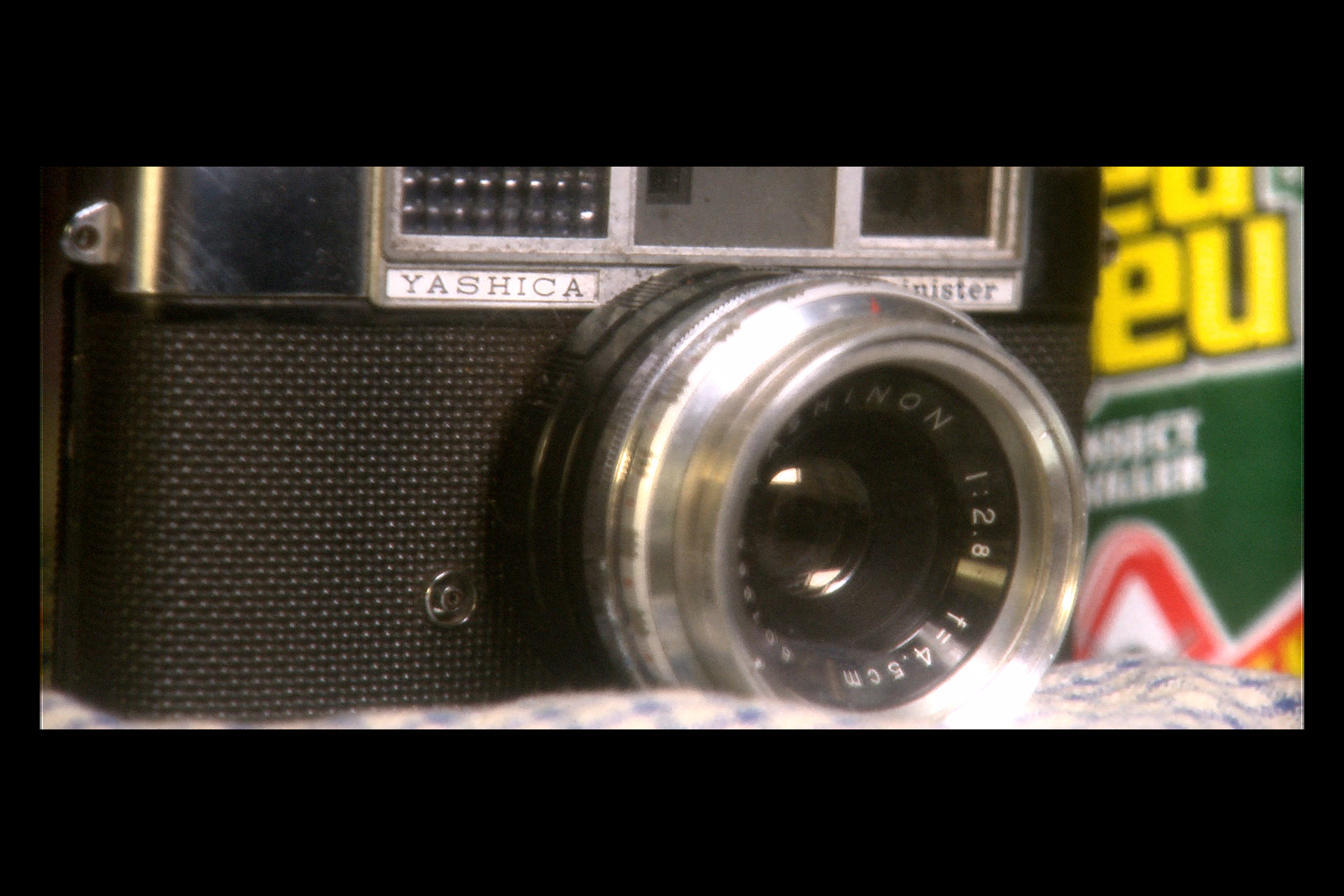

Here's a couple of images from the 40mm and 90mm Kilfitt Zoomitar Macro Kilar lenses. These are very poor specimens. Good examples would probably be okay for full 35mm stills cameras for which they were designed to cover the image area.

For Super16mm ( SI2K ) they are way too soft returning barely 17 - 20 points on the sharpness numbers. My worst Super16mm lens gives 117.

The lenses having lost their coatings to fungus damage are now very, very flarey. this images are after cleanup in Premiere Pro CS5. I have also been bothering the reduser mob with requests for how to for these lenses.
Attached Thumbnails
Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar-macro-kilar-40b.jpg   Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar-macro-kilar-40c.jpg

Zoomitar Sr. 254-1581 40mm f2.8 Macro Kilar-macro-kilar-90b.jpg

Last edited by Bob Hart; January 7th, 2013 at 12:39 PM. Reason: add images
