Old November 12th, 2016, 12:44 PM   #1
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
New X70/Z150 color correction PP

Anyone interested in beta testing a new X70/Z150 PP with custom color correction settings? I worked out a new one basted on the PRO color mode, which out of the box has much more accurate colors than the ITU709 color mode. Been using this the last week, and although the colors look more desaturated and washed out compared to stock ITU709 color mode, they allow much better grading in post, since any color abnormalities are kept in check instead of boosted as they are in the more saturated ITU709.

So, below is my current working set, with an alternate for the color 2 correction. Please try these settings out and help me confirm they work well in daylight as well as mixed lighting. As they adjust/change the RED and YELLOW colors, that would be what you should point at to see issues. I am having the most issues with getting yellow firefighter jackets to look proper. Also, the orange used for Sony Pro boxes just looks odd, but getting that orange to look correct makes yellow look very off. Feel free to mess with the phase adjustments in each color, as you can see in real time how even a single number increment of change can become a very visible variation in the hue of a color!

Gamma: ITU709
Color mode: PRO
Color Phase: -1
Color Correction: Revision 1&2 1 = red, 2 = yellow
Mem 1 Color: 10, 4, 0 Mem 1 Revision: +8, 0
Mem 2 Color: 13, 9, 0 Mem 2 Revision: +8, 0 (alternate 15, 4, 0 / +4, 0)
WB Shift: LB-CC, MG/GR, +1 for Z150, +2 for X70 (this can be considered optional)

I find that in every PP I have calibrated, the red always looks correct at 10, 4, 0, +8, 0 with a -1 phase shift. Remember, on the color wheel, + means clockwise to the right, - means counterclockwise to the left, towards the next color over on the vectorscope.

Paul
Paul Anderegg is offline   Reply With Quote
Old December 5th, 2016, 08:30 AM   #2
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,816
Re: New X70/Z150 color correction PP

Hi Paul,

Thanks for the information. We are using the Z150 as one of the cameras on a shoot in a shop. Will give your setting a try on our test days and report back.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old December 5th, 2016, 09:09 AM   #3
Major Player

Join Date: Feb 2008
Location: Atlanta, GA
Posts: 215
Re: New X70/Z150 color correction PP

Quote:
Originally Posted by Paul Anderegg View Post
Anyone interested in beta testing a new X70/Z150 PP with custom color correction settings? I worked out a new one basted on the PRO color mode, which out of the box has much more accurate colors than the ITU709 color mode. Been using this the last week, and although the colors look more desaturated and washed out compared to stock ITU709 color mode, they allow much better grading in post, since any color abnormalities are kept in check instead of boosted as they are in the more saturated ITU709.

So, below is my current working set, with an alternate for the color 2 correction. Please try these settings out and help me confirm they work well in daylight as well as mixed lighting. As they adjust/change the RED and YELLOW colors, that would be what you should point at to see issues. I am having the most issues with getting yellow firefighter jackets to look proper. Also, the orange used for Sony Pro boxes just looks odd, but getting that orange to look correct makes yellow look very off. Feel free to mess with the phase adjustments in each color, as you can see in real time how even a single number increment of change can become a very visible variation in the hue of a color!

Gamma: ITU709
Color mode: PRO
Color Phase: -1
Color Correction: Revision 1&2 1 = red, 2 = yellow
Mem 1 Color: 10, 4, 0 Mem 1 Revision: +8, 0
Mem 2 Color: 13, 9, 0 Mem 2 Revision: +8, 0 (alternate 15, 4, 0 / +4, 0)
WB Shift: LB-CC, MG/GR, +1 for Z150, +2 for X70 (this can be considered optional)

I find that in every PP I have calibrated, the red always looks correct at 10, 4, 0, +8, 0 with a -1 phase shift. Remember, on the color wheel, + means clockwise to the right, - means counterclockwise to the left, towards the next color over on the vectorscope.

Paul
Paul, it is my "go to" profile now but I have not had the opportunity to use it outdoors. Indoors it is great.

Thanks
Dan Gunn is offline   Reply With Quote
Old December 9th, 2016, 12:02 AM   #4
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

Well, I took my Z150 out for the first time in several weeks, and accidentally had it set to STILL gamma mode! So I jumped out in the dark on a pedestrian struck by a car on the freeway, and everything looked so dark and contrasty! Back in FCPX, I was able to manipulate the levels and bring up the blacks, it looked amazingly nice.

As you may know, when you push the gamma down (deeper blacks), the end result is that your saturation increases dramatically. On PRO color mode, STILL gamma brings 0 level saturation to what looks bright and colorful. The 87.5/-2 KNEE DOESN'T WORK with STILL gamma Unless you want your 108% clipping at 92%!), but I recommend giving STILL gamma PRO color mode a try. So much less apparent noise, and the 10 bit XAVC coded handles bringing levels where you want them easy and clean.

Paul
Paul Anderegg is offline   Reply With Quote
Old December 10th, 2016, 09:45 AM   #5
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,816
Re: New X70/Z150 color correction PP

Paul,

First thanks for sharing so much of your information, very nice of you.

I have tried all of your PP's and have only looked at them in my office with color ranging from 3800-6000. No studios work yet, and no on site work yet. Just learning the camera, it came yesterday. Pretty easy menu since I have owned an own a wide range of Sony cameras for 30+ years.

Z150 is a nice little camera. Your Cinematone 1 PP is the best on my three monitors that I can tell with minimum test. Will know a lot more by the end of the week when we have days on site testing with Z150 and other cameras.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old December 23rd, 2016, 07:41 AM   #6
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,816
Re: New X70/Z150 color correction PP

Hi Paul,

I have been using the ITU709 for a series in a boat shop at 5600K, and high CRI lighting with great results. At times the red is a little too much but not where you notice it on screen, more in the Lumetri Scopes in PP CC when editing.

Shooting in 4K, 30P and use LED DraCast 1x1 lights, and three small Dracast lights which I love. Also using these special bulbs in the shops T5 HO fixtures. Full Spectrum Lighting, Natural Lighting Vita-lite

Keep up the great work Paul, and thanks again for sharing.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old December 23rd, 2016, 08:45 AM   #7
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

I am glad to hear you guys are liking the new PRO PP! :-)

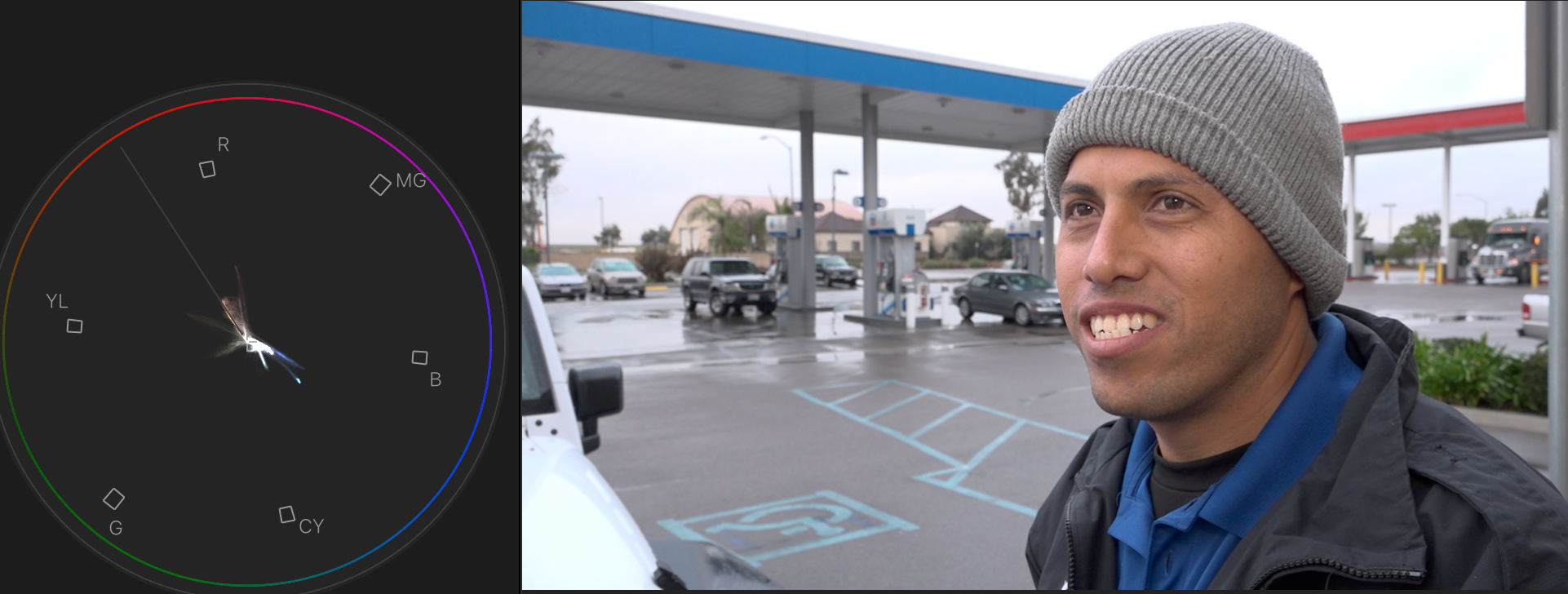

Here is a still frame grab from a daylight SOT using AWB and some fill from my cheap $150 bi color LED set to somewhere around 4500k. Skins seem happy...this is WITH the +1 MG push in white balance offset menu, and +5 saturation boost BTW.
Attached Thumbnails
New X70/Z150 color correction PP-screen-shot-2016-12-23-8.10.28-am.png
Paul Anderegg is offline   Reply With Quote
Old January 1st, 2017, 09:45 PM   #8
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

Did some self training on color correcting in post, using my DSC chart. Found that with HALOGEN lighting, the camera whites at 3600k. When set to manual 3600k, using halogen lighting, and looking at the greyscale portion of my DSC chart, the white vs black balance is all out of whack. Highlights, mids, and shadows, all showed a different hue push when viewed on the waveform in FCPX, RGB overlay. To correct these, in your NLE, you would want to adjust each wheel of your three circles, or color board in FCPX, differently, to correct the hue for the specific level range. I am finalizing the correction values for FCPX and will post a bit later. I don't have Premier or another NLE to provide values for, but FCPX uses degrees for it's odd color board, so you can use them as a guide to adjust in your NLE using the waveform, and a greyscale chart I will also provide. This is a simple repair to what the camera sensor is doing, so it is applicable when using ANY kelvin and the previously provided PP. It should also work on you own custom PP, as these adjustments are simply to match hue for high, mid and shadow levels, and are not kelvin specific.

When doing push to white, these level hues are corrected, but as you may be aware, when using push to white with LED, you will almost always have a magenta or green push added, which will affect background object out of full range of your lighting, so I prefer manual kelvin and just massage the white on that one green/magenta vector to my liking.

Paul
Paul Anderegg is offline   Reply With Quote
Old January 2nd, 2017, 12:53 AM   #9
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

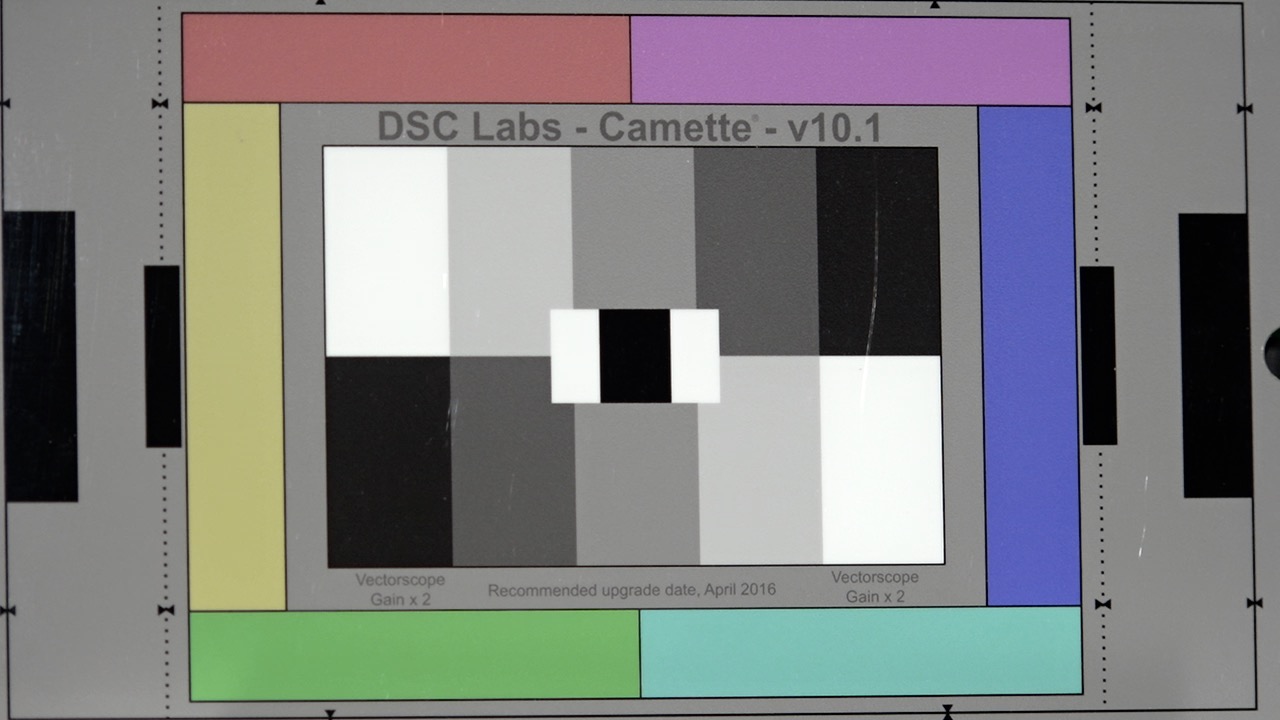

OK, here is what the DSC chart looks like, manual white balance 3600k, halogen lighting. You can load this JPG into your NLE, crop down just the center section, and look at it on the waveform monitor (RGB overlay) to see the red, blue and green anomalies...proper calibration will show all lines as white only, so mess with it until the red green and blue lines converge into a single white for high mids and shadows.

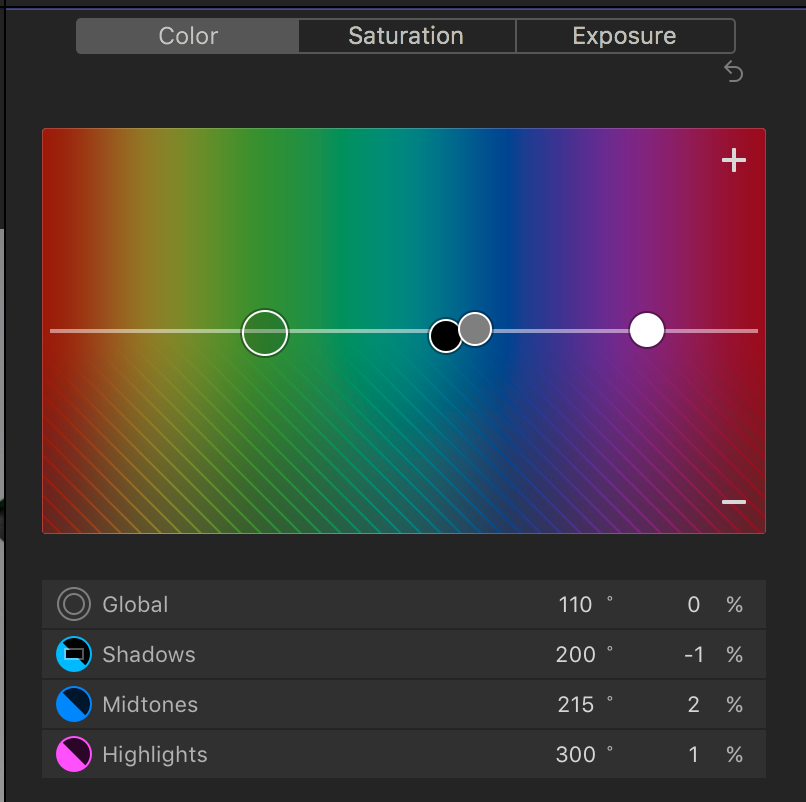

Second pic is of the color board in FCP, which shows the corrections needed to balance the colors.

Will do one of these for the X70, this test clip is from the Z150. My X70 has a major green shadows issue, blacks go green with black gamma pretty bad, so will provide a correction for that camera soon.

Paul
Attached Thumbnails
New X70/Z150 color correction PP-dcs-z150.jpg   New X70/Z150 color correction PP-screen-shot-2017-01-02-12.14.29-am.png

Paul Anderegg is offline   Reply With Quote
Old March 7th, 2017, 02:45 PM   #10
Regular Crew

Join Date: Jan 2015
Location: Tepetlaoxtoc MX
Posts: 37
Re: New X70/Z150 color correction PP

Excuse my ignorance but would like to ask Paul or any other knowledgeable person who happens to read this how you would characterize the difference between the profile discussed in this thread and the "direct to air" profile posted some time ago here:

BEST X70 Picture profile settings

Are they two foxes coming out of the same hunt, or two quite different beasts for different purposes?
Peter Lowe is offline   Reply With Quote
Old March 7th, 2017, 03:06 PM   #11
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

I think the PRIMARY things to care about in my PP's is the COLOR CORRECTION settings. I have previously posted a list of settings for each color mode. After that, things like gamma can be considered personal preference, I just want to make sure you get the most accurate colors, such as red red instead of pink or orange red. :-)

I always try to throw up some example clips shot at night, and with a bunch of profile spaces in the menu, you can put a whole bunch in the camera and scroll through them live to see which you like better.

Paul
Paul Anderegg is offline   Reply With Quote
Old March 20th, 2017, 04:31 AM   #12
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

My station finally got a vectorscope with 2x zoom/gain setting, so I can now work on making this X70/Z150 PP look as good as possible. Stay tuned.

Paul
Paul Anderegg is offline   Reply With Quote
Old March 20th, 2017, 03:26 PM   #13
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,816
Re: New X70/Z150 color correction PP

Be interested in what you come up with for PP. I am still using your PP and have had great results.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old March 20th, 2017, 03:31 PM   #14
Trustee

Join Date: Jan 2013
Location: San Diego, Califonia
Posts: 1,249
Re: New X70/Z150 color correction PP

I am still having issues with these cameras colors not specifically agreeing with their vectorscope colors. If I put red in the red box, the camera produces magenta reds...it makes calibration a 50% eyeball process.

Paul
Paul Anderegg is offline   Reply With Quote
Old March 20th, 2017, 03:32 PM   #15
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,816
Re: New X70/Z150 color correction PP

That sounds like a mess. The only issue I have had is controlling the red at times.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply
