SRW-9000 HDCAM SR Camcorder

Sony is releasing a new HDCAM SR based camera. It'll be shoulder mount like the XDCAM series but recording to HDCAM SR Tape. It'll output 1-60 fps in 1080 with some option boards installed. Check out the link below for more information.

[最新资讯]SONY新发 SRW-9000 摄录HDCAM SR一体机 - 影视器材专家--器材测评/选购咨询 - 中国最大的DV从业者社区-1394论坛 DV论坛|二手DV|二手摄像机|摄像机论坛|摄像师论坛|摄像摇臂|影视制作|影视器材租赁|非编论坛|AE论坛|高清摄 像机|广播级摄像机租赁 - Powered by

Watch this site for more info when they post it - Welcome to the NAB 2009 Virtual Press Kit

===================================================================

SONY UNVEILS FIRST CAMCORDER BASED ON HDCAM SR FORMAT


LAS VEGAS (NAB Booth #C11001) April 19, 2009 Sony is unveiling the next generation of digital 24P technology, the SRW-9000 HDCAM SR camcorder. Designed for television, commercial and motion picture production, the new model combines the format抯 image quality with the versatility of a one-piece camcorder.

The full HD (1920 x 1080) resolution camcorder uses 2/3-inch CCDs with a 14-bit A/D converter and digital signal processing to capture up to 1080/60P images with a high level of detail. In standard configuration, the camcorder is capable of 4:2:2 10-bit recording at 1080/23.98P, 24P, 25P, 29.97P, and 1080/50i/59.94i. It can also record 4:2:2 1080/50P/59.94P.

揟he HDCAM SR format is proven in the most demanding digital cinematography applications, said Rob Willox, director of marketing, Sony Electronics content creation group. 揂pplying that legacy into a compact one-piece body design adds more flexibility to location work and is more 慡teadicam-friendly as a B-camera complement to the F23. This mobile and cost-effective acquisition tool can further expand the use of HDCAM SR technology to a much broader audience.

A range of option cards are available for additional performance and features. The HKSR-9001 option board adds dual-link HD-SDI outputs and an extra AUX input port for connectivity to an external audio multiplexing device.

A picture cache board (HKSR-9002) will allow the camcorder to capture and record images with variable speed (SR Motion capability) from 1 to 60 fps. It also allows the camcorder to continuously record up to three seconds of video while the camcorder is in stand-by mode. When the record button is pushed, the stored images are recorded to HDCAM SR tape and the camcorder can continue recording in real time.

With the optional HKSR-9003 RGB 4:4:4 processing board, the camcorder offers full-bandwidth digital 4:4:4 high-definition RGB recording and output capability. The option also offers S-LOG Gamma, which is essentially a 揹igital negative, allowing users to flexibly tailor their images during post-production in the same way they would in a film-based workflow.

Complementing all HDCAM SR technologies is Sony抯 line of BCT-SR Series HDCAM SR digital videocassettes. These cassettes are designed and co-engineered to fully maximize the benefits of 4:4:4 RGB recording technology.

HDCAM SR recording media uses ultrafine high performance metal particles 50 percent smaller than those in Sony抯 HDCAM tape applied in the thinnest magnetic coating, to enable wavelength recording to 0.29mm. The result is up to +7dB higher output than HDCAM tape.

The SRW-9000 is compatible with a wide range of accessories for Sony抯 HDW-F900 and F23 cameras, SRW-1 deck, and ARRI camera systems. Its physical size is equivalent to Sony抯 original HDW-F900 camcorder.

In addition, the SRW-9000 accepts the new HDVF-C30WR viewfinder, which is specially suited for Sony抯 F series cameras, and offers the new Focus Assist Function. The new viewfinder also provides pre-installed viewing look-up tables (LUTs) for S-Log Gamma, enabling easy focus adjustment and intuitive photo-shooting operation.

The SRW-9000 HDCAM SR camcorder is planned to be available in December, with suggested list pricing to be announced.
Attached Thumbnails

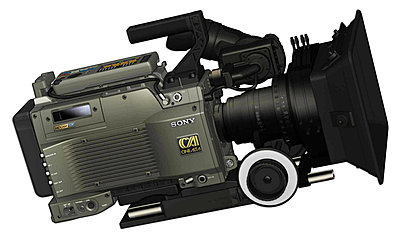

SRW-9000 HDCAM SR Camcorder-srw9000.jpg
__________________
Andy Shipsides -Camera Technology Specialist
AbelCineTech, New York - Visit our Blog - http://blog.abelcine.com
Andy Shipsides is offline   Reply With Quote
Old April 21st, 2009, 03:37 AM   #2
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
It doesn't get any awards for beauty! Has to be the ugliest camera I've seen in ages.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old April 21st, 2009, 05:28 AM   #3
Trustee

Join Date: Dec 2003
Location: Malvern UK
Posts: 1,931
Ah haaah! The lightbulb has gone on. I reckon this syncs with my idea that they have now started the gradual phase out of normal HDCAM and explains the PDW-800 nicely.
Simon Wyndham is offline   Reply With Quote
Old April 29th, 2009, 12:47 PM   #4
Starway Pictures

Join Date: Jul 2005
Location: Studio City
Posts: 581
I overheard someone from BandPro saying that people will be shocked how low the price will be. Really. Does that mean instead of $150K it'll be $125K? *Roll Eyes*

The PDW-800 is $42,000. I'm sure the SRW-9000 will be stratospheric in price.
Robert Sanders is offline   Reply With Quote
Old April 30th, 2009, 02:15 AM   #5
Inner Circle

Join Date: Apr 2006
Location: Wales
Posts: 2,130
I'm sure you're right, partly because it's the tape part that tends to be expensive, one of the reasons why solid state cameras can be made relatively cheaply.
Also, I get the feeling the price will be released as a base camera and then there will be all the add ons at an extra charge - so for example 1-60fps overcranking and 4:4:4 recording boards may well be 10,000 each!
Steve
Steve Phillipps is offline   Reply With Quote
Old April 30th, 2009, 03:46 PM   #6
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Steve is correct. The base camera is 4:2:2 and missing a few other options. I overheard the figure of $125k for the basic camera being mentioned at NAB, but that might not be correct.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old May 1st, 2009, 04:27 AM   #7
Inner Circle

Join Date: Feb 2006
Location: Belfast, UK
Posts: 4,120
Quote:
Originally Posted by Alister Chapman View Post
Steve is correct. The base camera is 4:2:2 and missing a few other options. I overheard the figure of $125k for the basic camera being mentioned at NAB, but that might not be correct.
Sony seem to be pushing it as a B camera to the F23, but for most productions SRW 9000 would make more sense as the A camera.
Brian Drysdale is offline   Reply With Quote
Old May 1st, 2009, 02:20 PM   #8
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Not sure why they are pushing it as a B camera to the F23 too. It shares the same front end so there should be no difference in picture quality. The SRW 9000 will certainly be a good camera for stedicam use and perhaps in that situation they would regard it as a B camera. Where it would be a good B camera is with an F35.

Makes me chuckle as when I think of B cameras I normally think of EX1's and lower priced cameras, while the 9000 is a camera many would aspire to have as their A camera!
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old May 2nd, 2009, 04:22 AM   #9
Inner Circle

Join Date: Feb 2006
Location: Belfast, UK
Posts: 4,120
Quote:
Originally Posted by Alister Chapman View Post
Not sure why they are pushing it as a B camera to the F23 too. It shares the same front end so there should be no difference in picture quality. The SRW 9000 will certainly be a good camera for stedicam use and perhaps in that situation they would regard it as a B camera. Where it would be a good B camera is with an F35.

Makes me chuckle as when I think of B cameras I normally think of EX1's and lower priced cameras, while the 9000 is a camera many would aspire to have as their A camera!
I suspect it's for those productions that need a second camera of the same quality shooting multi camera or as the backup camera on a feature film.

I'd imagine a similar version of the F35 is not far behind, apparently there's no difference behind the sensor stage between the F23 and the F35.

For most work I can't see the F23 staying around in the longer term. The old dockable camera/VTR Betacam SP kits slipped away from the scene when the BVW200-400 camcorder series came out.
Brian Drysdale is offline   Reply With Quote
Old May 5th, 2009, 09:08 AM   #10
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
I've updated Andy's post with the full text of the Sony press release and an image (unfortunately very low-res, but the only one available at the moment).
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old May 5th, 2009, 03:47 PM   #11
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
There is a short video blog about the SRW-9000 on the sonybiz.net site:

Sony : NAB : United Kingdom

Scroll through the blogs and you'll find it.

There is also some text about it:

Sony : Introducing SRW-9000 HDCAM SR Camcorder : United Kingdom
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old May 12th, 2009, 08:55 AM   #12
Sponsor: Abel CineTech

Join Date: Feb 2009
Location: New York, NY
Posts: 360
I've heard that base price may be around $80k but that is just a rumor. I think the F23 is a very pretty camera, and with all the options installed the 9000 is basically the same thing. And the 9000 should fit in many more productions than the F23, with a much more portable form factor. Finally a F900 killer has arrived.
__________________
Andy Shipsides -Camera Technology Specialist
AbelCineTech, New York - Visit our Blog - http://blog.abelcine.com
Andy Shipsides is offline   Reply With Quote
Old June 11th, 2009, 01:13 PM   #13
Inner Circle

Join Date: Feb 2006
Location: Belfast, UK
Posts: 4,120
Quote:
Originally Posted by Andy Shipsides View Post
I've heard that base price may be around $80k but that is just a rumor. I think the F23 is a very pretty camera, and with all the options installed the 9000 is basically the same thing. And the 9000 should fit in many more productions than the F23, with a much more portable form factor. Finally a F900 killer has arrived.
Seemingly it has a F900 optical block, so perhaps it's more a F900 recording onto HDCAM SR and perhaps that would expect why Sony regard it as a B camera to the F23.
Brian Drysdale is offline   Reply With Quote
Old June 11th, 2009, 03:22 PM   #14
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
That excellent HDC-1500 block is finding it's way into many cameras including this one and the PDW-700
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old June 11th, 2009, 03:31 PM   #15
New Boot

Join Date: Mar 2009
Location: Toronto, Ontario Canada
Posts: 13
Also the same block as the F23 and the PDW-F800
Bill Long is offline   Reply
