Old October 20th, 2009, 02:12 AM   #1
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
New PMW-350, EX1R camcorders and SxS media announced

Sony : XDCAM EX, PMW-350, PMW-EX1R Reviewed : Other



New EX1R + PMW350
Attached Thumbnails

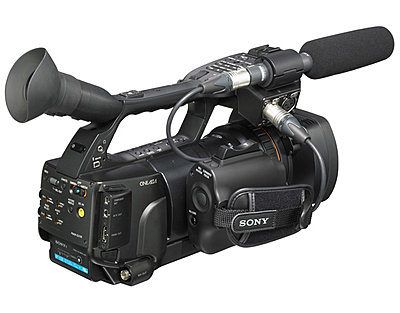

New PMW-350, EX1R camcorders and SxS media announced-350.jpg   New PMW-350, EX1R camcorders and SxS media announced-ex1r.jpg

__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old October 20th, 2009, 02:54 AM   #2
Trustee

Join Date: Sep 2005
Location: Singapore
Posts: 1,498
its nice to see the HD-SDI there and the improvement in the ergonomics.
Sean Seah is online now   Reply With Quote
Old October 20th, 2009, 02:57 AM   #3
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1

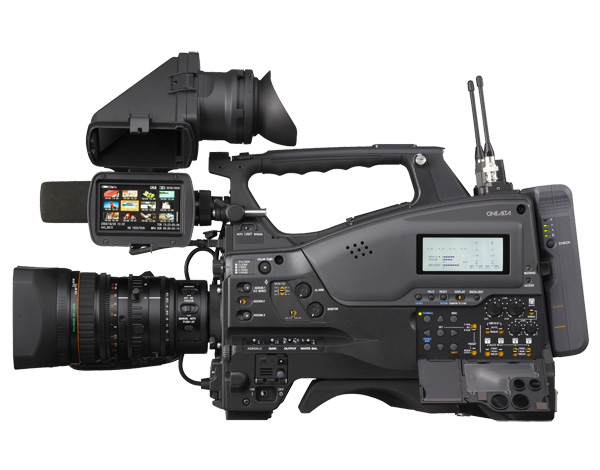

So it's now official on Sony's site. The PMW-350 is a 2/3 inch shoulder mount camera recording to SxS cards. The supplied viewfinder is kind of a new wrinkle on the EX3 in that it lifts up, but from a line parallel to the camera body, leaving the operator with a side-view LCD screen. A smaller LCD (not color or capable of showing video) appears towards the back, giving audio and other status information.

The back of the camera looks pretty much like the back of the other 3XX series XDCAM cameras as far as i/o goes. However, this camera has the slot receiver mount built in and supports the new dual-channel digital slot receiver from Sony.

The specially designed Fujinon lens has the same auto-manual sliding focus ring as the EX series cameras. But the lens mount is not an EX style mount, it's standard Bayonet using the standard lens cable so any 2/3 glass will work on it without requiring an adapter. There's no optical stabilization with the new Fujinon lens either.

Has the new backlit EXMOR CMOS sensors for a sensitivity of F11 @ 60i and F12 @ 50i. The MSRP with lens is around $20K so expect slightly lower street prices.

That's the meat of it.

-gb-
Greg Boston is offline   Reply With Quote
Old October 20th, 2009, 03:21 AM   #4
Major Player

Join Date: Jul 2004
Location: Auckland, New Zealand
Posts: 418
aghh the EX1R looks really nice.. i said i wasnt going to upgrade.. but i can see myself liking those benefits.

the 350 is pretty damn cool too.
Joe Lawry is offline   Reply With Quote
Old October 20th, 2009, 03:22 AM   #5
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Reviews of actual units are here:

YouTube - Sony PMW-EX1R and PMW-350 review with sample footage.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old October 20th, 2009, 03:29 AM   #6
Regular Crew

Join Date: Nov 2007
Location: San Diego, CA
Posts: 98
does the ex1r have the new backlit chip as well?
Ron Wilber is offline   Reply With Quote
Old October 20th, 2009, 03:31 AM   #7
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
No Ron, the the new EX1r retains the same imaging block as the original. Nothing has changed in terms of picture quality.

-gb-
Greg Boston is offline   Reply With Quote
Old October 20th, 2009, 03:35 AM   #8
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Nice and comprehensive review Alister. Has the base plate been improved on the EX1R?
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old October 20th, 2009, 03:36 AM   #9
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Greg Boston View Post
No Ron, the the new EX1r retains the same imaging block as the original. Nothing has changed in terms of picture quality.

-gb-
That's a pity - Alister mentions stronger IR (or far red) filtration, which might translate to overall lower sensitivity in low light. The backlit imagers could offset this...
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old October 20th, 2009, 03:46 AM   #10
Inner Circle

Join Date: Apr 2006
Location: Wales
Posts: 2,130
Just a small point, from a wildlife shooter's point of view, the PMW 350 is probably of little interest. Presumably image quality is not that much better than the EX3, and you've got a bigger, heavier camera to lug around and you lose the extra magnification because it has a bigger chip, plus you still have the CMOS issues. I'd have thought that it would be no contest, in favour of the EX3.
But, for a lot of other people I think it ticks all the boxes that they've been asking for, nice form factor, 2/3" chips, even an AF lens, could be a big seller I think. I suppose the only omission from sensible wishlists would be 50 mb/s 422 codec.
Steve
Steve Phillipps is offline   Reply With Quote
Old October 20th, 2009, 04:20 AM   #11
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
EX1R picture quality and sensitivity is not changed. Pmw350 picture quality is noticably better than EX3. Pretty much same quality as pdw700
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old October 20th, 2009, 04:24 AM   #12
Inner Circle

Join Date: Apr 2006
Location: Wales
Posts: 2,130
I thought you'd always said that the EX3 and PDW700 picture quality were virtually indistinguishable?
Great review by the way, all the info anyone could need.
Steve
Steve Phillipps is offline   Reply With Quote
Old October 20th, 2009, 04:25 AM   #13
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Ex1r has bigger base plate.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old October 20th, 2009, 05:21 AM   #14
Major Player

Join Date: Apr 2006
Location: Melbourne, Australia
Posts: 785
Excellent review, Alister. Thanks.
David Knaggs is offline   Reply With Quote
Old October 20th, 2009, 05:27 AM   #15
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
The EX1 and EX3 are noisier than the pdw700. Resolution is very close as is highlight handling. Greens on the EX1/3 seem to look mushy, not quite as clean as the 700. The difference is very small. The PMW 350 is stunning, very low noise and clean, clear greens etc. I only had a weekend to use it, I want to look at it some more but in some respects it looked better than the 700. Not sure whether this was due to setups or the lens and CA correction. Need to do more tests to be sure.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply
