Half Inch Lens Adapters

If you buy a 2/3 to 1/2 inch lens adapter ensure that it has a glass element. Some of the cheaper adapters don't have any glass in them, they simply place the lens at the correct distance from the focal plane so that it will focus correctly.

The glass isn't a lens, it's just an optically flat piece of glass but it is needed to compensate for the different prisms. Without it there will be a small registration error between the R, G and B channels which will show up as slight fringing or image softening.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old May 12th, 2006, 12:25 PM   #2
Rextilleon

Join Date: Apr 2002
Location: Pleasantville, NY
Posts: 520
Quote:
Originally Posted by Alister Chapman
If you buy a 2/3 to 1/2 inch lens adapter ensure that it has a glass element. Some of the cheaper adapters don't have any glass in them, they simply place the lens at the correct distance from the focal plane so that it will focus correctly.

The glass isn't a lens, it's just an optically flat piece of glass but it is needed to compensate for the different prisms. Without it there will be a small registration error between the R, G and B channels which will show up as slight fringing or image softening.

Alister, I assume you have a glass one---what have you found the quality of images shooting 2/3 lens on the camera?
__________________
Red #97
David Mintzer is offline   Reply With Quote
Old May 13th, 2006, 02:25 PM   #3
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
May I assume the reverse is true as well... when going from a 1/2" mount on the F330 and F350 up to a 2/3" lens?
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old May 15th, 2006, 09:14 PM   #4
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Have not tried any decent 2/3 inch lenses yet. As soon as I do I'll let you know.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old May 15th, 2006, 09:54 PM   #5
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513

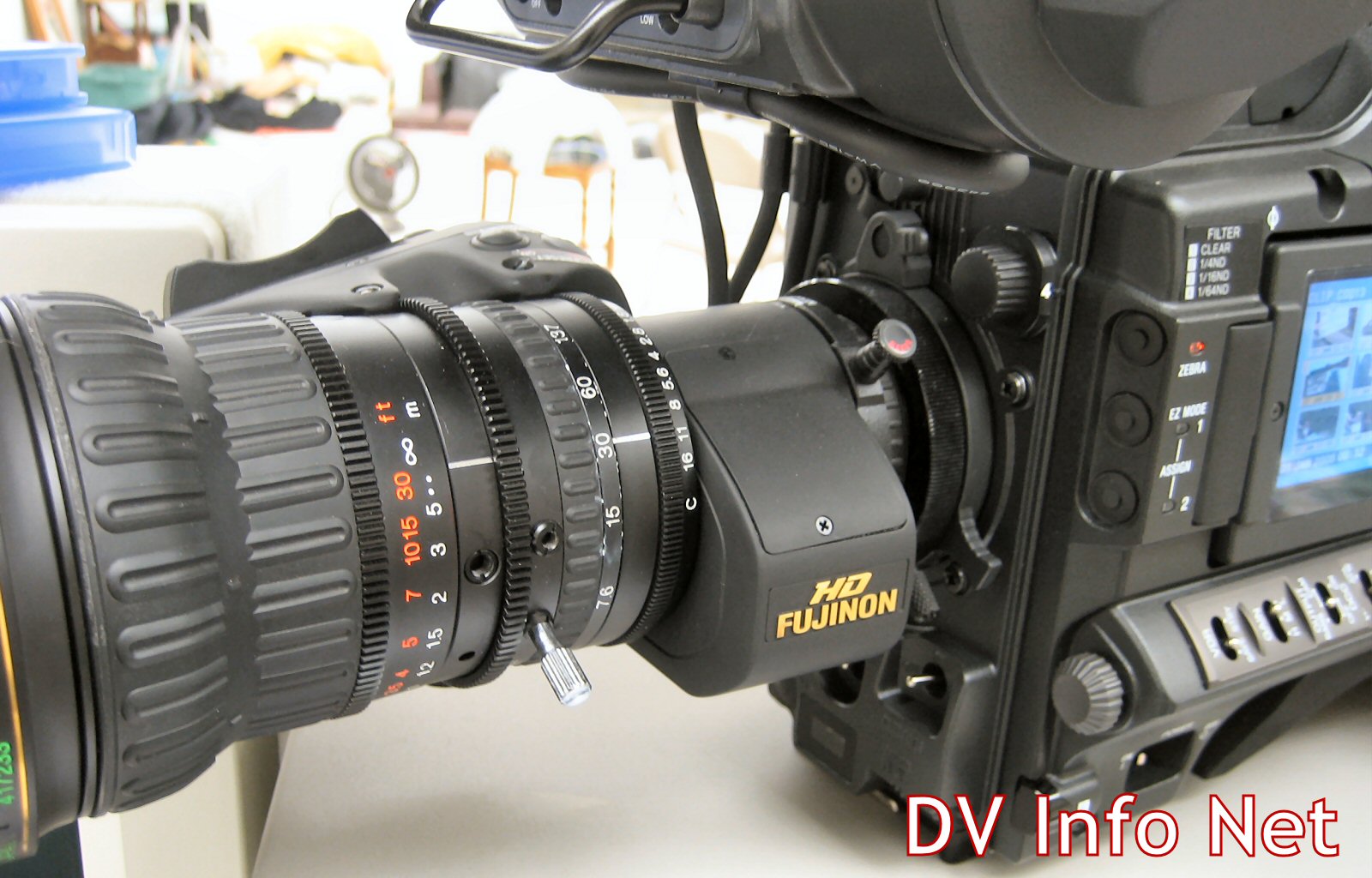

For our Texas HD Shooutout we had to resort to a 2/3rd-inch adapter on an F350 that Scott Cantrell brought up from Houston (this was after Mike Devlin had to head home with his F350). Here's a pic. Thought I had a pic of the adapter by itself but I can't seem to locate it right now. Nor can I recall if this adapter had an optical element, but I can easily find that out.
Attached Thumbnails
Half Inch Lens Adapters-lensadapter.jpg
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old May 16th, 2006, 03:33 AM   #6
Trustee

Join Date: Dec 2003
Location: Malvern UK
Posts: 1,931
The adaptor doesn't have an optical element. The focal length of the lens also multiplies by 1.37 with the adaptor attached.

Despite this magnification I would recommend using it with 2/3" lenses over getting 1/2" ones simply because 2/3" lenses will last you longer and allow you to 'upgrade' to a 2/3" HD camera later.
Simon Wyndham is offline   Reply With Quote
Old May 16th, 2006, 07:15 AM   #7
Rextilleon

Join Date: Apr 2002
Location: Pleasantville, NY
Posts: 520
Quote:
Originally Posted by Simon Wyndham
The adaptor doesn't have an optical element. The focal length of the lens also multiplies by 1.37 with the adaptor attached.

Despite this magnification I would recommend using it with 2/3" lenses over getting 1/2" ones simply because 2/3" lenses will last you longer and allow you to 'upgrade' to a 2/3" HD camera later.

Which 2/3 inch lens do you like? Chris, which 2/3 lens did you use during the shootout?
__________________
Red #97
David Mintzer is offline   Reply With Quote
Old May 16th, 2006, 07:20 AM   #8
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
Quote:
Originally Posted by Chris Hurd
For our Texas HD Shooutout we had to resort to a 2/3rd-inch adapter on an F350 that Scott Cantrell brought up from Houston (this was after Mike Devlin had to head home with his F350). Here's a pic. Thought I had a pic of the adapter by itself but I can't seem to locate it right now. Nor can I recall if this adapter had an optical element, but I can easily find that out.
There was no glass in the adapter, Chris. I was the one who dismantled the camera at the end of the shoot (remember me asking you where the adapter's cover was).

-gb-
Greg Boston is offline   Reply With Quote
Old May 16th, 2006, 03:30 PM   #9
Rextilleon

Join Date: Apr 2002
Location: Pleasantville, NY
Posts: 520
Quote:
Originally Posted by Greg Boston
There was no glass in the adapter, Chris. I was the one who dismantled the camera at the end of the shoot (remember me asking you where the adapter's cover was).

-gb-

So guys, how did the XDCAM HD do in the shootout?
__________________
Red #97
David Mintzer is offline   Reply With Quote
Old May 18th, 2006, 12:55 AM   #10
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
I'm leaving that one for Adam Wilt to answer in his article for DV Magazine. Plenty of other folks who were present for this might have their own input though.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old May 18th, 2006, 07:12 AM   #11
Telecam Films

Join Date: Apr 2006
Location: Washington DC
Posts: 723
Quote:
Originally Posted by Greg Boston
There was no glass in the adapter, Chris. I was the one who dismantled the camera at the end of the shoot (remember me asking you where the adapter's cover was).

-gb-
I only know of two adaptor. One made by century optics (schneider) and one by Canon. The adaptor shown on the picture looks exactly like the one sold by Sony (actually made by Canon) which I have. It does have glass. If you are serious about making the f330/350 your prime camera, I would invest in 1/2" CCD lenses (the nice ones wiht doubler). I found the adaptor to be a less than satisfactory solution for the reasons bellow:

- to much loss in angle of view
- to much loss in light sensitivity (at least 1/2 step)
- makes the camera forward heavy because it pushes the lens further forward.

Thierry.
__________________
Thierry Humeau, DoP
TÚlÚcam Films
www.telecamfilms.com
Thierry Humeau is offline   Reply
