Old May 14th, 2007, 10:11 PM   #16
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Bob Grant View Post
On the V1 as far as I know the AGC is either on or off for both channels. Same goes for wind filter. Yes the 150/170 let you control AGC independantly on both channels but not the 'wind' filter.
Bob, to make it quite clear: of course, you are talking here about feeding CH1+CH2 with a single mic connected to CH1, right? Because when both channels are fed separately, you CAN set them independently (eg. one manual the other auto, one with wind filter on the other off etc).
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 14th, 2007, 11:40 PM   #17
Trustee

Join Date: Mar 2004
Location: upper hunter, australia
Posts: 1,368
Quote:
Originally Posted by Douglas Spotted Eagle View Post
Leslie, I was unawares that you wanted AGC, I don't use AGC, so didn't even consider that in my response. Apologies for missing the finer point.
Bob's got the best suggestion, IMO; if you want *good* dynamic control, then use external. PITA, but necessary if you can't control the source.
Outside of AGC, the inputs are discreet, and controllable. Many times, I feed one mic/two levels with this system.
same complaint as my wife - i don't make myself clear ;-)

are you sure about this on the v1? for the life of me i can't seem to set the levels independently.

thanks

leslie
Leslie Wand is offline   Reply With Quote
Old May 15th, 2007, 12:00 AM   #18
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Leslie, unless Douglas is talking about connecting one mic with two physical connections - I don't get it either. In another thread (started by yourself) it has been established (to my greatest surprise), that setting one mic to CH1+CH2 doesn't allow for independent (separate) channels adjustment...

I mean, I didn't check it myself, though; I took what you and Marcus were saying for granted. Now, with DSE saying what I said in the other thread, I think I must do some testing - otherwise I'm confused.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 15th, 2007, 12:14 AM   #19
Trustee

Join Date: Mar 2004
Location: upper hunter, australia
Posts: 1,368
Quote:
Originally Posted by Piotr Wozniacki View Post
Leslie, unless Douglas is talking about connecting one mic with two physical connections - I don't get it either. In another thread (started by yourself) it has been established (to my greatest surprise), that setting one mic to CH1+CH2 doesn't allow for independent (separate) channels adjustment...

I mean, I didn't check it myself, though; I took what you and Marcus were saying for granted. Now, with DSE saying what I said in the other thread, I think I must do some testing - otherwise I'm confused.
i plugged both the stock sony and my me66 into ch1, switched output to 1 AND 2, turned agc OFF, but there was no separate control of each channel anyway no how...

douglas - we are talking about the v1(p)?

leslie
Leslie Wand is offline   Reply With Quote
Old May 15th, 2007, 12:16 AM   #20
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Leslie Wand View Post
i plugged both the stock sony and my me66 into ch1, switched output to 1 AND 2, turned agc OFF, but there was no separate control of each channel anyway no how...

douglas - we are talking about the v1(p)?

leslie
Did you set SEPARATE in the XLR menu (might be LINKED)?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 15th, 2007, 12:30 AM   #21
Trustee

Join Date: Mar 2004
Location: upper hunter, australia
Posts: 1,368
hi piotr,

double, nay, tripled checked - NO separate control (and in menu!). i get the little symbol showing i'm on manual in the viewfinder, but it only means i'm on manual for both channels, no independently.

leslie
Leslie Wand is offline   Reply With Quote
Old May 15th, 2007, 12:52 AM   #22
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Leslie Wand View Post
hi piotr,

double, nay, tripled checked - NO separate control (and in menu!). i get the little symbol showing i'm on manual in the viewfinder, but it only means i'm on manual for both channels, no independently.

leslie
OK Leslie - also did the test and you're right: with one mic, connected to CH1 and recording to CH1+CH2, the CH2 volume knob does nothing regardless on settings (manual/AGC, or LINKED/SEPARATE).

It only works with another physical connection (2 mics, or one with an Y cable, or a stereo one). With my sterero, LINKED is usefull as I can adjust both channels with one knob.

I guess DSE didn't check it, and - just like myself - commented based on how it should work, and not how it actually does...
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 15th, 2007, 12:55 AM   #23
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
Now I'm confused although that isn't hard!

Both XLR INPUTS have individual gains controls. If you feed channel 1 to tracks 1 & 2 then you only have 1 level control, naturally. Solution is to make a "Y" cable if that's what you want.

On the PD150 you can have separate gain controls and separate AGC (note you have to switch the camera into VCR more to change this, wierd huh?). However the gain controls work through the little wheel thingy on the back of the cam, you push the wheel to select the channel whose gain you want to change, not much use really.
Bob Grant is offline   Reply With Quote
Old May 15th, 2007, 01:29 AM   #24
Trustee

Join Date: Mar 2004
Location: upper hunter, australia
Posts: 1,368
Quote:
Originally Posted by Bob Grant View Post
Now I'm confused although that isn't hard!

Both XLR INPUTS have individual gains controls. If you feed channel 1 to tracks 1 & 2 then you only have 1 level control, naturally. Solution is to make a "Y" cable if that's what you want.

On the PD150 you can have separate gain controls and separate AGC (note you have to switch the camera into VCR more to change this, wierd huh?). However the gain controls work through the little wheel thingy on the back of the cam, you push the wheel to select the channel whose gain you want to change, not much use really.
hi bob, fancy meeting you here ;-}

and the same on the 170 - (though you didn't have to switch to vcr to change). on the one 170 there was a button marked audio and that brought up a creens showing what was going on, and if a channel was set to manual, you could turn the wheel and adjust to your hearts content.

i found it extremely useful, as explained earlier in this thread.

what i don't understand is:

a. how spot (sorry douglas if that's too informal), can do it on his camera and i can't.

b. why sony changed it in the first place.

but then again, what do i know. anyway, off to the races on friday (scone horse week) to shoot the hats, frocks, plunging / bulging necklines, and of course, the hapless, helpless punters....

now we'll see how the v1 stands up to cu's of horses legs passing the finish line...

leslie
Leslie Wand is offline   Reply With Quote
Old May 15th, 2007, 12:43 PM   #25
Major Player

Join Date: Jul 2005
Location: Denton, TX
Posts: 334
Quote:
Originally Posted by Leslie Wand View Post
hi bob, fancy meeting you here ;-}

now we'll see how the v1 stands up to cu's of horses legs passing the finish line...

leslie
OT, but it'd be cool to see some of that footage...

ciao,
Matt
Matt Vanecek is offline   Reply With Quote
Old May 17th, 2007, 12:04 AM   #26
Trustee

Join Date: Mar 2004
Location: upper hunter, australia
Posts: 1,368
shooting tomorrow - what format should i post on the web?

leslie
Leslie Wand is offline   Reply With Quote
Old May 17th, 2007, 02:58 AM   #27
HDV Cinema

Join Date: Feb 2003
Location: Las Vegas
Posts: 4,007
Quote:
Originally Posted by Piotr Wozniacki View Post
In another thread (started by yourself) it has been established (to my greatest surprise), that setting one mic to CH1+CH2 doesn't allow for independent (separate) channels adjustment...
If you read the + sign as MIX then I'd see that both channels should still be active and have their own gain and feed both Tracks 1 and 2.

If you read the + sign as meaning CH2 ROUTED TO CH1 so that would mean only CH1 was inputting a signal that is recorded on Track 1 and Track 2. Then only CH1 could have a gain control.

I certainly assumed MIX. That would tie both 1 and 2 inputs together and then feed both circuits 1 and 2.

If you make a Y cable -- only use ONE XLR for power just in case the two power pins shouldn't be connected. I don't know -- I just never tie two powers together. Like in case you turn on power off on one channel and the pin went to ground instead of OPEN.

Remember if that if you set the V1 to match your mics rated sensitivity -- you really should be able to set the level a tiny bit hot and let the limiter hold the signal to under 0dB. Also remember, the REF LEVEL is -20 not -12 like for DV. Average levels will LOOK much lower than you are used to. Don't crank it up.

I found AUTO always worked best -- after I set the sensitivity to match the mic.

Bottom-line, I would check IF I had a problem before I built a cable.
__________________
Switcher's Quick Guide to the Avid Media Composer >>> http://home.mindspring.com/~d-v-c
Steve Mullen is offline   Reply With Quote
Old May 18th, 2007, 12:05 AM   #28

Join Date: Jan 2004
Location: Stockton, UT
Posts: 5,648
Steve is correct, Piotr; if you're using phantom, you don't want to be using a Y connector. Stereo mics would be another story; you'll be fine there.
Reference levels are not something to be worried about. Averages aren't something to be concerned about either; Digital audio is a bit-bucket, and like any bucket, you want as much as possible in the bucket without spilling anything. Peaks should be your worry.
Leslie, I now understand what you wanted. Yes, it's a drag that the V1 doesn't offer independent. The Z1 does exactly as the PD cams did; complete independence of the two, not just two level controls and latched compression. Then again...that's one of the differentiators between the Z and the V.

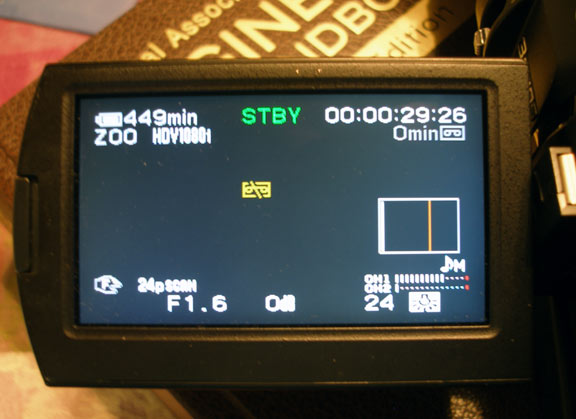

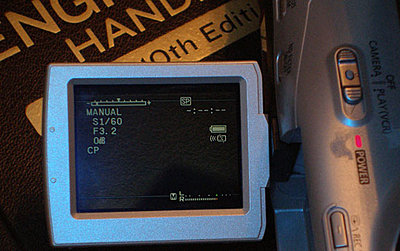

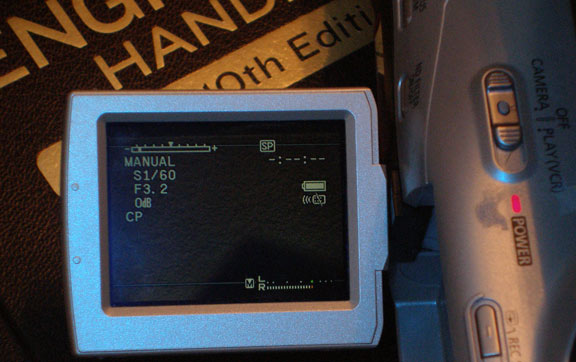

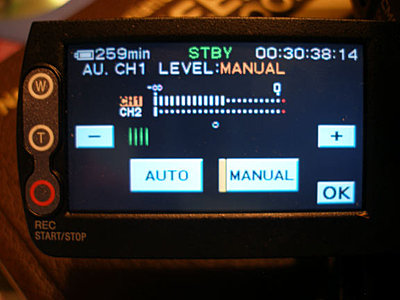

All three images here are being fed a 700Hz tone from a Shure A15TG tone generator. The A15TG is a fixed level output, fixed frequency output.
Which camcorder is set to -20dB? Which one is set to -12dB? Which cam is DV and which is HDV? Or are any of them at a reference level? Should the HDV meters change when recording DV/DVCAM?

There are several informative discussions on this subject in the "Now Hear This" forum here on DVInfo.net. I'd like to invite you to join in over there.
Attached Thumbnails
wind noise reduction-ameter2.jpg   wind noise reduction-bmeter.jpg

wind noise reduction-cmeter.jpg
__________________
Douglas Spotted Eagle/Spot
Author, producer, composer
Certified Sony Vegas Trainer
http://www.vasst.com
Douglas Spotted Eagle is offline   Reply
