FX1 Capture problem

Ben Winter · May 9th, 2009, 12:05 PM

I am attempting to capture from my FX1 into Adobe Premiere Pro CS2. I am getting blocky artifacts when attempting to capture in HDV. When capturing with iLink enabled (HDV-->DV) I get "Unknown camcorder error" in the places where blockiness occurs in HDV capture.

The thing is: playback is flawless on the LCD of the camera--no pausing, dropouts, etc. So I am unsure of what could be doing this. Any ideas would be appreciated.

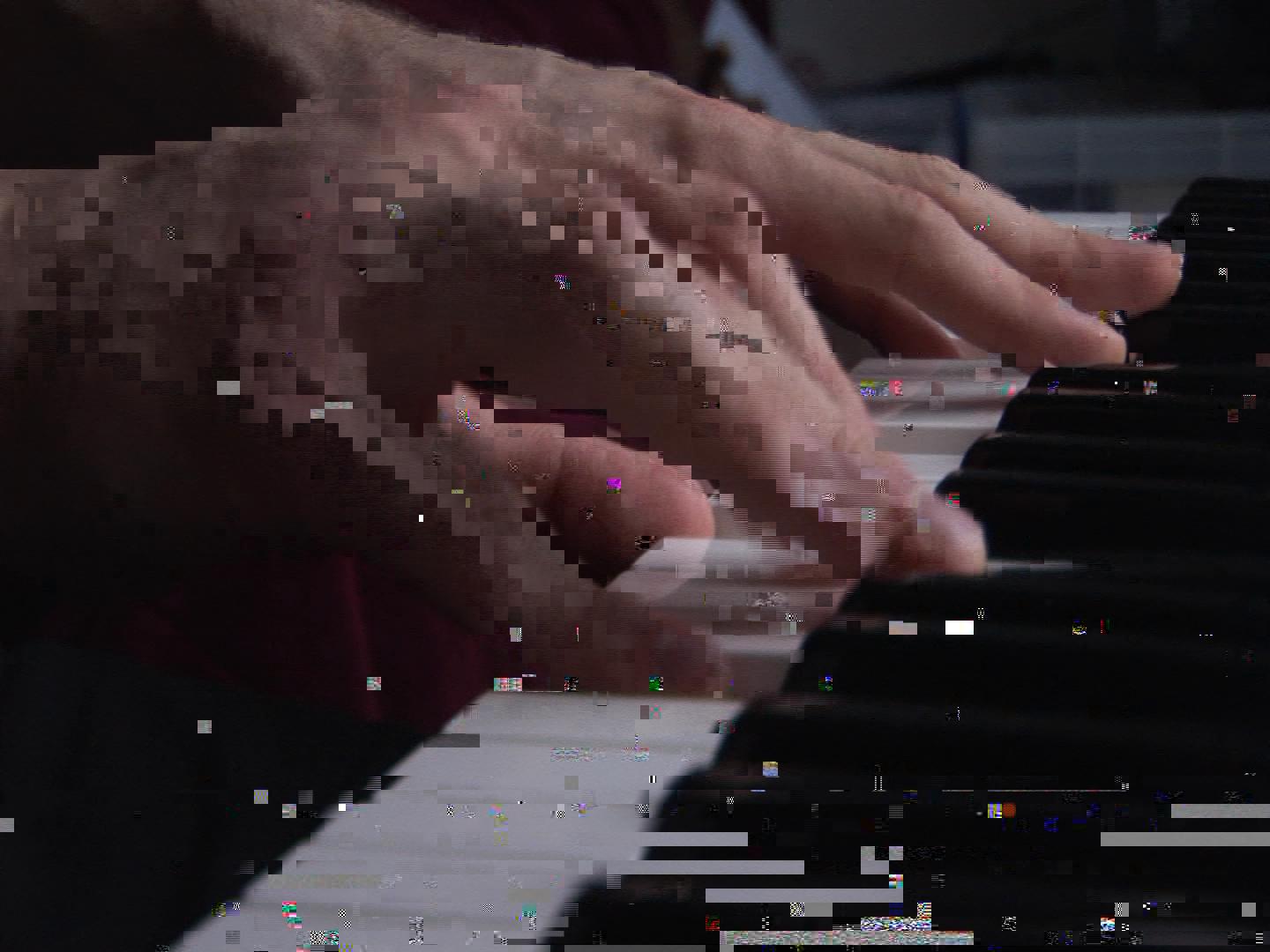

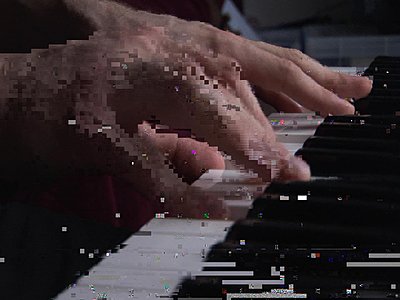

Example frame attached.

Robert M Wright · May 9th, 2009, 01:04 PM

First thing to do, is try swapping out the firewire cable.

Ben Winter · May 9th, 2009, 01:49 PM

I just tried a different firewire cable; still the same problem. I ALSO tried capturing directly from camera mode, and the problem still persisted, so we know it is not a problem with the tape mechanism.

Ben Winter · May 9th, 2009, 01:51 PM

I thought this was a Cineform problem, but I'm not so sure anymore. I will try m2t capture through Premiere only.

Ben Winter · May 9th, 2009, 03:45 PM

I believe I have found the problem--there seems to be an issue with my RAID array, as I ran a HDD speed check and found read/write speeds to be horribly slow (2MB write, 5MB read) It is possible that this bottleneck is causing Premiere to "clog up" while capturing. I am going to defragment and see if this is a viable solution.

Robert M Wright · May 9th, 2009, 03:56 PM

Is your hard drive defragged?

Ben Winter · May 9th, 2009, 05:28 PM

My system hard drive is; my RAID 0 where my video is being captured has never been. However according to the defragmenter there's minimal defragmentation (less than 10%) and in the three years I've had this system, I've never encountered a problem before. I'm defragging now, but it's taking an awfully long time. Two hours yield 8% progress...

Ben Winter · May 19th, 2009, 12:15 PM

Just wanted to post a conclusion to this...a failed hard drive within my RAID setup was the culprit. It was causing the entire RAID to slow down to about 2MB/sec throughput, so capturing to the disk would fail after the buffer ran out and Premiere didn't know what to do with all the extra information.

I removed the drive, reset the RAID and all is well.

May 9th, 2009, 12:05 PM	#1
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	FX1 Capture problem - Corrupt input I am attempting to capture from my FX1 into Adobe Premiere Pro CS2. I am getting blocky artifacts when attempting to capture in HDV. When capturing with iLink enabled (HDV-->DV) I get "Unknown camcorder error" in the places where blockiness occurs in HDV capture. The thing is: playback is flawless on the LCD of the camera--no pausing, dropouts, etc. So I am unsure of what could be doing this. Any ideas would be appreciated. Example frame attached. Attached Thumbnails __________________ BWinter.com

May 9th, 2009, 01:49 PM	#3
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	I just tried a different firewire cable; still the same problem. I ALSO tried capturing directly from camera mode, and the problem still persisted, so we know it is not a problem with the tape mechanism. __________________ BWinter.com

May 9th, 2009, 01:51 PM	#4
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	I thought this was a Cineform problem, but I'm not so sure anymore. I will try m2t capture through Premiere only. __________________ BWinter.com Last edited by Ben Winter; May 9th, 2009 at 02:26 PM.

May 9th, 2009, 03:45 PM	#5
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	I believe I have found the problem--there seems to be an issue with my RAID array, as I ran a HDD speed check and found read/write speeds to be horribly slow (2MB write, 5MB read) It is possible that this bottleneck is causing Premiere to "clog up" while capturing. I am going to defragment and see if this is a viable solution. __________________ BWinter.com

May 9th, 2009, 05:28 PM	#7
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	My system hard drive is; my RAID 0 where my video is being captured has never been. However according to the defragmenter there's minimal defragmentation (less than 10%) and in the three years I've had this system, I've never encountered a problem before. I'm defragging now, but it's taking an awfully long time. Two hours yield 8% progress... __________________ BWinter.com

May 9th, 2009, 01:04 PM	#2
Robert M Wright Inner Circle Join Date: Jan 2006 Location: Minnesota (USA) Posts: 2,171	First thing to do, is try swapping out the firewire cable.

May 9th, 2009, 03:56 PM	#6
Robert M Wright Inner Circle Join Date: Jan 2006 Location: Minnesota (USA) Posts: 2,171	Is your hard drive defragged?

May 19th, 2009, 12:15 PM	#8
Ben Winter Trustee Join Date: Jun 2005 Location: Hollywood, CA Posts: 1,674 Images: 1	Just wanted to post a conclusion to this...a failed hard drive within my RAID setup was the culprit. It was causing the entire RAID to slow down to about 2MB/sec throughput, so capturing to the disk would fail after the buffer ran out and Premiere didn't know what to do with all the extra information. I removed the drive, reset the RAID and all is well. __________________ BWinter.com
