Z1U Tape stuck

Hello,

I put a regular ol' tape in my Z1U today, and the mechanism stopped halfway down.

I get "Reinsert the cassette", but I can't eject, nor insert the tape any further.

I took out the battery, waited 20 minutes, nothing. Hit the reset button, nothing.

Has anyone had this happen? I would REALLLLLY appreciate any tips.

Thanks,

-Andy
Andy Peterson is offline   Reply With Quote
Old June 20th, 2007, 09:33 AM   #2
Wrangler

Join Date: Dec 2002
Location: Mays Landing, NJ
Posts: 11,543
I would have it looked at by a pro repair center since it sounds like you've tried all the obvious things. That mechanism looks really fragile and you could probably do a lot of damage by messing with it. Sony repair info is here:

http://bssc.sel.sony.com/Broadcastan...eCenters.shtml

Maybe they could provide some help by telephone?

http://bssc.sel.sony.com/Broadcastan...0018/fee.shtml
Boyd Ostroff is offline   Reply With Quote
Old June 20th, 2007, 11:55 AM   #3
New Boot

Join Date: Jul 2006
Location: London England
Posts: 5
Possible solution

This is taken from the official Sony FX1 repair manual.

I expect the same applies to the Z1.

I accept no responsability if you try it.

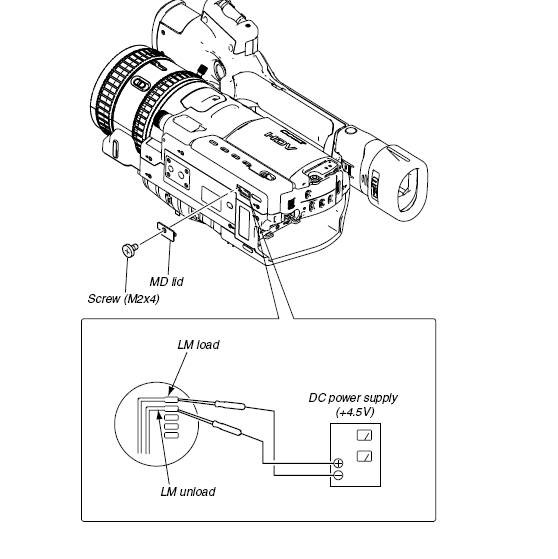

TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)

1 Remove the power supply (Battery and AC power adaptor).
2 Open the cassette lid.
3 Remove the MD lid.
4 Supply +4.5V between the LM UNLOAD terminal and the LM LOAD terminal from the DC power supply and unload the cassete.

Hope it works.
Attached Thumbnails
Z1U Tape stuck-fx1.bmp
Simon Battell is offline   Reply With Quote
Old June 22nd, 2007, 08:45 AM   #4
Regular Crew

Join Date: Oct 2005
Location: Huntsville, Ontario
Posts: 62
Thanks guys.

Looks like we are going to have to bring it in.
Andy Peterson is offline   Reply With Quote
Old December 4th, 2007, 01:09 PM   #5
Regular Crew

Join Date: Sep 2004
Location: Bangkok, Thailand
Posts: 187
In theory the 4.5V could be supplied by 3 x AA batteries or whatever in series, but those terminals are a long way in and super fiddly to get at. Looks like a job for a specialist to me.
Nick Hope is offline   Reply With Quote
Old December 5th, 2007, 01:22 AM   #6
Regular Crew

Join Date: Sep 2004
Location: Bangkok, Thailand
Posts: 187
Tried as hard as I could with 3 x AA batteries in a battery holder and some tiny solid-core wire with a few mm of the insulation stripped off. Didn't work. No response or motor noise or anything from the camera.
