Homemade LCD-loupe for the Z7

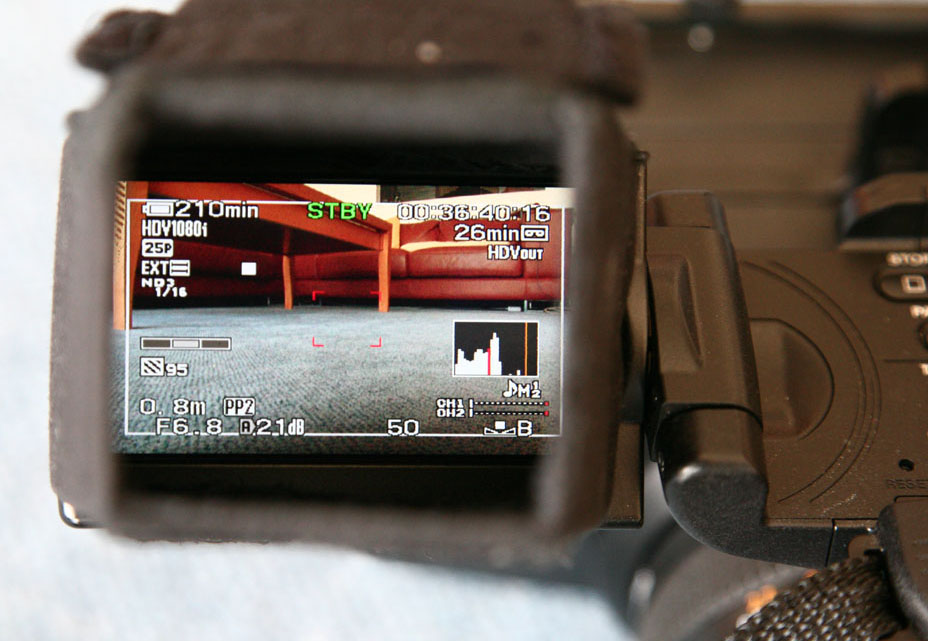

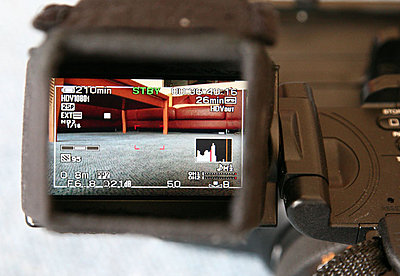

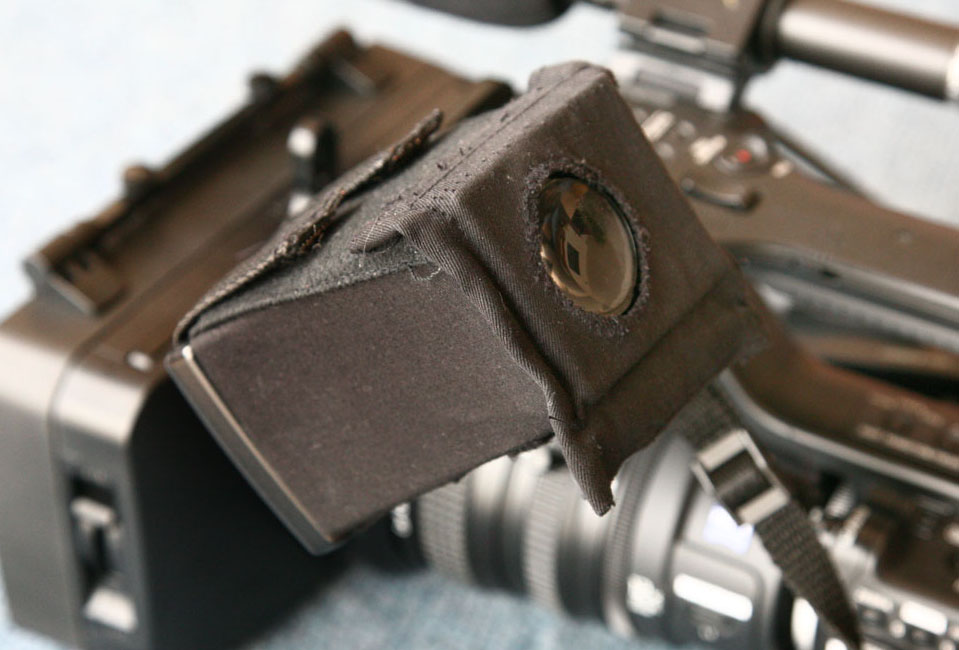

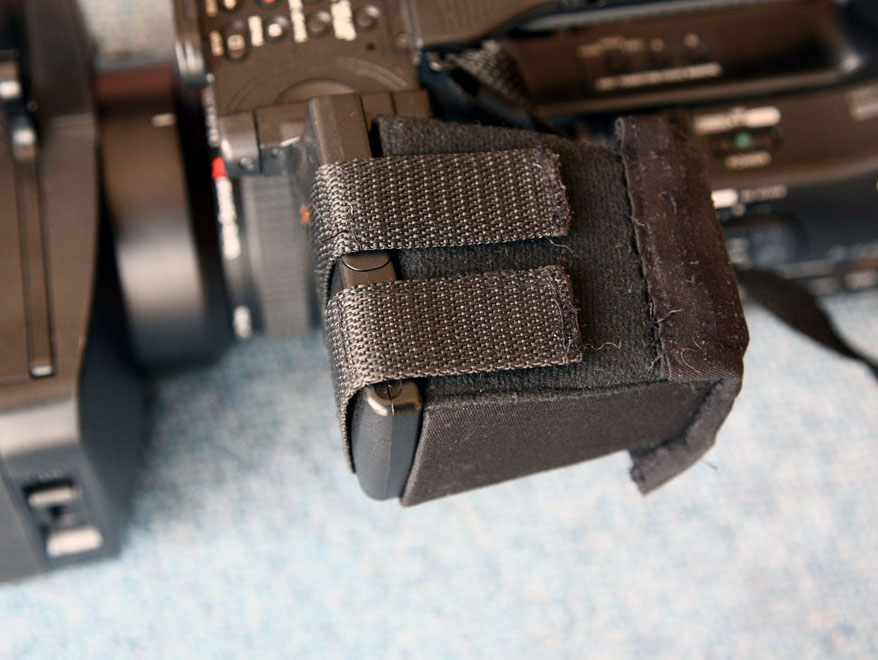

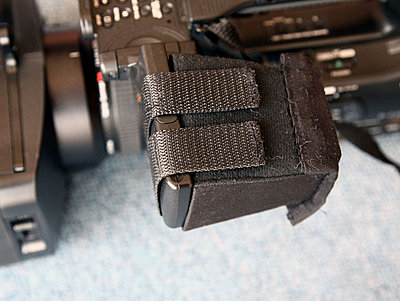

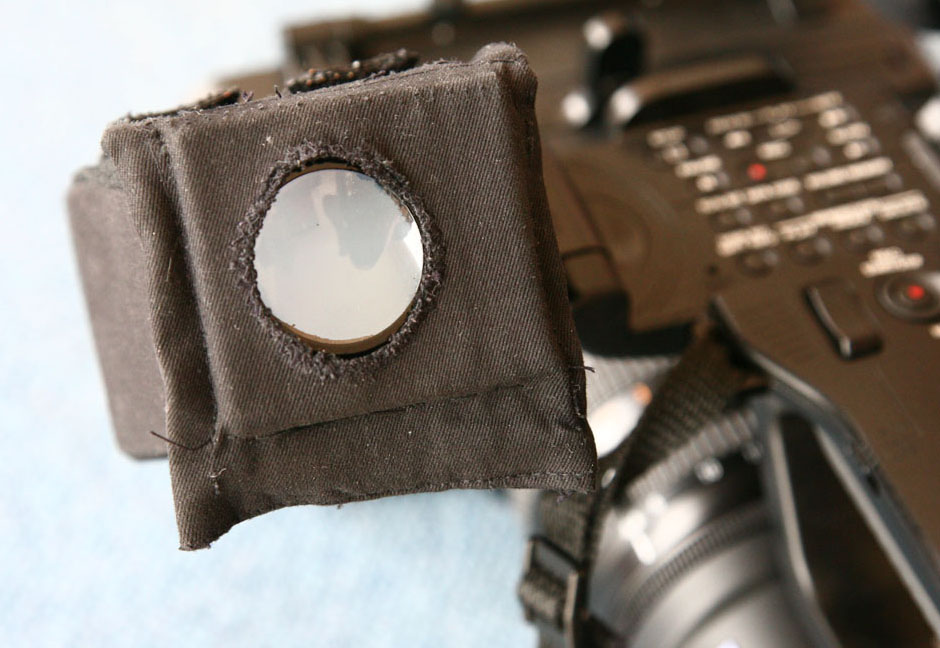

With a lot of sowing help from my wife, I made this viewfinder for the LCD-screen of the Z7. It attaches to the screen with velcro, the body is in plastic (from a DVD-box) and it is covered with black cloth in order to make the velcro stick. The loupe comes from an old Mamyia C33 focusing ocular, which has exactly the good coverage and focus distance. Of course that distance will depend on your dioptry correction if you wear glasses, like I do.

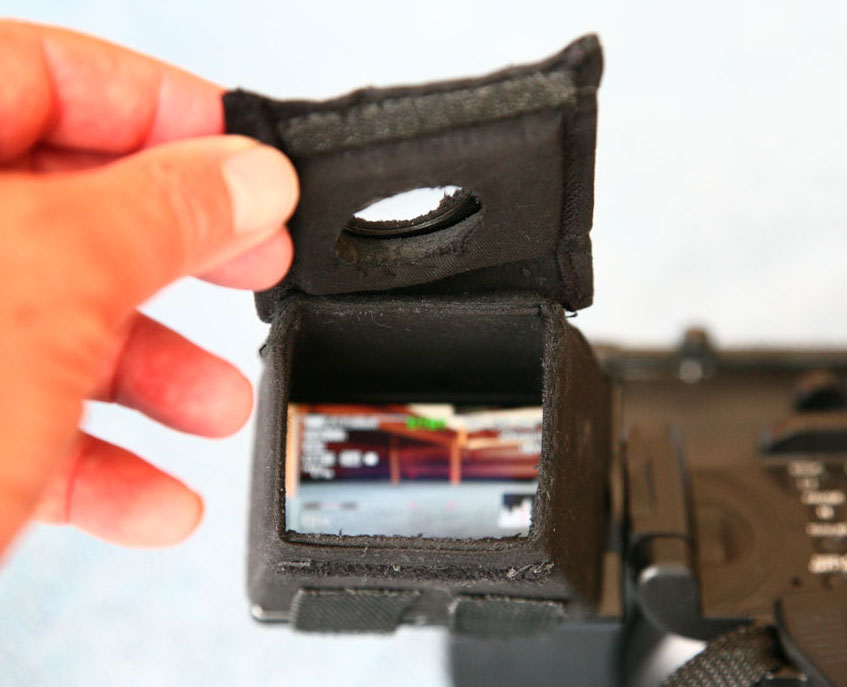

The loupe is put slightly out of centre to the left, as I focus with my left eye. It flaps open to be able to see the entire screen.

This way the Z7 becomes a shouldermounted camera, whcih is a blessing for my right arm, especially when the rather heavy wide-angle convertor is mounted.
Attached Thumbnails
Homemade LCD-loupe for the Z7-pe1.jpg   Homemade LCD-loupe for the Z7-pe2.jpg

Homemade LCD-loupe for the Z7-pe3.jpg   Homemade LCD-loupe for the Z7-pe4.jpg

Homemade LCD-loupe for the Z7-pe5.jpg
Luc De Wandel is offline   Reply With Quote
Old May 25th, 2009, 11:51 PM   #2
Major Player

Join Date: Jul 2006
Location: Chicago, IL
Posts: 937
Very nice, when are you going to start production? :)
__________________
Nothing says you're a serious video maker like S-VHS
Zach Love is offline   Reply With Quote
Old May 26th, 2009, 02:25 AM   #3
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Quote:
Originally Posted by Zach Love View Post
Very nice, when are you going to start production? :)
As soon as my wife's fingers have healed and she's talking to me again.
Luc De Wandel is offline   Reply With Quote
Old May 26th, 2009, 02:42 AM   #4
Regular Crew

Join Date: Apr 2009
Location: Karlsruhe Germany
Posts: 42
I made also homemade loupe for the Z5 that functions also for the Z7!
http://www.dvinfo.net/conf/sony-hvr-...-fx1000-2.html
Dirk PEL
Dirk Pel is offline   Reply With Quote
Old June 4th, 2009, 10:33 PM   #5
Major Player

Join Date: Nov 2007
Location: Corpus Christi, TX
Posts: 640
I would like to try to build something using the magnifier piece from all of the old Sony viewfinders on the pro cameras. They had a weak hinge that was always getting broken off. But it had excellent magnification and it also has a diopter adjustment to suit different vision capabilities. I think it was the DFX-501 electronic viewfinder. There should be tons of them laying around, no longer in use. But engineering pieces like this are not my strong point.
