Zoom sample - 10x and 14x

Just a quick video to show the difference between at full wide angle and telephoto with Active Steadyshot on and off:


You do get some extra reach with the Active Steadyshot on, and I don't notice any drop in quality.

The pre-Vimeo .mp4 file can be downloaded for best quality comparisons.
Mike Beckett is offline   Reply With Quote
Old July 24th, 2011, 04:42 PM   #2
Regular Crew

Join Date: Mar 2007
Location: Fort Lauderdale, Florida
Posts: 68
Re: Zoom sample - 10x and 14x

Thanks for the zoom sample. The results are very interesting.
Bob Magill is offline   Reply With Quote
Old July 24th, 2011, 06:27 PM   #3
Regular Crew

Join Date: Mar 2010
Location: McLean, VA USA
Posts: 31
Re: Zoom sample - 10x and 14x

Mike, what is happening to cause this difference in focal length? Can you see a difference in image quality?

Thanks,

Bill
Bill Hollinger is offline   Reply With Quote
Old July 24th, 2011, 08:34 PM   #4
Inner Circle

Join Date: Mar 2003
Location: Ottawa, Ontario, Canada
Posts: 3,943
Re: Zoom sample - 10x and 14x

Active Steadyshot is EIS on top of the OIS so it needs to crop the image to create a margin around the area to use for its image stabilization. This scaling looks to be about 1.4 hence the 14x at max zoom but I think this is from the standard wide angle. There are plenty of sensor sites to interpolate a 1920x1080 image so quality should not change much if at all. I have noticed on my CX700 that large movements will result in the image re-centering at times but it is very effective for a lot of movements.

Ron Evans
Ron Evans is offline   Reply With Quote
Old July 25th, 2011, 03:00 AM   #5
Trustee

Join Date: Oct 2006
Location: Antrim, Northern Ireland
Posts: 1,569
Re: Zoom sample - 10x and 14x

I didn't notice any loss of quality when Active Steadyshot was on.

One thing, and maybe I'm confused. If it is effectively magnifying by approx 1.4, then the zoom will still be 10x! It just starts a bit less wide, and finishes a bit tighter. Maybe it is a 14x zoom, but it is hard to measure.

Not that it matters much for me!
Mike Beckett is offline   Reply With Quote
Old July 25th, 2011, 10:15 PM   #6
Major Player

Join Date: Nov 2010
Location: Northridge, CA
Posts: 280
Re: Zoom sample - 10x and 14x

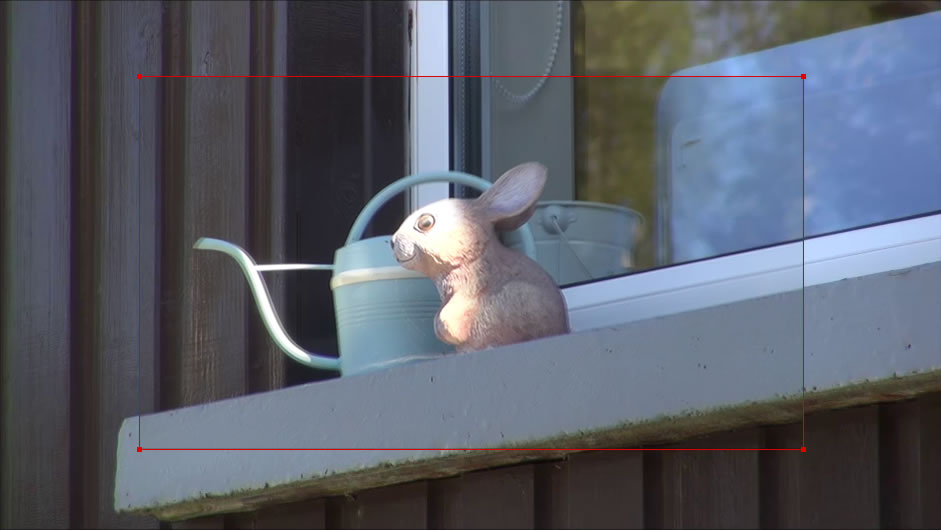

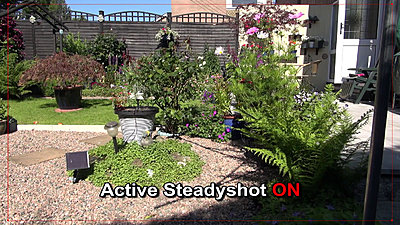

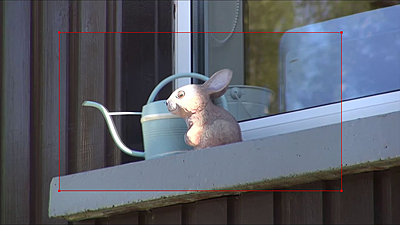

Here's Mike's Active Steadyshot sample overlayed in red on top of the steadyshot off shot. Based on the size it was after scaling down to fit (1844x1038) it starts at 1.04X zoom. Doing the same thing with the full zoom sample it we assume the 941x530 snapshot is at 10X then the scaled down to fit (658x369) active snapshot is 14.45X.

Hope this helps!
Attached Thumbnails
Zoom sample - 10x and 14x-activesteadyshotcrop.jpg   Zoom sample - 10x and 14x-activesteadyshotcrop-fullzoom.jpg

Matt Sharp is offline   Reply With Quote
Old July 26th, 2011, 02:39 AM   #7
Trustee

Join Date: Oct 2006
Location: Antrim, Northern Ireland
Posts: 1,569
Re: Zoom sample - 10x and 14x

Thanks Matt, I hadn't thought of running that comparison.

In that case it isn't a linear 1.4x magnification over the entire range, which makes sense.
Mike Beckett is offline   Reply With Quote
Old July 26th, 2011, 06:23 AM   #8
Regular Crew

Join Date: Mar 2010
Location: McLean, VA USA
Posts: 31
Re: Zoom sample - 10x and 14x

So, with active steady shot on, the focal length range (26,3mm to 263mm x 1.445x) = 38 mm x 380 mm?

I often use the longer focal length range on my EX1R ( 31.4 mm - 439 mm), and the 100-300 on the GH2 in ECT mode for an equivalent 1560 mm at 1080P,
Bill Hollinger is offline   Reply With Quote
Old July 26th, 2011, 02:12 PM   #9
Major Player

Join Date: Nov 2010
Location: Northridge, CA
Posts: 280
Re: Zoom sample - 10x and 14x

Quote:
Originally Posted by Bill Hollinger View Post
So, with active steady shot on, the focal length range (26,3mm to 263mm x 1.445x) = 38 mm x 380 mm?
Based on my calculations, the active steadyshot starts at 1.04(26.3)= 27.35 and goes to 14.45(26.3)=380.03. And 380.03/27.35=13.895X (or the advertised 14X)


*edit.. I was just looking at the specs for the CX700 on SonyStyle, they list the Active Steadyshot focal length. "Steady Shot Mode:Active : 27.4mm - 383mm"

Last edited by Matt Sharp; July 26th, 2011 at 10:38 PM.
Matt Sharp is offline   Reply
