I've made a focus chart to test parfocal lenses.

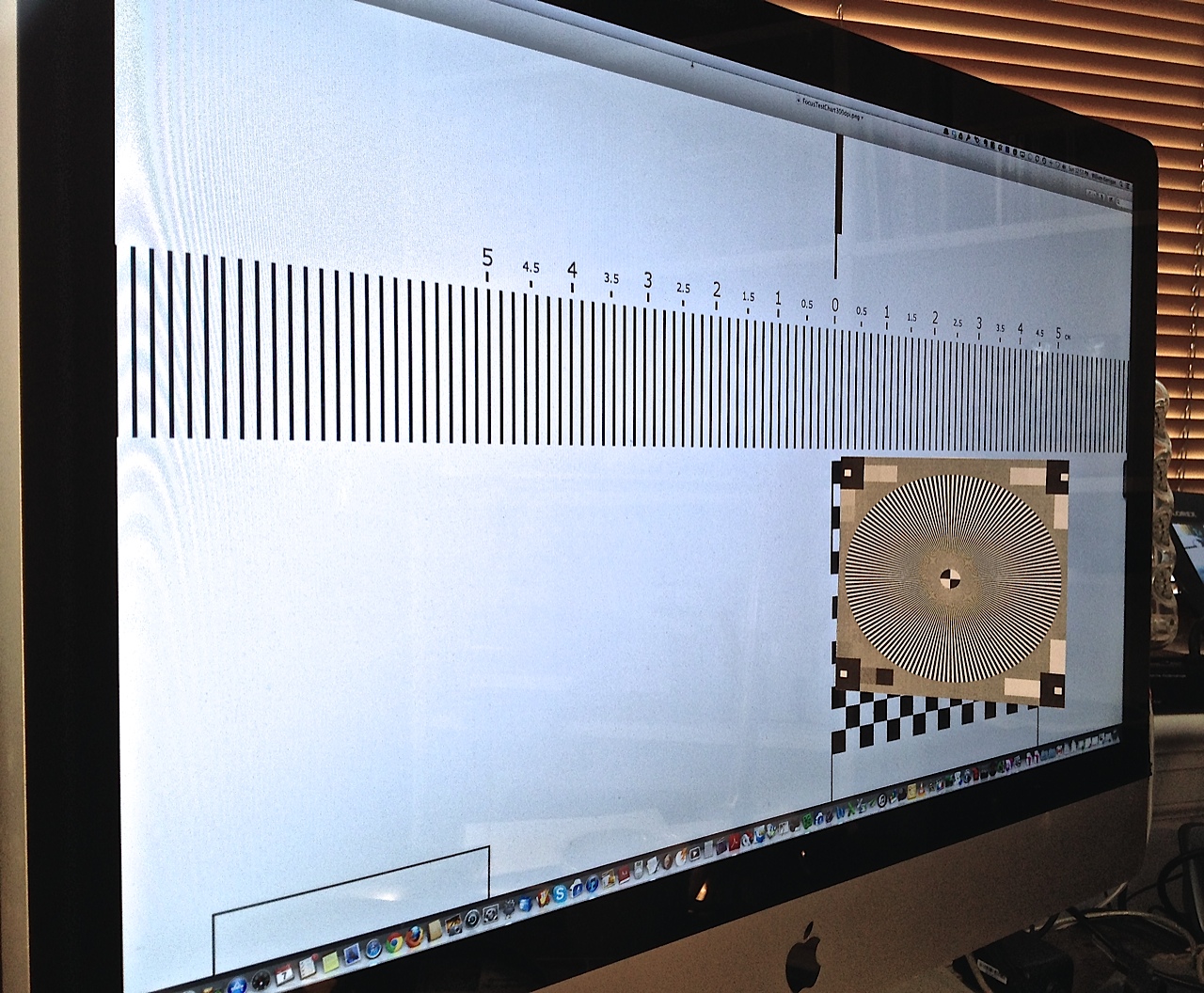

Here’s a photo of a focus chart (ver 1.02) I’m making to check if my lenses are parfocal.
It uses my computer screen and a target taped at 45 degrees.

The system works, but I'd like to improve it... so I'm posting on a few forums.
If anyone with graphic skills wants to help... please write.

When I'm finished refining the chart, I’ll post a download here:
Lenses

Bill Kerrigan
bill@kerrigan.ca
http://www.kerrigan.ca
Attached Thumbnails

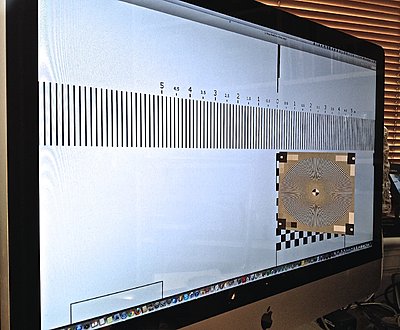

I've made a focus chart to test parfocal lenses.-kerrigan-ichart.jpg
Bill Kerrigan is offline   Reply With Quote
Old October 8th, 2012, 04:16 PM   #2
Regular Crew

Join Date: Jul 2008
Location: Vancouver, Canada
Posts: 144
Re: I've made a focus chart to test parfocal lenses.

i have a Tamron 28-75mm F2.8 for pentax which is parfocal too
but my Sony 16-50 and Zeiss 24-70 are not, not sure if it's because of my LAEA2
Thomas Wong is offline   Reply With Quote
Old October 8th, 2012, 06:08 PM   #3
Regular Crew

Join Date: Dec 2008
Location: Montreal, Quebec, Canada
Posts: 91
Re: I've made a focus chart to test parfocal lenses.

Quote:
Originally Posted by Thomas Wong View Post
my Sony 16-50 and Zeiss 24-70 are not, not sure if it's because of my LAEA2
I think both those lenses are suppose to be a parfocal...
I'm not sure if mine are functioning properly.
That's why I'm making the chart...
Bill Kerrigan is offline   Reply With Quote
Old October 9th, 2012, 08:36 PM   #4
Regular Crew

Join Date: Jul 2008
Location: Vancouver, Canada
Posts: 144
Re: I've made a focus chart to test parfocal lenses.

i remember when i bought those lenses, it was parfocal. Then after using for awhile, it became non-parfocal.
Dunno why
Thomas Wong is offline   Reply With Quote
Old October 9th, 2012, 09:32 PM   #5
Regular Crew

Join Date: Dec 2008
Location: Montreal, Quebec, Canada
Posts: 91
Re: I've made a focus chart to test parfocal lenses.

Thomas, I'm glad you answered this post.
That's exactly what has happened to me!

I'll post my findings sometime next week.

Best,
Bill
Bill Kerrigan is offline   Reply With Quote
Old October 11th, 2012, 02:05 AM   #6
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Re: I've made a focus chart to test parfocal lenses.

I don't really see how any DSLR lens can be truly parfocal as non of them have any way to trim the back focus so any small variations in the spacing between the lens and sensor will upset the focus tracking.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old October 12th, 2012, 06:11 AM   #7
Regular Crew

Join Date: Dec 2008
Location: Montreal, Quebec, Canada
Posts: 91
Re: I've made a focus chart to test parfocal lenses.

Quote:
Originally Posted by Alister Chapman View Post
I don't really see how any DSLR lens can be truly parfocal as non of them have any way to trim the back focus so any small variations in the spacing between the lens and sensor will upset the focus tracking.
Your right Alister… maybe be we should adopt the term 'parfocalish'.

I used a LA-EA1 with a 24-70mm 2.8 Nikon, when I first bought the FS100.
A wonderful lens… but when I tested it with a focus chart, I could see it's sharpness weave in and out as I zoomed back.

I replaced the Nikon with a 24-70mm 2.8 Zeiss… which appeared 'parfocalish' when I tested it in the store.
Focusing at F2.8 - 4 now became easier.

But, recently I've been finding the Zeiss more difficult to keep in focus.
Possible reasons for this are:
(a) the lens needs realignment
(b) I've replaced the LA-EA1 with the LA-EA2
(c) I'm getting older

My testing system as been rather primitive…
I was about to buy a LensAlign MkII (Focus Calibration System) for $159.95 plus shipping… when it occurred to me, I might be able to do the same thing using the length of my 60cm iMac screen.

I'll shoot a test on Sunday and post my results.
Bill Kerrigan is offline   Reply With Quote
Old October 12th, 2012, 04:24 PM   #8
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Re: I've made a focus chart to test parfocal lenses.

A tape measure or ruler extended away from the lens also works, but a large screen TV or monitor also works as you'll see the moire shifting across the screen as the focus shifts.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old October 31st, 2013, 12:22 PM   #9
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
Re: I've made a focus chart to test parfocal lenses.

I've been using a down-loadable lens resolution chart for years to check par focal qualities. You simply go to Kinkos and blow it up to 4 feet or so and mount it on a piece of foam core.Bigger the better. I posted it here on the web for other people to use:

http://www.leonardlevy.net/ISO_12233-reschart.pdf

My experience is that many of the Nikon zooms are par focal or so close that you can't focus it any better by eye when its wide anyway. That includes the 28-70, 17-35, 17-55, & 80-200.I think its also true for the 24-70 I did have to adjust the backfocus on my Sony F3 however so that it was in the right spot for Nikon with my Optitek adapter.

One additional problem with getting these zooms to be parfocal is that even if the optics are parfocal often the tolerances on the adapters for video cameras are not precise enough and most cameras don't have a backfocus adjustment. Speedboster does but I don't know how the additional optics might come in to play there.

This is tne reason I have been reluctant to switch to EF glass or anybody else for video. I just wish that someone would make an adapter to transmit power to those lenses so you could activate VR (same as IS) for use on an F3, FS100 or anything else out there. Much better choices for cinema than EF also because you have mechanical irises.
Leonard Levy is offline   Reply With Quote
Old November 3rd, 2013, 11:07 AM   #10
Major Player

Join Date: Apr 2008
Location: Sydney Australia
Posts: 899
Re: I've made a focus chart to test parfocal lenses.

I found that the Sony DT 16-50 is parfocal on the Sony SLT-A77 APSC DSLR but it is not when mated up with the LEA2 adapter on an FS700. The LEA2 is too short to achieve infinity focus at infinity; it will allow the lens to focus past infinity. Because it’s too short for correct infinity focus the lens is unable to maintain focus tracking throughout its zoom range. I had a look at shimming the LEA2 and it is a very finicky tricky mount to shim up due to the autofocus and iris mechanism so I gave it a miss.

If the 16-50 is mated up with a manual adapter which can easily be shimmed you can then definitely get it focusing at infinity and tracking focus the whole way through the zoom range. What is good with the Alpha lenses unlike Canon EF lenses is that they still have a mechanical actuating pin to control the iris so if you use an adapter that has an inbuilt pseudo ‘iris’ ring that engages that pin you can have full manual iris along with manual focus.

A while back I did a few quick tests one afternoon looking for good short constant aperture parfocal zoom lenses to suit the FS700. Lenses I could use for interviews where I could quickly reframe and not have to worry about refocusing and adjusting aperture. So far all the lenses I tested are working extremely well for that purpose. An old Minolta Rokkor MD 35-70mm has become one of my favourite interview lenses. It’s a good sharp, even wide open, low flare lens with good contrast. Decent examples can be found on eBay for around the $60-$75 mark.

The results of those tests can be seen here:


Chris Young
CYV Productions
Sydney
Christopher Young is offline   Reply
