Old April 13th, 2014, 02:29 AM   #1
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Lens flange wobble?

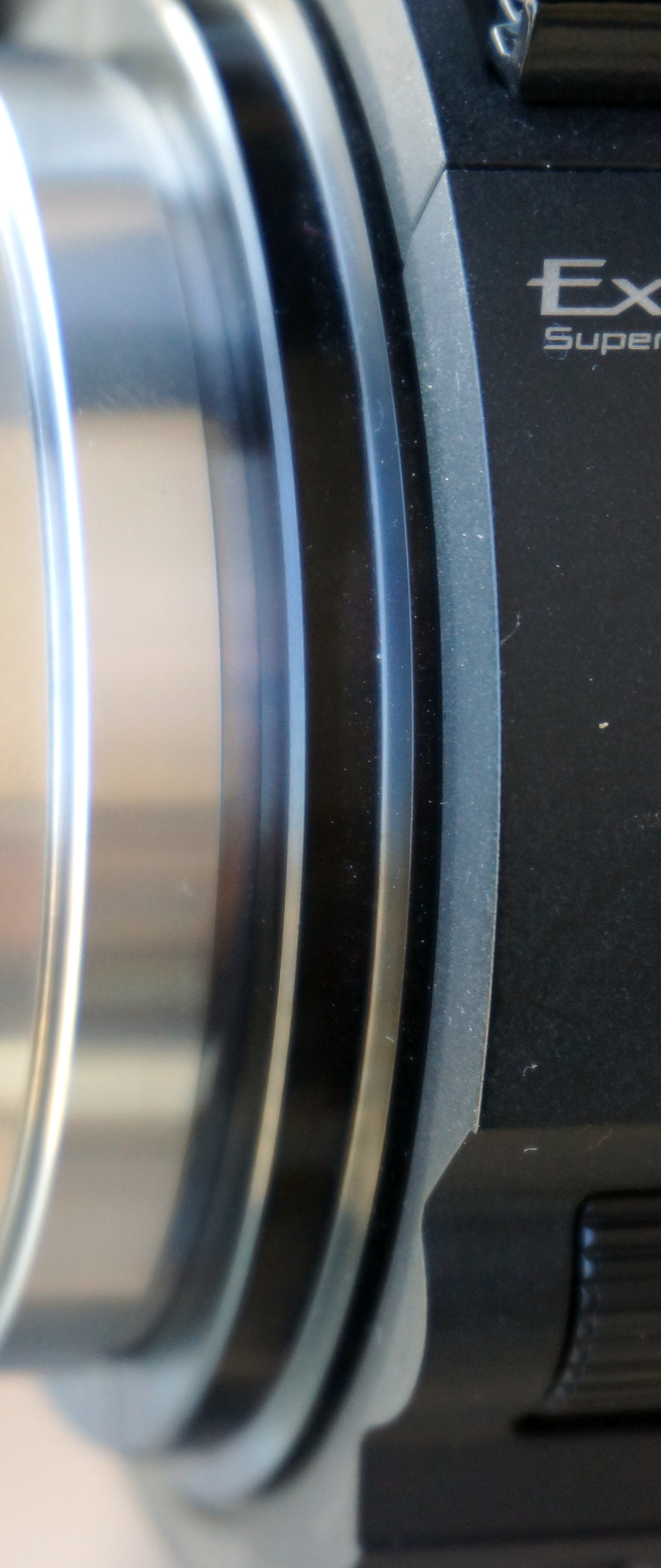

On my camera, I can detect a tiny lens flange wobble (about half a millimeter). I mean the black ring closest to the camera body, not the stainless steel part where the lens bayonet fits in.

With a lens attached, and some pressure exerted on it, I can feel and see that black ring move very slightly. Is this normal or do I have a lemon? Thanks for checking!
Attached Thumbnails
Lens flange wobble?-lens-flange.jpg
Luc De Wandel is offline   Reply With Quote
Old April 14th, 2014, 03:59 AM   #2
Major Player

Join Date: Sep 2011
Location: Madrid, Spain
Posts: 439
Re: Lens flange wobble?

Hi Luc,

I just checked on my camera, and despite a couple of years of usage, can find no movement in the lens flange - I would get it checked at a dealer, to be safe.
Paul Wood is offline   Reply With Quote
Old April 14th, 2014, 04:47 PM   #3
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Re: Lens flange wobble?

Thanks Paul. I think I'll do that. It's not much, just about half a millimeter, but I don't think it should move at all.
Luc De Wandel is offline   Reply With Quote
Old April 17th, 2014, 10:52 PM   #4
Regular Crew

Join Date: Jan 2013
Location: South NJ US
Posts: 138
Re: Lens flange wobble?

Crazy, I just stopped in to ask the same question and here it is first post

Used this camera for a good long time but never noticed the tiny bit of movement until I used a follow focus and a manual focus 85mm Nikon and a rock solid tripod. Guess the little bit of resistance to the focus turn and the longer than normal lens along with not having my sticks in dirt made it stand out.
Ray Lee is offline   Reply With Quote
Old April 19th, 2014, 02:44 PM   #5
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Re: Lens flange wobble?

I also noticed it with a longer lens. And what's more, I discovered today it's not the lens flange that's wobbling, but the complete circular mount that is fitted in the square camera body. I do not think it will pose a problem, because the wobble in this case is behind the sensor. But it's not a proof of sturdy build quality...
Luc De Wandel is offline   Reply With Quote
Old April 30th, 2014, 05:24 PM   #6
Regular Crew

Join Date: Jan 2013
Location: South NJ US
Posts: 138
Re: Lens flange wobble?

I misunderstood what you originally wrote... mine also seems like its the camera guts moving a hair in the outer plastic shell. Don't think I would have ever noticed or even cared except on solid tripod with a follow focus it drifts left and right as you focus (SLR AF lenses not noticeable but manual lenses with a nice fluid/firm feel its pretty annoying.

Love the camera but don't think I will bother sending it in to be looked at...if Sony is anything like Nikon it will come back in a month it two with a note saying nothing is wrong... if I happen to come across another FS100 and it does not flex then just maybe
Ray Lee is offline   Reply With Quote
Old April 30th, 2014, 05:41 PM   #7
Regular Crew

Join Date: Nov 2010
Location: Ferrisburgh, VT
Posts: 178
Re: Lens flange wobble?

Or if it is like Canon, it will come back two weeks later with a note that something ELSE is wrong, and they won't fix the first thing unless you pay for both.
Finn Yarbrough is offline   Reply With Quote
Old May 22nd, 2014, 03:46 PM   #8
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Re: Lens flange wobble?

As the camera came with prime support, the dealer sent it to Sony and within 8 working days it came back fixed: the wobble has gone. No cost, perfect repair.
Luc De Wandel is offline   Reply With Quote
Old May 23rd, 2014, 11:41 PM   #9
Regular Crew

Join Date: Jan 2013
Location: South NJ US
Posts: 138
Re: Lens flange wobble?

Thank you, love this camera and even if I ever wanted something else I couldn't sell it like this so may as well send it in (in few weeks) wish me luck
Ray Lee is offline   Reply With Quote
Old May 24th, 2014, 12:09 AM   #10
Inner Circle

Join Date: Dec 2003
Location: PERTH. W.A. AUSTRALIA.
Posts: 4,356
Re: Lens flange wobble?

With lightweight plastic camera bodies, there will nearly always be some compliance in the case structure when pressures are applied. So long as the image is not walking about or jumping during focus or zoom movements, then the camera is likely behaving to expectation. A consistent drift of the image during zoom or focus movements can indicate the optical centre axis is not on centre of the scanned area of the sensor. This was the classic signature of some 1/3" sensor cameras. The Sony DSR PD150 had a very noticeable left-right drift through the zoom movement. With the precision engineering required for such small sensors it is a minor miracle they work as well as they do..

Last edited by Bob Hart; May 24th, 2014 at 12:16 AM. Reason: error
Bob Hart is offline   Reply With Quote
Old May 29th, 2014, 01:57 AM   #11
Major Player

Join Date: May 2008
Location: Knokke-Heist, Belgium
Posts: 963
Re: Lens flange wobble?

You're quite right Bob. Indeed, the wobble did not present any problem as to image quality was concerned: no change in sharpness, or anything.

But I wanted it fixed because you never know if these thing get worse with time and moreover, if I ever want to sell the camera, I want it to be perfect for the guy who buys it. I have a reputation to defend :-)

Now it's as tight as can be, so I'm completely satisfied.
Luc De Wandel is offline   Reply
