Old November 20th, 2013, 03:16 PM   #1
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Odyssey Battery Bracket now in stock at Westside A V

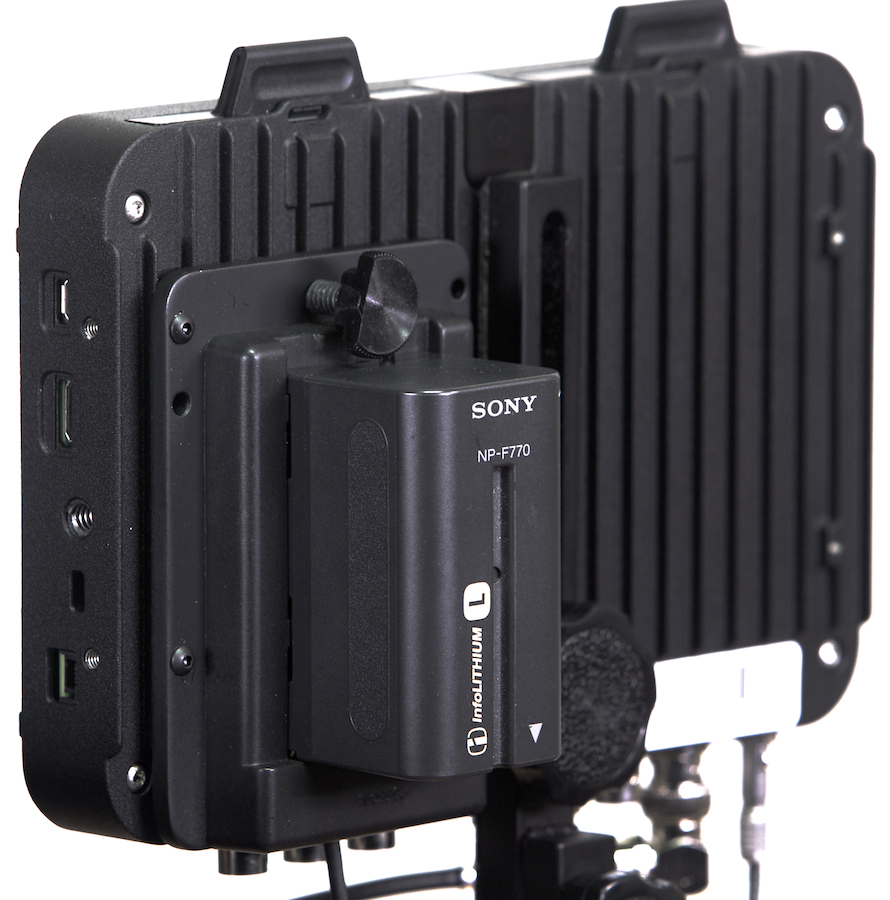

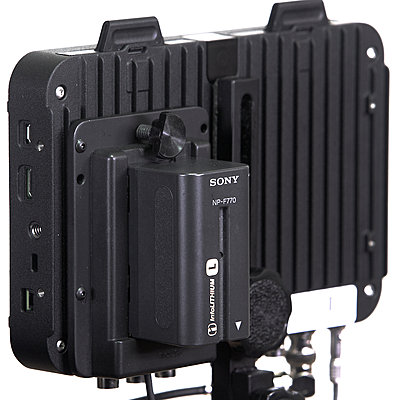

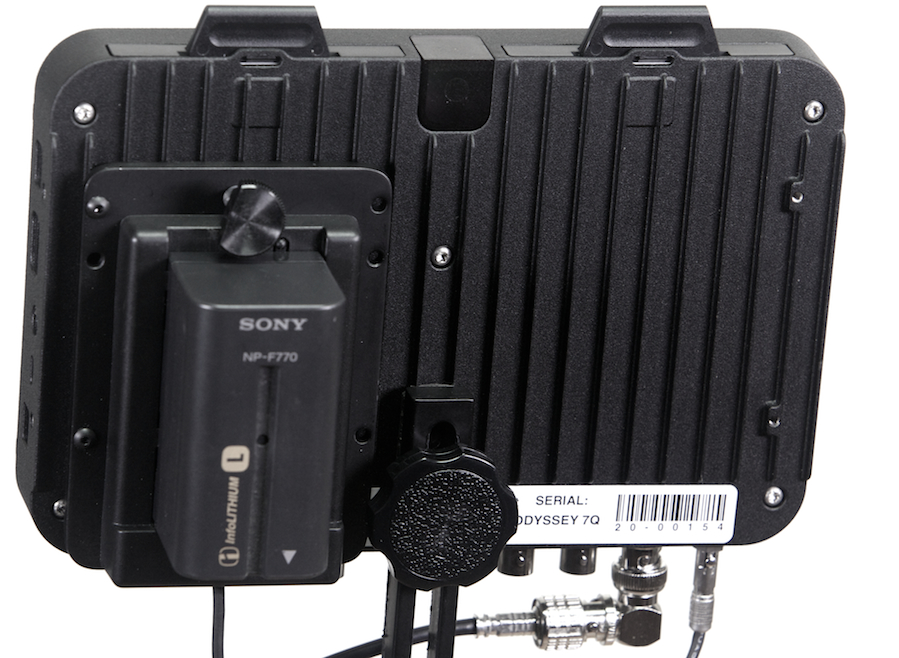

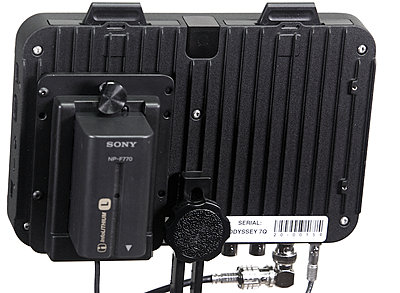

This battery bracket for the Odyssey 7Q works with the Sony or Swit batteries for the Sony FS700. It mounts on the back of the Odyssey on either the left or right side and is fully compatible with the West Side AV Odyssey Mounting Bracket. We make the cable the right length for the battery plate mounted as shown, longer cable lengths are available, email us when you order at info@westsideav.com for custom cable lengths. The battery is securely held in the bracket by an east to operate cam.

We also have IDX and AB solutions. But this is very light and compact, and a great way to use your smallest Sony batteries.

It can be ordered now here:
Odyssey Battery Mounting Bracket: Westside A V Studios WEB Store

We have brushed aluminum finish and black painted ones in stock now, and next week will have a batch of black anodized ones back from the anodizer.
Attached Thumbnails
Odyssey Battery Bracket now in stock at Westside A V-picture-1.jpg   Odyssey Battery Bracket now in stock at Westside A V-picture-2.jpg

Odyssey Battery Bracket now in stock at Westside A V-picture-3.jpg   Odyssey Battery Bracket now in stock at Westside A V-picture-4.jpg

Odyssey Battery Bracket now in stock at Westside A V-picture-5.jpg
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old November 22nd, 2013, 02:18 AM   #2
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
Re: Odyssey Battery Bracket now in stock at Westside A V

I'm quite interested in the Odyssey 7Q but I'm concerned about how this thing seems to be powered.
I currently own a Samurai and Atomos has very nicely given us 2 battery plates and an indicateor that tels us when the first has died and switched to the second. That way you will never lose a shot because your battery unexpectedly died.

Is there a readout or warning light on the 7Q so you know when your battery is in trouble. ?

Will you lose a shot if your battery dies whole rolling or will it save what's been recorded thus far/


Lenny
Leonard Levy is offline   Reply With Quote
Old November 22nd, 2013, 04:05 AM   #3
Major Player

Join Date: Feb 2004
Location: Oxfordshire, UK
Posts: 425
Re: Odyssey Battery Bracket now in stock at Westside A V

What's with that thumb screw? Is it a fixing mechanism holding the battery plate to the monitor or is it a battery retention system (sounds a bit grand maybe!)
Paul Gale is offline   Reply With Quote
Old November 22nd, 2013, 08:41 AM   #4
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Odyssey Battery Bracket now in stock at Westside A V

Quote:
Originally Posted by Leonard Levy View Post
I'm quite interested in the Odyssey 7Q but I'm concerned about how this thing seems to be powered.
I currently own a Samurai and Atomos has very nicely given us 2 battery plates and an indicateor that tels us when the first has died and switched to the second. That way you will never lose a shot because your battery unexpectedly died.

Is there a readout or warning light on the 7Q so you know when your battery is in trouble. ?

Will you lose a shot if your battery dies whole rolling or will it save what's been recorded thus far/


Lenny
The O7Q has a continuous voltage read out on the upper bar. Future firmware may provide a blinking warning you can program. I have not tried disconnecting the power to see what happens if you loose power, I will ask Dan Keaton how low voltage is handled. The rating on the O7Q is 6.5 to 24v so I don't yet know how it handles battery running low.


Edit:

I got this back from CD just now:

"I believe the unit already has a low voltage warning that is based on the current and amps that is provided to the unit.

We have done many tests here with the Sony 7.4 or 12V L-series camcorder batteries, as well as the CD 4 Cell battery.

As the voltage starts to drop off dramatically the voltage will turn yellow, then when the voltage is becoming dangerous low for recording, it will turn Red and flash a message, warning about the battery. and will lock out recordings, due to the battery maybe to week to provide sufficient power.

We do not have at this time a customizable way of setting the warning, this is something we may consider for the future.

Best Regards

Andy Mangrum"
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/

Last edited by Olof Ekbergh; November 22nd, 2013 at 11:01 AM.
Olof Ekbergh is offline   Reply With Quote
Old November 22nd, 2013, 08:45 AM   #5
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Odyssey Battery Bracket now in stock at Westside A V

Quote:
Originally Posted by Paul Gale View Post
What's with that thumb screw? Is it a fixing mechanism holding the battery plate to the monitor or is it a battery retention system (sounds a bit grand maybe!)

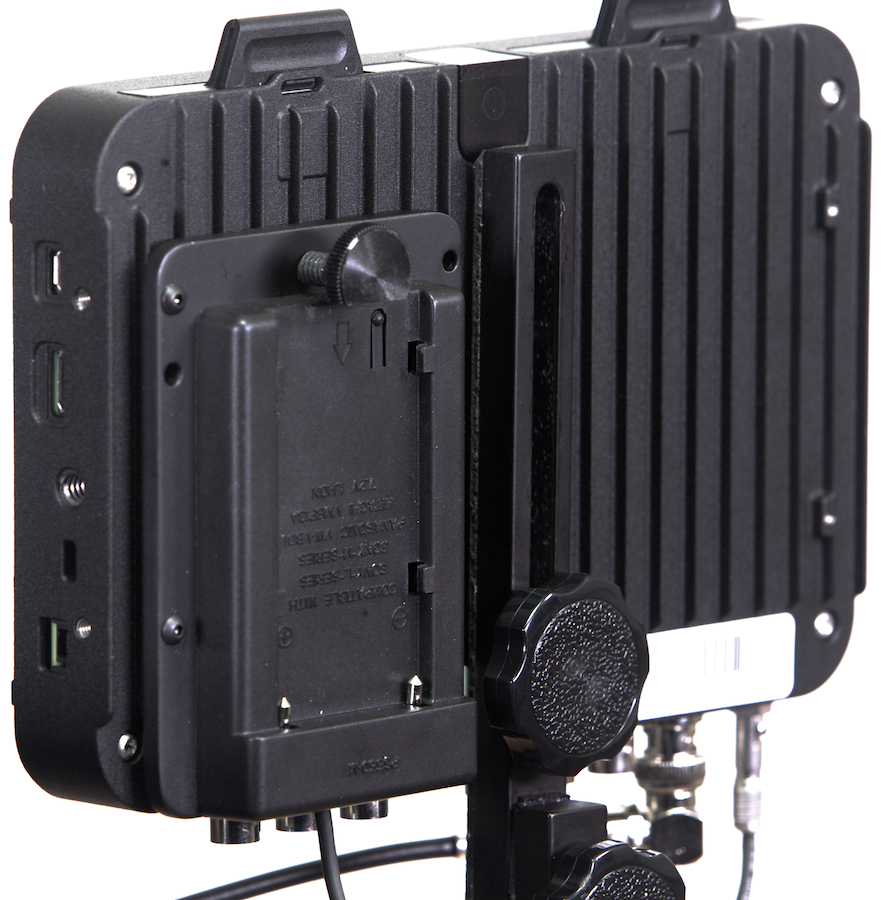

The "cam" thumb screw is a battery retention cam. It is optional but a very secure way to retain the battery. I have a different battery plate coming in a few weeks that does not need this "cam". Just a turn and your battery is very secure.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old November 22nd, 2013, 11:03 AM   #6
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Odyssey Battery Bracket now in stock at Westside A V

I just got this reply from CD about low battery situation:

"I believe the unit already has a low voltage warning that is based on the current and amps that is provided to the unit.

We have done many tests here with the Sony 7.4 or 12V L-series camcorder batteries, as well as the CD 4 Cell battery.

As the voltage starts to drop off dramatically the voltage will turn yellow, then when the voltage is becoming dangerous low for recording, it will turn Red and flash a message, warning about the battery. and will lock out recordings, due to the battery maybe to week to provide sufficient power.

We do not have at this time a customizable way of setting the warning, this is something we may consider for the future.

Best Regards

Andy Mangrum
Technical Support
Convergent Design Inc."
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old November 26th, 2013, 01:06 AM   #7
Major Player

Join Date: Apr 2008
Location: Boston
Posts: 496
Re: Odyssey Battery Bracket now in stock at Westside A V

It's kind of disappointing that the battery plate is sort of bulky and doesn't really allow the battery to power the system in an integrated fashion but requires a dongle and connector. At that point, why bother with a battery on the monitor at all when one can use either a Swit S-8972 Sony style battery with a power output port so it powers both the camera and the monitor, or use a v-mount rail mounted battery.

I like the Ikan D7w system, as the battery locks in place with no tools, its low profile, and it auto-connects the power internally.

Of course, the D7w is no 7Q.
__________________
Dave -
Dave Allen is offline   Reply With Quote
Old November 26th, 2013, 08:49 AM   #8
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Odyssey Battery Bracket now in stock at Westside A V

Quote:
Originally Posted by Dave Allen View Post
It's kind of disappointing that the battery plate is sort of bulky and doesn't really allow the battery to power the system in an integrated fashion but requires a dongle and connector. At that point, why bother with a battery on the monitor at all when one can use either a Swit S-8972 Sony style battery with a power output port so it powers both the camera and the monitor, or use a v-mount rail mounted battery.

I like the Ikan D7w system, as the battery locks in place with no tools, its low profile, and it auto-connects the power internally.

Of course, the D7w is no 7Q.
The only way to get power into the Odysseys without voiding the warranty is the proprietary plug. No tools are needed to mount the battery, it just plugs in, the cam screw is an extra precaution that can be used as an option. The plate is as small as is possible given the battery plate size for the Sony batts.

We also have IDX and AB battery solutions on the camera that run the O7Q and the FS700 as well as wireless receiver.

The Swit 8972 does not have the wattage rating to run both the FS700 and the O7Q, we were trying this at first, but it does not work.

There are times it is handy to have integrated power plate for the O7Q keeping the rig as small as possible. We have a C-stand (light stand) fitting and when used on a Cstand or table top, our bracket works as a table top stand as well, it is very convenient to have onboard power. And it is one less cable to disconnect when transporting.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old November 26th, 2013, 10:20 PM   #9
Major Player

Join Date: Apr 2008
Location: Boston
Posts: 496
Re: Odyssey Battery Bracket now in stock at Westside A V

Well, that is good to know about the Swit.....can two plates be mounted with two lower profile batteries? This would require a Y power cable.
__________________
Dave -
Dave Allen is offline   Reply With Quote
Old November 27th, 2013, 07:53 AM   #10
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Odyssey Battery Bracket now in stock at Westside A V

Quote:
Originally Posted by Dave Allen View Post
Well, that is good to know about the Swit.....can two plates be mounted with two lower profile batteries? This would require a Y power cable.
Yes I could make a double plate kit, if you like. I would not use a Y cable I would make a jumper between the plates that you could disconnect. So you could use just one if you wanted too.

I can also use different batteries than the FS700 batts, like Canon SLR batteries. I can fit those to my plate easily. I have a number of other plates in stock as well. I just thought they it made sense to use the FS700 batteries so you only carry one kind in your compact run bag.

Contact me directly if you have a request for a custom plate. Or plate combination.

I also have IDX and AB battery solutions on the camera that run the O7Q and the FS700 as well as wireless receiver.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old March 24th, 2014, 06:54 AM   #11
Major Player

Join Date: Nov 2007
Location: Finland
Posts: 317
Re: Odyssey Battery Bracket now in stock at Westside A V

Quote:
Originally Posted by Olof Ekbergh View Post

The Swit 8972 does not have the wattage rating to run both the FS700 and the O7Q, we were trying this at first, but it does not work.
Hi Olof,

Mitch Gross has led to believe that the Swit s-8972 should be able to power both FS700 and O7Q giving about 2.5h of operating time. Quote from Mitch "I can't recall the wattage draw of the FS700, but I know it's not huge, maybe 10w. That SWIT battery is 47 watts, so that means it would run it almost 4 hours. The Odyssey7Q draws about 9 watts in most modes (it can pull up to 15w when doing something like high speed), so assuming about 20w combined draw you'd get about 2.5 hours out of that brick."

But I guess you have tried it personally? What exactly happened and how did it not work?
Sami Sanpakkila is offline   Reply
