Old September 6th, 2007, 10:12 AM   #1
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Remote Lens Control on the PDW-EX1

Many thanks to Tim Polster for pointing this out.

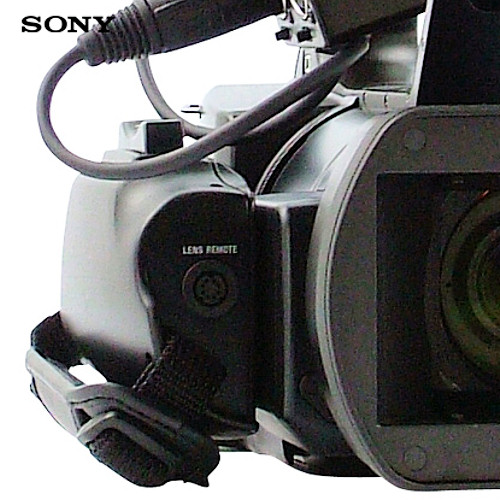

This is a screen cap from the EX1 camera rotation located at:
http://assets.sonybiz.net/Flash/XDCA..._ex/index.html

See attached photo (click to see it big).
Attached Thumbnails
Remote Lens Control on the PDW-EX1-ex1lensremjack.jpg
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 6th, 2007, 10:50 AM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
By the way that is NOT the standard 8-pin connector commonly used for Fujinon broadcast video lenses.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 6th, 2007, 11:02 AM   #3
Major Player

Join Date: Mar 2005
Posts: 423
Personally I think the image is too dark and low res to make that call just yet.

I will agree though that this connection does not seem to stick out of the chassis like the 8pins connectors stick out of lens.
Guy Barwood is offline   Reply With Quote
Old September 6th, 2007, 11:11 AM   #4
Inner Circle

Join Date: Dec 2004
Location: Arlington, TX
Posts: 2,230
Upon looking at a fuji lens I have, I believe Chris is correct, this is not a normal 8 pin connection.

The connector on my fuji lens here has 7 holes in a circle with one hole in the center.

The photo of the XDCAM EX has 8 holes in a circle.
Tim Polster is offline   Reply With Quote
Old September 6th, 2007, 11:11 AM   #5
Major Player

Join Date: Mar 2005
Posts: 423

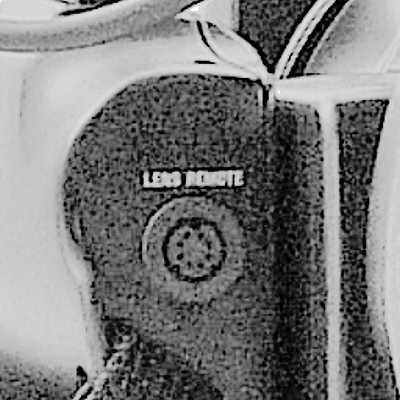

Your right, this puts the nail in the coffin it is a standard 8 pin connector.

On ya Sony, Not 8 pin or standard LANC..
Attached Images

Guy Barwood is offline   Reply With Quote
Old September 6th, 2007, 11:15 AM   #6
Inner Circle

Join Date: Apr 2003
Location: Aus
Posts: 3,884
I wouldn't worry... they wouldn't go this route if it didn't add something of benefit to the existing grand scheme of remotes.
Peter Jefferson is offline   Reply With Quote
Old September 6th, 2007, 11:22 AM   #7
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
It controls Zoom and start/stop. No option for remote focus as yet.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old September 6th, 2007, 11:23 AM   #8
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Quote:
Originally Posted by Guy Barwood View Post
Personally I think the image is too dark and low res to make that call just yet.
Then try this one.

I think I'm counting eight pins, but I still don't believe it's the standard 8-pin connector found on all Fujinon and Canon broadcast video lenses (almost all; Fuji used a 12-pin connector for awhile). For one thing, the standard 8-pin connector screws on, and I don't see any threads here. It looks like a simple friction push jack. We'll know more pretty soon of course, but my bet is that this is a proprietary connector.
Attached Images

__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 6th, 2007, 11:25 AM   #9
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Oops, I missed several replies above... ultimately, proprietary or not, I'm just glad it's there!
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 6th, 2007, 11:54 AM   #10
Major Player

Join Date: Mar 2005
Posts: 423
Especially if it lists at the rumoured $6k. They most will have a virtual $2K to buy accessories like batteries, WA lens adaptors and zoom controllers ;-)
Guy Barwood is offline   Reply With Quote
Old September 6th, 2007, 12:09 PM   #11
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Chris Hurd View Post
Oops, I missed several replies above... ultimately, proprietary or not, I'm just glad it's there!
If it's proprietary, it may as well be for some new "concentrator" dongle by Sony, allowing connection of a lanc and/or the Fujinon zoom controller...

I'm dreaming:)
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old September 6th, 2007, 08:56 PM   #12
Major Player

Join Date: May 2005
Location: Europe
Posts: 844
Here's a better shot of the remote socket :
Attached Images

Stu Holmes is offline   Reply With Quote
Old September 22nd, 2007, 01:41 PM   #13
Major Player

Join Date: Dec 2005
Location: Natal, RN, Brasil
Posts: 900
Let's hope for a dongle we can adapt for using our existing Fujinon zoom lense controllers....
__________________
http://lightinaction.org
"All in the view of the LION"
Stephen Armour is offline   Reply With Quote
Old September 22nd, 2007, 01:45 PM   #14
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Stephen Armour View Post
Let's hope for a dongle we can adapt for using our existing Fujinon zoom lense controllers....
This is certainly viable - this pic (courtesy of BEIKS, the biggest Polish pro video reseller) from IBC shows it exactly. Look how big is the thingy, connecting the adaptor with standard 8-pin Fujinon zoom controller!
Attached Thumbnails
Remote Lens Control on the PDW-EX1-p1000315.jpg
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; September 22nd, 2007 at 05:55 PM.
Piotr Wozniacki is offline   Reply With Quote
Old September 23rd, 2007, 03:34 PM   #15
Trustee

Join Date: Dec 2003
Location: Malvern UK
Posts: 1,931
The Libec controllers, for example, will work with it, and apparently they will supply an adaptor. The issue isn't very complicated, apparently.
Simon Wyndham is offline   Reply
