Old July 7th, 2010, 01:14 PM   #571
Major Player

Join Date: Jan 2007
Location: Ottawa, Canada
Posts: 836
Since posting the above note and Excel chart yesterday I've tested out most of the pp settings, and I've come up with a subset that I think will work for me. I'll post it below.

Here's my strategy: I want to cover as many bases as possible, so I've got —

PP1: (Doug Jenson's) for all-round EXTERIOR/INTERIOR shooting
PP2: (A. Shipsides) a Hi-Sat look that seems to me to work really nicely for EXT. shooting on bright, sunny days
PP3: not selected yet
PP4: (A. Shipsides) for FLOURESCENT lighting
PP5: not selected yet
PP6: (Oliver Neubert) for STAGE, high contrast (spotlights, dark curtains, etc.)

Any comments or observations?
Any suggestions for PP3 and PP5?

Regards, Malcolm
Attached Files
File Type: xls My Picture Profiles.xls (31.0 KB, 1693 views)
Malcolm Hamilton is offline   Reply With Quote
Old July 7th, 2010, 02:21 PM   #572
Regular Crew

Join Date: May 2009
Location: SouthWest Suburbs of Chicago, IL
Posts: 55
Thank you so much for creating the spreadsheet!! Probably like so many others on this list, I've been meaning to do the same, but didn't get a chance.

The thought also occured to me that your spreadsheet is also the perfect place for me to write down my own PP in case it got deleted! (duh)

For the most part, I don't tend to change the PPs. It's a matter of opinion, and for the style/type of work you are doing. For me, a lot of my work is outdoors, and it is the following (and my personal comments towards each):

PP1: Doug Jensen's - General purpose, conservative and a bit flat, for color grading
PP2: My Own (below) - Cross between Doug and Shipman's HD Norm with more contrast and saturation
PP3: Super Sat (my own) - Same as PP2 with even more saturation for that Panasonic over-sat look (things really pop)
PP4: Alister Chapman's - Great for sky, landscape
PP5: Phil Bloom's - More filmic
PP6: Shipman's "HD Norm" - Higher contrast

Matrix: On, Hi Sat, Level 4, Phase 2, R-G -3. R-B -3, all else 0
Color Correction: Off
While Offset: Off, Preset at 5600
Detail: On, Level -10, all others default
Skin Tone: Off
Knee On, Auto Off, Point 85, Slope 1, Knee Sat Level 50
Gamma Level: 0, STD4, Black -2, Black Gamma 02, Low Key SAT default

I hope my PP is within 'broadcast safe', whatever that means these days. Obviously, things like the Tiffen T1 and a polarizer effect things as well.
Ed Przyzycki is offline   Reply With Quote
Old July 19th, 2010, 09:52 AM   #573
Major Player

Join Date: Nov 2008
Location: Santa Monica, CA
Posts: 318
Matching with a Canon XL-H1

has anyone tried matching an EX1 with a Canon XL-H1? i'm gonna do some testing of my own Wednesday evening, but I wanted to get a head start on any tips you might have.

thanks in advance!!

-Mike
Michael B. McGee is offline   Reply With Quote
Old July 20th, 2010, 06:33 AM   #574
New Boot

Join Date: Feb 2010
Location: Miami, FL
Posts: 22
Quote:
Originally Posted by Ed Przyzycki View Post
Thank you so much for creating the spreadsheet!! Probably like so many others on this list, I've been meaning to do the same, but didn't get a chance.

The thought also occured to me that your spreadsheet is also the perfect place for me to write down my own PP in case it got deleted! (duh)

For the most part, I don't tend to change the PPs. It's a matter of opinion, and for the style/type of work you are doing. For me, a lot of my work is outdoors, and it is the following (and my personal comments towards each):

PP1: Doug Jensen's - General purpose, conservative and a bit flat, for color grading
PP2: My Own (below) - Cross between Doug and Shipman's HD Norm with more contrast and saturation
PP3: Super Sat (my own) - Same as PP2 with even more saturation for that Panasonic over-sat look (things really pop)
PP4: Alister Chapman's - Great for sky, landscape
PP5: Phil Bloom's - More filmic
PP6: Shipman's "HD Norm" - Higher contrast

Matrix: On, Hi Sat, Level 4, Phase 2, R-G -3. R-B -3, all else 0
Color Correction: Off
While Offset: Off, Preset at 5600
Detail: On, Level -10, all others default
Skin Tone: Off
Knee On, Auto Off, Point 85, Slope 1, Knee Sat Level 50
Gamma Level: 0, STD4, Black -2, Black Gamma 02, Low Key SAT default

I hope my PP is within 'broadcast safe', whatever that means these days. Obviously, things like the Tiffen T1 and a polarizer effect things as well.
Where is your spreadsheet????
Fred Davis is offline   Reply With Quote
Old July 20th, 2010, 07:31 AM   #575
Major Player

Join Date: Jan 2007
Location: Ottawa, Canada
Posts: 836
Fred,
I think Ed was referring to a spreadsheet I posted a link to (see attached file below); what Ed did is add a couple of his picture profiles directly to his post (I found them very interesting and intend to try them out).
Regards, Malcolm
Attached Files
File Type: xls *My Picture Profiles.xls (34.5 KB, 1681 views)
Malcolm Hamilton is offline   Reply With Quote
Old August 8th, 2010, 05:30 PM   #576
Major Player

Join Date: Aug 2007
Location: Warren, Pa
Posts: 785
Sorry if I have missed them, but seems that most the profiles are for outside, or well lit venues.

Anyone want to share something good for dark churches, wedding receptions and stage shows.
I do a lot of video work that really pushes the gain.

Thanks.
__________________
2 Canon XF305's
Kyser Photography www.kyserphoto.com
Denny Kyser is offline   Reply With Quote
Old August 11th, 2010, 03:32 PM   #577
Regular Crew

Join Date: Jan 2010
Location: Miami, FL
Posts: 75
Has any one been using wolgangs -3db pp? If so what are you results with it.

Thanks in advance
William Graydon is offline   Reply With Quote
Old August 22nd, 2010, 01:16 PM   #578
Regular Crew

Join Date: Aug 2009
Location: Buenos Aires, Argentina
Posts: 73
What preset would you guys use for available light night street scenes?
__________________
Thank you for sharing your knowledge,
Iván.
Ivan Gomez Villafane is offline   Reply With Quote
Old September 3rd, 2010, 11:19 AM   #579
Regular Crew

Join Date: Aug 2009
Location: Buenos Aires, Argentina
Posts: 73
Would you Cine1 or Cine3?

Would you apply gain or use Black/Black Gamma?
__________________
Thank you for sharing your knowledge,
Iván.
Ivan Gomez Villafane is offline   Reply With Quote
Old October 23rd, 2010, 12:09 PM   #580
Regular Crew

Join Date: Jan 2006
Posts: 37
Question

Hey guys, is there any way to convert these profiles to work with the HXR-NX5?
There is little to no information on picture profiles for the NX5.

Thanks guys.
John Strickland is offline   Reply With Quote
Old November 18th, 2010, 12:43 PM   #581
New Boot

Join Date: Jul 2009
Location: Los Angeles
Posts: 23
This is my EX1 setting to match my VariCam It is designed for post color correction to be shown on HD broadcast . This is for a scripted comedy. The camera was teched to a DSC chart with whites at 80 IRE and all settings on as was the VariCam. So this is how the is set up when I shoot. It seems whites expose at 78 IRE for good flesh tones.

ZLBH4

MATRIX…..On
Select……….HiSat
Level………..-26
Phase………..3
R-G…………95
R-B………….43
G-R………….31
G-B…………47
B-R…………..5
B-G………….82
COLOR CORRECTION
Setting………..Off
WHITE……….Off
Offset…………Auto White Balance
PRESET WHITE……6200
DETAIL…..On
Level…..-5
Frequency…..30
CRISPENING…..-45
H/V RATIO…..0
WHITE LIMITER…..75
BLACK LIMITER…..75
V DTL CREATION…..y
KNEE APT LEVEL…..0
SKINTONE DETAIL…..off
KNEE
Auto-knee
Point
Slope
Knee SAT level
GAMMA Level…..2
Select…..CINE1
BLACK…..-3
BLACK GAMMA…..0
LOW KEY SAT……0

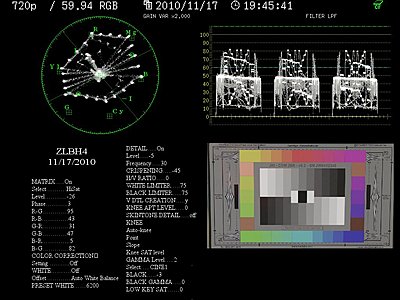

Attached Thumbnails
Picture Profile Recipes-111119-ex1-zlbh4-leader.jpg
Bob Hayes is offline   Reply With Quote
Old November 18th, 2010, 06:41 PM   #582
Regular Crew

Join Date: Jan 2006
Posts: 37
Would there be any way to take these profiles from this forum and use the settings in an Sony HXR-NX5?

There is very little information available for picture profiles on this camera, and there is so much here.

Thanks guys.
John Strickland is offline   Reply With Quote
Old November 18th, 2010, 07:58 PM   #583
New Boot

Join Date: Jul 2009
Location: Los Angeles
Posts: 23
It's not the numbers

The numbers are pretty much arbitrary. The DSC chart doesn't lie. That is why I have included the waveform and vector scope. You can match a look by matching to frame grabs from a Waveform Vector scope. The downside is you need a waveform/vector scope. You need the cameras to be set up similarly. You are supposed to match VariCams in Video Rec, whites at 100 IRE. So you kind of need to know this info. This is why right or wrong I match my cameras on the mode I will shoot them in.
Bob Hayes is offline   Reply With Quote
Old February 23rd, 2011, 08:52 AM   #584
Regular Crew

Join Date: Mar 2010
Location: Raleigh, NC
Posts: 63
Re: Picture Profile Recipes

John,

I have the NX5 and I would think you could use these PP settings as a starting point to acheive a certain look, then adjust. I think with the NX5 having smaller sensors etc the outcome would be different with the exact same settings mentioned in this thread.

PP is something I have not experimented with yet as most of what I have shot has not called for it but I do plan on attempting to get as close to the DSLR look of rich colors and crushed blacks as possible. I wish there was a more layman terms book/DVD out there that explained the Picture Profile settings and what adjustments can result in. I know the manual breaks each setting down but if I recall I was pretty lost, I will revisit that as well.

If anyone knows of some good references via literature or video on this subject, please post.
Dave Luda is offline   Reply With Quote
Old February 23rd, 2011, 09:37 AM   #585
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Picture Profile Recipes

Dave,

Make a note of the default settings and then apply -100% and +100%, you should soon see what each effect produces. Most books skirt about too much, the best way to learn is to do practical tests of your own.
__________________
Eyes are a deaf man’s ears. Ears are a blind man’s eyes
Vincent Oliver is offline   Reply
