Old January 9th, 2008, 04:03 PM   #1
Regular Crew

Join Date: Jun 2006
Location: NJ / NY Tri-State Area
Posts: 31
Picture Profiles on the EX1

Can anyone provide some descriptions of the various picture profiles available on the EX1. The manual talks around it but does not give any real details about the four cine gammas, for example.

Thanks,
G
__________________
Video Production in New York City and Philadelphia . TV Commercial Productions
G.A. Kokes is offline   Reply With Quote
Old January 9th, 2008, 04:11 PM   #2
Regular Crew

Join Date: Nov 2007
Location: Finland
Posts: 107
Yeah i'd like some info on these too. I already learned from test posted here that detail is better set to OFF. But wouldn't it be basicly best to shoot as "flat" footage as possible and do cinegamma style changes in post?
Tuomas Sebastien is offline   Reply With Quote
Old January 9th, 2008, 04:30 PM   #3
Trustee

Join Date: Oct 2005
Location: Gilbert, AZ
Posts: 1,896
Yes, shooting with detail off would be recommended, but you might find a happy medium with the detail set to something like -25 & frequency set to 20.

Some cameras don't fair well with detail off. The EX1 looks good, but definately softer, more organic.
Steven Thomas is offline   Reply With Quote
Old January 9th, 2008, 07:20 PM   #4
New Boot

Join Date: Jan 2008
Location: Berlin, Germany
Posts: 12
There are situations where you need to shoot with the final settings inside the camera. I've had clients who wanted to present the video a short time after recording - you can not color grade the image in about 20min from recording to presenting.

Worst case: The client is not able to "imagine" the final look, so you had to set up the camera with the correct settings.
Gregor Baumann is offline   Reply With Quote
Old January 9th, 2008, 07:35 PM   #5
Major Player

Join Date: Nov 2007
Location: Los Angeles, CA
Posts: 498
Detail Off vs. Negative Numbers

Just a note based on my observations:

Beware of a negative number in the detail setting - it adds an artificial softening that looks like a "box blur." This is especially apparent if you set detail to -99.

I've found detail off to be the best solution, rather than a negative number.

Detail 0 definitely adds a sharpening filter, and is not a neutral setting either.

Somewhere around -20 appears as neutral, though I am sure it's applying an additional degrading function beyond simply turning it off.
Eric Pascarelli is offline   Reply With Quote
Old January 9th, 2008, 07:40 PM   #6
Trustee

Join Date: Oct 2005
Location: Gilbert, AZ
Posts: 1,896
Eric, thanks for the "heads up".
I'll look into this. I've been using between -15 to -20 on detail level. Maybe I need to revisit this, but it seemed to be sharper than off.

I'll have to throw up a rez chart and see if can can determine what's going on here.

Wait a minute...., one quick method would be to focus on high contrast objects and use focus peaking. This would give a clue.
Steven Thomas is offline   Reply With Quote
Old January 9th, 2008, 07:46 PM   #7
Major Player

Join Date: Jul 2007
Location: Richmond, VA
Posts: 229
Trust you've been through the sticky above:

http://www.dvinfo.net/conf/showthread.php?t=110902
Rob Collins is offline   Reply With Quote
Old January 9th, 2008, 08:06 PM   #8
Major Player

Join Date: Nov 2007
Location: Los Angeles, CA
Posts: 498
Steven,

Let me correct myself. Detail -40 seems around neutral, though it's definitely different from detail off (and a bit weird for my taste, with a combination of sharpening and halation). At -60, the softening really kicks in.

Here are some tests I shot awhile ago. They were shot at too high a stop and have some diffraction softening, but I think they get the point across.

Detail Off
Detail 0
Detail -40
Detail -60
Detail -99
Attached Thumbnails
Picture Profiles on the EX1-d_off.jpg   Picture Profiles on the EX1-d-00.jpg

Picture Profiles on the EX1-d-40.jpg   Picture Profiles on the EX1-d-60.jpg

Picture Profiles on the EX1-d-99.jpg
Eric Pascarelli is offline   Reply With Quote
Old January 9th, 2008, 08:58 PM   #9
Trustee

Join Date: Oct 2005
Location: Gilbert, AZ
Posts: 1,896
Thanks Eric! It sure looks like you're right about -40.
Thanks to your examples, I compiled a quick comparison from your images.
I wonder if -20 to -30 might be a good medium.
I had no idea -99 was this soft. Good to know.

Here it is:

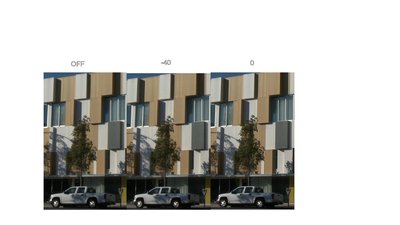

Far left is detail off, middle is detail at -40, right is detail at 0.
Attached Thumbnails
Picture Profiles on the EX1-ex_detail_comparison.tif
Steven Thomas is offline   Reply With Quote
Old January 9th, 2008, 09:26 PM   #10
Regular Crew

Join Date: Jan 2007
Location: Australia
Posts: 107
Eric, thank you for the frames. Another option to consider, if one is going to post process the footage anyway, is to shoot Detail Off, then use an Unsharp Mask filter in your NLE or compositing app. You can experiment with this in Photoshop to see the effect. Zoom in and see the difference, there are a few parameters to play with for the desired effect. I stacked the Detail Off and Detail 0 frames, two layers, then toggled the top layer on/off after experimenting with Unsharp Mask filter parameters applied to the Detail Off layer.

For fast turn around projects, Steven, -20 to -30 looks to be a good medium choice. Good info, thanks!
Christopher Barry is offline   Reply With Quote
Old January 9th, 2008, 09:38 PM   #11
Major Player

Join Date: Nov 2007
Location: Los Angeles, CA
Posts: 498
Christopher,

That's definitely my approach. I always shoot with detail off.
Eric Pascarelli is offline   Reply With Quote
Old January 10th, 2008, 02:39 AM   #12
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
Thanks Eric, those are very useful stills. I haven't gotten my camera yet, but i'll probably start off at -20 and then do further testing.

I don't do my own editing as I'm sure is true for many shooters here. I'm just a DP for hire. I can't afford to leave sharpening or color grading for some guy in post to screw up ( sorry that's my usual experience.). i need to give them the best picture I can 1st time.
Leonard Levy is offline   Reply With Quote
Old January 10th, 2008, 09:47 AM   #13
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,865
Eric and Steve this is great info. For my taste and what I am seeing here detail off looks to work. I will try a few settings today and response in the sticky.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old January 10th, 2008, 10:36 AM   #14
Inner Circle

Join Date: Feb 2004
Location: Brooklyn, NY, USA
Posts: 3,778
It's a shame Sony has no Picture Profiles online for this camera yet. There are XDCAM HD profiles though.

I wonder if there's any F330/350 users who also have the EX1 who can translate these.

http://bssc.sel.sony.com/Broadcastan...Files.shtml#HD
Craig Seeman is offline   Reply With Quote
Old January 25th, 2008, 02:43 PM   #15
Regular Crew

Join Date: Dec 2007
Location: Viersen, Germany
Posts: 120
Thanks Eric for these examples.

The detail=off setting is by far the best.
Resizing and sharpening seems to work great with this setting.

The in-camera sharpening is much worse compared to what is possible in post (I'm in love with LimitedSharpen and avisynth ;))


regards Dennis
Dennis Schmitz is offline   Reply
