Old February 11th, 2008, 09:36 PM   #181
Major Player

Join Date: Oct 2001
Location: Washington D.C. Metro Area
Posts: 384
Quote:
Originally Posted by Michael H. Stevens View Post
When Alexander said: "Acquiring in a higher quality codec will help. Chroma subsampling is not the key issue in this particular case, though it certainly wouldn't hurt. Mostly you want a 10 (or higher) bit codec. Such codecs have more ability to handle "superwhite" and "superblack." " does he mean acquiring like with Cineform NEO-HD?
Yes that is exactly what I mean.
__________________
Alexander Ibrahim
http://www.alexanderibrahim.net
Alexander Ibrahim is offline   Reply With Quote
Old February 11th, 2008, 10:18 PM   #182
Major Player

Join Date: Oct 2001
Location: Washington D.C. Metro Area
Posts: 384
Quote:
Originally Posted by Bob Grant View Post
I think ideally you want a 10bit recording medium and the only way to get to the 10bit output from the camera is from HD-SDI port and all the options that could be used in the field are rather expensive.
In the field the only option I know RIGHT NOW is the AJA ioHD coupled with a laptop and an external drive- possibly a drive array.

So, yeah that's expensive as it will cost about as much as the camera itself.

In the near future, we have the Convergent Designs Flash XDR.

Also Cineform has begun developing its own solid state recorder, which I have nicknamed "SOLID."

Quote:
Once encoded to 8 bit on the SxS cards most NLEs can handle the super whites and blacks. Vegas certainly doesn't have any issues with them although most delivery formats might. Only a matter of wrangling them and there's a number of ways to do that.
This statement is perfectly true and completely misses my point.

The key in my statement is that a 10 bit codec has more ability to handle superwhite and superblack.

8 bit codecs can certainly represent these levels.

8 bit codecs like XDCAM, HDV, DV, DVCPRO HD etc can only represent 256 levels of luma and color intensity.

10 bit codecs can represent 1024 levels. There is just a lot more luminance data, all of which will be available to represent your image.

7.5 IRE to 100 IRE represents your average NTSC image. 0 to 109 IRE represents the range of the EX1. If you use the "super" ranges for image composition you are asking your codec to handle 17% more data. Well strictly speaking you are asking the codec to handle 17% greater range in the data- which compromises its ability to compress efficiently. If you ask this from the codec designed to handle four times the levels, you get better results.

In other words- less abrupt clipping.
__________________
Alexander Ibrahim
http://www.alexanderibrahim.net
Alexander Ibrahim is offline   Reply With Quote
Old February 12th, 2008, 02:51 AM   #183
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Alexander Ibrahim View Post
8 bit codecs like XDCAM, HDV, DV, DVCPRO HD etc can only represent 256 levels of luma and color intensity.

10 bit codecs can represent 1024 levels. There is just a lot more luminance data, all of which will be available to represent your image.

7.5 IRE to 100 IRE represents your average NTSC image. 0 to 109 IRE represents the range of the EX1. If you use the "super" ranges for image composition you are asking your codec to handle 17% more data. Well strictly speaking you are asking the codec to handle 17% greater range in the data- which compromises its ability to compress efficiently. If you ask this from the codec designed to handle four times the levels, you get better results.

In other words- less abrupt clipping.
This is an excellent point, Alexander - I mentioned earlier in this thread that it's the lack of mid-tones in the partially clipped area that looks bad; as if banding occured due to the chroma/luma resolution not being enough.

I'd like to see the same areas using 10-bit output from HD-SDI!
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 12th, 2008, 09:06 AM   #184
Major Player

Join Date: Sep 2007
Location: Palm Desert, California
Posts: 311
Nice post Alexander. Hope we will hear more from you.

I'm asking, if the mpg4 files on the SxS card are 8-bit how does Cinform NEO-HD turn them into 10-bit avi files?
Michael H. Stevens is offline   Reply With Quote
Old February 12th, 2008, 05:05 PM   #185
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
Quote:
Originally Posted by Alexander Ibrahim View Post
Snip...

7.5 IRE to 100 IRE represents your average NTSC image. 0 to 109 IRE represents the range of the EX1. If you use the "super" ranges for image composition you are asking your codec to handle 17% more data. Well strictly speaking you are asking the codec to handle 17% greater range in the data- which compromises its ability to compress efficiently. If you ask this from the codec designed to handle four times the levels, you get better results.

In other words- less abrupt clipping.
There's no 7.5 IRE setup in the digital realm.
The impact of using the extra range from superblack to superwhite on an mepg-2 encoder would be negligable, certainly nothing like 17%. The biggest issue for the XDCAM or any mpeg-2 encoder is noise and motion.

Recording 10bit or 10bit log certainly can gives you more wiggle room. With the SI-2K I'm effectively under exposing compared to the Z1 or EX1 and then digging into the shadows. It's nice to delay those decisions to post for sure and with care you can get a much more pleasing image. I can just as easily if not more easily mangle it too.

In the end you're pretty much forced to deliver in 8 bits. You can make the hard decisions in a camera like the EX1 or you can spend a lot of money on more expensive cameras or recording systems and shift the decisions to post. Unless you start with a sensor with high dynamic range you might be spending a lot of money to record higher quality noise.
Bob Grant is offline   Reply With Quote
Old February 16th, 2008, 07:02 AM   #186
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086

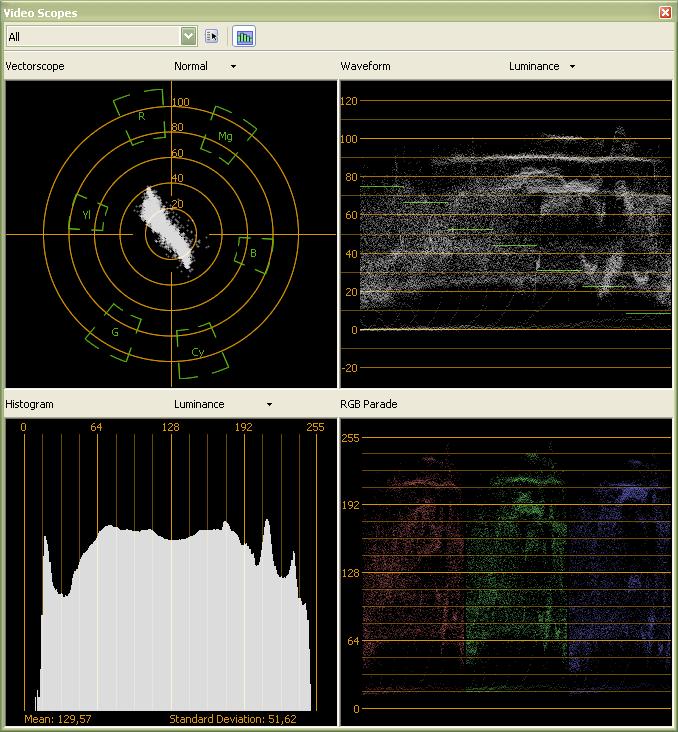

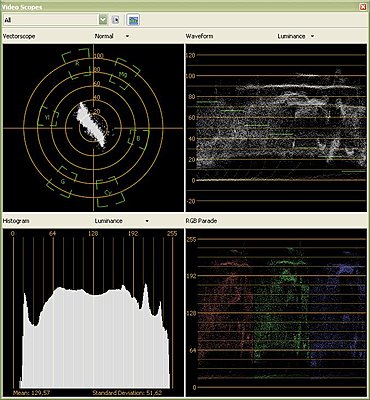

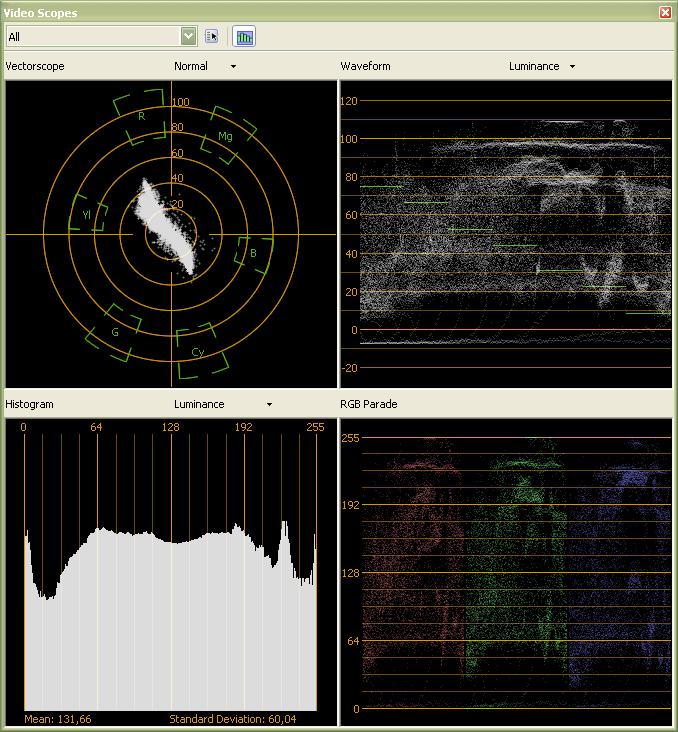

As an update to my research of best PP for different lighting conditions. Today we have the first snow this winter (February used to be all freezing temperatures and plenty of snow, but due probably to global warming I didn't have an opportunity to test my EX1 with snow, until today).

Below is a grab with Cine4 (my PP4); as you can see it's very safe - no abrupt clipping (in fact, hardly ANY clipping). With Cine1 (my PP3), it is very difficult to keep the snow on the safe side, while avoiding the "abrupt clipping" behind the trees silhuettes and still getting the dark parts bright enough... Also, I'll be experimenting in the remaining two cine gammas (Cine2 and Cine3), as my PP4 seems to be very conservative in terms of using this camera's latitude potential.

What's interesting, when I switch to 32bit in Vegas, not only does the picture look better, but I'm getting the scopes range from well below 0 up to full 110 (see pictures to the right side).

Sorry I shot my old, good barn again, and trough the window, too - but it's really freezing and that was just a PP experiment :)
Attached Thumbnails
abrupt highlights clipping-cine4-8bit.jpg   abrupt highlights clipping-cine4-32bit.jpg

abrupt highlights clipping-cine4-8bit-scopes.jpg   abrupt highlights clipping-cine4-32bit-scopes.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 16th, 2008, 07:38 AM   #187
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086

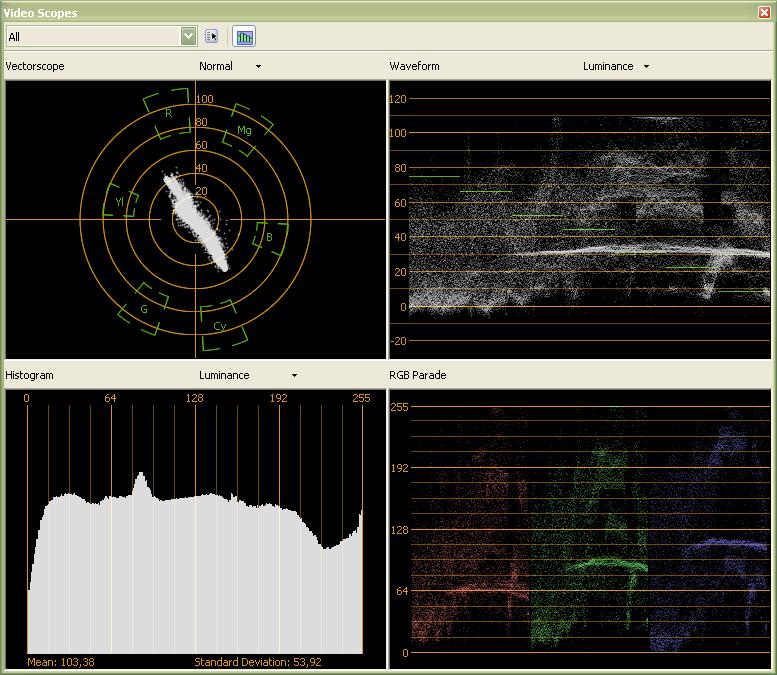

For comparison's sake, similar grab with my PP3 (Cine1), also from 32bit Vegas timeline. It's juicier, but more difficult to handle (also, the sun has gone down by some 2 hours ...).
Attached Thumbnails
abrupt highlights clipping-cine1-32bit.jpg   abrupt highlights clipping-cine1-32bit-scopes.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; February 16th, 2008 at 08:11 AM.
Piotr Wozniacki is offline   Reply With Quote
Old February 16th, 2008, 08:17 AM   #188
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
Quote:
Originally Posted by Piotr Wozniacki View Post
What's interesting, when I switch to 32bit in Vegas, not only does the picture look better, but I'm getting the scopes range from well below 0 up to full 110 (see pictures to the right side).
In 32bit Vegas converts from StudioRGB to ComputerRGB, on the output side you need to / should add the inverse conversion. You can achieve much the same image improvement without going to 32bit and suffering the extended render time.
Bob Grant is offline   Reply With Quote
Old February 16th, 2008, 08:26 AM   #189
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Bob, I'm getting similar results when I convert from Studio to Computer RGB while still in 8bit (time-saving) mode - is this what you mean?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 16th, 2008, 08:35 AM   #190

Join Date: Nov 2001
Location: santa fe, nm
Posts: 3,264
Images: 10
Quote:
Originally Posted by Alexander Ibrahim View Post

The key in my statement is that a 10 bit codec has more ability to handle superwhite and superblack.

8 bit codecs can certainly represent these levels.

8 bit codecs like XDCAM, HDV, DV, DVCPRO HD etc can only represent 256 levels of luma and color intensity.

10 bit codecs can represent 1024 levels. There is just a lot more luminance data, all of which will be available to represent your image.
You guys absolutely amaze me with your compulsive analyzing of things. For example, the statement that one should move from 256 levels to 1024 levels. Keep in mind that each channel carries 256 values. Therefore for all three channels(and ignoring alpha channel), we're talking 256x256x256=1.68 MILLION colors. OTOH, 1024 levels would be over 1 BILLION colors! There isn't a display screen in the world that can display that.
Bill Ravens is offline   Reply With Quote
Old February 16th, 2008, 08:42 AM   #191
Trustee

Join Date: Oct 2005
Location: Gilbert, AZ
Posts: 1,896
True, the real benefit for 10 bit is in post.
Steven Thomas is offline   Reply With Quote
Old February 16th, 2008, 10:41 AM   #192
Major Player

Join Date: Sep 2007
Location: Palm Desert, California
Posts: 311
Piort:

Did you read my post that addressed this issue? It looks to me that the Vegas scopes can not cope with the super blacks or whites as they show both ends as clipped. So what use are the Vegas scopes now??? I wish someone could explain in detail just how NLE cope with these extreams.
Michael H. Stevens is offline   Reply With Quote
Old February 16th, 2008, 10:58 AM   #193
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Michael H. Stevens View Post
Piort:

Did you read my post that addressed this issue? It looks to me that the Vegas scopes can not cope with the super blacks or whites as they show both ends as clipped. So what use are the Vegas scopes now??? I wish someone could explain in detail just how NLE cope with these extreams.
Michael,

No, I am myself a bit lost here. In fact, while I can see the scopes reaching from below zero on the left, to well over 108 on the right - the picture itself doesn't show any traces of clipping.

I think it takes Glenn Chan or somebody equally knowledgeable to finaly explain all this to us, regular Vegas users :)
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 16th, 2008, 11:35 AM   #194
Major Player

Join Date: Sep 2007
Location: Palm Desert, California
Posts: 311
Piort:

I started a post on this on the Vegas forum so hopefully Glenn will give us his wisdom.
Michael H. Stevens is offline   Reply With Quote
Old February 16th, 2008, 11:53 AM   #195
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Michael H. Stevens View Post
Piort:

I started a post on this on the Vegas forum so hopefully Glenn will give us his wisdom.
Michael,

I started one there, too - since yesterday Glenn hasn't responded yet; still hoping he will :)

Piotr (like Peter or Pietro; not Piort :))
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply
