Old March 8th, 2008, 07:26 AM   #16
Regular Crew

Join Date: Dec 2007
Location: Bangkok, Thailand
Posts: 140
Looks broken to me.

My EX1 is on the other side of the world right now, but I did look at my Sony HDV camcorder for comparison, and it is not the same as your photo. The 'tab' on the right is uniform across the front of the connector.

Same with my cell phone, uniform across the front, like your right side.
John Hedgecoe is offline   Reply With Quote
Old March 8th, 2008, 07:36 AM   #17
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
Quote:
Originally Posted by Piotr Wozniacki View Post
Please take a look into your camera's USB socket, and confirm whether all the contacts should be under plastic, like the 3 RH-side ones in my picture. As I said, it doesn't look right but on the other hand, I never used excesive force, or feel/heard anything crack...

TIA!

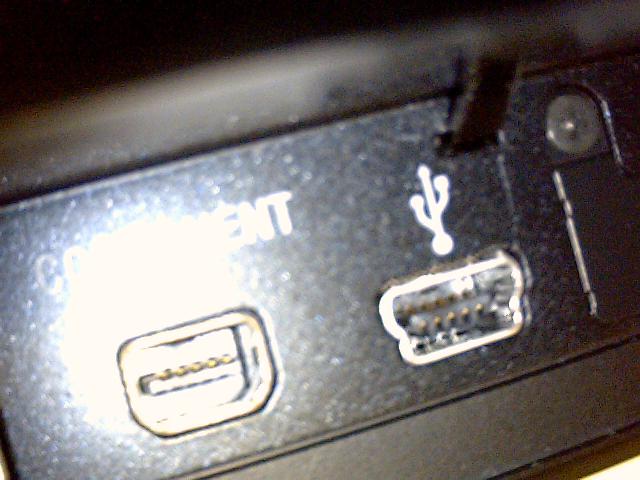

You ain't going to thank me. Your socket is broken. The plastic separator between the pins should run the whole length of all the contacts.

Excuse the crappy picture, only had my $10 webcam.
Attached Thumbnails
fragile USB socket...-ex1-usb-002.jpg
Bob Grant is offline   Reply With Quote
Old March 8th, 2008, 07:39 AM   #18
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Bob, John;

Bad news - but of course Thank you anyway !
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old March 8th, 2008, 09:55 AM   #19
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Have been thinking... Sending in my camera now because of the silly USB is a tough decision - I was going to wait until more important problems are finally resolved by Sony, and only send the camera then for a general overhaul...

So, assuming I'll probably only use the USB for the future firmware upgrade (and NOT for regular off-loading from the cards), what DYI solution could be used to prevent the contacts from touching each other? Shorting it is the last thing I'd like to happen...
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old March 8th, 2008, 04:31 PM   #20
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
So long as you only insert the plug in absolutely straight you should be fine. Not doing that is probably what broke the plastic. I know it's difficult to get the plug in without it starting out at an angle.

I'll be pleasantly surprised if this get repaired under warranty, the question you need to ask yourself is the cost of getting it fixed going to be worth it.
Bob Grant is offline   Reply With Quote
Old March 21st, 2008, 02:43 PM   #21
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
Quote:
Originally Posted by Bob Grant View Post
So long as you only insert the plug in absolutely straight you should be fine. Not doing that is probably what broke the plastic. I know it's difficult to get the plug in without it starting out at an angle.

I'll be pleasantly surprised if this get repaired under warranty, the question you need to ask yourself is the cost of getting it fixed going to be worth it.
while not a current owner (give it a month) I'd say that if USB is the *only* way to update firmware (please someone tell me there is another way) then getting it repaired is something that you really must do if you want to be able to apply any future fixes.

Dave
David Hadden is offline   Reply With Quote
Old March 21st, 2008, 05:26 PM   #22
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
As a side note we've had almost the same problem with a HC7 and the A/V cable. The plastic contact holder had snapped off and was wedged inside the plug in one of our underwater housings. Plug would not connect to any camera as a result and it took carefull microsurgery to extract the piece of plastic so we could use the housing again. You need to be very careful with any of these new "micro" plugs and sockets.
The plug in the underwater housing is a right angle one, I wonder if anyone is making a component cable with a RA plug on it. That'd certainly help connecting the EX1 to a monitor.
Bob Grant is offline   Reply With Quote
Old March 21st, 2008, 05:59 PM   #23
Regular Crew

Join Date: Jan 2008
Location: New York, NY
Posts: 188
The main USB port actually isn't used for the FW updates. Under a small cover held by a phillips head screw is another "secret" USB port. I really hope sony will let us start doing our own FW updates, I'd hate to have to send it back to them just for that.

-Sean
Sean Donnelly is offline   Reply With Quote
Old March 21st, 2008, 06:06 PM   #24
Major Player

Join Date: Nov 2007
Location: Los Angeles, CA
Posts: 498
Looks like that secret USB port is even harder to get at the the main one.
Eric Pascarelli is offline   Reply With Quote
Old March 22nd, 2008, 04:20 AM   #25
Trustee

Join Date: Apr 2005
Posts: 1,268
Yes, the connectors are one of the lower points in this otherwise great camera. I get it they were trying to save space or even ran out of it, but a side rear panel above the SDI with real component jacks, the USB and A/V would have been nice and handy.
Michael Maier is offline   Reply With Quote
Old March 22nd, 2008, 08:47 AM   #26
Regular Crew

Join Date: Jan 2008
Location: New York, NY
Posts: 188
Just a side note: Yesterday I swapped SN1789 for SN 2527, and the newer one came with a MUCH better SDI cap. This one might actually last a month.

-Sean
Sean Donnelly is offline   Reply With Quote
Old March 22nd, 2008, 09:49 AM   #27
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
Quote:
Originally Posted by Sean Donnelly View Post
The main USB port actually isn't used for the FW updates. Under a small cover held by a phillips head screw is another "secret" USB port. I really hope sony will let us start doing our own FW updates, I'd hate to have to send it back to them just for that.

-Sean

Where on the cam is this ?
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old March 22nd, 2008, 11:25 AM   #28
Regular Crew

Join Date: Jan 2008
Location: New York, NY
Posts: 188
if you open the connector door under the hand grip, to the right of the USB connector is a small metal tab. Remove the small phillips head screw at the top of the tab, and it comes off to reveal a 2nd USB port.

-Sean
Sean Donnelly is offline   Reply With Quote
Old March 23rd, 2008, 12:50 PM   #29
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
Ta.
paul.
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply
