Old April 28th, 2008, 10:36 AM   #151
Sponsor: Schneider Optics

Join Date: Aug 2007
Location: Van Nuys, CA
Posts: 387
Quote:
Originally Posted by Mike Stevens View Post
Piotr:

A double threaded version is hard to find - in fact of the B+W I don't think it exists, so this is what I did. I have a 77 to 100 step-up ring with a 95mm thread inside, to which I clamp my Cavision matte box (see my threads on that for interest). Inside this step-up ring I have a 95 to 77 step-down ring that holds the 77mm IR/UV filter on the inside so that the IR/UV filter is in fact in "backwards." This allows the use of the 77mm filter behind a matte box and is a lot cheaper than using the 100mm filter which is about $500 or wasteing a matte box slot. This arrangement works fine and there is no vignetting at any focal length by reversing the filter so it is as close as possible to the camera.

Mike

Mike,

Your solution seems to be a great option for EX1 users. For RED users it doesn't work because of the thread size. This is why we made the mattebox option as well which full explaination is in my previous post.

Thanks for the good idea and solution for a EX users.

Ryan Avery
Schneider Optics
Ryan Avery is offline   Reply With Quote
Old April 28th, 2008, 10:48 AM   #152
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Dear Ryan,

Thanks for your answers; however, sticking to the EX1 and Letus 35mm adapter applications, which filter I'd be better off: the existing 486, or the existing 489 one?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 28th, 2008, 01:37 PM   #153
Sponsor: Schneider Optics

Join Date: Aug 2007
Location: Van Nuys, CA
Posts: 387
Quote:
Originally Posted by Piotr Wozniacki View Post
Dear Ryan,

Thanks for your answers; however, sticking to the EX1 and Letus 35mm adapter applications, which filter I'd be better off: the existing 486, or the existing 489 one?
Based on the discussions here and my knowledge of both filters, I would think that the 486 would be the better choice. I do not have direct experience with the set up you are talking about but from a science aspect the 486 is the proper filter.

Ryan Avery
Schneider Optics
Ryan Avery is offline   Reply With Quote
Old April 28th, 2008, 02:35 PM   #154
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Ryan Avery View Post
Based on the discussions here and my knowledge of both filters, I would think that the 486 would be the better choice. I do not have direct experience with the set up you are talking about but from a science aspect the 486 is the proper filter.

Ryan Avery
Schneider Optics
Thanks again Brian,

The specifics of the setup I mean is that with the 35mm adapter like the Letus, the 486 filter would be "closed" between the camera lens and the achromat lens of the said adapter. Reflected IR could bounce within this space (of course being partially absorbed), but wouldn't they contaminate the picture?

Conversely, with the 489 filter the IR would be absorbed by the filter, hence theoretically less reason for concern...

Is this theory right?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 28th, 2008, 08:11 PM   #155
Regular Crew

Join Date: Jan 2008
Location: New York, NY
Posts: 188
Piotr, earlier in this thread I suggested that perhaps that isn't so much of a concern. I still maintain that it doesn't really matter what happens to the IR light reflected by the 486, as long as it doesn't pass though to the sensor. It's not going to contaminate the image, and it's also not going to cook your Letus :)
Sean Donnelly is offline   Reply With Quote
Old April 29th, 2008, 02:29 AM   #156
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Sean Donnelly View Post
Piotr, earlier in this thread I suggested that perhaps that isn't so much of a concern. I still maintain that it doesn't really matter what happens to the IR light reflected by the 486, as long as it doesn't pass though to the sensor. It's not going to contaminate the image, and it's also not going to cook your Letus :)
Sean,

Considering that even without the Letus I am getting the green tint in the picture extremities (because of the angle of incidence of the light), the multiple reflections of the IR could increase this effect.

On the other hand, with LEX the camera is zoomed in to some Z78, which should help avoiding this...

Unless the multiple reflections will cause considerable amount of IR to reach the lens at the "wrong" angle also in the middle, and this possibility is the reason for my concern!

Since I need to make up my mind which double-threaded filter model to pick, I'd be grateful for some more authoritative answer.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; April 29th, 2008 at 03:45 AM.
Piotr Wozniacki is offline   Reply With Quote
Old May 1st, 2008, 06:20 PM   #157
Regular Crew

Join Date: Dec 2005
Posts: 75
Serena asked me does the 486 IR/UV work. It does - big time.

I just came back from three days in the desert (that was hot this trip) and I compared the 486 vs. the standard UV/Haze. The green foliage that looks brown with the UV/Haze is correctly green with the 486.

The 486 did mute the reds a tad and so I compensated with a matrix shift of G-R=15 and that seemed to work for me.

Mike
Mike Stevens is offline   Reply With Quote
Old May 1st, 2008, 09:45 PM   #158
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
This thread mystifies me. Is there any consensus about the green vignetting that Piotr documented?

The pictures he posted were extreme, far worse than any red problem I've seen, but it doesn't seem like anyone else has seen it, or if they have they aren't concerned.

I could live with an overall green cast that's correctable, but the vignetting was unacceptable to me.

Are you other guys with the filter having any of this problem at wide angle or anywhere else? Is there any consensus about when you will or won't have the problem. Other images would be appreciated. Thanks

Lenny Levy
Leonard Levy is offline   Reply With Quote
Old May 2nd, 2008, 12:50 AM   #159
Trustee

Join Date: Oct 2005
Location: Gilbert, AZ
Posts: 1,896
Yes, I'm wondering the same thing. Does the 486 IR/UV have the green cast issue on the edges?

I want to buy one, but I'm also confused on if its problems might out weight the IR contamination fix.
Steven Thomas is offline   Reply With Quote
Old May 2nd, 2008, 05:22 AM   #160
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Guys, the green cast at the extremities is due to IR light angle of incidence, and even Ryan Avery of Schneider Optics confirmed it's unavoidable with those screw-on, circular filters - so I guess you cannot avoid it completely.

As I said: in natural light, this is not a problem at all (even indoors).

It's most pronounced with incandescent / tungsten (warm) lighting, as my pics posted earlier show (they were deliberately chosen from the worst part of my recording, though).

With LED light it's not visible (have done some tests recently, but only in the mixed natural light at dusk, and some LED lamps - see the grabs attached); unfortunately couldn't wait for the sunset at that particular location, so cannot be sure how it works with LED light on its own. One of the grabs shows the scenery in natural light at dusk; the other with LEDs switched on (taken within just a couple of seconds time). As you can see, there is virtually no green cast even in the corners (even though I was at the widest in the right grab).

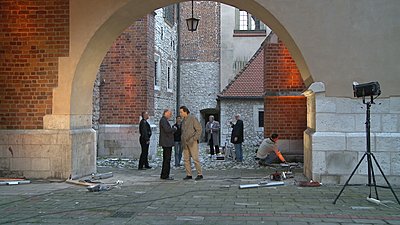

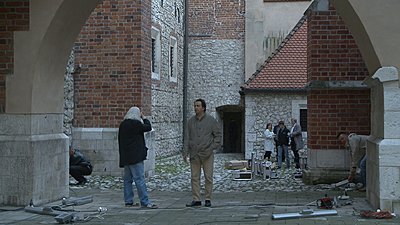

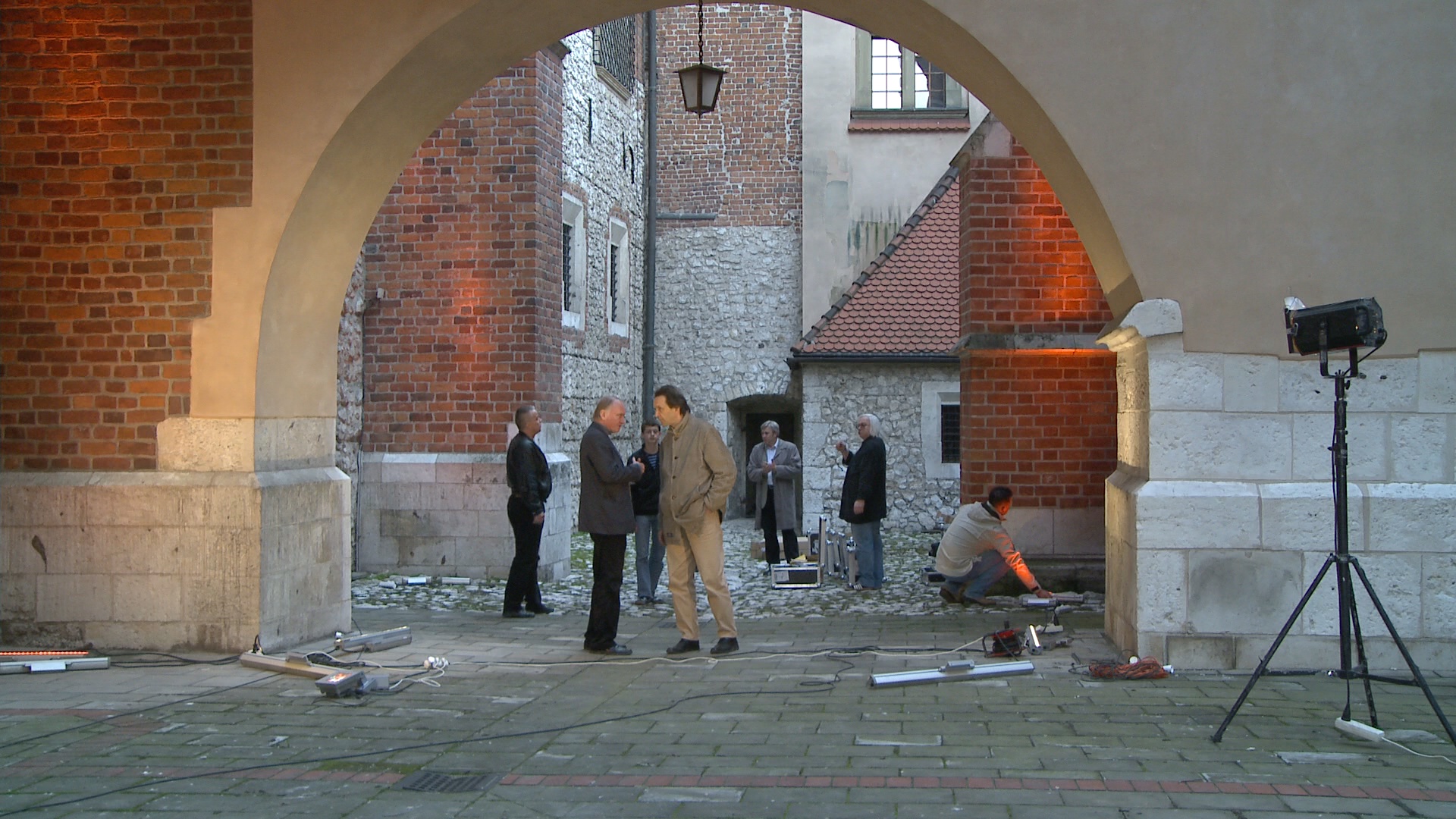

Attached Thumbnails
Red problem !-image96.jpg   Red problem !-image95.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; May 3rd, 2008 at 03:09 AM.
Piotr Wozniacki is offline   Reply With Quote
Old May 2nd, 2008, 07:51 AM   #161
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
Interesting tests by Adam Wilt:

http://provideocoalition.com/index.p...lter_tests/P0/

This is not the first such tests I've read of, interestingly all camera seem to have these issues to varying degrees. The other not public tests found that cameras such as the Varicam can need an external IR cut filter.
Bob Grant is offline   Reply With Quote
Old May 2nd, 2008, 08:21 AM   #162
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Thanks Bob for the link - what Adam is showing as the adverse effects of the 486 on EX1 at full wide, is nothing compared to the ugly cast in my grabs posted here earlier!

As I said - all depends on many variables, but having a filter like this handy is a must with the EX1.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 2nd, 2008, 10:22 AM   #163
Regular Crew

Join Date: Dec 2005
Posts: 75
Quote:
Originally Posted by Leonard Levy View Post
This thread mystifies me. Is there any consensus about the green vignetting that Piotr documented?

The pictures he posted were extreme, far worse than any red problem I've seen, but it doesn't seem like anyone else has seen it, or if they have they aren't concerned.

I could live with an overall green cast that's correctable, but the vignetting was unacceptable to me.

Are you other guys with the filter having any of this problem at wide angle or anywhere else? Is there any consensus about when you will or won't have the problem. Other images would be appreciated. Thanks

Lenny Levy
The green casts and vignetting have nothing to do with the 486 filter. Piotr has something else going on or the filter is bad or is mounted wrong. As I said, the only down side is a slight muting of the reds that I somewhat corrected with a green to Red +15 in the matrix.
Mike Stevens is offline   Reply With Quote
Old May 2nd, 2008, 10:40 AM   #164
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Mike Stevens View Post
The green casts and vignetting have nothing to do with the 486 filter. Piotr has something else going on or the filter is bad or is mounted wrong. As I said, the only down side is a slight muting of the reds that I somewhat corrected with a green to Red +15 in the matrix.
C'mon, Mike. While I picked those ugly pics on purpose, the green cast is a fact, confirmed by the filter manufacturer.

In 90% of my shooting scenarios, it's a non-issue at all - so it's possible you have just never noticed it. Especialy that - afaik - yours is not directly on the lense, is it? By increasing the distance (e.g. mounting it in the matte box), you're avoiding the critical incidence angle.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old May 2nd, 2008, 10:43 AM   #165
Sponsor: Schneider Optics

Join Date: Aug 2007
Location: Van Nuys, CA
Posts: 387
Quote:
Originally Posted by Piotr Wozniacki View Post
Thanks again Brian,

The specifics of the setup I mean is that with the 35mm adapter like the Letus, the 486 filter would be "closed" between the camera lens and the achromat lens of the said adapter. Reflected IR could bounce within this space (of course being partially absorbed), but wouldn't they contaminate the picture?

Conversely, with the 489 filter the IR would be absorbed by the filter, hence theoretically less reason for concern...

Is this theory right?
The 486 and 489 alter IR light differently. The 489 will absorb the IR light but only affects this end of the spectrum. The 486 reflects the IR light within the layers of the filter and therefore also controls the UV contamination which will affect blue and green casts to your image. The sensitivity of digital sensors to UV light is much less than the IR light. Therefore a 489 should be relatively as effective as the 486 but for the fact that UV sensitivity still exists with digital sensors and this could be what you are getting with your lens set up.

In mounting the filter, the sequence is very important. A 486 filter reflects the light and there for should be used in the front of all elements. If you are mounting the 486 internally then the issues you state could be happening. The 489 is a better application for internal use such as the situation you state. It is better to have no UV filtration in the 489 and aviod the internal reflection problems.

In short, for this application only, use the 489 internally OR put the 486 in front of the 35mm lens.

Ryan Avery
Schneider Optics
Ryan Avery is offline   Reply
