Old December 18th, 2008, 12:14 AM   #76
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
EX1 to SD Problem solved!

Quote:
Originally Posted by Dominik Seibold View Post
Why don't you post results you get with your methods together with examples which look great on your tv? I guess it will be possible for us to tell you what you have to do, to let your results look like them.
Dominik (and everyone else who has kindly tried to help me with this) I must apologise for not posting back. I thought I had replied to all threads about my EX1 to DVD issue, but I clearly missed this one.
_______________

This is a copy of my "solution" to the problem I was having converting my EX1 footage to SD for use on DVD:
_______________

At last, thanks to Kevan Holdsworth over on the Apple FCP Forum, I read through the XDCAM Transfer Instruction PDF very carefully and there it was all the time!

XDCAM Transfer is the Sony plugin for importing footage - but it also EXPORTS loads of stuff - including either DV PAL / NTSC @ 48k

OR

IMX50 625 (which is Ancient Dutch for Cracking SD) IMX PAL / NTSC @ 50Mb/s
(Choice of other rates available).

My settings are here:
http://www.workingsheepdog.co.uk/video/picture_01.png

This gives you an XML file which you then Import back into FCP using XDCAM Transfer.
EXCELLENT SD footage!
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply With Quote
Old December 18th, 2008, 04:18 AM   #77
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
Quote:
Originally Posted by Andy Nickless View Post
IMX50 625 (which is Ancient Dutch for Cracking SD) IMX PAL / NTSC @ 50Mb/s
(Choice of other rates available).

My settings are here:
http://www.workingsheepdog.co.uk/video/picture_01.png

This gives you an XML file which you then Import back into FCP using XDCAM Transfer.
EXCELLENT SD footage!

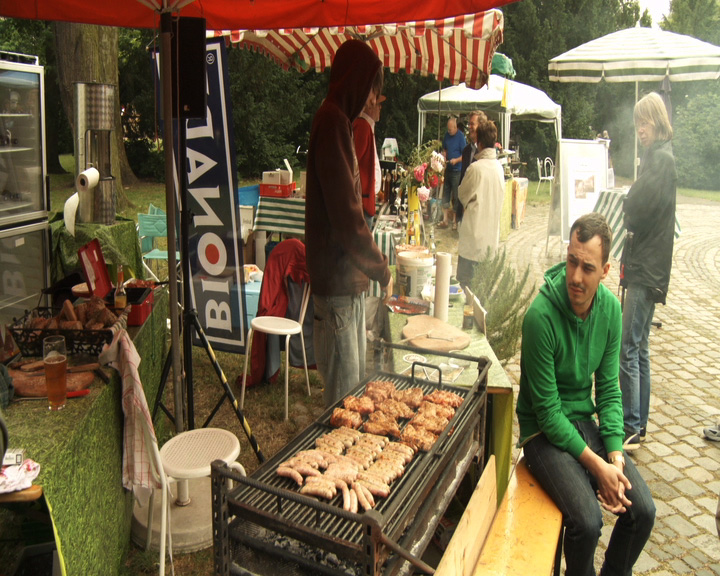

I tested it with 1080p footage. The left attachment is the xdcam-export result. The right is the Compressor result.
The details in the result of Compressor looks much smoother.
I really can't understand your preference, Andy.
Attached Thumbnails
ClipBrowser does superb HD-->SD Downconvert-imx50.jpg   ClipBrowser does superb HD-->SD Downconvert-compressor.jpg

Dominik Seibold is offline   Reply With Quote
Old December 18th, 2008, 04:34 AM   #78
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
Quote:
Originally Posted by Dominik Seibold View Post
The details in the result of Compressor looks much smoother.
I don't know what you mean by "smoother" Dominic.

To me there is very little difference in the two images, but I think the Compressor image is very slightly "sharper" and that is what I'm looking for.
(As a professional photographer, I would interpret "smoother" as meaning "softer").

Would you please tell me what your exact Compressor settings are for this please?
Then I will do more tests and post back.

Thank you for your help.
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply With Quote
Old December 18th, 2008, 05:09 AM   #79
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
Quote:
Originally Posted by Andy Nickless View Post
I don't know what you mean by "smoother" Dominic.
With smoother I mean that the edges have less (actually no) aliasing. I actually would call them softer (but not soft, because Compressor approximates the nyquist-limit very closely).
What kind is your footage of? Is it 1080i? Because Compressor has a bug which prevents it from rescaling interlaced footage correctly, if the output is interlaced, too. If you have 1080i and you want 576i as output you have to do the following workaround:
1. Export with Compressors motion-adaptive deinterlacing and high-quality scaling to progressive 576p50 (Apple ProRes-codec recommended).
2. Convert the result with Compressor to interlaced 576i with your dvd-mpeg2-settings.

If your footage isn't 1080i you can do it as simply as I show it in this video:
http://www.youtube.com/watch?v=DSw9JfVmIpI&fmt=22
(you have to skip the first seconds because of a youtube-flash-player bug)
Dominik Seibold is offline   Reply With Quote
Old December 18th, 2008, 05:15 AM   #80
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
Quote:
Originally Posted by Dominik Seibold View Post
If you have 1080i and you want 576i as output you have to do the following workaround.
No all my footage is progressive but if you can give me the full workflow, that will help a lot. Even if there is no difference in quality, it's a lot less hassle to export using compressor - rather than export using XDCAM transfer, then re-ingest as SD, then export again.
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply With Quote
Old December 18th, 2008, 05:19 AM   #81
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
sorry, I edited my post after you posted. Read the end of my last post.
Dominik Seibold is offline   Reply With Quote
Old December 18th, 2008, 05:26 AM   #82
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
Quote:
Originally Posted by Dominik Seibold View Post
If your footage isn't 1080i you can do it as simply as I show it in this video:
YouTube - high-quality HD to SD-DVD conversion with FCP
(you have to skip the first seconds because of a youtube-flash-player bug)
Sorry, I didn't notice this link when I made my last post.
I have watched the video and will try your method but I'm sure I've tried this before.
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply With Quote
Old December 18th, 2008, 05:30 AM   #83
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
Quote:
Originally Posted by Andy Nickless View Post
I'm sure I've tried this before.
If you get different/unsatisfying results, please post them here. Perhaps then I can tell you what's going wrong.
Dominik Seibold is offline   Reply With Quote
Old December 18th, 2008, 05:35 AM   #84
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
Btw, you can export stills from mpeg2-files very easily with mpeg-streamclip (don't forget to select "unscaled" in streamclips frame-export-dialog).
Dominik Seibold is offline   Reply With Quote
Old December 18th, 2008, 06:54 AM   #85
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
Quote:
Originally Posted by Dominik Seibold View Post
If you get different/unsatisfying results, please post them here. Perhaps then I can tell you what's going wrong.
Unfortunately, my version of Compressor (3.0.5) does not allow me to change settings in the DVD MPEG2 presets.

I exported with Custom Compressor setting (to MPEG2) selecting "Best" for rescaling (as I always do).

I must admit, under close examination, the Compressor results are slightly better.
So I don't know how I came to the conclusion that the IMX was better!
I will preserve this custom compressor setting carefully

I will do more tests soon but for now, I really must get back to the project.

Once again, Dominik, thank you for your help.
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply With Quote
Old December 18th, 2008, 08:27 AM   #86
Inner Circle

Join Date: Jan 2006
Posts: 2,699
Quote:
Originally Posted by Andy Nickless View Post
No all my footage is progressive .......
After hearing Dominiks comments about the bug in Compressor not handling 1080i - 576i material well (which I wasn't previously aware of), and after my comments in the other thread, I'd be prepared to make a bet that your problems are down to your material being treated as 1080psf/25, not 1080p/25.

Data wise, the two are identical - the line order is just rearranged. It's quite conceivable that some devices won't distinguish between the two. But although psf material is the same content as p, the reordering means that it must be flagged the same as i - that's the whole reason for it.
David Heath is offline   Reply With Quote
Old December 18th, 2008, 08:33 AM   #87
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Andy,

Glad to hear you now have the results that you were after.

I took delivery of an EX3 yesterday and after having spent several hours trying to render a short test project, I too am not seeing a 6000 advantage in this camera. It works superb in HQ, but like you Andy, I still have to supply my output in bog standard SD format.

I use Premierre Pro CS3 for windows, if anyone has a similar sollution to Andy's, I would appreciate hearing from you.

Many thanks
Vincent Oliver is offline   Reply With Quote
Old December 18th, 2008, 09:10 AM   #88
Regular Crew

Join Date: Nov 2006
Location: Worcester. United Kingdom
Posts: 197
Quote:
Originally Posted by David Heath View Post
I'd be prepared to make a bet that your problems are down to your material being treated as 1080psf/25, not 1080p/25.
David, after I read your post on the Z7 page, I checked the item properties in FCP and sure enough it was 1080p - with Field Dominance "None".

BUT.
If I try to export a QT file as almost anything other than XDCAM EX, it goes out as interlaced - even if I specifically select progressive in the export options.

Any comments welcome!
__________________
I taught you all I know and still you know nothing.
Andy Nickless is offline   Reply
