Old December 10th, 2008, 05:59 PM   #1
Major Player

Join Date: May 2006
Location: australia
Posts: 407
Lens mount ?

Hello i have been given one of these lenses, Canon B4 mount J13x9B4, what do i need to mount it to my Sony EX3. The lens adaptor that came with the EX3 is to big, so is there something else i can get to add on to the sony adaptor so i can mount the lens.

rob.
__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old December 10th, 2008, 06:01 PM   #2
Better than Halle Berry

Join Date: Feb 2004
Location: Los Angeles, CA
Posts: 435
I think there's a B4 adaptor out there.

Fujinon 2/3" lens adapter for EX-3 Camcorder ACM-21 hire | VMI High Definition and Broadcast

Noah
Noah Kadner is offline   Reply With Quote
Old December 10th, 2008, 06:13 PM   #3
Major Player

Join Date: May 2006
Location: australia
Posts: 407
Ok i found this, but there has to be a no name brand out there some where?

Sony | LO-32BMT 2/3" to 1/2" Lens Mount | LO32BMT
__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old December 10th, 2008, 06:47 PM   #4
Major Player

Join Date: Oct 2006
Location: Albuquerque, New Mexico
Posts: 292
I believe the older 2/3" lenses have an external lens control cable that plugs into the pin connector on the camera. I don't have an EX3, but I don't believe it has this connector. It uses a hot shoe inside the lens (near the bayonet connection) for lens control. The larger cameras such as the PDW F350 use both.

You can only use the adapter that Noah referenced to mount 2/3" HD lenses that use this internal hot shoe connection. You can see the gold pins (hot shoe?) on the adapter.

Wish I had a solution for you.
Bob Willis is offline   Reply With Quote
Old December 10th, 2008, 08:09 PM   #5
Major Player

Join Date: May 2006
Location: australia
Posts: 407
Thanks bob,

i am not worried about the electronics of the camera, just wanting to mount it.

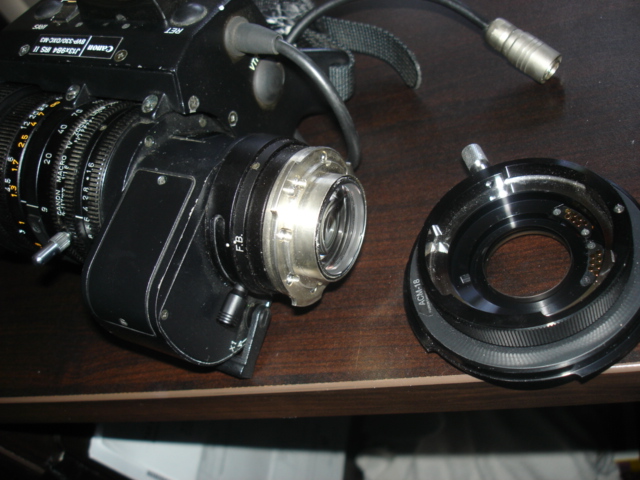

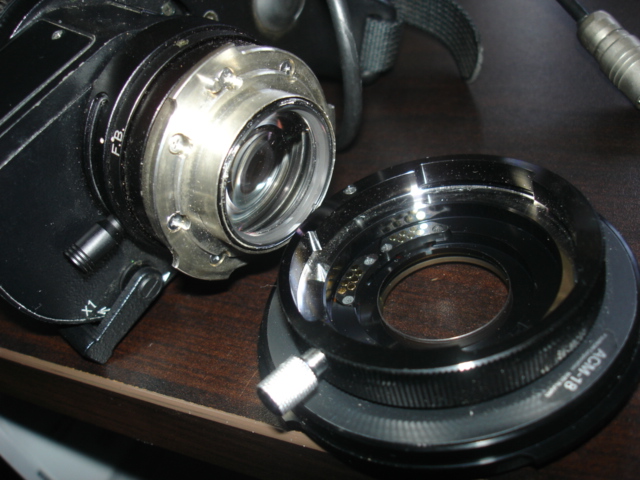

I have (SONY EX3 adaptor and the lens) the lens is to 1/2'' and the adaptor is for 2/3'' so can i get a adaptor to go in-between the to.
Attached Thumbnails
Lens mount ?-dsc03166.jpg   Lens mount ?-dsc03167.jpg

__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old December 11th, 2008, 02:51 PM   #6
Major Player

Join Date: Oct 2006
Location: Albuquerque, New Mexico
Posts: 292
The one you found by Sony will let you attach the lens, but you will not have any auto controls over the lens or record function. No information in the viewfinder about the lens settings.
Bob Willis is offline   Reply With Quote
Old December 11th, 2008, 03:07 PM   #7
Inner Circle

Join Date: Apr 2006
Location: Wales
Posts: 2,130
I wouldn't be too optimistic about how that lens will look on the EX3, not only is it SD but being computed for 2/3" rather than 1/2" will mean it got less resolution, I'd expect it to look pretty mushy compared to the stock EX3 lens.
Steve
Steve Phillipps is offline   Reply With Quote
Old December 17th, 2008, 12:57 PM   #8
New Boot

Join Date: Oct 2008
Location: Burlington, Canada
Posts: 19
Lens Adaptor

Steve,
I'm intrigued when you say "but being computed for 2/3" rather than 1/2" will mean it got less resolution". I'm using the Fujinon 2/3" adaptor with my 2/3" Canon HD 4.7 lens and found that the image isn't as sharp as the stock EX3 lens.

What's the explanation for this?

t


Quote:
Originally Posted by Steve Phillipps View Post
I wouldn't be too optimistic about how that lens will look on the EX3, not only is it SD but being computed for 2/3" rather than 1/2" will mean it got less resolution, I'd expect it to look pretty mushy compared to the stock EX3 lens.
Steve
Tony Wu is offline   Reply
