Old December 14th, 2008, 10:57 PM   #1
Regular Crew

Join Date: Mar 2008
Location: Chicago, IL
Posts: 37
Question About Frame Size

I just recently noticed that when I import footage from Clip Browser that I shot 1080 24p, the actual frame size of the source footage is 1920 x 1080, but when I bring it in FCP, edit it, then export it either with Quick Time or Compressor using the same XDCam EX 1080 24p codec the frame shrinks slightly to 1888 x 1062... why does it do this, and is there any way to keep it from doing this? When I export with ProRes 422 it gives me the full 1920 x 1080 frame.
Dana Rice is offline   Reply With Quote
Old December 14th, 2008, 11:38 PM   #2
Major Player

Join Date: Jun 2006
Location: Saskatchewan, Canada
Posts: 382

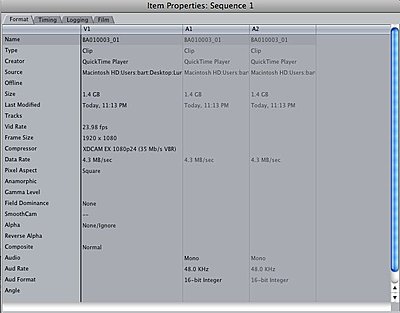

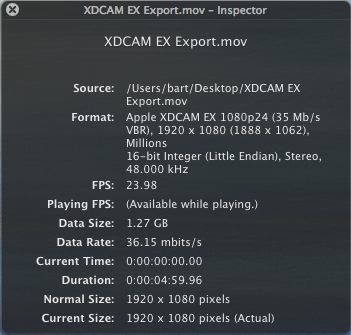

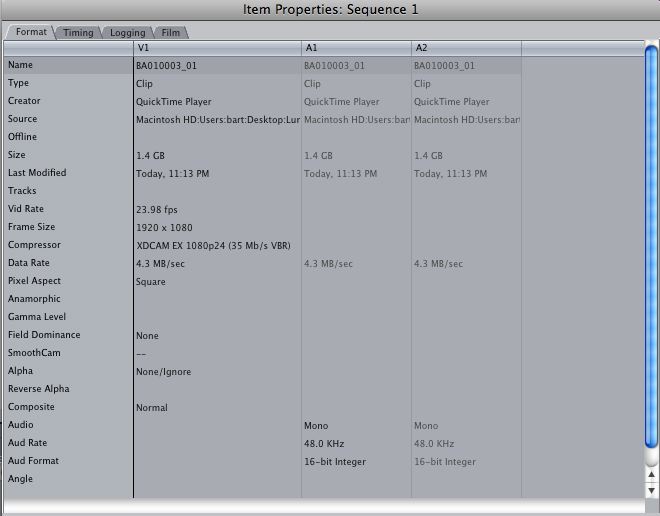

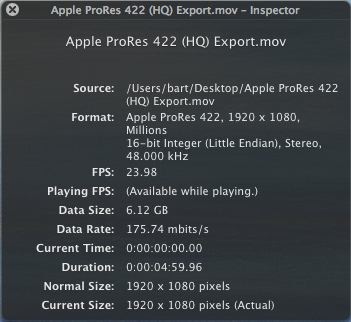

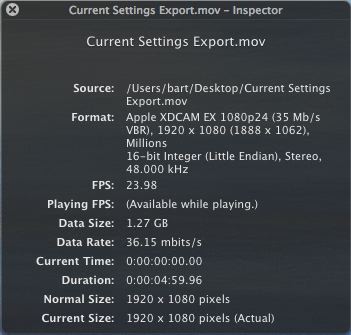

Well you perked my interest, so I tried this and posted my results below to ensure that we are on the same page. I used the QuickTime Inspector window to determine the frame sizes. They are all the same full/current frame size of 1920x1080. Do you get the same results when comparing to my clips & various exports?
Attached Thumbnails
Question About Frame Size-fcp-source-clip.jpg
Attached Images

Barry J. Anwender is offline   Reply With Quote
Old December 15th, 2008, 12:02 AM   #3
Regular Crew

Join Date: Mar 2008
Location: Chicago, IL
Posts: 37

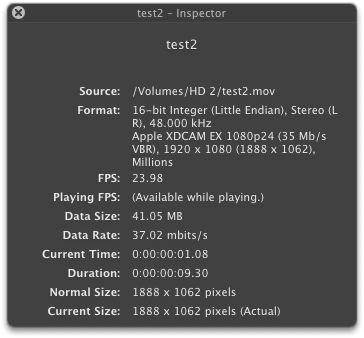

Here's how mine looks after I export it with QuickTime conversion
Attached Images

Dana Rice is offline   Reply With Quote
Old December 15th, 2008, 12:21 AM   #4
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
It's an archaic thing called "clean aperture". You just have to turn it off in the movie-properties of your clip in the quicktime-player to see the whole frame.
Dominik Seibold is offline   Reply With Quote
Old December 15th, 2008, 12:29 AM   #5
Regular Crew

Join Date: Mar 2008
Location: Chicago, IL
Posts: 37
That did the trick... thanks for the help guys!
Dana Rice is offline   Reply With Quote
Old December 15th, 2008, 01:23 AM   #6
Major Player

Join Date: Nov 2007
Location: Europe
Posts: 245
Quote:
Originally Posted by Dominik Seibold View Post
It's an archaic thing called "clean aperture". You just have to turn it off in the movie-properties of your clip in the quicktime-player to see the whole frame.
Dominik,did not find where I can turn that off in my QT player (German).
Care to give me a hint. Thx.
Peter Kraft is offline   Reply With Quote
Old December 15th, 2008, 01:40 AM   #7
Regular Crew

Join Date: Mar 2008
Location: Chicago, IL
Posts: 37
Peter, go to Window -> Show Movie Properties, then click the Presentation tab
Dana Rice is offline   Reply
