Corrupted BPAV folder (Any fix?)

I have two BPAV directories that seem to be corrupted. The CLPR and the TAKR directories and intact as are the .mp4's and other files. When I goto clipbrowser however, the clips show up as black with a white X in them. I know why this happened, my associate didn't use the clip browser to copy the files. Lesson learned but I wonder if there is anyone else who has dealt with this problem and could offer any remedies.
Roger Akers is offline   Reply With Quote
Old March 2nd, 2009, 12:14 PM   #2
Major Player

Join Date: Nov 2007
Location: Agua Blanca Ibiza
Posts: 303
Do the mp4's play with VLC media player? in other words is the media itself in tact?

Paul
__________________
Another Sunny Day in Ibiza
Paul Newman is offline   Reply With Quote
Old March 2nd, 2009, 12:20 PM   #3
Major Player

Join Date: Jul 2003
Location: Leeds, UK
Posts: 660
Images: 10
As a last resort I believe the mp4 files can be converted to quicktimes using VLC or MPEG StreamClip on a Mac. That won't get your metadata files back, but at least the footage isn't 'lost'.

Good Luck
__________________
FCPX/LS300/EX1/FS100/GoPro/Vinten/HotHead/Jib/Track/Dedos/Lightstorm/Coollights
Duncan Craig is offline   Reply With Quote
Old March 2nd, 2009, 02:07 PM   #4
Regular Crew

Join Date: Nov 2005
Location: Lexington, KY
Posts: 103

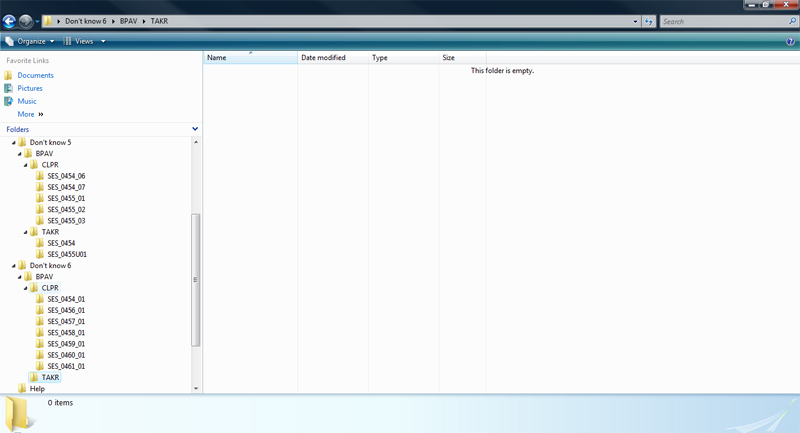

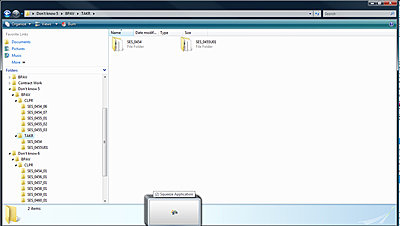

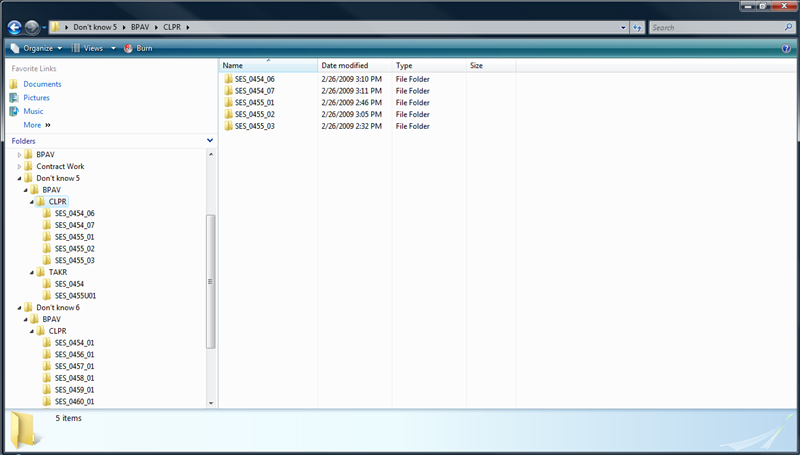

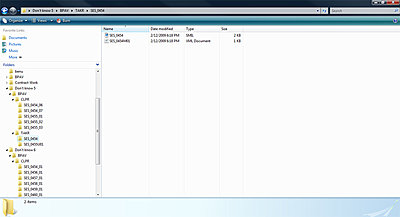

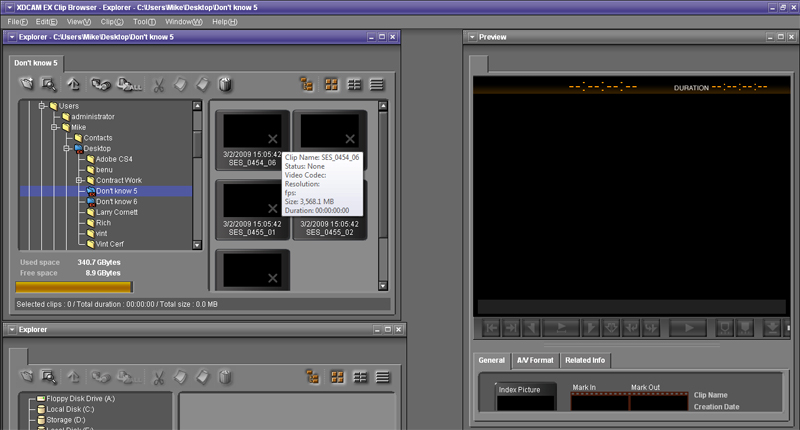

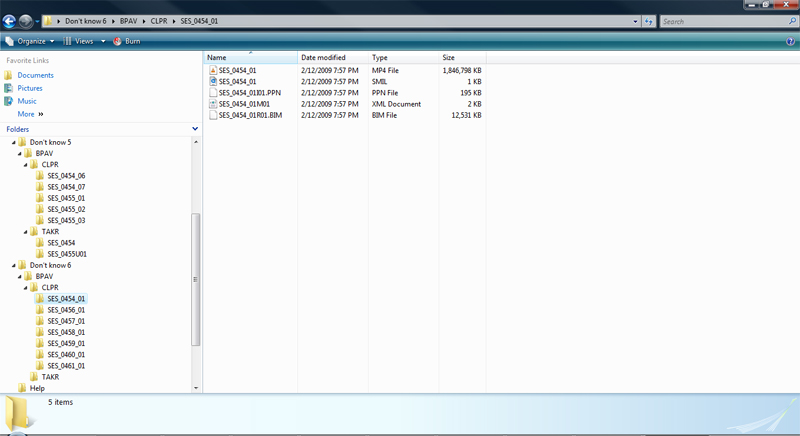

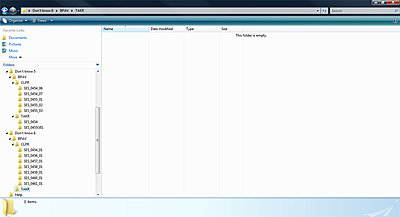

They will not play in VLC player either but the filesizes of the mp4's indicate that there is some semblance of information. I've attached screenshots of the directory tree and files along with the Clip Browser error.
Attached Thumbnails
Corrupted BPAV folder (Any fix?)-1.jpg   Corrupted BPAV folder (Any fix?)-2.jpg

Corrupted BPAV folder (Any fix?)-3.jpg   Corrupted BPAV folder (Any fix?)-4.jpg

Corrupted BPAV folder (Any fix?)-5.jpg   Corrupted BPAV folder (Any fix?)-6.jpg

Corrupted BPAV folder (Any fix?)-7.jpg
Roger Akers is offline   Reply With Quote
Old March 2nd, 2009, 03:20 PM   #5
Major Player

Join Date: Dec 2007
Location: Northampton, UK
Posts: 259
What I have found can work is to copy the whole BPAV folder back to a SxS card using finder or explorer (having deleted everything off the card first). Then put the card back in the camera and switch it on. You may well get 'Media Restore' errors and/or have to do Clip>Update>Media but the camera seems quite good at repairing or recreating corrupted metadata files.

Good luck!

N
Nick Wilson is offline   Reply With Quote
Old March 2nd, 2009, 08:11 PM   #6
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
Roger,
Can you clarify what yu meant by "not using clip browser to copy files?" Is this a PC issue?

I'm on a Mac, but never use clip browser and just use the finder to copy the files. I have heard of potential problems with this but never run across them personally. Always helpful to know what not to do in the field.
Leonard Levy is offline   Reply With Quote
Old March 2nd, 2009, 10:14 PM   #7
Major Player

Join Date: Jul 2008
Location: Melbourne, Australia
Posts: 393
Quote:
Originally Posted by Leonard Levy View Post
Roger,
Can you clarify what yu meant by "not using clip browser to copy files?" Is this a PC issue?

I'm on a Mac, but never use clip browser and just use the finder to copy the files. I have heard of potential problems with this but never run across them personally. Always helpful to know what not to do in the field.
Leonard,

You have been most fortunate not to have lost data or have clips become corrupt by dragging & dropping. Best to start using clip browser with CRC enabled (in prefs).

This is Sony's instructions for correctly copying files off the SxS cards.

Best wishes
__________________
David Issko
Edit 1 Video Productions
David Issko is offline   Reply With Quote
Old March 2nd, 2009, 11:46 PM   #8
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
David,
I'm open to changing my practices and am particularely interested in Shotput for this very reason, but would love to hear actual example of people who have had problems. So far with either P2 or SxS I haven't read or known of corruption problems due to dragging. Can you point me anywhere?

Lenny
Leonard Levy is offline   Reply With Quote
Old March 3rd, 2009, 07:33 AM   #9
Regular Crew

Join Date: Jan 2009
Location: Wales UK
Posts: 121
So long as the foilder structure remains the same you can copy the FILES using ANY windows application that copies files.

KEY WORD HERE IS ** FILES ** - they are not magic from planet zorg!

You do not need Clip Browser to copy files from camera (or card) to PC

If clips are not showing in Clip Browser its usually because the XML file (or possibly other files) are not copied or in the right place

Do not be put off with SCAREMONGERING that using explorer will corrupt files - Get a grip everyone they are simply PC files NOTHING MORE and NOTHING LESS
Matt San is offline   Reply With Quote
Old March 3rd, 2009, 07:39 AM   #10
Regular Crew

Join Date: Nov 2005
Location: Lexington, KY
Posts: 103
Leonard, I'm assuming this mess is because of dragging and dropping in Explorer. Googling my problem, that seemed to be the recurring theme.

I still cannot resolve the problem. I've tried to let the EX 3 "rebuild" the media by copying back to the SxS card and restoring it, to no avail. The closest I get are 5 black clips in the media browser on the camera. I'm going to keep working on it more today and will check back intermittently. If I come across a solution I'll be sure to post it here.

In my mind, there has to be a solution because the filesize of the mp4 is legit. *sigh*
Roger Akers is offline   Reply With Quote
Old March 3rd, 2009, 07:43 AM   #11
Regular Crew

Join Date: Nov 2005
Location: Lexington, KY
Posts: 103
Quote:
Originally Posted by Matt San View Post
So long as the foilder structure remains the same you can copy the FILES using ANY windows application that copies files.

KEY WORD HERE IS ** FILES ** - they are not magic from planet zorg!

You do not need Clip Browser to copy files from camera (or card) to PC

If clips are not showing in Clip Browser its usually because the XML file (or possibly other files) are not copied or in the right place

Do not be put off with SCAREMONGERING that using explorer will corrupt files - Get a grip everyone they are simply PC files NOTHING MORE and NOTHING LESS
Matt I believe the problem lies with Windows more than Explorer. Sometimes when files say they are finished copying, they really aren't. Disk caching, etc. This is why it's rather easy to lose data on an external hard drive if you simply unplug it and don't use the "safely remove hardware". That is just a theory tho, what it boils down to, is I've got corrupted video files, no scaremongering here.
Roger Akers is offline   Reply With Quote
Old March 3rd, 2009, 07:53 AM   #12
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
What's the difference between CRC and data protection ?
Ie choosing data protection vs processing speed.
Is there any point in using data protection if crc is checked ?

Paul.
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old March 3rd, 2009, 08:22 AM   #13
Sponsor: eFilms (MxR)

Join Date: Jan 2008
Location: Sydney, Australia
Posts: 171
Quote:
Originally Posted by Roger Akers View Post
I have two BPAV directories that seem to be corrupted. The CLPR and the TAKR directories and intact as are the .mp4's and other files. When I goto clipbrowser however, the clips show up as black with a white X in them. I know why this happened, my associate didn't use the clip browser to copy the files. Lesson learned but I wonder if there is anyone else who has dealt with this problem and could offer any remedies.
Hi Roger,

So sorry to hear about your problem.

This reminds me of the problem we used to get with MD when the power was removed before it had a chance to write it's Table of Contents (TOC).

There was a trick to getting back the raw data, and that was to put a disk in the deck and then put the deck into service mode, remove the first disk and replace it with the problem one. Then release service mode and make the deck rewrite the TOC. It actually worked very well the few times I had to do it.

So the principle might be the same here. Get a clean card, then record one clip onto it. Then delete the mp4 file and copy over the one you are having problems with, onto the card. Then put it back in the camera, and see if it will try and do a media restore.

If that doesn't work, try recording and then punch the card out, while still recording. That will leave the card with it's TOC unwritten, and again replace the MP4 file, and let the camera try and rebuild the TOC.

The other avenue, is to try Edius, it can open the file directly without the other files, well it did when I was playing around with it.

I'll see if I can have a play tomorrow with it.
__________________
Ross Herewini - E-films
Makers of the new MxR Extreme
Ross Herewini is offline   Reply With Quote
Old March 3rd, 2009, 10:57 AM   #14
Regular Crew

Join Date: Nov 2005
Location: Lexington, KY
Posts: 103
Ross thank you for the condolences and the tips, I just tried both methods to no avail. I'm currently testing different programs that might be able to read the video file. I'm not hopeful since VLC can not.
Roger Akers is offline   Reply With Quote
Old March 3rd, 2009, 11:50 AM   #15
Regular Crew

Join Date: Jan 2009
Location: Wales UK
Posts: 121
do u stil have the files on the card which can be undeleted?
