EX1 white balance revisited

I must say I'm still uncomfortable about the difference - sometimes striking - between the dialed-in (preset) value of color temperature, and that measured with the AWB button (against a white card). I know the theory behind this difference (one is making for green-magenta, while the other is not) - but seeing how dramatic the difference can be (with the measured WB looking much "better", i.e. without any magenta cast), I've been wondering:

- is there a way to "reset the preset", so that it's more like the true WB as measured off the white card?

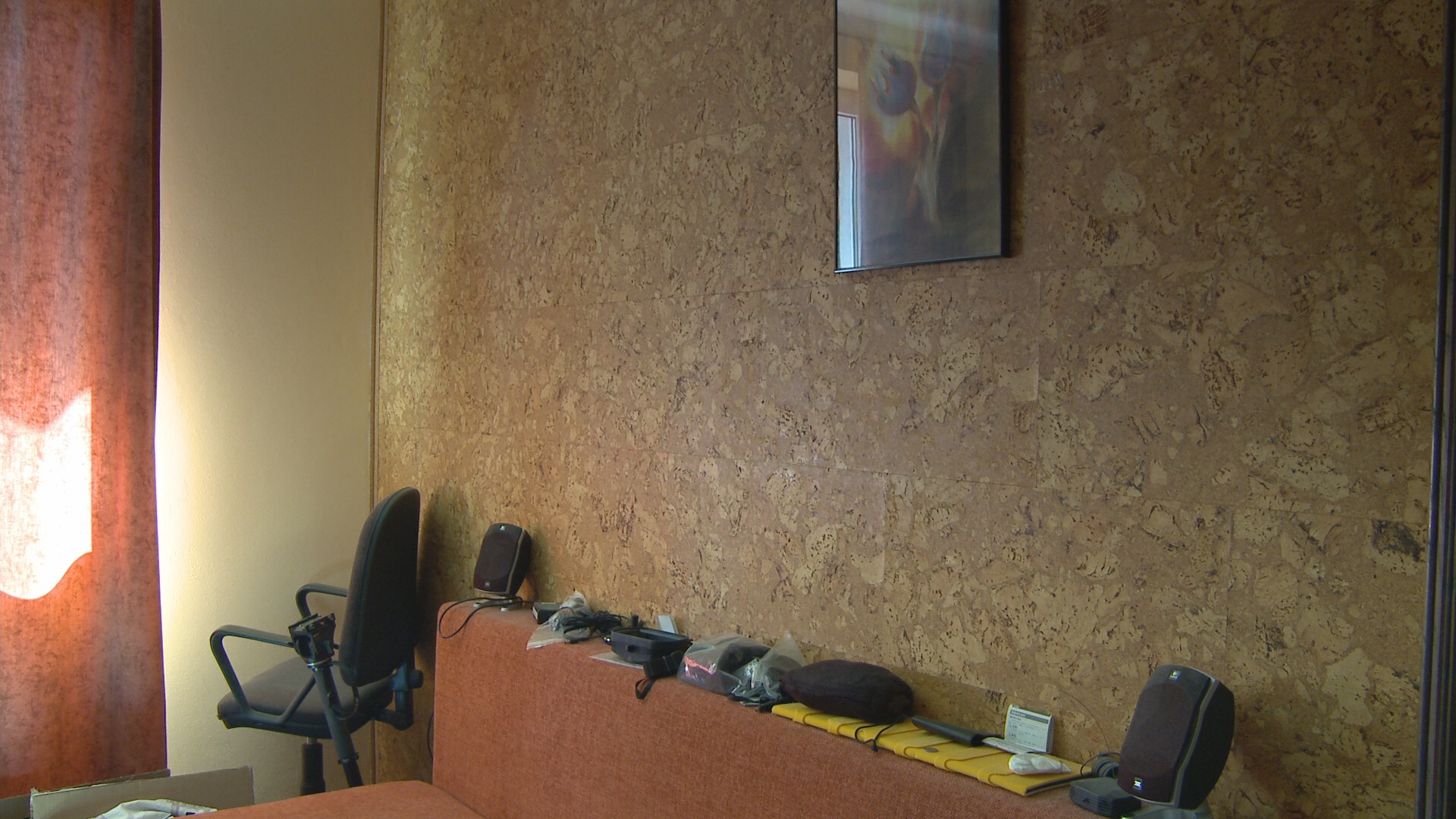

Just take a look at those 2 grabs - the difference is striking, and the measured (left) is correct.

Or is my EX1 faulty? Or is the dreaded IR contamination in play somehow differently with both settings (the speakers' grills are black correctly in the left pic)...
Attached Thumbnails
EX1 white balance revisited-3200-k-measured.jpg   EX1 white balance revisited-3200-k-preset.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; April 26th, 2009 at 06:34 AM.
Piotr Wozniacki is offline   Reply With Quote
Old April 26th, 2009, 07:30 AM   #2
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
There are many factors that will affect the colour of the preset white including the matrix settings, actual light source, reflections, polarisation etc. The manual white will almost always give a more accurate result as it measures the actual colour levels and compensate to produce a true white image. The preset is useful for giving a fixed setting that is consistent (even if wrong) that makes grading simpler or for situations where you can't do a manual white.
You could dial in an offset to the preset or change it altogether but there will still be many situations where it will be wrong, that's why you have the manual option.

Looks like you are using the standard matrix. Try cinema matrix to get rid of the red cast.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old April 26th, 2009, 07:39 AM   #3
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Thanks for the reply, Alister. I'm aware there would be differences, but never saw them as great as in the pics above! Mind you - everything else was absolutely the same when taking them: the lighting, PP used (hence the same matrix and gamma), exposure...

As to the matrix, you're correct - I'm using Standard in this particular PP. Frankly, I like it the most (of course, when my WB is correct) - Cinema is just a bit lacking in reds, while Hisat has them over-saturated to my taste. After almost a year of experimenting, recently I started using Standard at +35.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 26th, 2009, 09:12 AM   #4
Trustee

Join Date: Jan 2006
Location: New York, NY
Posts: 1,267
Looking at the jpegs it seems like there is some daylight coming into the room which the Auto White adjustment would compensate for while the preset would not as it is expecting a calibrated 3200 source. Very few lights actually produce 3200K exactly and mixed light situations can confuse the camera much more than your eye. Little variations in color temperature in this range show up clearly in color rendition. Also you should include a subject in the picture as you might find flesh tones look better under the preset even if the wall doesn't. Or maybe not. The point is you have a choice. On cameras with adjustable presets I like to dial in a number rather than AWB as sometimes Auto White over compensates for the mix of light. Also in the field it is important to know the monitor you are using to decide what color you are actually producing as the monitor can fool you as easily as the camera.
Daniel Epstein is offline   Reply With Quote
Old April 26th, 2009, 09:28 AM   #5
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Yes Daniel - good point about the mixed lighting in this particular scene probably being the main reason for such defferent results. With consistent lighting (e.g. outdoor on a sunny day), the measured 5600 K is almost exactly the same as the 5600 K preset.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 27th, 2009, 02:44 AM   #6
Trustee

Join Date: Feb 2006
Location: USA
Posts: 1,684
Piotr,
I think you are stressing out over a nonexistent problem.

Your preset white balance is carefully designed camera setting meant to look white under 3200 lamps. It doesn't rely on some any camera circuitry to "read" the color of the light and make sure it is 3200.

When your white balance tells you the light is 3200 its because some wanky circuit in the camera is just trying to give you a number for comparison purposes. Its not an expensive color meter and doesn't need to be. Your expecting it to be far more precise than it is designed for.

I've watched these circuits evolve in cameras for about 20 years and they have been all over the map. For a while one of the Sony's was giving readings like 2200 where you would have expected 3200. Two cameras side by side would often give different readings.

Just get used to what your circuit is telling you.

Lenny Levy
Leonard Levy is offline   Reply With Quote
Old April 27th, 2009, 05:51 AM   #7
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Leonard Levy View Post
Piotr,
I think you are stressing out over a nonexistent problem.
Lenny,

I totally agree; my original post in this thread (along with the striking grabs) should be a good indication of potential discrepancies that the novice EX users might come across.
