Increasing the EX3 viewfinder image size for Nikon lenses

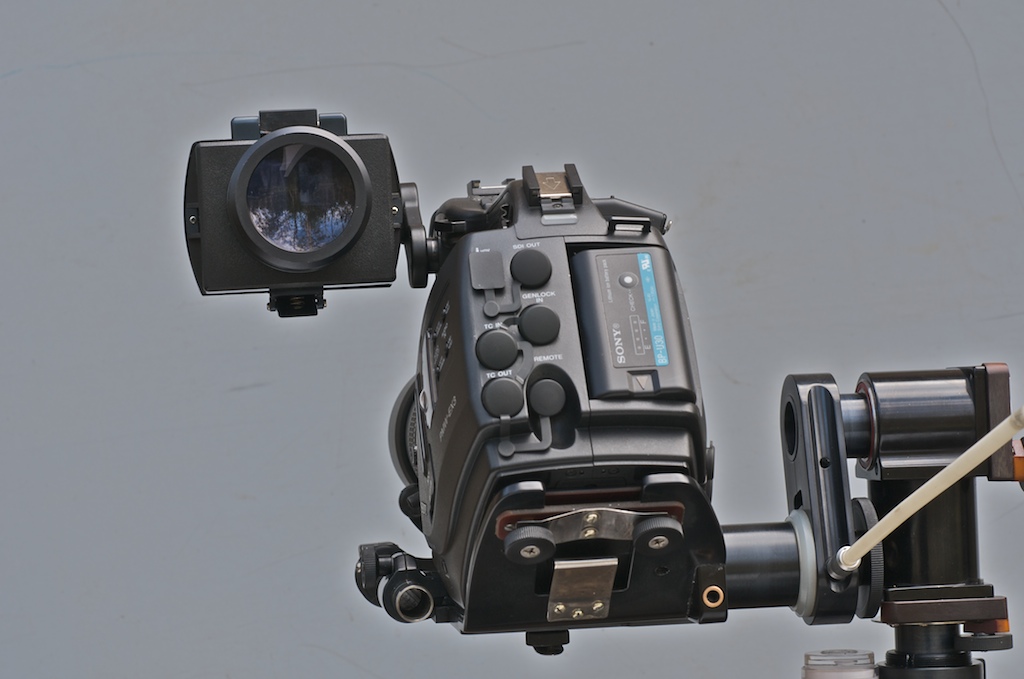

The very handy “expanded focus” function does not work with Nikon lenses. As a result I have been experimenting with a stronger eye-piece that permanently enlarges the image by a very useful amount. Since I have not altered the camera in any way it can be replaced by the original loupe at any time. The new loupe is attached and removed in the same way as the original. It can also be raised for an unaided view of the screen

The extra magnification makes it easier to see fine subject detail in the image. The shorter focal length of the lens used means that the eye position is 2.5” (63 mm) further forward than with the original loupe. When handholding the camera some of the camera’s weight can now be taken by the operator’s shoulder and the side of the camera becomes the cheek pad.

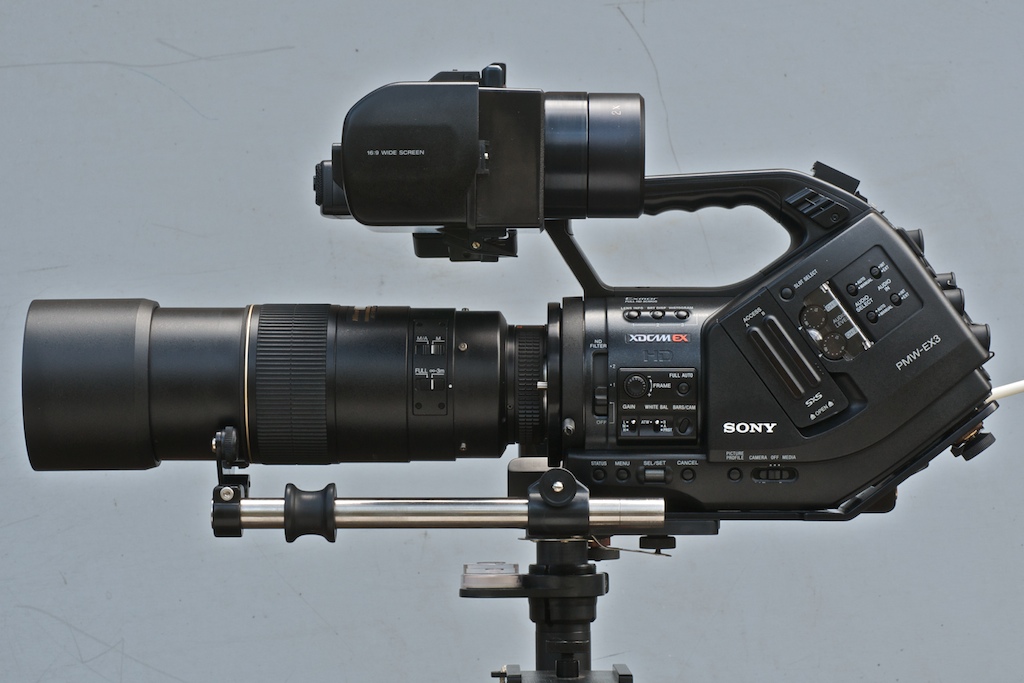

The photographs show a single support tube that has three functions. One function is as a lens support, a single screw clamp permits both a forward / back movement and a rotational movement of the tube. The rocker type lens cradle is positioned under a suitable section of the lens, the rod is then rotated until the rocker is carrying some of the weight of the lens and the screw tightened. Very quick and easy.

The tube also acts as a support for the left hand. The sliding black collar on the support tube is placed in the web between thumb and forefinger. This leaves the fingers in a position where they can be used to tweak the lens controls. When using this grip there is no torsion on the right hand.

As the tube is parallel to the optic axis it can be used as a sight to facilitate finding the subject when using a long lens.
http://www.dvinfo.net/conf/images/attach/jpg.gif
http://www.dvinfo.net/conf/images/attach/jpg.gif
Attached Thumbnails
Increasing the EX3 viewfinder image size for Nikon lenses-_dsc1105-version-2.jpg   Increasing the EX3 viewfinder image size for Nikon lenses-_dsc1104-version-2.jpg

Alastair Traill is offline   Reply With Quote
Old June 24th, 2009, 01:37 AM   #2
Major Player

Join Date: May 2006
Location: A Canadian in San Pedro de Atacama, Chile
Posts: 262
Actually, the expanded screen focus assist function works just fine. Assign a button to it and you can use it when the dedicated expanded screen focus assist button gets removed with the stock lens.
Les Nagy is offline   Reply With Quote
Old June 24th, 2009, 01:48 AM   #3
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
I can vouch for Les reply, although when assigned to a button the expanded view time seems to be a lot shorter than with the stock lens
__________________
Eyes are a deaf man’s ears. Ears are a blind man’s eyes
Vincent Oliver is offline   Reply With Quote
Old June 24th, 2009, 02:49 AM   #4
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
That's both an interesting loupe and an interesting mount you have there. Any plans to go into production?
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old June 24th, 2009, 06:58 AM   #5
Major Player

Join Date: Nov 2008
Location: Melbourne Australia
Posts: 604
Hi Vincent and Les,

I have not found a way of using an assign switch for "expanded focus" with Nikon lenses on my EX3. An advantage of increasing the viewfinder magnification with a shorter focal length is that the image is enlarged the whole time. Furthermore I can see the whole field and not just a portion of it as when "expanded focus" is in operation.
Alastair Traill is offline   Reply With Quote
Old June 24th, 2009, 08:05 AM   #6
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Alastair,

Go into the menu and under the "Options" menu select Assign Button, Select which button you want to assign the Expand Focus to and click it. A list of about 17 options will appear, scroll down and select Expand Focus. It's as simple as that.

Of course if your viewfinder works for you, then stick with that, it's probably a better option.
__________________
Eyes are a deaf man’s ears. Ears are a blind man’s eyes
Vincent Oliver is offline   Reply With Quote
Old June 24th, 2009, 02:16 PM   #7
Major Player

Join Date: May 2006
Location: A Canadian in San Pedro de Atacama, Chile
Posts: 262
Quote:
Originally Posted by Vincent Oliver View Post
I can vouch for Les reply, although when assigned to a button the expanded view time seems to be a lot shorter than with the stock lens
Just hold the assigned button down until you are done focusing.
Les Nagy is offline   Reply With Quote
Old June 24th, 2009, 09:53 PM   #8
Major Player

Join Date: Nov 2008
Location: Melbourne Australia
Posts: 604
Quote:
Originally Posted by Vincent Oliver View Post
Alastair,

Of course if your viewfinder works for you, then stick with that, it's probably a better option.
Thanks for the advice, in the past I managed to reassign the last shot delete, so I knew how to do it once.

Yes the viewfinder does work for me, when I now use the original it is like peering down a long tube at a distant view. Is is likely to be packed away with the cheek pad and carry strap.

The project started by removing the original loupe and examining the screen with any available lens. A focal length of around 4" (100 mm) seemed ideal. I ended up with a choice - one being an old slide projector lens and the other was originally for doubling the magnification of a stereo dissecting microscope. I used the latter because it was easier to attach. It is also a very bright lens and covers the required field. If you try experimenting make sure you test the lens both ways.
Alastair Traill is offline   Reply With Quote
Old June 27th, 2009, 08:26 PM   #9
Major Player

Join Date: May 2006
Location: A Canadian in San Pedro de Atacama, Chile
Posts: 262
Quote:
Originally Posted by Les Nagy View Post
Just hold the assigned button down until you are done focusing.
Oops, I made a mistake here. Holding the button longer does to make the expanded focus view stay on longer. It must be a I thought ti did because I always got it focused before it quit. Sorry about the misinformation.
Les Nagy is offline   Reply
