EX3 Rain Cover - Page 2 at DVinfo.net

Go Back   DV Info Net > Sony XAVC / XDCAM / NXCAM / AVCHD / HDV / DV Camera Systems > Sony XDCAM EX Pro Handhelds

Sony XDCAM EX Pro Handhelds
Sony PMW-300, PXW-X200, PXW-X180 (back to EX3 & EX1) recording to SxS flash memory.


Reply

Thread Tools Search this Thread
Old July 13th, 2009, 05:36 PM   #16
New Boot

Join Date: Apr 2008
Location: Madison, WI
Posts: 16
For what they are worth

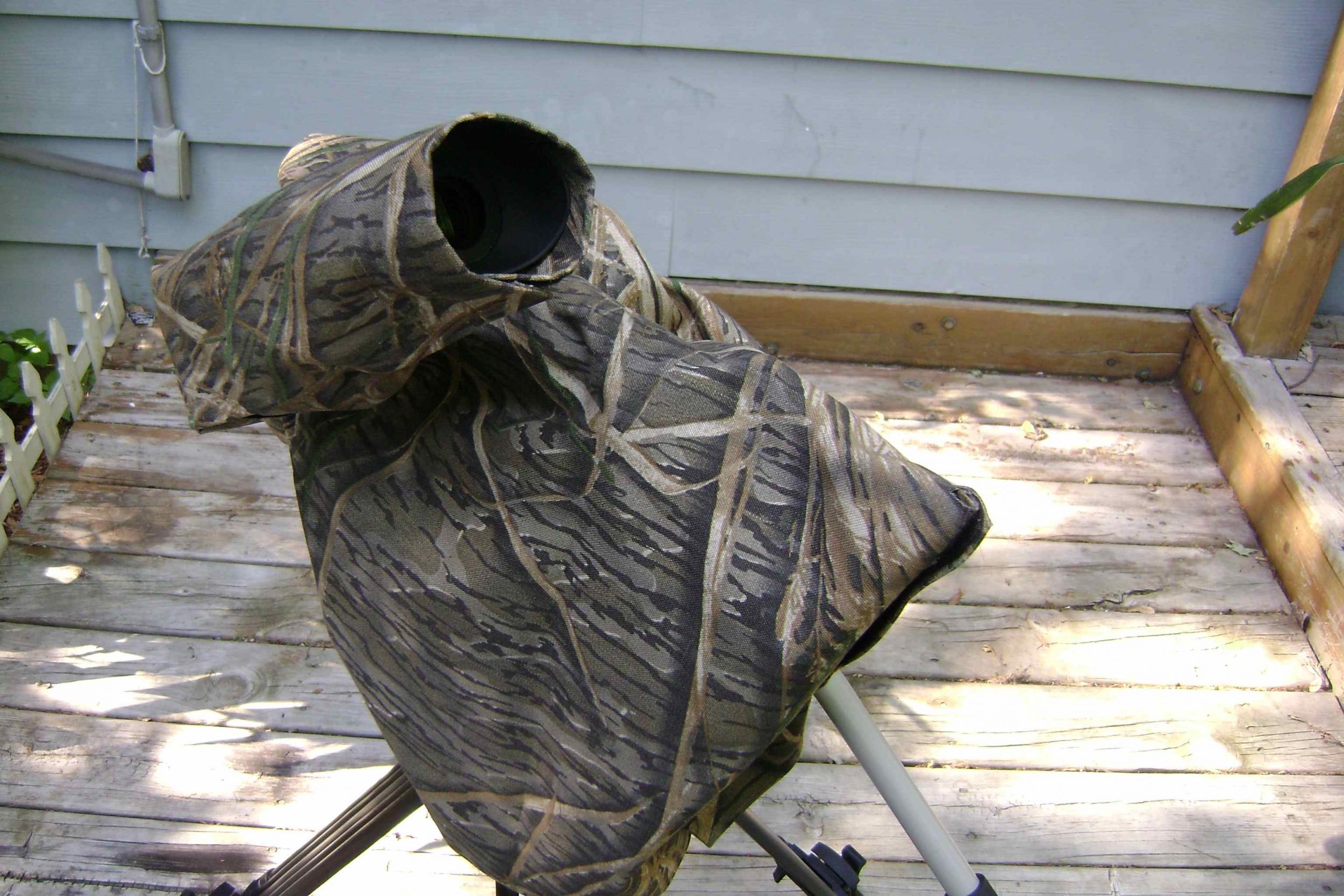

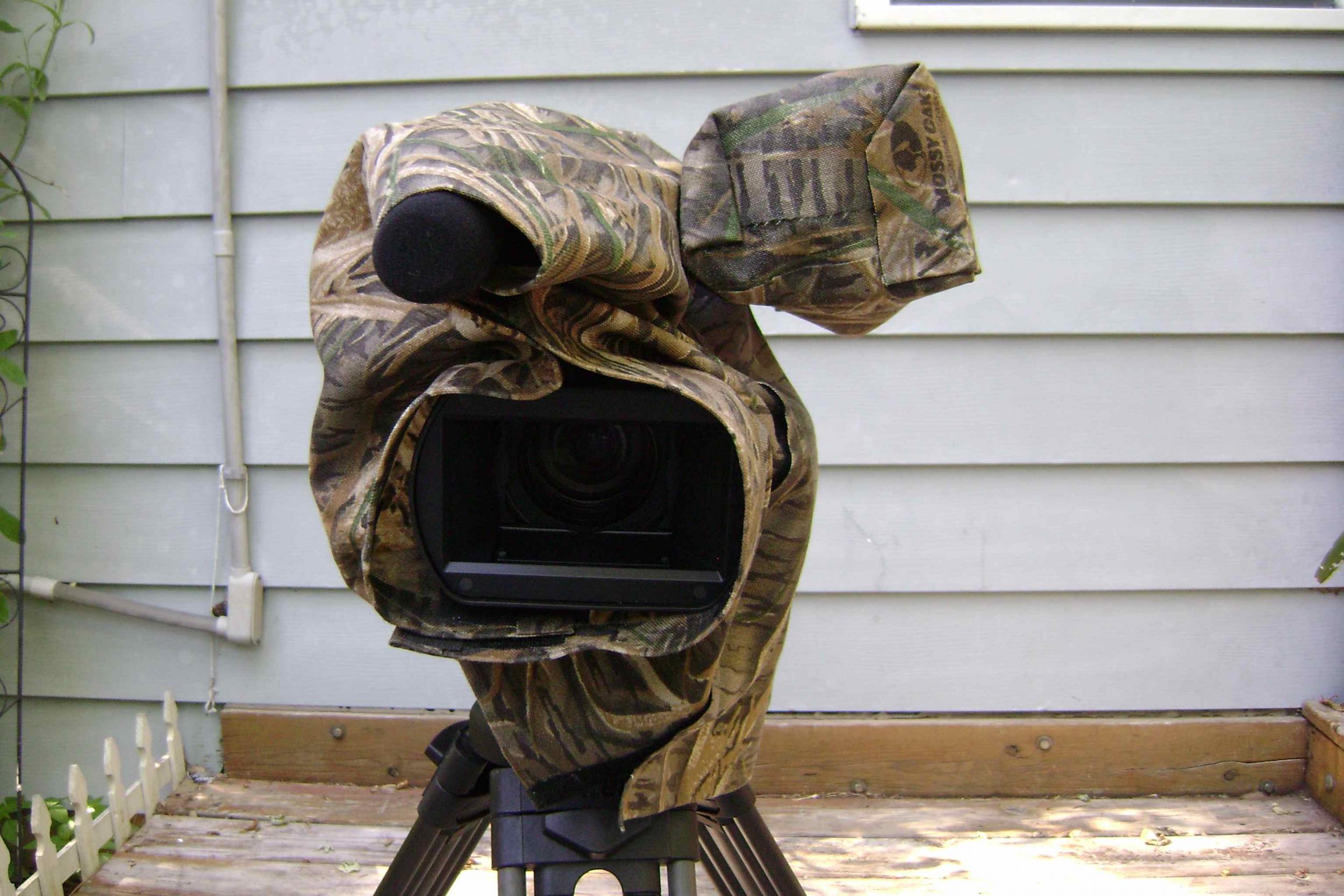

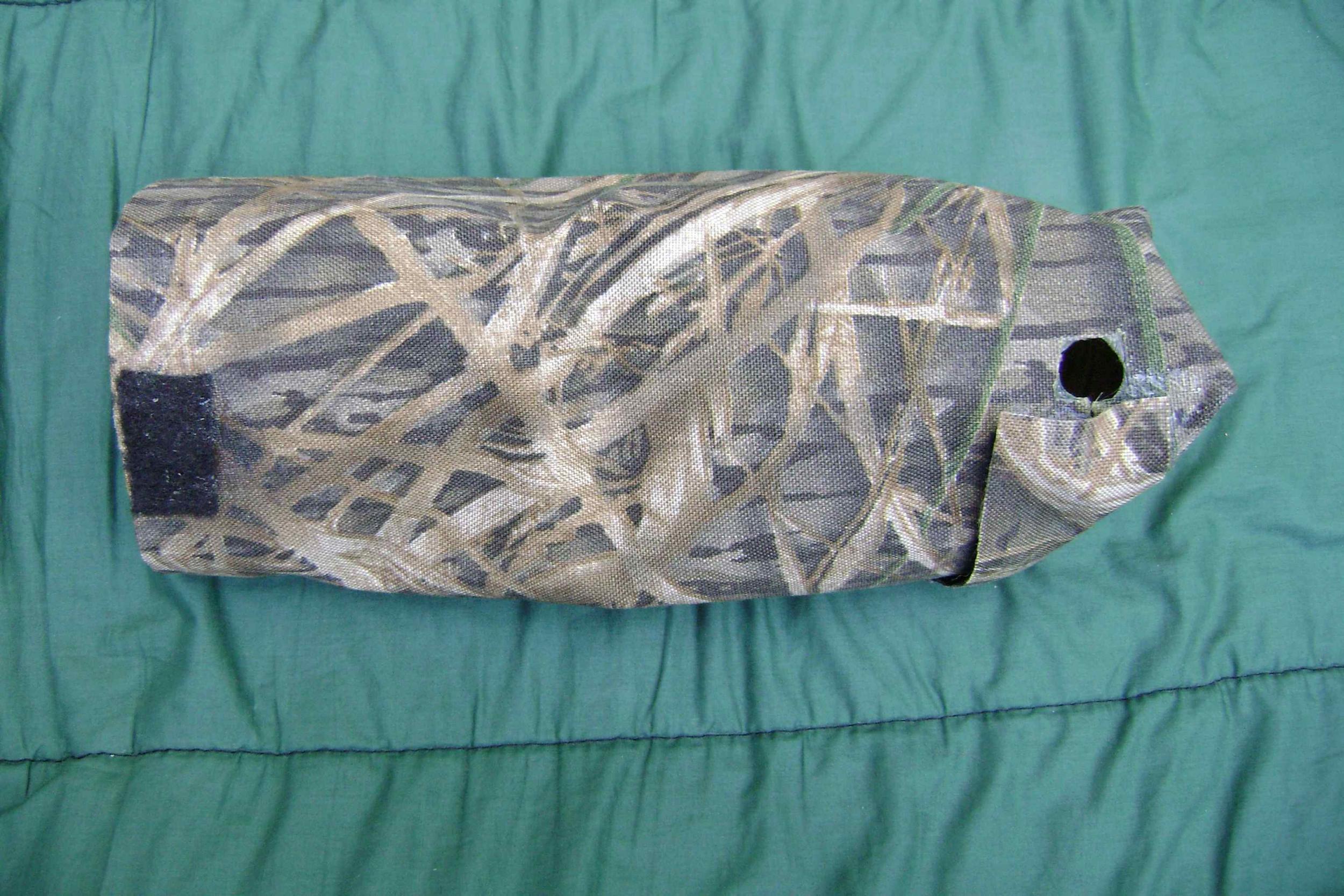

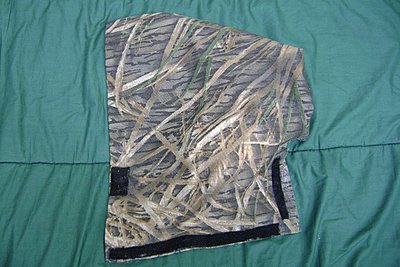

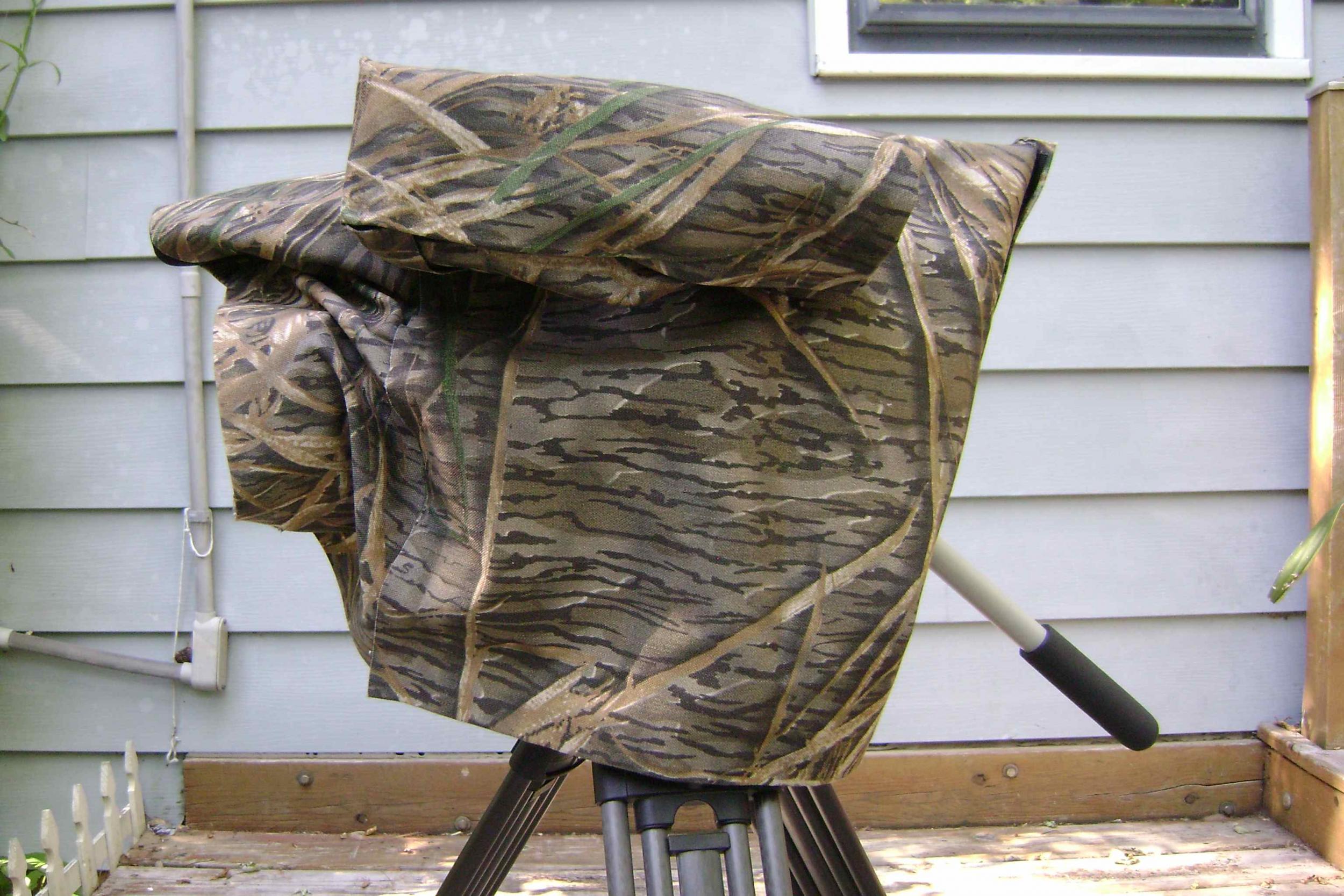

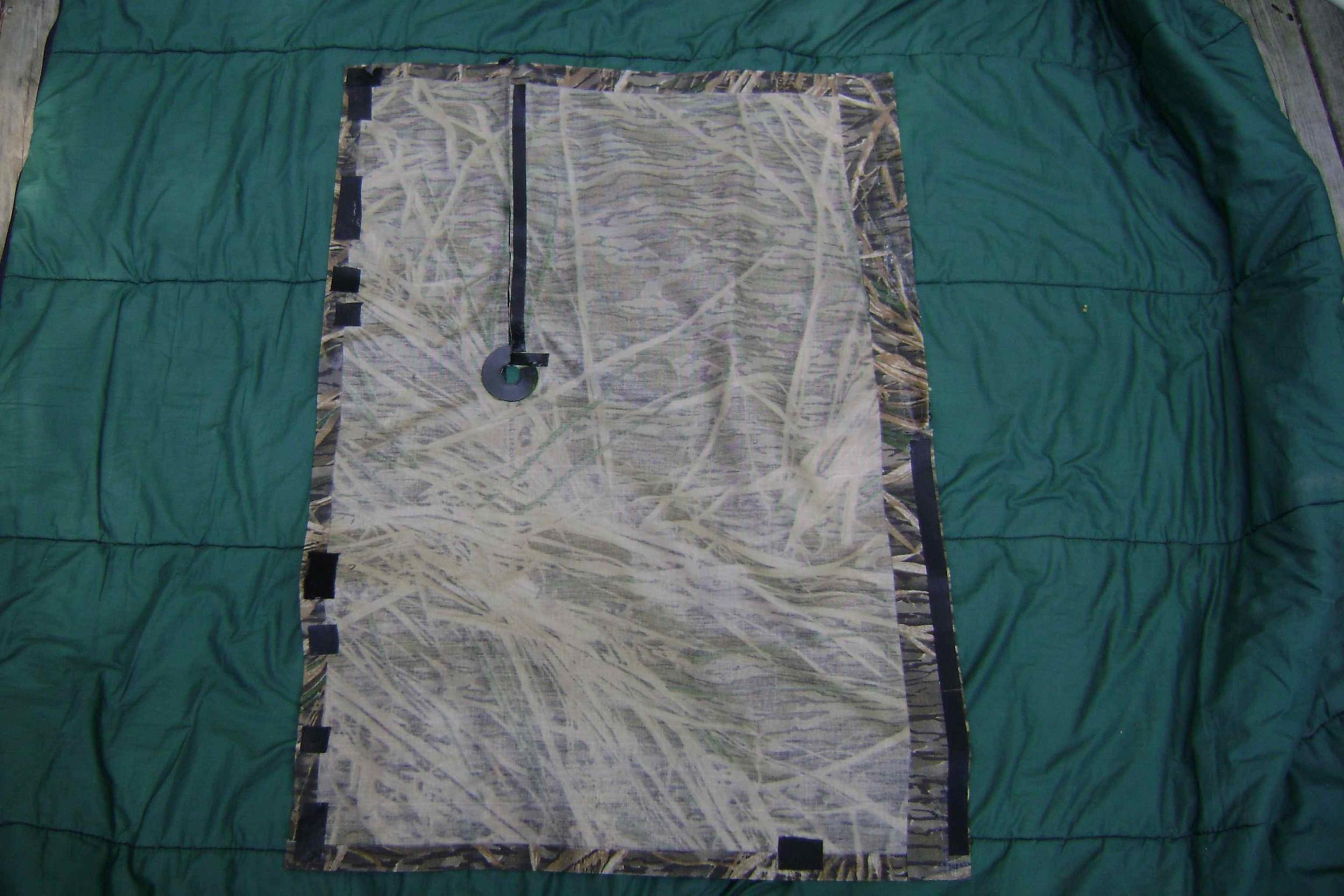

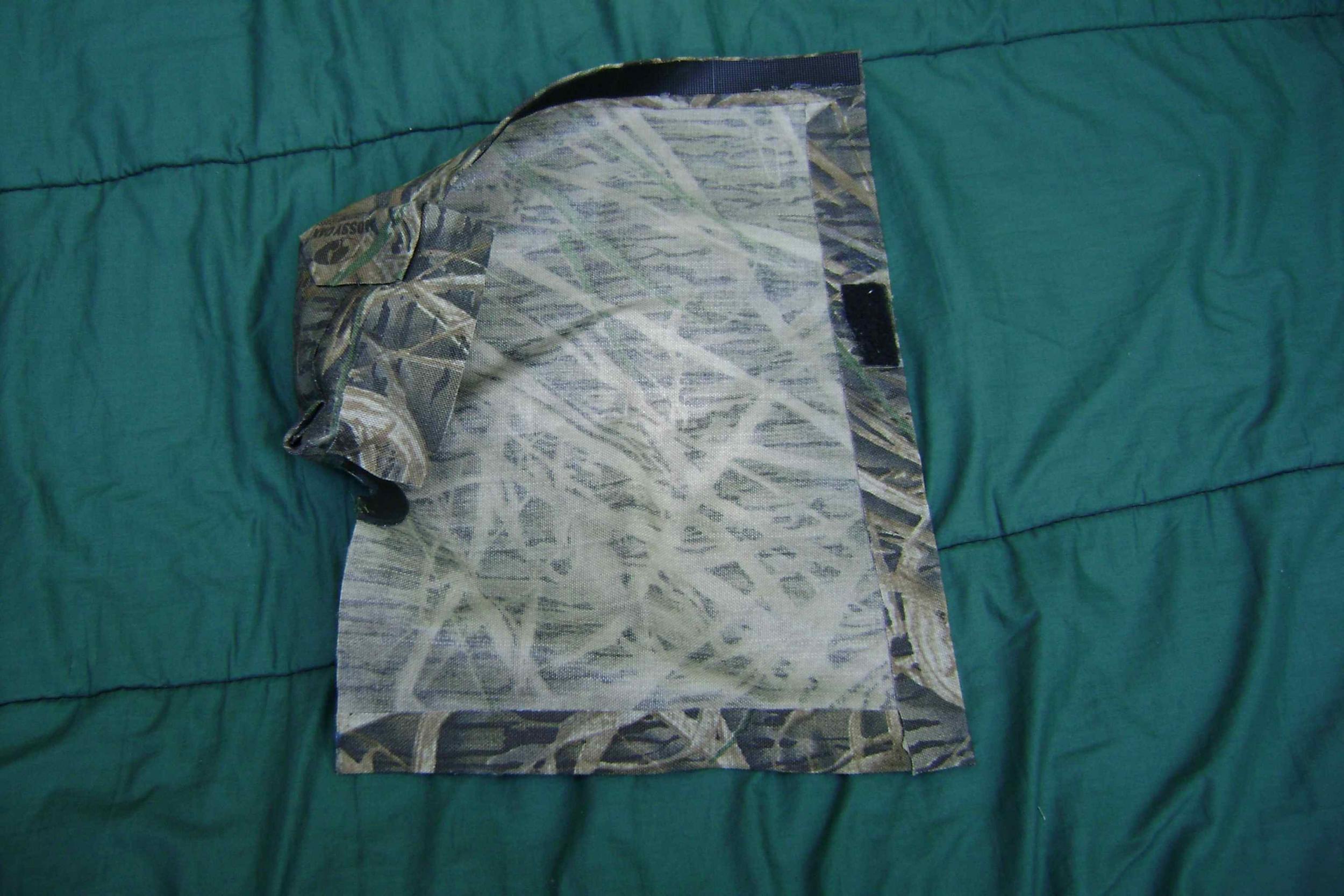

Here are some quick snapshots of the homemade raincover for my EX3.

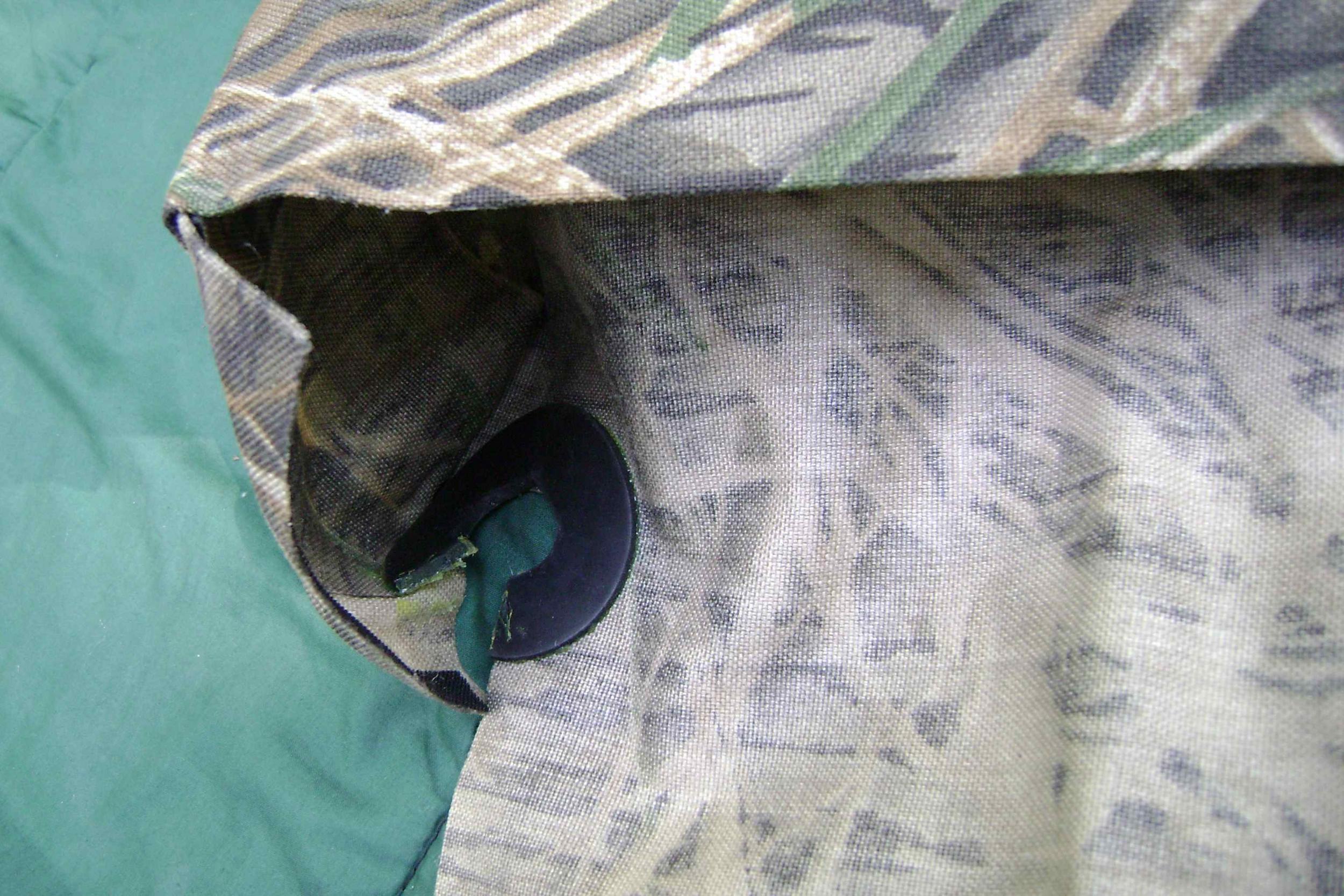

Making 2 separate pieces both with o-ring type rubber washers helped them seal well around the viewfinder arm.
A bit floppy but I don't get wet arms while operating and my camera stays dry.
The extra material comes in handy for setting the unit on the ground as well.

It does take a few minutes to put on but it works.

I also have velcro on the camera lens cover and back of camera to tighten things up in.
Mostly I made sure any rain would drip away from the camera and not pool up and find a way in.
Attached Thumbnails
EX3 Rain Cover-dsc00690.jpg   EX3 Rain Cover-dsc00691.jpg

EX3 Rain Cover-dsc00692.jpg   EX3 Rain Cover-dsc00693.jpg

EX3 Rain Cover-dsc00694.jpg   EX3 Rain Cover-dsc00696.jpg

EX3 Rain Cover-dsc00695.jpg   EX3 Rain Cover-dsc00699.jpg

Paul Zwicker is offline   Reply With Quote
Old July 14th, 2009, 02:15 AM   #17
Regular Crew

Join Date: Sep 2003
Location: gloucestershire uk
Posts: 93
Brilliant! Do you give sewing lessons?
David Herman is offline   Reply With Quote
Old July 16th, 2009, 03:20 PM   #18
Regular Crew

Join Date: Sep 2004
Location: Colorado
Posts: 32
hand-made cover

Those are great images -- thanks so much for sharing them! Great job!

-Ramsey
__________________
Jonathan Ramsey
director/producer
treeline film company
colorado
Jonathan Ramsey is offline   Reply With Quote
Old August 29th, 2009, 08:28 PM   #19
New Boot

Join Date: Apr 2008
Location: South Coast NSW Australia
Posts: 13
Rain cover made for the EX3

Kata Bags are releasing the CRC-12. It looks to be a good fit for the EX3.
Their site shows the camera in it, finally. It even alows the viewfinder to be folded up.

Video bags camera bags Kata - Manufacturer of camera bags
Brent Occleshaw is offline   Reply With Quote
Old August 29th, 2009, 09:54 PM   #20
Major Player

Join Date: Feb 2007
Location: Seattle WA
Posts: 411
That looks pretty good actually.
__________________
http://www.markoconnell.org
Mark OConnell is offline   Reply With Quote
Old March 23rd, 2011, 11:52 AM   #21
Regular Crew

Join Date: Dec 2005
Location: Worthington, Iowa
Posts: 191
Re: Homemade works great too

Paul, email pics to jeff@gonethinkinoutdoors.com please...
I use a black waterproof backpack cover with a drawstring that folds up into a little pouch; I purchased it at Amazon, they have four differemt sizes and i even bought on to fit over my video case. I'll try to find the link if any one is interested.
Found the link - http://www.amazon.com/Mountainsmith-Rain-Cover-Black-Large/dp/B0019Y44CQ/ref=sr_1_1?s=sporting-goods&ie=UTF8&qid=1300899205&sr=1-1


Quote:
Originally Posted by Paul Zwicker View Post
When I needed a camo rain cover for hunting videos last fall, I could not find one to fit my EX3.
I ordered a yard of camo Gortex fabric and set to work.
Ended up with a larger than "normal" cover so I can operate it while my hands and arms are underneath the rain cover. No dripping down my sleeves when handheld anymore.

I made a separate piece just for the eyepiece and LCD. That way I can still tilt and angle the viewer.

The main body cover has a rubber gasket glued into it which covers the arm of the eyepiece/LCD. I cut a slit into one side of the gasket which reforms a circle over the arm of the viewfinder when in position. Super waterproof in an area that looks like it could filter in water easily.

I ended up using velcro although snaps would work as well. The velcro secures better and make a more waterproof and snagproof shell. The velco also adheres to small sticky-backed velcro pieces I stuck on the camera in places and onto the lens cover to form a tight seal and protect from rain better.

Cost: around $25.00 plus my time. Best part is I can pop the camera on/of the tripod quickly and shoulder mount in no time.

Seamseal holds this fabric together really well.

I can email photos if anyone wants.
__________________
Jeff Mayne
Gone Thinkin Outdoors
Jeff Mayne is offline   Reply With Quote
Old March 23rd, 2011, 04:23 PM   #22
Major Player

Join Date: Feb 2007
Location: Seattle WA
Posts: 411
Re: EX3 Rain Cover

I found a Kata cover for the EX1 on Amazon for half the list price. I really like it. If you can find one that cheap the diy approach might not be the best way to go.
__________________
http://www.markoconnell.org
Mark OConnell is offline   Reply
