Old September 4th, 2009, 04:22 AM   #1
Regular Crew

Join Date: Apr 2004
Location: Norway
Posts: 87
Fix for broken EX3 mic holder

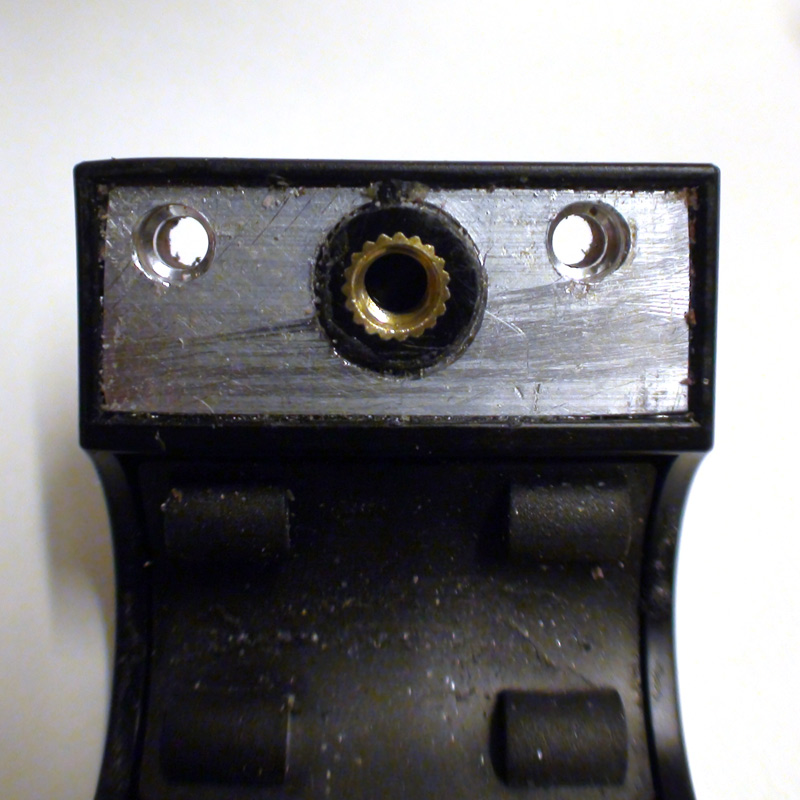

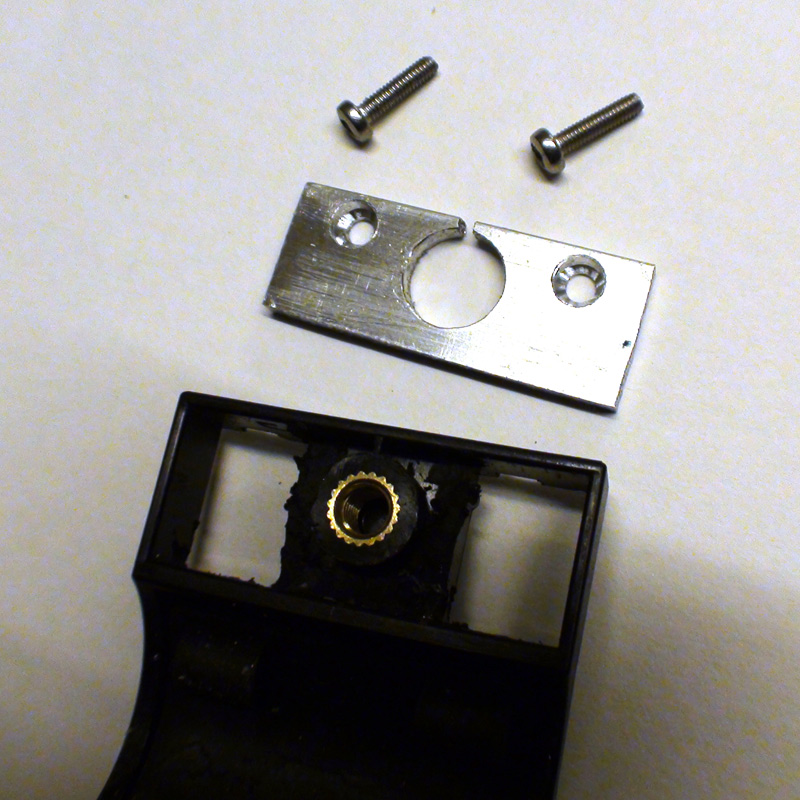

Yes, it did brake. So I had to make a fast repair. I cleaned out the remaining plastic, and the thin reinforcements on the upper side, to meke room for an 37,5 x 14,4 x 3 mm piece of aluminium. I drilled two 3mm holes for the new 2,5 mm bolts, and drilled in the same holes with a 5 mm to lower the bolts. A 10 mm hole was drilled for the mic tightening bolt.

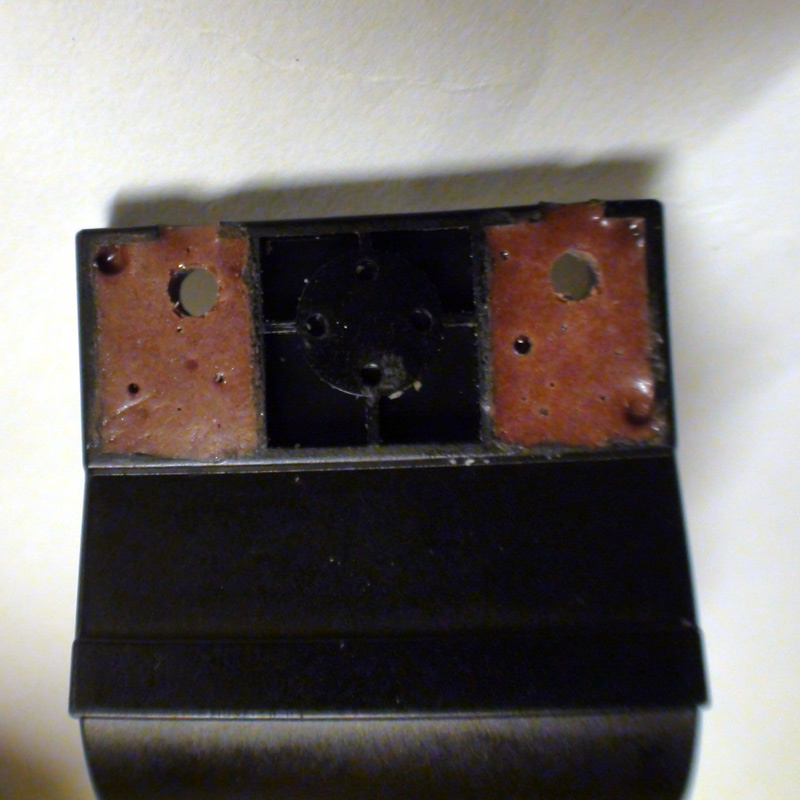

The underside was filled with epoxy mixed with microballoons, and the holes was drilled after it was hardend. In two corners are a stearing pin on the camera, so the mic adapter was premounted while the epoxy was still soft. Use some vaseline or grease so the epoxy wont stick.
I hope this can help.
Attached Thumbnails
Fix for broken EX3 mic holder-ex_fix1.jpg   Fix for broken EX3 mic holder-ex_fix2.jpg

Fix for broken EX3 mic holder-ex_fix3.jpg
__________________
Arnt Mollan
www.mollanmedia.com
Arnt Mollan is offline   Reply With Quote
Old September 4th, 2009, 04:31 AM   #2
Major Player

Join Date: Aug 2009
Location: South Australia
Posts: 371
Well done!
Lance Librandi is offline   Reply With Quote
Old September 4th, 2009, 05:07 AM   #3
Regular Crew

Join Date: Sep 2003
Location: gloucestershire uk
Posts: 93
Indeed well done. DM products makes an excellent replacement for that ratty mic holder. I use with joy.
David Herman is offline   Reply With Quote
Old September 4th, 2009, 05:33 AM   #4
Regular Crew

Join Date: Apr 2004
Location: Norway
Posts: 87
Thanks. I did not have days to sit and wait for new parts. This costs $1 and 1 hour, if you have what you need ( Dremel grinder, drill, 3mm aluminium, epoxy and two 2,5 mm screws). And its rock solid.
__________________
Arnt Mollan
www.mollanmedia.com
Arnt Mollan is offline   Reply With Quote
Old September 4th, 2009, 08:57 AM   #5
Regular Crew

Join Date: Jan 2003
Location: South of France
Posts: 64
Quote:
Originally Posted by Arnt Mollan View Post
Thanks. I did not have days to sit and wait for new parts. This costs $1 and 1 hour, if you have what you need ( Dremel grinder, drill, 3mm aluminium, epoxy and two 2,5 mm screws). And its rock solid.
Hi Arnt,

thanks for your pictures. The same happened to me while filming in New Zealand. Unbelievable, that such a cheap mic holder is being produced. It wouldn't cost Sony much ($ 1 as you have stated) to produce a solid mic holder. Instead, lots of customers have issues with this broken cheap plastic toy. And while on a shoot with all the stress, you have to struggle to improvise something (which is not looking very professional).

Jürgen
