Old February 16th, 2010, 12:04 PM   #1
Regular Crew

Join Date: Nov 2009
Location: Athens, Greece
Posts: 120
How i can attach a wireless mic receiver to hot shoe?

Hello,
i have a Senheisser wireless mic receiver and i need to attach it to my EX1r.
What is the suggested way?
I am thinking for the hot shoe but i need something for it.
Giannis Pass is offline   Reply With Quote
Old February 16th, 2010, 12:22 PM   #2
Major Player

Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
There is an accessory that comes with the Sennheiser units that is a hot shoe mount. It's the part with silver bent wire that cradles the receiver, and has a black plastic piece that fits the hot shoe and screws down tight. It comes with every sennheiser receiver.
__________________
My Work: http://www.youtube.com/ChadWork1
Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3,
Chad Johnson is offline   Reply With Quote
Old February 16th, 2010, 12:50 PM   #3
Inner Circle

Join Date: Nov 2006
Location: Tallahassee, FL
Posts: 4,100
Quote:
Originally Posted by Chad Johnson View Post
There is an accessory that comes with the Sennheiser units that is a hot shoe mount. It's the part with silver bent wire that cradles the receiver, and has a black plastic piece that fits the hot shoe and screws down tight. It comes with every sennheiser receiver.
It's also a royal PITA! Unless the hotshoe on the EX1r has been changed, the Sennheiser shoe mount is too thick to slide in and needs to be filed down to work.
__________________
DVX100, PMW-EX1, Canon 550D, FigRig, Dell Octocore, Avid MC4/5, MB Looks, RedCineX, Matrox MX02 mini, GTech RAID, Edirol R-4, Senn. G2 Evo, Countryman, Moles and Lowels.
Perrone Ford is offline   Reply With Quote
Old February 16th, 2010, 01:06 PM   #4
Regular Crew

Join Date: Nov 2009
Location: Athens, Greece
Posts: 120
Thanks for the reply.
I have lost this accessory, two years ago and now i need it.
Is it possible to order it from Senheisser?
Giannis Pass is offline   Reply With Quote
Old February 16th, 2010, 01:32 PM   #5
Major Player

Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
Quote:
Originally Posted by Giannis Pass View Post
Thanks for the reply.
I have lost this accessory, two years ago and now i need it.
Is it possible to order it from Senheisser?
Try making a phone call to B&H or Sennheiser. I'm sure they are available.
__________________
My Work: http://www.youtube.com/ChadWork1
Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3,
Chad Johnson is offline   Reply With Quote
Old February 16th, 2010, 01:33 PM   #6
Major Player

Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
Perrone, I have the EX1 (nor R) and the shoe mount works just fine - not tight to push in at all. But I don't put my G3 directly in my camera's shoe mount anyway. I prefer to use one of these:

Rycote | 037303 Hot Shoe Extension | 037303 | B&H Photo Video

It will hold a light AND my wireless. Then I use a Rode SM5 placed in my camera's mic holder to support my microphones: Rode | SM5 - Shotgun Microphone Suspension | SM5 | B&H Photo

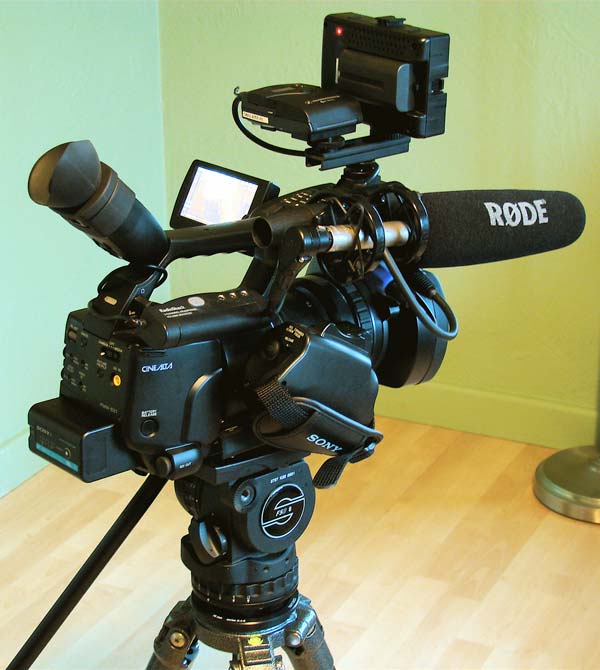

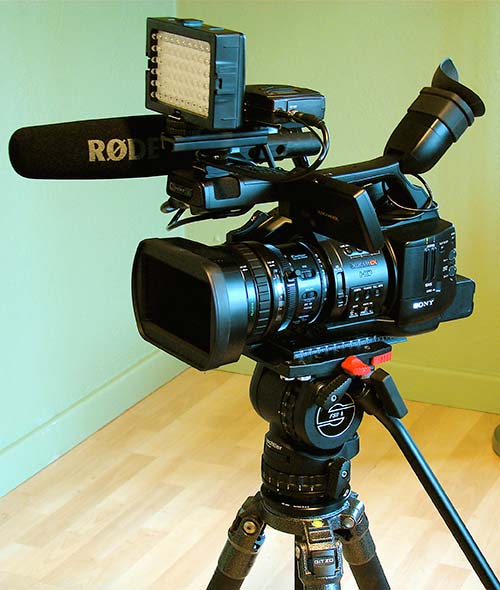

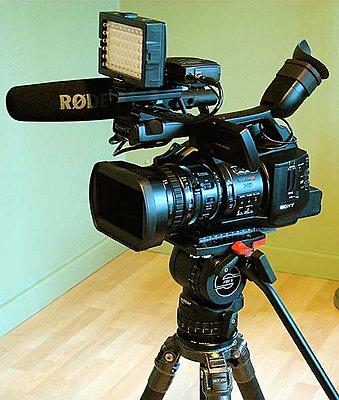

So I can comfortably fit 3 accessories on my camera. I'll try to attach a photo here:
Attached Thumbnails
How i can attach a wireless mic receiver to hot shoe?-ex1_rungun02.jpg   How i can attach a wireless mic receiver to hot shoe?-ex1_rungun04.jpg

__________________
My Work: http://www.youtube.com/ChadWork1
Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3,
Chad Johnson is offline   Reply With Quote
Old February 16th, 2010, 01:49 PM   #7
Inner Circle

Join Date: Nov 2006
Location: Tallahassee, FL
Posts: 4,100
Quote:
Originally Posted by Chad Johnson View Post
Perrone, I have the EX1 (nor R) and the show mount works just fine - not tight to push in at all. But I don't put my G3 directly in my camera's show mount anyway. I prefer to use one of these:

You have a G3, I have a G2. I wonder if they are different.
__________________
DVX100, PMW-EX1, Canon 550D, FigRig, Dell Octocore, Avid MC4/5, MB Looks, RedCineX, Matrox MX02 mini, GTech RAID, Edirol R-4, Senn. G2 Evo, Countryman, Moles and Lowels.
Perrone Ford is offline   Reply With Quote
Old February 16th, 2010, 01:57 PM   #8
Major Player

Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
I have G2 and G3. They both seem the same. Try turning the square thing that goes into the shoe mount 90 degrees. Or just loosen the round thing you screw down to secure the mount to the shoe.

It's only plastic anyway, so a little filing would be easy if it really needs it. I had to file down my Rode SM3 shockmount so it would work with an HV20 camera - and that was a PITA as it's metal. Anyway that hotshoe extension is awesome for the price and now I can fit all I need. They even have one twice the length for twice the price if you want to put a bunch of stuff on.
__________________
My Work: http://www.youtube.com/ChadWork1
Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3,
Chad Johnson is offline   Reply With Quote
Old February 16th, 2010, 02:03 PM   #9
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365

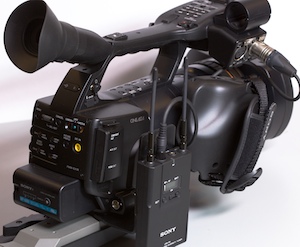

You can also use a system like mine where there is a wing for attaching wireless mics etc, without putting more stress on the somewhat under designed tripod mount on the EX1.

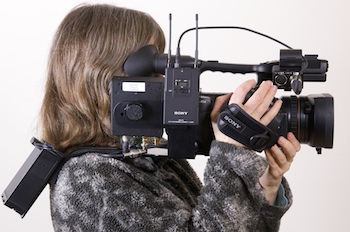

And it also has options for a shoulder mount system that balances the EX1 cams much better when off the sticks.

My site:Stronger Tripod Plates . NanoFlash Brackets . Sliders by Westside A V

Or contact me for more info:
olof@westsideav.com
603.383.9283
Attached Images


Last edited by Olof Ekbergh; February 16th, 2010 at 09:07 PM.
Olof Ekbergh is offline   Reply With Quote
Old February 16th, 2010, 08:06 PM   #10
Major Player

Join Date: May 2002
Location: West Central Florida
Posts: 762
Here you go, Giannis:

Sennheiser | CA2 Shoemount Adapter | CA2 | B&H Photo Video

dave
Dave Morrison is offline   Reply With Quote
Old February 17th, 2010, 04:58 PM   #11
Major Player

Join Date: Nov 2005
Location: Chehalis, WA
Posts: 513
I have the G2 and mine mounts just fine to my EX1, no filing required.
__________________
Reel Inspirations - www.reelinspirations.com
Commercials, Dramas, Image Pieces, Documentaries, Motion Graphics
James Huenergardt is offline   Reply With Quote
Old February 17th, 2010, 08:31 PM   #12
Major Player

Join Date: Nov 2006
Location: Baltimore, Maryland
Posts: 234
No issues with my Evolution G2 hotshoe unit.
Adam Reuter is offline   Reply With Quote
Old February 17th, 2010, 09:24 PM   #13
Inner Circle

Join Date: Nov 2006
Location: Tallahassee, FL
Posts: 4,100
Hmm. I need to revisit this then. I got two of those mount kits and had the same issue with both.
__________________
DVX100, PMW-EX1, Canon 550D, FigRig, Dell Octocore, Avid MC4/5, MB Looks, RedCineX, Matrox MX02 mini, GTech RAID, Edirol R-4, Senn. G2 Evo, Countryman, Moles and Lowels.
Perrone Ford is offline   Reply With Quote
Old February 17th, 2010, 11:18 PM   #14
Trustee

Join Date: Nov 2005
Location: Sydney Australia
Posts: 1,570
We've got something like 8x G2 kits and several G3 kits, never had an issue getting them to fit any cold shoe on any camera.
There are some cold shoe attachments that are too thick to fit some of the Sony cold shoes. I've also seen users get mighty confused because some of the cold shoes on some cameras have tiny stops at one end. These typically have an arrow...and yet...:)
Bob Grant is offline   Reply With Quote
Old February 18th, 2010, 05:34 PM   #15
Regular Crew

Join Date: Feb 2004
Location: New Britain, CT
Posts: 95
Hey Giannis, when you get the new shoe mount insert into the camera from the front, not the rear. The rear has a stop built into it so the opening is smaller. At least on my EX1 it is.

Gene...
__________________
Gene,
Black Hole Video
Eugene J. Kulak is offline   Reply
