Small request for EX1 (not R) owners - picture needed

Hi guys,

would anyone be kind to take a picture of the viewfinder with the eyepiece magnifier lens taken off?

And post it here offcourse.


thanks
Zoran Vincic is offline   Reply With Quote
Old July 26th, 2010, 09:29 AM   #2
Major Player

Join Date: Sep 2008
Location: Vancouver, Canada
Posts: 975
You must mean the EX3, as it is the only one with a built in eyepiece.
Andrew Stone is offline   Reply With Quote
Old July 26th, 2010, 09:37 AM   #3
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
No, I mean the original EX1, it has a viewfinder too.

I'm just asking a picture of one with the eyepiece removed.
Zoran Vincic is offline   Reply With Quote
Old July 26th, 2010, 10:59 AM   #4
Major Player

Join Date: Mar 2005
Location: Neenah, WI
Posts: 547
Are you afraid you broke it when you slid the eyepiece off?

I can take a pic later today...
__________________
TimK
Kolb Productions
Tim Kolb is offline   Reply With Quote
Old July 26th, 2010, 12:09 PM   #5
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
just want to see something

thanks
Zoran Vincic is offline   Reply With Quote
Old July 26th, 2010, 01:36 PM   #6
Major Player

Join Date: May 2002
Location: West Central Florida
Posts: 762

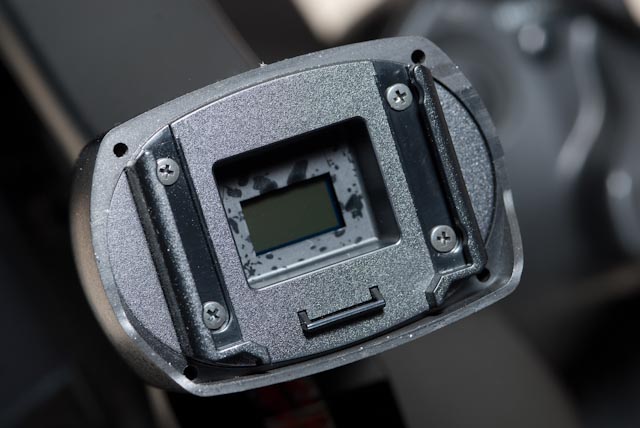

Here you go....hope it helps:
Attached Thumbnails
Small request for EX1 (not R) owners - picture needed-dsc_3705.jpg
Dave Morrison is offline   Reply With Quote
Old July 26th, 2010, 02:26 PM   #7
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
thanks Dave

does anybody know what are these blotches around the lcd?

sun burn marks?
Zoran Vincic is offline   Reply With Quote
Old July 26th, 2010, 02:34 PM   #8
Major Player

Join Date: May 2002
Location: West Central Florida
Posts: 762

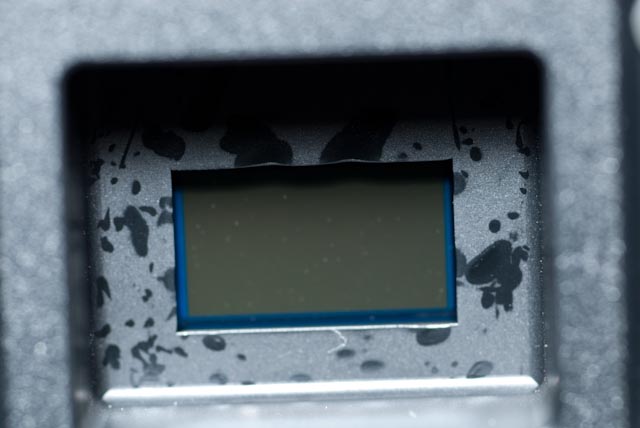

I think they were there from the day I got the camera. They appear to be something that was painted onto the inner part of the eyepiece when they assembled the camera. I looked at it under a loupe and it looks like there were flaws in the metal when the eyepiece was made and somebody had to black out those "dings" with an ink pen or brush of some type. Here's an tighter closeup:
Attached Thumbnails
Small request for EX1 (not R) owners - picture needed-dsc_3706.jpg
Dave Morrison is offline   Reply With Quote
Old July 26th, 2010, 05:58 PM   #9
Major Player

Join Date: Mar 2005
Location: Neenah, WI
Posts: 547
Just checked mine out of curiosity...I have them too.

I have never used the viewfinder eyepiece on the camera so it's not like it's been pointed into the sun much, if at all...

When I shoot in New England, I take the eyepiece off so the camera fits in a smaller carry-on bag, and most of the time I never bother to remover the covering I put over it and re-attach the eyepiece.

Odd.
__________________
TimK
Kolb Productions
Tim Kolb is offline   Reply With Quote
Old July 26th, 2010, 07:57 PM   #10
Major Player

Join Date: May 2002
Location: West Central Florida
Posts: 762
I can't figure out HOW they could have had that many chunks knocked out of that eyepiece frame, but under the black marks, you can see small "divots" or dings in the metal. Kinda weird, huh?

Zoran, why did you need the closeups?
Dave Morrison is offline   Reply With Quote
Old July 27th, 2010, 09:41 AM   #11
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
well, I bought a second hand EX1 and mine also have these blotches in the viewfinder and I wasn't sure if something was glued there and went loose and missing.
Zoran Vincic is offline   Reply With Quote
Old July 27th, 2010, 10:18 AM   #12
Inner Circle

Join Date: Dec 2005
Location: Rhode Island
Posts: 3,868
I think this is normal, mine also has it and the eye piece has never been off but for inspection. It is not part of what you view so I would not worry about it.
__________________
Paul Cronin
www.paulcroninstudios.com
Paul Cronin is offline   Reply With Quote
Old July 27th, 2010, 11:33 AM   #13
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
I think it may be a powder coat finish. Sometimes it is done like that with different color flakes. And they will even appear different thickness.

It is done to corrosion proof the part.

Just my guess.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old July 27th, 2010, 11:50 AM   #14
Major Player

Join Date: Mar 2005
Location: Neenah, WI
Posts: 547
Quote:
Originally Posted by Zoran Vincic View Post
well, I bought a second hand EX1 and mine also have these blotches in the viewfinder and I wasn't sure if something was glued there and went loose and missing.
I bought mine brand new and I've never looked at this before...and I see the same thing. It would seem it's a "standard feature" and not a defect of use or abuse...

Your second-hand purchase remains a wise one I'd say.

...I'd also recommend you take a look at the Tiffen T1 far red filter for the EX1. It takes care of the excess red response on black surfaces.
