EX3 Focus Issue

I've been having a problem with the kit lens on my EX3. Either the left side of the image goes soft or the center of the image goes soft. I just had it into Sony NJ and they realigned and re-calibrated, etc, but it is still soft in the same places when I blow up the MOV from the camera.

I brought it back today and the head tech threw it on the bench and it looked fine, even footage shot with the camera looked ok on his CRT monitor. On my Apple 23 inch screens it looks soft in the middle. In 30 + years of photography and video, I've had plenty of lenses with soft edges, but never sharp edges and a soft middle. Anyone experience anything like this?

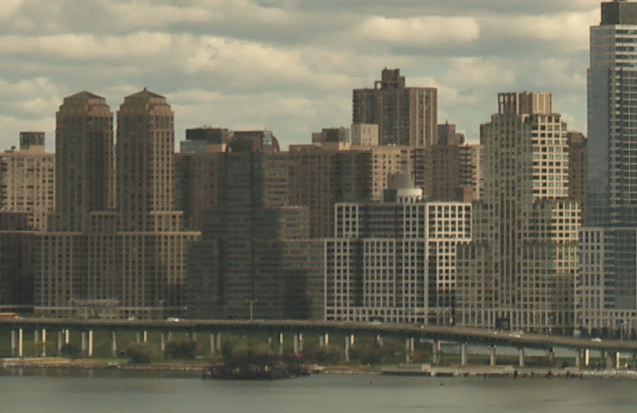

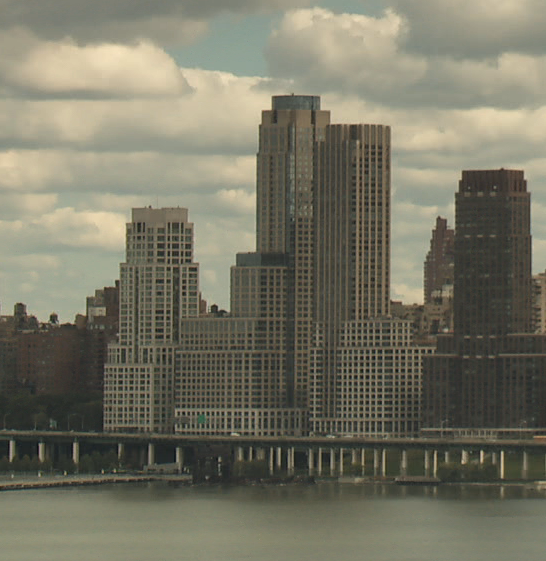

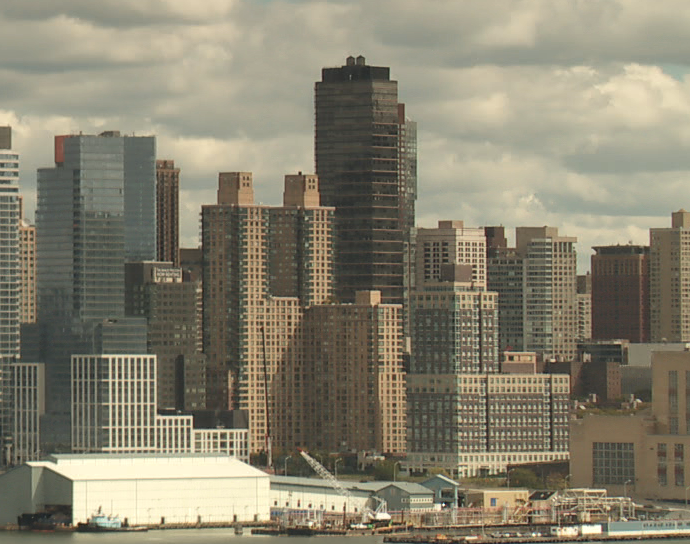

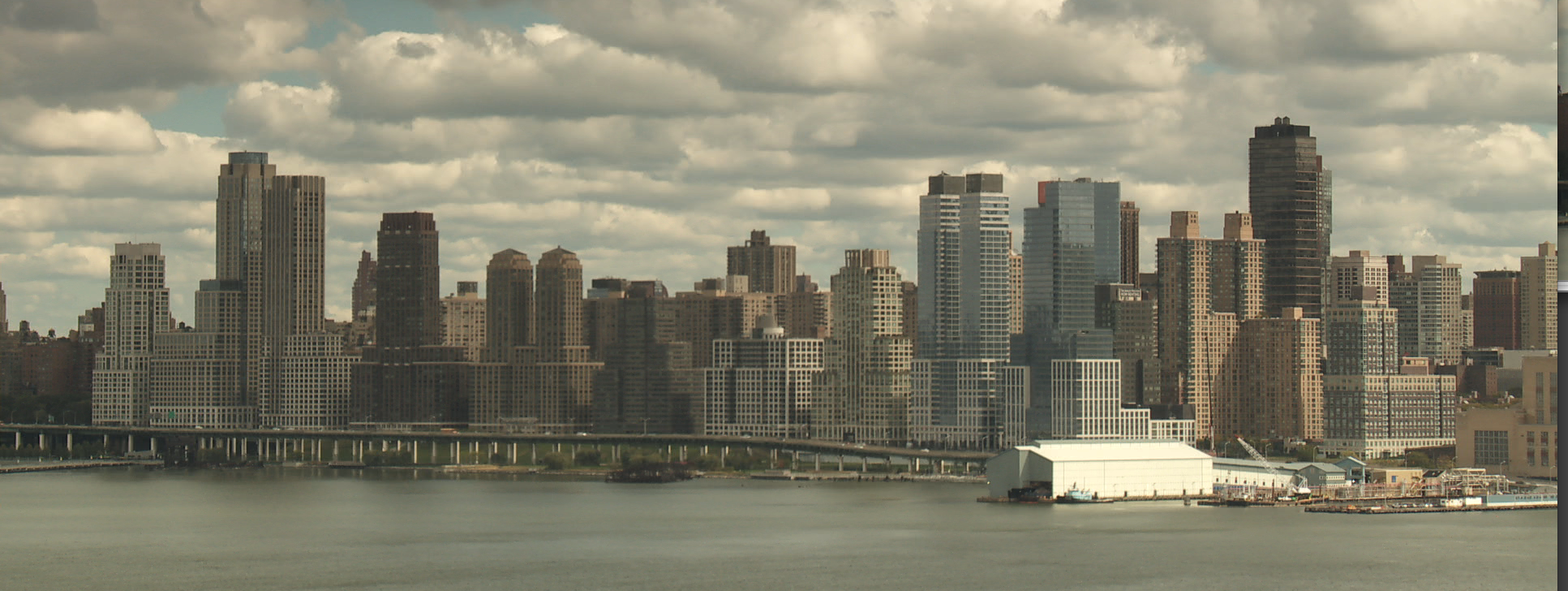

I have attached a screen grab of edge to edge, left, right and center of frame. Note the highway in the center image out of focus compared to left and right.

Can increasing the "Crispening" to +30 (to reduce noise) affect only a portion of the screen? (long-shot)
Attached Thumbnails
EX3 Focus Issue-right-side-frame.png   EX3 Focus Issue-middle-frame.png

EX3 Focus Issue-left-side-frame.png   EX3 Focus Issue-full-frame-width.png

Chuck Fishbein is offline   Reply With Quote
Old October 15th, 2010, 09:27 PM   #2
Major Player

Join Date: Nov 2009
Location: White Rock
Posts: 254
clean..., no?

Hello Chuck,
You didn't say anything about if your lens is clean and that is first that comes to mind. Is it?
Cheers
Luben Izov is offline   Reply With Quote
Old October 16th, 2010, 09:29 AM   #3
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
I'm chuckling, but yes, First thing I checked.
The lens is clean as well as the protective sensor glass.
No external filtration, either.

I was also shooting at F4.0 as anything above 5.6 would cause a poor image, as well.

thanks
Chuck Fishbein is offline   Reply With Quote
Old October 16th, 2010, 10:22 AM   #4
Major Player

Join Date: Aug 2008
Location: Jersey City, NJ
Posts: 244
wanna try another lens?

I live pretty close and own an ex3.

Greg
Greg Chisholm is offline   Reply With Quote
Old October 16th, 2010, 12:26 PM   #5
Major Player

Join Date: Nov 2009
Location: White Rock
Posts: 254
Quote:
Originally Posted by Chuck Fishbein View Post
I'm chuckling, but yes, First thing I checked.
The lens is clean as well as the protective sensor glass.
No external filtration, either.

I was also shooting at F4.0 as anything above 5.6 would cause a poor image, as well.

thanks
I am glad I made you chuckling and having a good time!
Maybe Greg's offer is not a bad idea. Good luck!
Cheers
Luben Izov is offline   Reply With Quote
Old October 16th, 2010, 06:07 PM   #6
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
Thanks Greg, I would love to run a five minute test with another lens. Also good to know you're nearby. More on that later.

I tested the camera again today at Six Flags. To my relief, I could not repeat the center-soft issue, but I still had a soft left edge.

I did come up with a possible culprit for this problem. So, before I take Greg up on his generous offer, I will first test the camera using external ND filters rather than the 2 internal ones. If there is any chance that either of those two ND filters has damage, dirt, distortion or is/was not sitting in proper alignment over the sensor, I think it's possible that that could cause the type of issues I'm facing.

Greg, If you're ever in a pinch, consider that the offer goes both ways.
Chuck Fishbein is offline   Reply With Quote
Old October 16th, 2010, 06:11 PM   #7
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
Luben,
At one time in my career, long ago, I sold cameras. And I once had a guy return a camera saying it worked improperly. Apparently, he tried to change the film in a Nikonos underwater camera... underwater.
So, no question is a dumb question.
Chuck Fishbein is offline   Reply With Quote
Old October 19th, 2010, 08:50 PM   #8
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
I was fortunate to have an associate come by with his EX3 in hand. I ran several tests including using his lens on my camera and then trying my lens and his. Both tests showed that my lens was having back focus issues.

I re-calibrated both lenses each time using the back focus adjust in the menu and each time, results were the same. My lens goes slightly soft after zooming out about 1/2 way.

My problem is that the Sony tech says that the lens and camera are at factory specs according to his monitor and wave form, but under actual shooting conditions, the problems are quite obvious. I have been using this lens since the camera was introduced with excellent results and suddenly, major problems and I'm told nothing is wrong.

This is most frustrating.
Chuck Fishbein is offline   Reply With Quote
Old October 20th, 2010, 09:15 AM   #9
Major Player

Join Date: Aug 2008
Location: Jersey City, NJ
Posts: 244
Chuck,

If you saved your test footage, you should take it to sony teaneck. your test indicates proof positive that the lens is at fault, no matter what sony's tech says.

Seems like you may have to take this up with sony corporate.

Be persistent

Greg
Greg Chisholm is offline   Reply With Quote
Old October 20th, 2010, 05:53 PM   #10
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
I did save the test footage and I've had the camera to Teaneck twice, but the tech's attitude was that the only test that matters was what they see on their test bench.

I have already begun speaking to others in Sony. I have also found this same back focus issue with others on this forum.

This will be resolved.

Thanks for your suggestion
Chuck Fishbein is offline   Reply With Quote
Old October 20th, 2010, 07:03 PM   #11
Major Player

Join Date: Nov 2009
Location: White Rock
Posts: 254
Quote:
Originally Posted by Chuck Fishbein View Post
I did save the test footage and I've had the camera to Teaneck twice, but the tech's attitude was that the only test that matters was what they see on their test bench.......
Hey Chuck,
I would guess, maybe you could've told the guy a story of long time ago when you were selling cameras... ;-)
Humor on the side, this is not good! Can you go to a different Sony Service place?, or check with camera departments (Rentals) for possible help. Please advise how things are progressing.
Cheers
Luben Izov is offline   Reply With Quote
Old October 20th, 2010, 07:49 PM   #12
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
I will call some folks I've met up at Sony tomorrow. I'm hoping they can help or guide me in the right direction.
Chuck Fishbein is offline   Reply With Quote
Old October 22nd, 2010, 09:37 AM   #13
Major Player

Join Date: Jun 2008
Location: Weehawken New Jersey
Posts: 210
professionalism

To their credit and my great relief, Sony investigated the situation again, saw that my lens did have some type of problem and agreed to investigate the issue further.
