Old August 6th, 2011, 01:07 PM   #16
Trustee

Join Date: Jul 2007
Location: Novato, CA
Posts: 1,772
Re: EX1 / EX3 Tripod Plate VERY prone to Crack or Break

I thought the Westside plate screwed into additional locations as well as the 1/4 x20 for the EX1/r. At least for my EX3 plate it does.

In any case, I agree that Olof and Westside are very good people.

-Garrett
__________________
Garrett Low
www.GLowMediaProductions.com
Garrett Low is offline   Reply With Quote
Old August 6th, 2011, 05:10 PM   #17
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: EX1 / EX3 Tripod Plate VERY prone to Crack or Break

On the EX1 there is good reason to add the 3 2mm screws further back on the base of the camera for added stability as with the EX3, the EX3 is much stronger than the EX1 or EX1R with the addition of the 2 4mm screws on the angled part of the base.

The EX1R is a little different, the 2mm screws back of the double 1/4" screws are attached to the same bracket as the 1/4" screws, so nothing is gained by adding those 2mm screws. The 1/4" screws are plenty strong. The problem is really the studs that the plate attaches to, they are not very rugged.

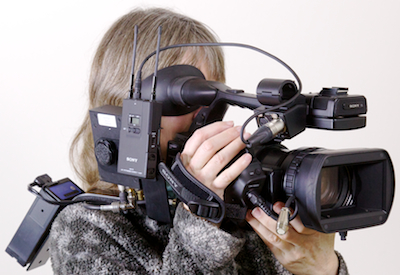

My plate addition on all the different models have the added advantage of allowing for multiple accessories to be mounted to my plate, not the camera, so the additional stress of NanoFlash wireless receivers etc. are now attached to the plate not the camera, and I also offer the shoulder brace systems and large brick battery attachments without adding stress to the weak connection to the camera body frame.

If anyone has questions feel free to contact me directly.
olof@westsideav.com
603-383-9283
Attached Images

__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old August 6th, 2011, 05:55 PM   #18
Trustee

Join Date: Aug 2009
Location: Chicago, IL
Posts: 1,554
Re: EX1 / EX3 Tripod Plate VERY prone to Crack or Break

Hi Olof,

Would you be willing to accept a check from a city gov't (who is my main client)?

Thx
Steve Kalle is offline   Reply With Quote
Old August 7th, 2011, 09:20 AM   #19
Regular Crew

Join Date: Dec 2005
Location: Miami, Florida USA
Posts: 113
Re: EX1 / EX3 Tripod Plate VERY prone to Crack or Break

For what it's worth...a couple of my freelance buddies have the EX3 as one of their cameras, I just bought one for myself. I've known about the base plate concerns for some time and they recommended I get this plate designed for the EX3.

EX3 Teleplate

Just another option since I didn't see a plate for the E3 listed on the Juice Design web site.
__________________
John DuMontelle - Freelance / Miami, Florida - USA
http://www.latincamproductions.com/
John DuMontelle is offline   Reply
