Old September 26th, 2011, 10:11 PM   #1
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Special Request: Need a screengrab of EVF/LCD info of EX1R

Hello all EX1R owners,

I need a screengrab of the on screen display of the EX1R while recording. Preferably, I think people with Nanoflashes can do this easily.

Please do not place a complex background behind the OSD, It should in essence be a solid color.

I've tried to find this on Google Images to no avail, so now I'm asking EX1R (plus Nanoflash) owners to help me out in getting this screengrab that I need for a personal project.

Full 1920x1080 resolution if you can, please.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old September 27th, 2011, 08:18 AM   #2
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

There are lots of different ways that info can be displayed. Lots of variations of data display.

Probably 20 different variations or more. Histogram, safe areas etc. All the batt etc. info TC, audio levels on/off.

Refer to the manual. Available in PDF format.

I can give you a screen shot, but w/o an idea of what info you want on the screen, it may not be what you are looking for.
__________________
Olof Ekbergh ē olof@WestsideAV.com
Westside A V Studios ē http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old September 28th, 2011, 04:07 PM   #3
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

OK, so here's the specifics:

*The focus indicator to be on and it needs to be near infinity (hence, manual focus)
*The shutter at 1/60
*ND1 filter on
*Around F5.6 or F8 (bright sunlight)
*Gain at 0db
*No Histogram
*The camera to be in HQ 1080i/60 mode
*an SxS in Slot A, 8GB or 16GB will do. No specific rec remain required, but the indicator has to be there.
*Timecode at 01:10:00:00 when the recording starts and the snapshot should be around a couple of seconds after that
*TLCS on STD
*Steadyshot Off
*95% safe zone marker
*Audio levels near -20db
*Use a BP-U** battery, no voltages
*Zoom should be not too wide, around Z5 might do.
*White Balance Preset to Outdoors (I'm guessing 5600K)

Really important: The image behind the display cannot be complex, nor can it be pitch black. It needs to be mostly a solid color.

If additional info may be required to get a better sense of what the camera would be filming, this is simulating filming a landmark.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old September 29th, 2011, 03:37 AM   #4
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Is this for commercial use?

I presume that with such a specific list of requirements that you will be offering Olof or other supplier, a fee for their time.
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old September 29th, 2011, 07:38 AM   #5
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Yes what is the purpose of this "screen shot"?

I can certainly do all this. Would a green/blue screen be the best BG?

Contact me by email if you like we can arrange for this shot if you like.
__________________
Olof Ekbergh ē olof@WestsideAV.com
Westside A V Studios ē http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old September 29th, 2011, 06:53 PM   #6
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,483
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Quote:
Originally Posted by Vincent Oliver View Post
I presume that with such a specific list of requirements that you will be offering Olof or other supplier, a fee for their time.
I was thinking the exact same thing, but didn't want to say it. How much does this job pay?
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old September 30th, 2011, 09:02 PM   #7
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

This is an element of a art commission and is for non-commercial use. My apologies in advance, but if this is to be a paid thing, all I can offer is $4CAD via PayPal.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old October 2nd, 2011, 09:29 PM   #8
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

I'm assuming from no responses that this was a waste of people's time. I'm sorry about this and once again apologize for wasting your time.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old October 3rd, 2011, 01:00 AM   #9
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Olof gave you a positive response. You didn't waste anyone's time, your request was perhaps a bit too specific for most people on this forum, it was more in keeping with a commission, but at $4 CAD it undermines any professional.

I will put together a screen shot for you with all your requirements and send it to you later today, in return I want you to donate $20 CAD to a local charity of your choice.

Let me know if you agree to this.
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old October 3rd, 2011, 02:53 AM   #10
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

I'll have to skip lunch for a day, but I will have $20 ready.

Unfortunately I am clueless to where to physically drop off my donation here in Vancouver. Any suggestions Vancouverites? Preferably near Metrotown would do best.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old October 3rd, 2011, 04:54 AM   #11
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Quote:
Originally Posted by Jack Zhang View Post
I'll have to skip lunch for a day, but I will have $20 ready.
.
I am sure someone else will benefit from your small sacrifice. Will send you the screen grab later this afternoon.
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old October 3rd, 2011, 06:46 AM   #12
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

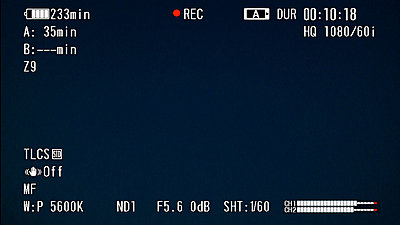

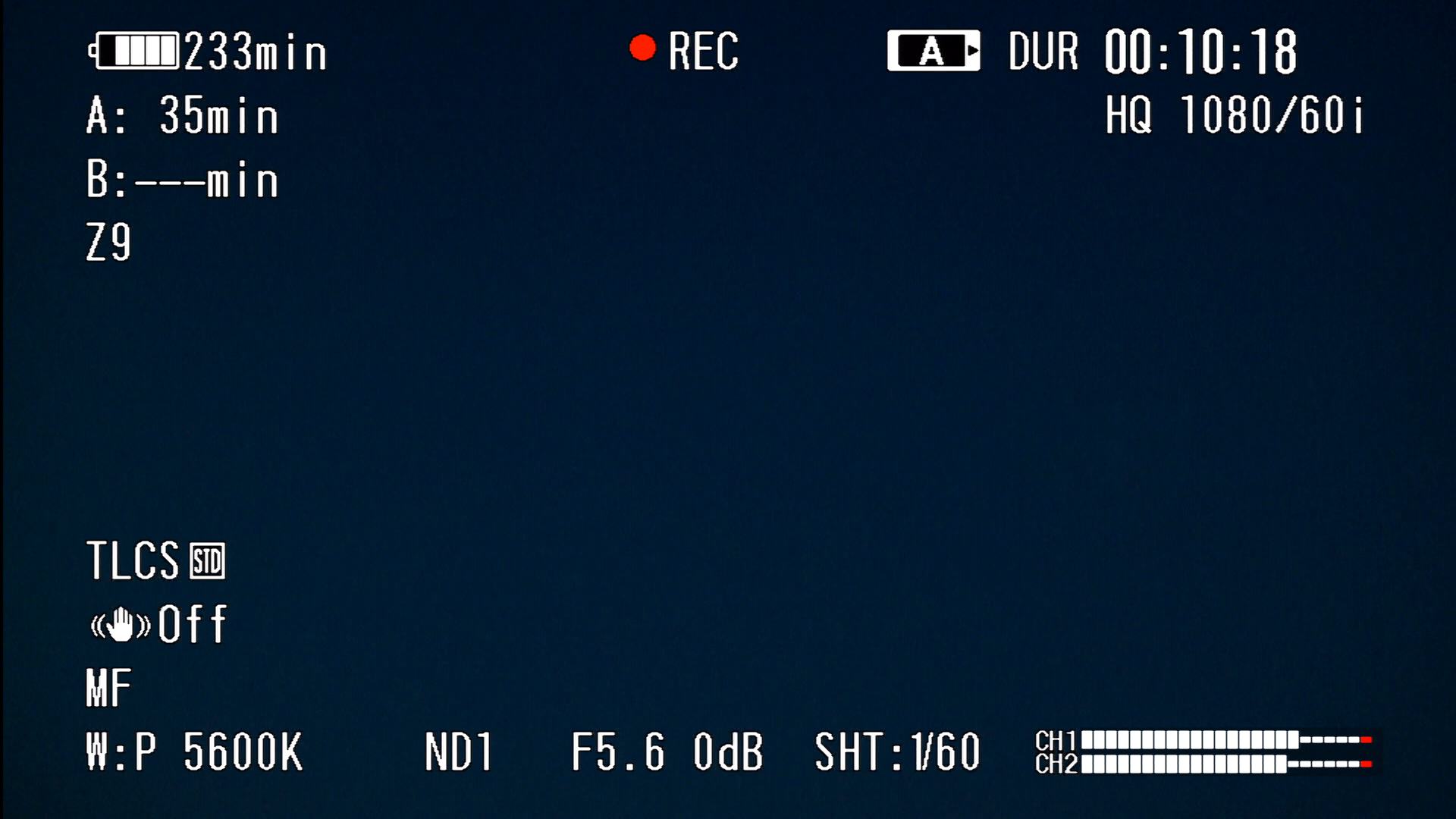

Here we go a 1920 x 1080 screen shot. The focus distance element does not appear on the capture although it is displayed in the viewfinder
Attached Thumbnails
Special Request: Need a screengrab of EVF/LCD info of EX1R-screen-shot.jpg
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old October 3rd, 2011, 07:44 AM   #13
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

If you are still able to perform a capture, I would appreciate the time display to be in TCG. If this is asking too much, I'll take what I can get. But if possible, I would like the time display in TCG please.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old October 3rd, 2011, 09:32 AM   #14
Trustee

Join Date: Sep 2004
Location: Chislehurst, London
Posts: 1,724
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

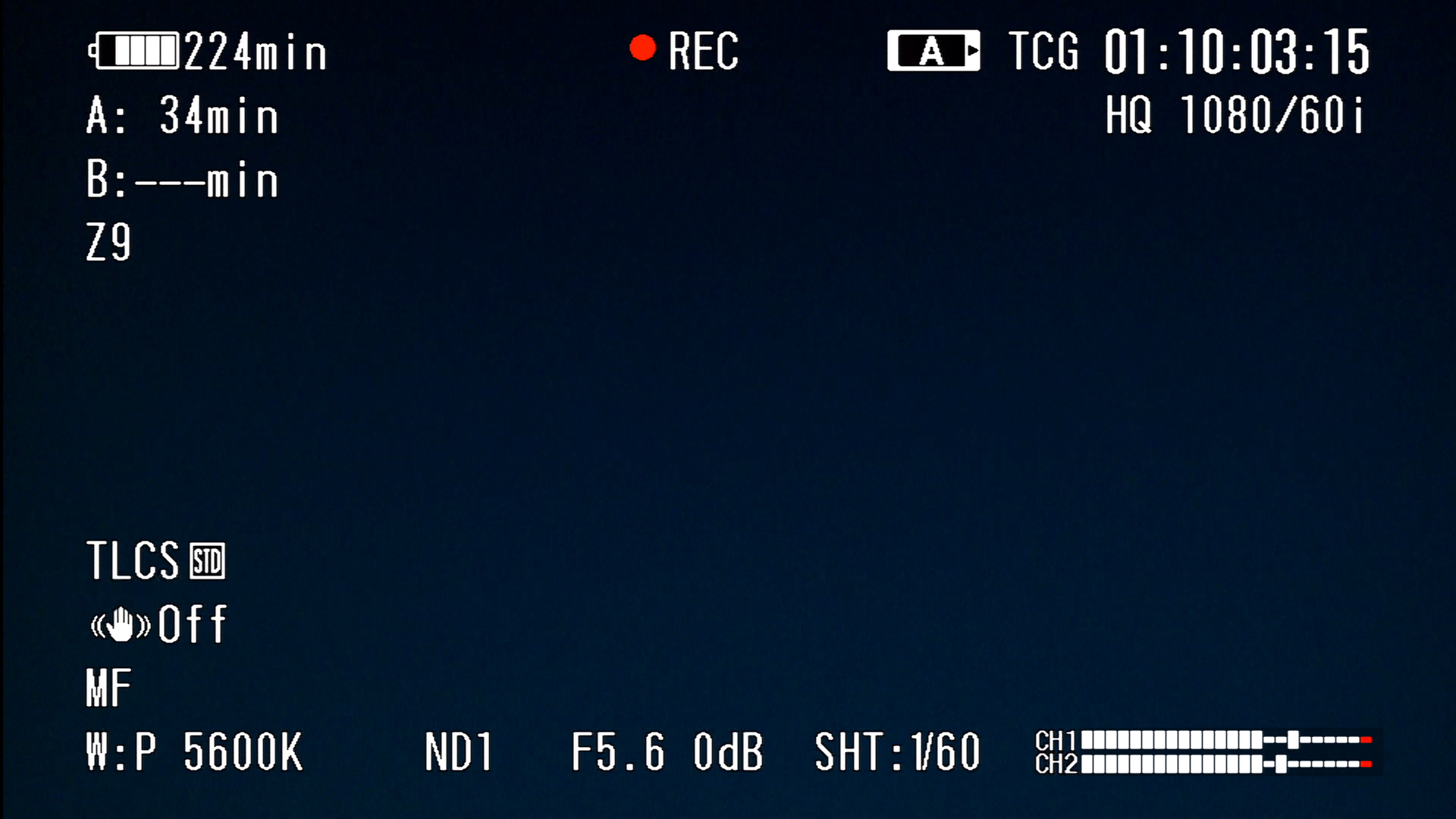

Sorry about that, here is another shot
Attached Thumbnails
Special Request: Need a screengrab of EVF/LCD info of EX1R-screen-shot2.jpg
__________________
Eyes are a deaf manís ears. Ears are a blind manís eyes
Vincent Oliver is offline   Reply With Quote
Old October 3rd, 2011, 10:44 AM   #15
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Special Request: Need a screengrab of EVF/LCD info of EX1R

Thank you very much. This will do. You've been a great help, Vincent.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply
