Old June 12th, 2012, 07:14 AM   #1
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
EX1 weak link - grip issue

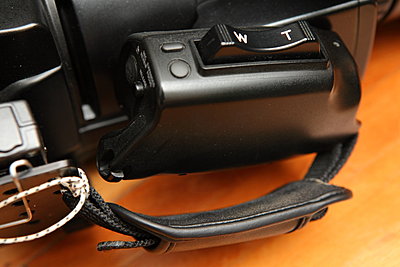

The outcome of this could be much worse, luckily it happened as I was shooting an interview and I was holding the camera with both hands, otherwise it could have ended by hitting the floor HARD.

And one more thing, I remember bitching to Curtis (Juice Designs — Welcome ) about the accessory arm being too close to the hand grip, boy did it save my ass on the field two days ago.
In case you're wondering, this piece of string I used for the fix is called Spectra and it's used by underwater spearmen as it's very, very tough.
Attached Thumbnails
EX1 weak link - grip issue-img_9233.jpg
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 04:17 AM   #2
Major Player

Join Date: Jul 2009
Location: Hampshire, UK
Posts: 693
Re: EX1 weak link - grip issue

Quote:
Originally Posted by Zoran Vincic View Post
In case you're wondering, this piece of string I used for the fix is called Spectra and it's used by underwater spearmen as it's very, very tough.
It is worth checking the straps on all your cameras on a regular basis for wear. I replaced my EX1's shoulder strap at the start of the year as the old one was showing wear around the metal retaining clip. As I wanted a genuine Sony part the price wasn't cheap.

Ironically I have a some superior Canon straps in the cupboard that only cost me a few quid, but I figure putting a Canon strap on a Sony camera probably isn't the done thing. :-)
__________________
Marcus Durham
Media2u, Corporate Video Production For Your Business - http://www.media2u.co.uk
Marcus Durham is offline   Reply With Quote
Old June 13th, 2012, 05:32 AM   #3
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Hi Marcus,

the strap itself is not a problem but the plastic eyelet on the grip itself, you can see it's broken.

I was stunned by the service center's response, they said that Sony's policy is to change the whole lens instead of the grip itself, which is something I'm not going to do.

Does anyone know is it possible to get Sony replacement parts somewhere?
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 06:07 AM   #4
Inner Circle

Join Date: Jan 2004
Location: Boca Raton, FL
Posts: 2,979
Re: EX1 weak link - grip issue

Here's a place to start looking:
https://www.servicesplus.sel.sony.com/
Les Wilson is offline   Reply With Quote
Old June 13th, 2012, 06:34 AM   #5
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Thanks Les,

I've been studying the service manual and while they do describe how to remove the grip cover, there's no part number of it in the exploded view and I don't know what to look for.

Edit,

I've found on that web page that the ref. no. 631 lists as:
631 345246801 345246803 BELT GRIP $151.32

In the service manual the 631 is listed as:
631 3-452-468-01 s BELT, GRIP

$151 seems high for the belt alone so that should probably be the grip cover I need, what do you think guys?
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 06:47 AM   #6

Join Date: Dec 2010
Location: Western Australia
Posts: 576
Re: EX1 weak link - grip issue

More cheap manufacturing for an $8K camera a disgrace.
Lee Mullen is offline   Reply With Quote
Old June 13th, 2012, 07:04 AM   #7
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Hi Jalan,

nothing on this world is indestructible and meant to last forever and I'm not pissed about that, things break, they get repaired and everything's fine.

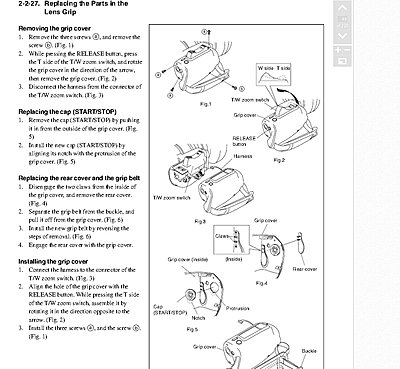

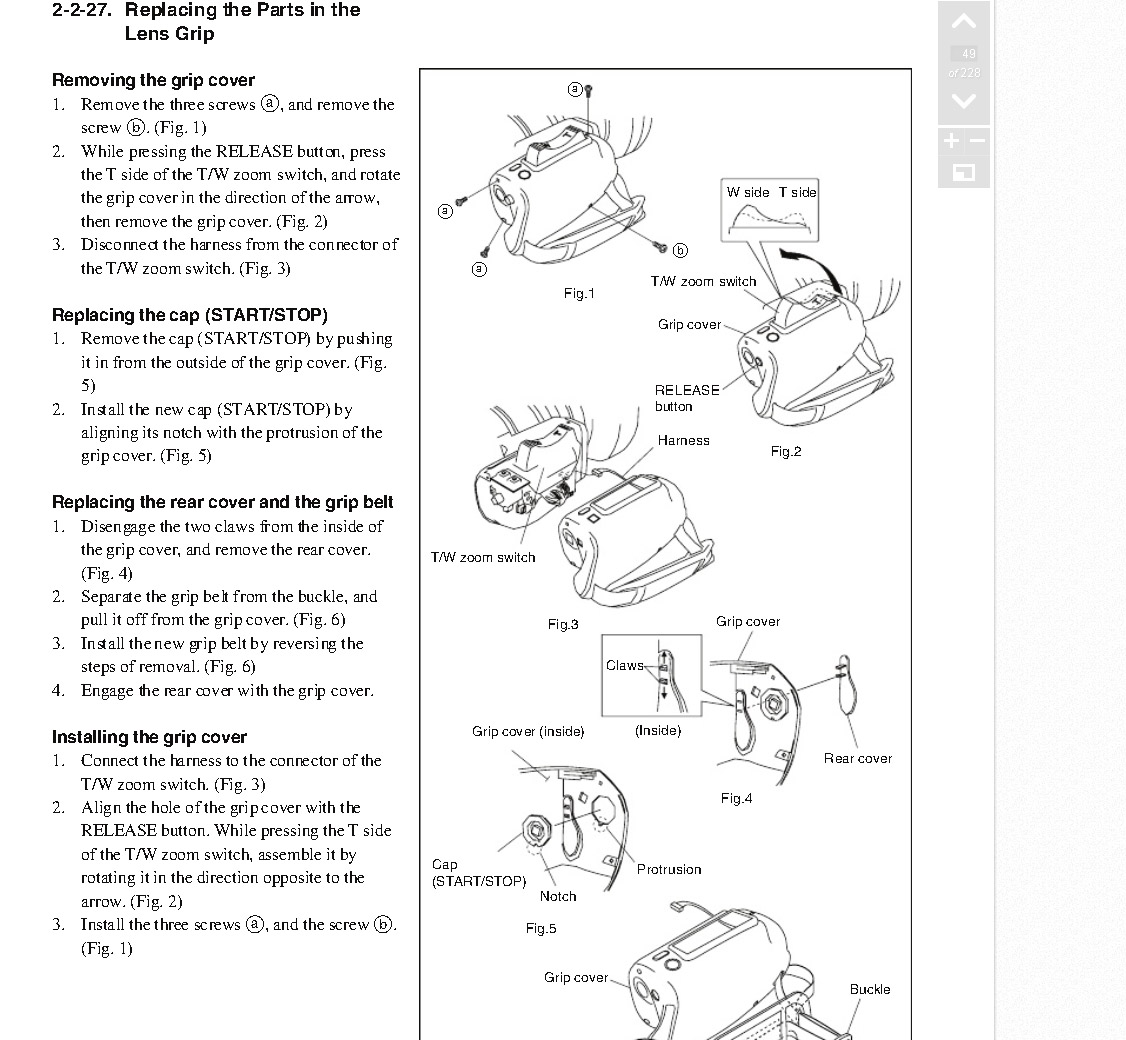

But I'm pissed when Sony wants to change the whole lens (a $2000 repair) because they don't sell a cheap plastic part which is actually very easy to replace (see the pic).
Attached Thumbnails
EX1 weak link - grip issue-ex1-grip.jpg
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 10:35 AM   #8
Major Player

Join Date: Jan 2007
Location: Malta
Posts: 306
Re: EX1 weak link - grip issue

I had broken mine exactly just like yours but on my EX3 cam. I took a photo of the part and emailed it to a very reliable sony approved repair centre in the UK. They shipped me the part in just over 3 days and it was dead easy to change it - I am not normally a DIY man. Not sure whether I can mention the name as I'm not sure whether they are sponsors to this site or not. However you can email me and I'll let you know who the company was.
Brian Cassar is offline   Reply With Quote
Old June 13th, 2012, 10:50 AM   #9
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Thanks Brian, I fired a mail to you.


Small update, I got the part no. from https://www.servicesplus.sel.sony.com/

it's PN: 415266301 LENS GRIP COVER

that part is listed nowhere in the EX1 service manual but instead it is listed as an EX3 part.

Old EX1 and EX3 share the same grip so they should be compatible.
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 12:08 PM   #10
Inner Circle

Join Date: Jan 2004
Location: Boca Raton, FL
Posts: 2,979
Re: EX1 weak link - grip issue

Quote:
Originally Posted by Jalan Salur View Post
More cheap manufacturing for an $8K camera a disgrace.
Jalan, do you know something about the manufacturing at Sony that caused the part to break? I'm not seeing lots of EX-1 owners having this problem? Are you? What do you know about it?
Les Wilson is offline   Reply With Quote
Old June 13th, 2012, 12:52 PM   #11
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Well Brian actually told me something interesting in our email exchange. It seems that the later batches of EX3 got an improved grip casing with a thicker eyelet for the belt.

They wouldn't change it if there was nothing wrong, right?

But I guess they had done that change under the radar, hoping no one would notice.


I'll let you know did I receive the revised part
Zoran Vincic is offline   Reply With Quote
Old June 13th, 2012, 04:32 PM   #12
Inner Circle

Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,835
Re: EX1 weak link - grip issue

Very interesting information - since I have one of the very first EX3's. I will be even more cautious when carrying it around with just my hand in that grip from now on. Thanks for the heads up.
__________________
Andy K Wilkinson - http://www.shootingimage.co.uk
Cambridge (UK) Corporate Video Production
Andy Wilkinson is offline   Reply With Quote
Old June 13th, 2012, 05:56 PM   #13
Trustee

Join Date: Jul 2007
Location: Novato, CA
Posts: 1,770
Re: EX1 weak link - grip issue

Hi Zoran,

Could you take a close up of the replacement grip you get? I have an EX3 and I'd be interested to see if it has one of the later "stronger" eyelets. Also, for reference, if you could note what was different that would be much appreciated.

I had a Canon XH-A1 an it had the same issue with the handle.

Thanks,
Garrett
__________________
Garrett Low
www.GLowMediaProductions.com
Garrett Low is offline   Reply With Quote
Old June 13th, 2012, 10:14 PM   #14
Regular Crew

Join Date: Dec 2009
Location: Edmonton, Canada
Posts: 61
Re: EX1 weak link - grip issue

That's interesting, my EX1 has a very different top connection for the strap on the grip which seems much stronger than the one in the picture. It consists of a horizontal slot where the strap enters the grip. There is no plastic loop.
Larry Kelly is offline   Reply With Quote
Old June 14th, 2012, 04:52 AM   #15
Regular Crew

Join Date: Jul 2010
Location: Split, Croatia
Posts: 189
Re: EX1 weak link - grip issue

Larry, can you take a close up and post it here?
Zoran Vincic is offline   Reply
