Old October 7th, 2012, 03:43 AM   #181
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

One simple question.

Do you get the full iris of 1.9 at full tele mode or will it shrink to 3.x ?

Curious to know

Thanks
Rajiv Attingal is offline   Reply With Quote
Old October 7th, 2012, 06:45 AM   #182
Regular Crew

Join Date: Jan 2008
Location: New York City
Posts: 37
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Rajiv:

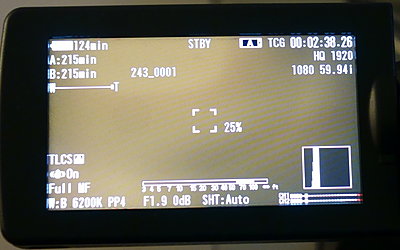

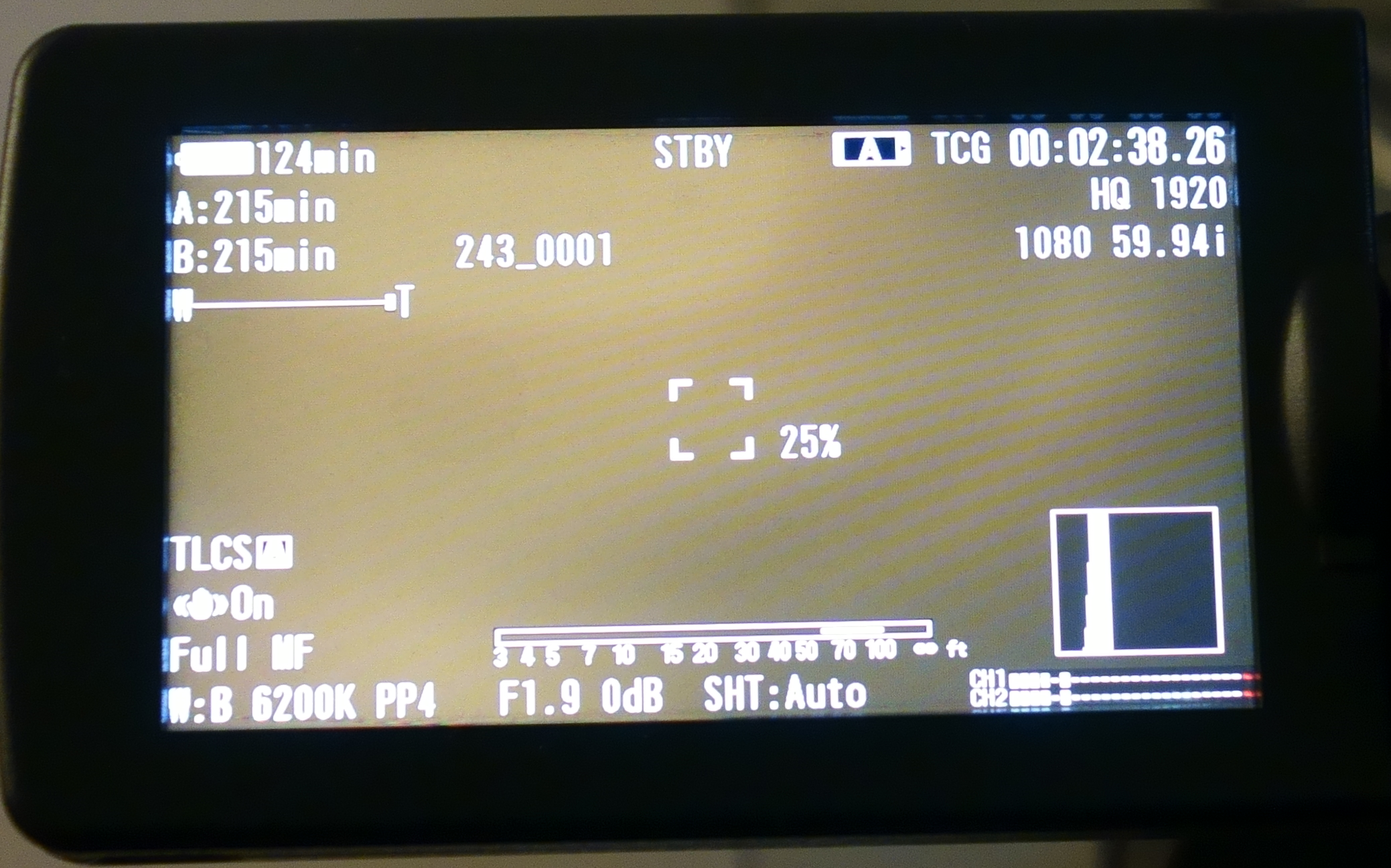

LCD shows F1.9 at full tele zoom setting. Actual Fstop (T-Stop) may be different.
Attached Thumbnails
Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line-dsc00245.jpg
Sara Jourhmane is offline   Reply With Quote
Old October 7th, 2012, 07:30 AM   #183
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,483
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Quote:
Originally Posted by Rajiv Attingal View Post
One simple question.
Do you get the full iris of 1.9 at full tele mode or will it shrink to 3.x ?
Curious to know
Thanks
As with almost any zoom lens, you're going to lose a little light at the telephone end. Even the $25K Fujinon lens on my F800 loses about a stop at the very end of the zoom. But on the PMW-200 the loss is barely noticeable, and certainly not enough of a difference that you'd have to compensate for the change in exposure. If you watch the Brightness Display at the center of the screen (kind of like a spot meter) you'll see that the level only drops 2-3% as you zoom in -- and that little difference is very hard to see with the naked eye.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old October 7th, 2012, 09:43 AM   #184
Major Player

Join Date: Jul 2005
Posts: 562
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Quote:
Originally Posted by Sara Jourhmane View Post
Rajiv:

LCD shows F1.9 at full tele zoom setting. Actual Fstop (T-Stop) may be different.
Sara:

I'm no shutter-ologist, but I'd get rid of that auto-shutter setting. In fact, pretty much go manual with all your settings.
Bill Ward is offline   Reply With Quote
Old October 7th, 2012, 09:50 AM   #185
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

It's the same lens as the EX1, so even though it says F1.9 in the display, in actuality it's F2.8

Also, have to agree with Bill. If you have the shutter on, only use it in progressive scan modes (30p and 24p) in a shutter angle of 180 degrees. In 60i, shutter off is your best bet. (locked in at 1/60)
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old October 7th, 2012, 08:23 PM   #186
Regular Crew

Join Date: Jan 2008
Location: New York City
Posts: 37
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Bill W:

I turned the auto shutter off using direct menu and keeping the shutter on via switch on the side, as recommended by Alister Chapman. Thanks for noticing.
Sara Jourhmane is offline   Reply With Quote
Old October 8th, 2012, 12:32 AM   #187
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Hi all
Thanks for all the clarifications. I am about to buy this camera.
I expected it to maintain the full aperture at full tele mode. I am disappointed
a little to hear this fact though it is small. So I assume it will effect the low light ability
of this camera in full tele mode. isn't it?
Rajiv Attingal is offline   Reply With Quote
Old October 8th, 2012, 06:36 AM   #188
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,483
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Rajiv, you can relax. A 2% to 3% drop still makes it one of the best performing lenses you can buy. What camera in this price range do you think would do better? I will be surprised if you can name one.
A 3% difference won't affect the low-light shooting capabilities of the PMW-200 at all. I think you are worried about something that doesn't matter at all.

BTW, here's some test shots I did comparing the PMW-200 to the EX1.

__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old October 9th, 2012, 12:20 AM   #189
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Doug Jensen, Thanks again for the information.
One more doubt after watching your video is:

Does the UDF mode vs FAT Mode make any difference in picture elements
other than file format like .mxf vs .mp4 and in DVCAM 4 channel vs 2 channel audio.

Thanks
Rajiv Attingal is offline   Reply With Quote
Old October 9th, 2012, 07:10 AM   #190
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,483
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Rajiv, I'm not sure I fully understand your question. Perhaps you could rephrase it if my answer does not cover it.

The camera has 52 different video format choices and you can shoot many different flavors of 1920x1080 or 1280x720 codecs in both UDF and FAT. However, the biggest difference with UDF is that you can record 50Mpbs 4:2:2 with 4 channels of 24bit audio. The best settings you can do with FAT is 35Mbps 4:2:0 with 2 channels of 16bit audio.

Whether the files are saved on the SxS card as .mxf or .mov file won't really matter to most people because the worfklow with XDCAM Browser is exactly the same for both. In other words, you can view/manage/organize both types of footage the same way and the difference is invisibile to the user.

Also, as an FCP7 editor, I import and rewrap footage exactly the same way for FAT or UDF.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old October 10th, 2012, 07:21 PM   #191
Regular Crew

Join Date: Jan 2008
Location: New York City
Posts: 37
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Doug:

Loved your very nice presentation on XDCAM Essentials Episode 1..

Sara Jourhmane is offline   Reply With Quote
Old October 11th, 2012, 03:44 AM   #192
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

[QUOTE=Doug Jensen;1757588]Rajiv, I'm not sure I fully understand your question. Perhaps you could rephrase it if my answer does not cover it.

Doug Jensen, Exactly, your answer covered what I mean.

Thanks again.
Rajiv Attingal is offline   Reply With Quote
Old October 11th, 2012, 07:46 AM   #193
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,483
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Quote:
Originally Posted by Sara Jourhmane View Post
Doug:
Loved your very nice presentation on XDCAM Essentials Episode 1..
Sara, thank you very much.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old October 11th, 2012, 12:23 PM   #194
Major Player

Join Date: Sep 2011
Location: Merritt Island, Florida
Posts: 851
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Mr. Jensen...excellent presentation, you must have been 'listening in class'. : )

Thanks for the overview of features, I look forward to seeing more.

Best regards,

J.
James Kuhn is offline   Reply With Quote
Old October 11th, 2012, 06:51 PM   #195
Inner Circle

Join Date: Jan 2006
Posts: 2,699
Re: Sony PMW-200 Brings HD 4:2:2 Workflow to XDCAM Camcorder Line

Quote:
Originally Posted by Doug Jensen View Post
However, the biggest difference with UDF is that you can record 50Mpbs 4:2:2 with 4 channels of 24bit audio. The best settings you can do with FAT is 35Mbps 4:2:0 with 2 channels of 16bit audio.
Doug - I've got a PMW320 and even though it's the 35Mbs codec, it will still record 4 channels of audio....... That makes me pretty sure the 4 channel ability isn't unique to the XDCAM422 codec. I suspect it's just that Sony made a choice to only implement 2 channels on the handheld range, EX1 and EX3?
David Heath is offline   Reply
