Old January 22nd, 2013, 09:25 AM   #1
Tourist

Join Date: Jan 2013
Location: Lytham St Annes, UK
Posts: 1
Sony PMW-EX3 spare part required

Hi all,
One of our EX3's recently took a tumble off its tripod and has suffered a bit of damage. I've managed to fix most of the damage but unfortunately the internal bar that locks the front grip in position has snapped. This is the part that connects the 'release' button on the front grip to the internal cog to stop it rotating freely.

I've scoured the internet but can't seem to find anyone selling this part, I'm loathed to send it off to Sony as if I can get the part it's a simple 30 second fix.

Photos of the part I'm talking about and its location in the camera can be found here:

https://www.dropbox.com/sh/j0x193wkudjdsx0/sWgLCT4b2B

I'm hoping someone may be able to help. Thanks in advance!

Mark
Mark Kimber is offline   Reply With Quote
Old January 23rd, 2013, 08:29 AM   #2
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Sony PMW-EX3 spare part required

Try this place:

PMWEX3 Repair | PMW-EX3 service| PMW EX3 out of focus | PMW-EX3 NO POWER

I know you are in the UK but they may be able to ship you the part.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old January 23rd, 2013, 09:50 AM   #3
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: Sony PMW-EX3 spare part required

Quote:
Originally Posted by Mark Kimber View Post
Hi all,
One of our EX3's recently took a tumble off its tripod and has suffered a bit of damage. I've managed to fix most of the damage but unfortunately the internal bar that locks the front grip in position has snapped. This is the part that connects the 'release' button on the front grip to the internal cog to stop it rotating freely.

I've scoured the internet but can't seem to find anyone selling this part, I'm loathed to send it off to Sony as if I can get the part it's a simple 30 second fix.

Photos of the part I'm talking about and its location in the camera can be found here:

https://www.dropbox.com/sh/j0x193wkudjdsx0/sWgLCT4b2B

I'm hoping someone may be able to help. Thanks in advance!

Mark
The service manual does not show that part as being available separate from the lens itself. Only the record switch and the record button cover are listed parts inside the grip cover.

It is likely your only alternative is to find someone parting out a camera.
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old January 26th, 2013, 09:55 PM   #4
Major Player

Join Date: Feb 2005
Location: Carlisle, PA
Posts: 451
Re: Sony PMW-EX3 spare part required

Did you talk to a machine shop about the possibility of welding and machining the part to repair it? ( assuming it is metal)
Kevin Spahr is offline   Reply With Quote
Old January 26th, 2013, 11:20 PM   #5
Regular Crew

Join Date: Dec 2009
Location: Edmonton, Canada
Posts: 61
Re: Sony PMW-EX3 spare part required

If you can't find a part, I may be able to build one for you. I have an EX1 so if the parts are the same I could use mine as the sample and then send the new part to you.

Larry
Larry Kelly is offline   Reply With Quote
Old February 22nd, 2013, 07:52 AM   #6
Major Player

Join Date: Jan 2007
Location: Malta
Posts: 306
Re: Sony PMW-EX3 spare part required

Hi Mark,

I too have an issue with this part - my camera did not take any knocks but apparently it just broke on its own . I have contacted WTS Video in Barking, London and they managed to find the part for me. I have just been informed today that the part has arrived at their end and will ship it out to me. The cost for the part will be 13.20 Plus VAT and 15 Delivery to Malta. I will let you know how it goes when I receive it next Thursday.

**Updated - actually I've just received the invoice and it has costed me just 14 (VAT inclusive) including shipping! The part no is as follows: Fujinon Lever P47B11976650 **

Last edited by Brian Cassar; February 22nd, 2013 at 12:07 PM. Reason: Update of information
Brian Cassar is offline   Reply With Quote
Old February 27th, 2013, 04:28 PM   #7
Tourist

Join Date: Feb 2013
Location: italy
Posts: 4
Re: Sony PMW-EX3 spare part required

Hi people, same problem here. Brian I tried twice to write to WTS. I have no answer.
Abis Maurizio is offline   Reply With Quote
Old February 28th, 2013, 03:51 AM   #8
Major Player

Join Date: Jan 2007
Location: Malta
Posts: 306
Re: Sony PMW-EX3 spare part required

I just received the part and inserted it this morning. A five minute job and the grip is as good as new!

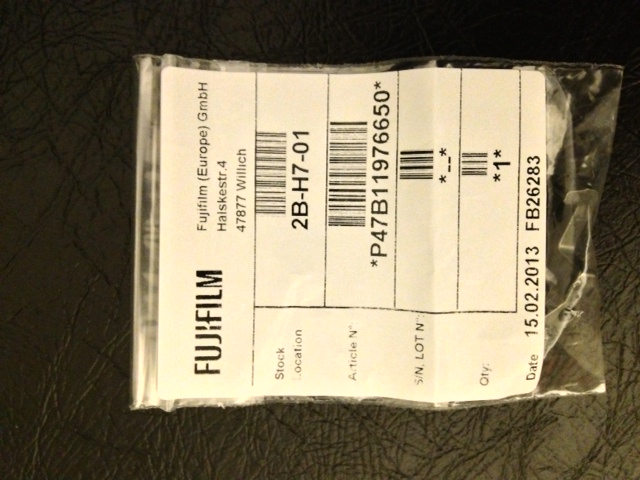

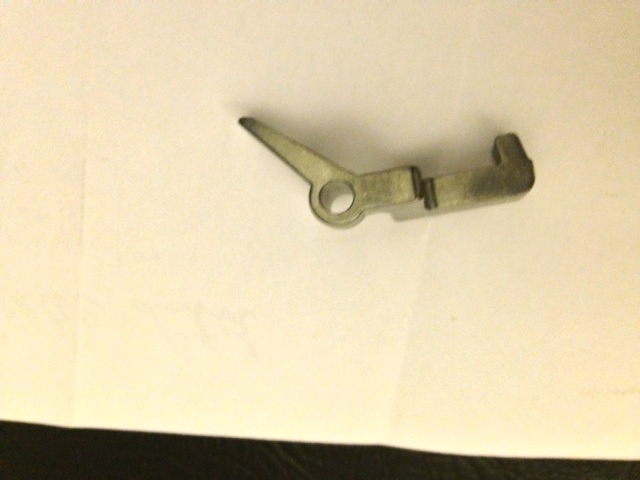

I am attaching a photo of the packet and the part itself.

WTS did take some time before they answered me. Just write to them again and state the exact part no.
Attached Thumbnails
Sony PMW-EX3 spare part required-photo-1.jpg   Sony PMW-EX3 spare part required-photo-2.jpg

Brian Cassar is offline   Reply With Quote
Old March 1st, 2013, 03:51 AM   #9
Tourist

Join Date: Feb 2013
Location: italy
Posts: 4
Re: Sony PMW-EX3 spare part required

Thanks Brian I wrote again
Abis Maurizio is offline   Reply With Quote
Old March 20th, 2013, 01:42 PM   #10
Tourist

Join Date: Feb 2013
Location: italy
Posts: 4
Re: Sony PMW-EX3 spare part required

Hi Brian the spare part is on the way. One question in what is the right way to put the little spring?
Abis Maurizio is offline   Reply With Quote
Old March 21st, 2013, 12:05 AM   #11
Major Player

Join Date: Jan 2007
Location: Malta
Posts: 306
Re: Sony PMW-EX3 spare part required

Abis, I forgot exactly how I did it, but I know for sure that there is no complexity - it is a few seconds job to replace one with the other. You cannot get it wrong :)
Brian Cassar is offline   Reply With Quote
Old March 21st, 2013, 04:22 AM   #12
Tourist

Join Date: Feb 2013
Location: italy
Posts: 4
Re: Sony PMW-EX3 spare part required

Thank Brian I just have the part I try to put them together :)
