best way to rescale 720-Footage to 1080?

Hey everybody!

i got a clip filmed in 720 (50p) wich i now need to scale up to 1080.
Of course i could simply use the "Scale"-Setting in Premiere/After-Effects, but are there any plugins, wich give better results/sharper images?

thanks for tipps! :-)
Thomas Nibler is offline   Reply With Quote
Old December 10th, 2013, 09:34 AM   #2
New Boot

Join Date: Apr 2010
Location: Capistrano Beach, CA
Posts: 16
Re: best way to rescale 720-Footage to 1080?

I have had great success with Cineform codec, now part of GoPro. You can download a trial
version for a few weeks & try for yourself. It will appear as a option in Media Encoder, choose .avi or .mov for your final output. Works great for me.
Paul DeBaets is offline   Reply With Quote
Old December 10th, 2013, 11:59 PM   #3
Major Player

Join Date: Jan 2012
Location: Port Townsend, WA
Posts: 445
Re: best way to rescale 720-Footage to 1080?

Yes, I just ran into this as well, needing to add a 720 clip to a 1080 workflow. The 720 was really macroblocking when viewed on a large monitor (42"). I ran it through Cineform out to 4:2:2 and it really helped. At the end I then rendered the whole project to Avid's DNxHD codec and reran it through Handbrake to render it to 720. Results were startlingly better. All macroblocking has vanished from the 720 footage. Even the 1080p footage that was 4:2:2 and 4:2:0 Canon came out looking better than when I rendered directly from the Adobe world. Not saying it was bad, but it just looked cleaner and sharp to my eyes.
__________________
Al
Upper left hand corner of the map
Al Bergstein is offline   Reply With Quote
Old March 21st, 2014, 04:39 AM   #4
Regular Crew

Join Date: Jul 2010
Location: Germany
Posts: 51
Re: best way to rescale 720-Footage to 1080?

Thanks for your response!

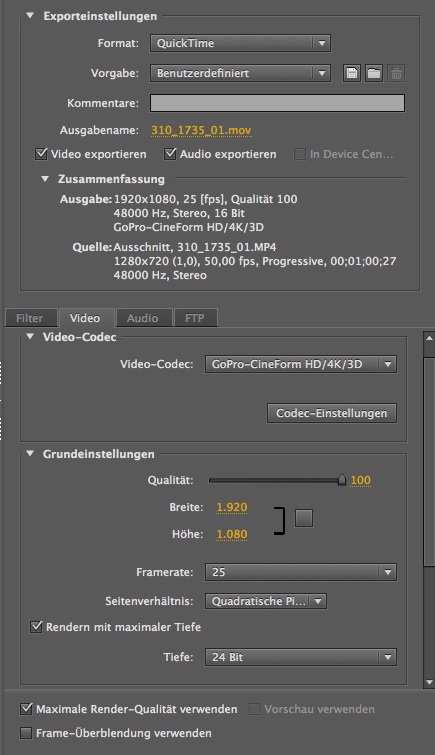

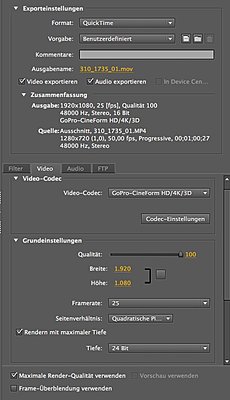

I downloaded and installed the GoPro Studio and now "GoPro-CineForm HD/4K/3D" is available as video-codec. Can i simply convert the file I want to rescale in Adobe Media Encoder and set the output-settings like this?

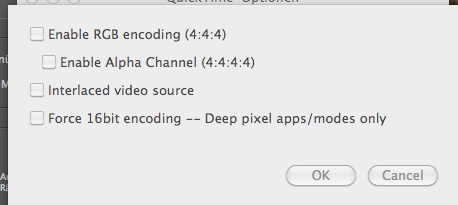

(1920x1080, Square Pixels, 25fps, Maximum Depth; i left the "Codec Settings" the way they were - everything unchecked)
Attached Thumbnails
best way to rescale 720-Footage to 1080?-1.jpg   best way to rescale 720-Footage to 1080?-2.jpg

Thomas Nibler is offline   Reply With Quote
Old March 21st, 2014, 05:41 AM   #5
Regular Crew

Join Date: Jul 2010
Location: Germany
Posts: 51
Re: best way to rescale 720-Footage to 1080?

When I compared the results, it seems to me that the GoPro-Codec just brightens and sharpens the image a bit.
When I scale the 720p Footage to 150% in After-Effects, the GoPro-Codec seems much better. But when I apply the "Unsharp Mask"-Effect, i get very similar results. I'd even prefer the "After-Effects + Unsharp Mask"-Method over the GoPro-Conversion, because i got more controll over the sharpening Process and the result of the GoPro-Codec seem a litte more "digital" und "sharpend".

Here are some example-Pictures of a crime movie I'm working on.
Attached Thumbnails
best way to rescale 720-Footage to 1080?-gopro.jpg   best way to rescale 720-Footage to 1080?-ae.jpg

best way to rescale 720-Footage to 1080?-ae_unsharpmask.jpg
Thomas Nibler is offline   Reply With Quote
Old March 21st, 2014, 02:50 PM   #6
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,957
Re: best way to rescale 720-Footage to 1080?

DaVinci Resolve has very good quality re-sizing processes as well as the ability to adjust the sharpness scaling. Plus it's free!
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old March 22nd, 2014, 01:26 AM   #7
Inner Circle

Join Date: Feb 2009
Location: Brisbane, Australia
Posts: 2,257
Re: best way to rescale 720-Footage to 1080?

I'm a bit worried about the footage. He doesn't look very dead to me. Or ... way too happy for a dead person.

Just saying. :-P

Andrew
Andrew Smith is offline   Reply With Quote
Old March 22nd, 2014, 01:29 PM   #8
Regular Crew

Join Date: Jul 2010
Location: Germany
Posts: 51
Re: best way to rescale 720-Footage to 1080?

Quote:
Originally Posted by Andrew Smith View Post
He doesn't look very dead to me. Or ... way too happy for a dead person
Thats why we have the miraculous wonders of postproduction... better? ;)

(jeah, i know he doesnt really look dead... its kind of a parody anyways)
Attached Thumbnails
best way to rescale 720-Footage to 1080?-quatsch.jpg
Thomas Nibler is offline   Reply With Quote
Old March 23rd, 2014, 01:06 AM   #9
Inner Circle

Join Date: Feb 2009
Location: Brisbane, Australia
Posts: 2,257
Re: best way to rescale 720-Footage to 1080?

Much better now. :-)

BTW, the Matrox MXO2 has a very good hardware upscaling/downscaling engine in it. You could always play the footage through and capture from the HDMI output (to a Ninja or something) and get your 1080 version of the footage that way.

Andrew
